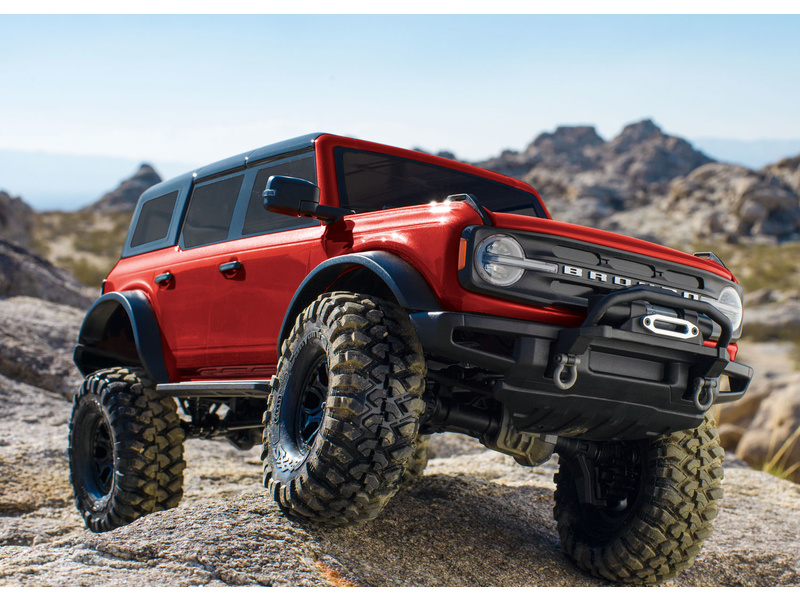

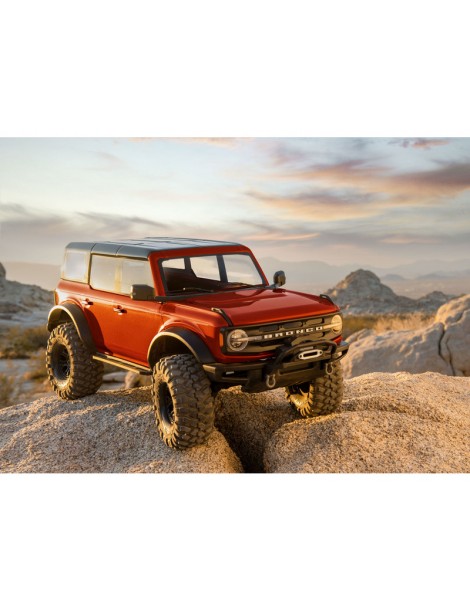

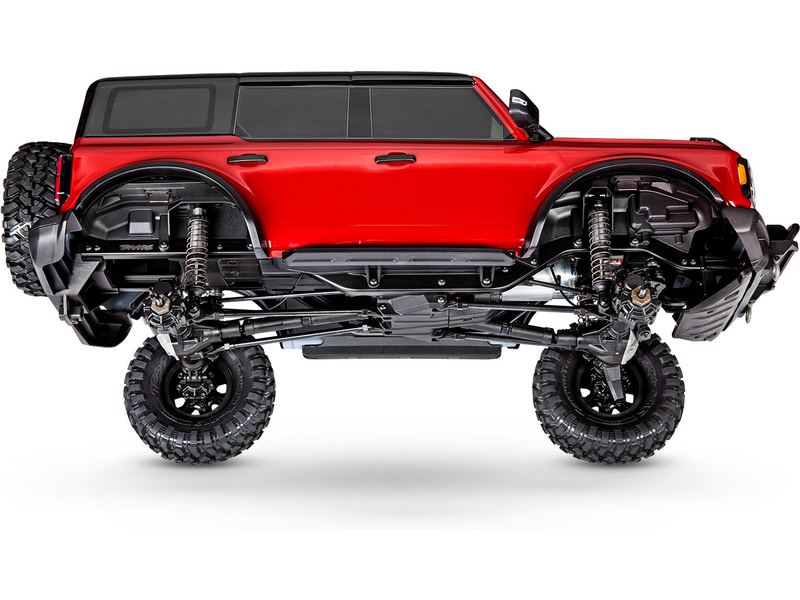

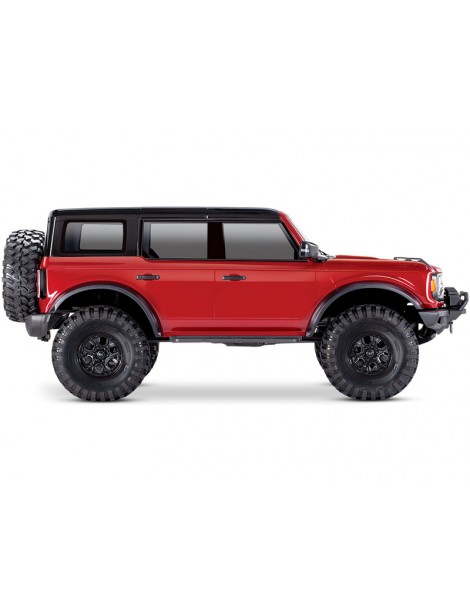

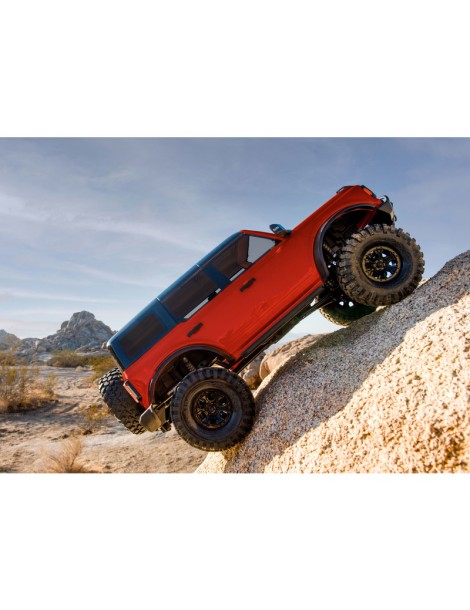

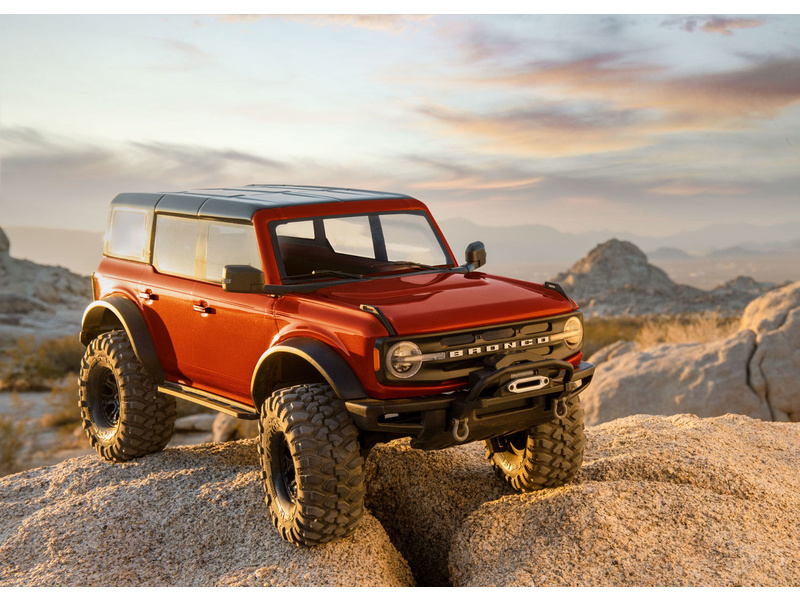

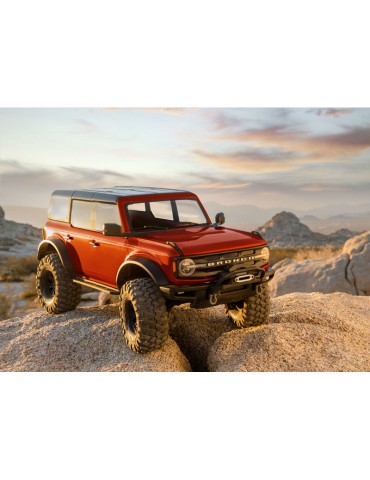

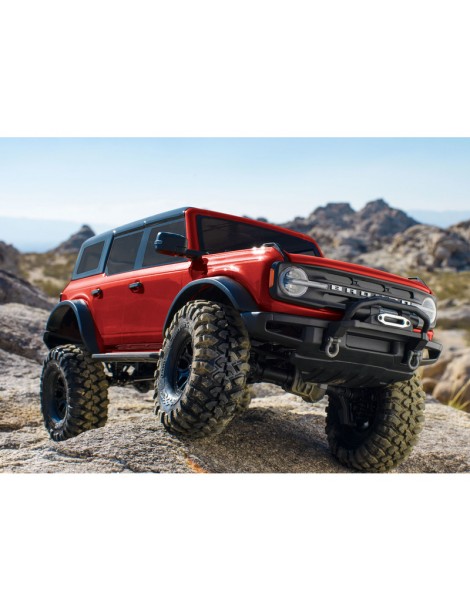

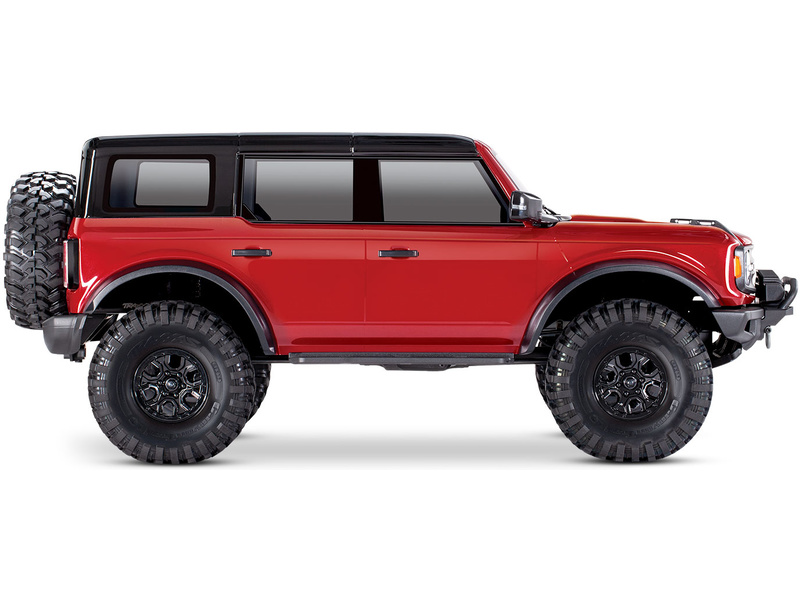

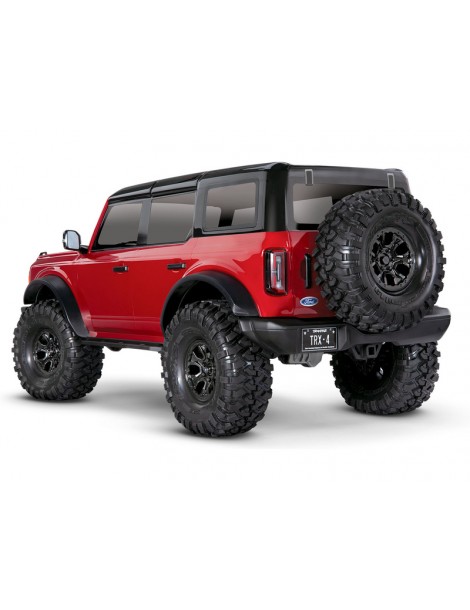

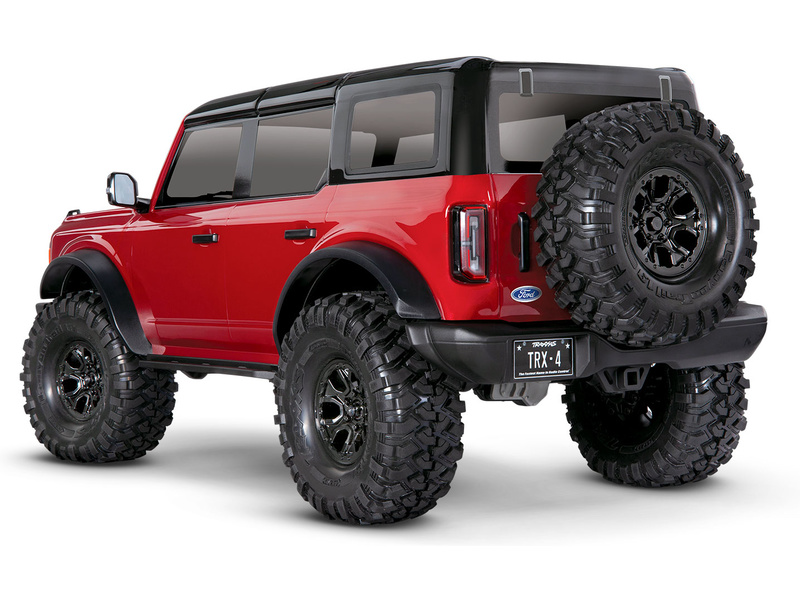

Traxxas TRX-4 Ford Bronco 2021 TQi 1:10 RTR red

Description:

The legend is back. After 25 years, the Bronco has returned as Ford’s top-performing 4X4 and America’s most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.

Feature:

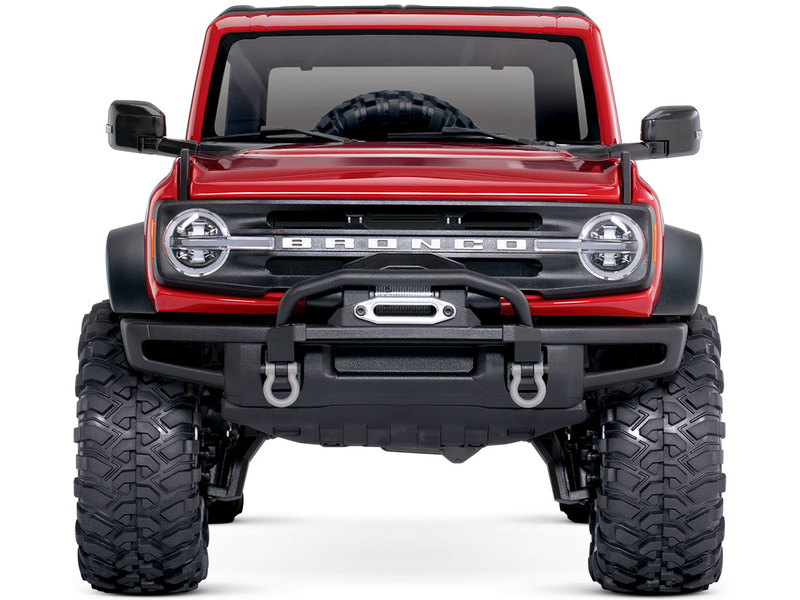

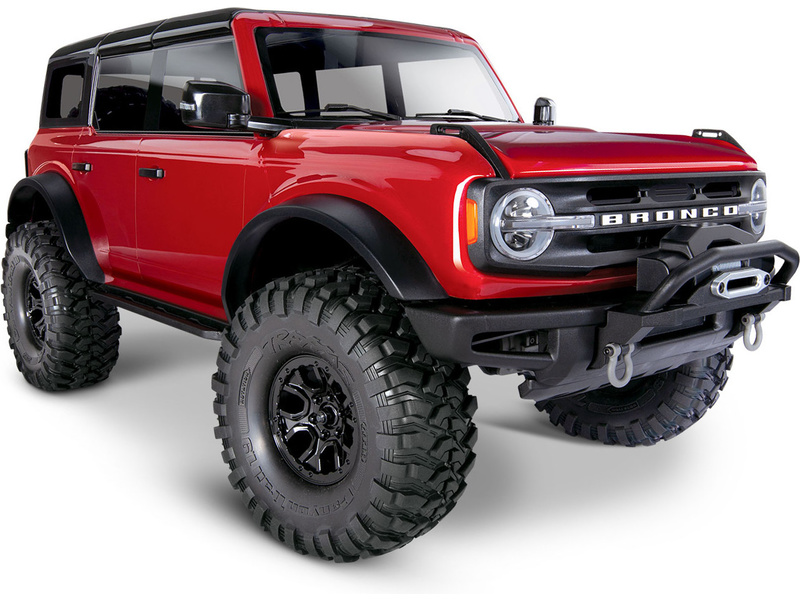

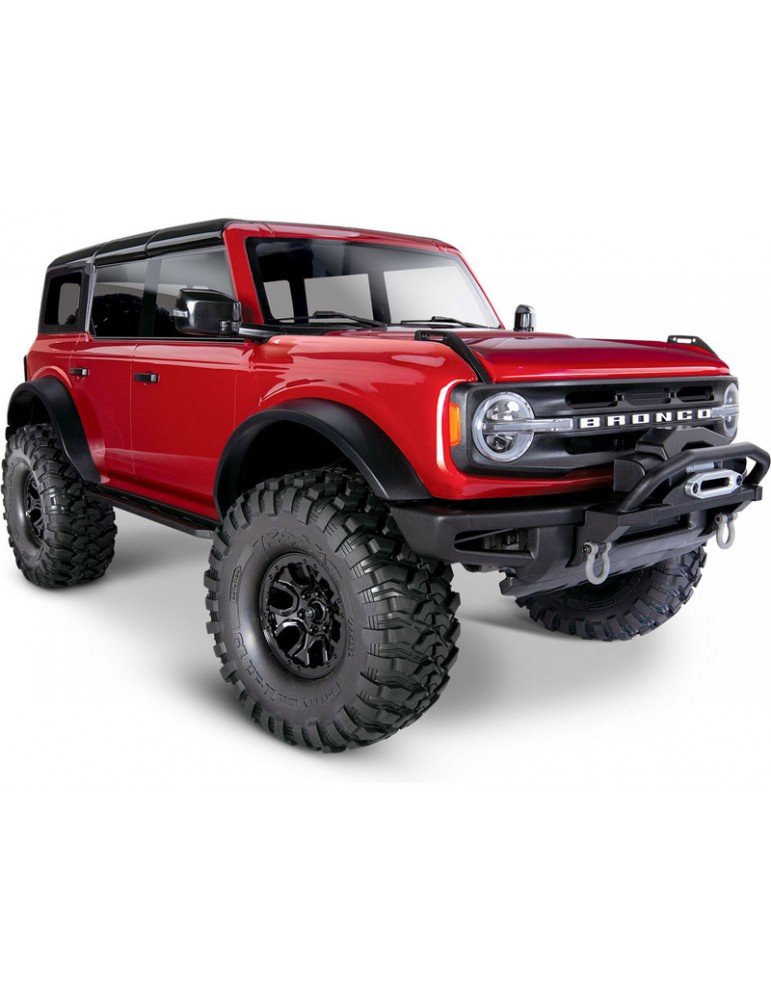

Officially Licensed 2021 Ford® Bronco Body:

• Two-tone paint with black roof and clear windows

• LED-ready headlights and tail lights with multi-function capability

• Scale details

• Black molded grille with white Bronco logo

• Replica hood cowl w/ wipers and folding mirrors

• Replica spare tire mount

• Replica door handles

• Tough PVC fender flares, wheel wells, and floor pans

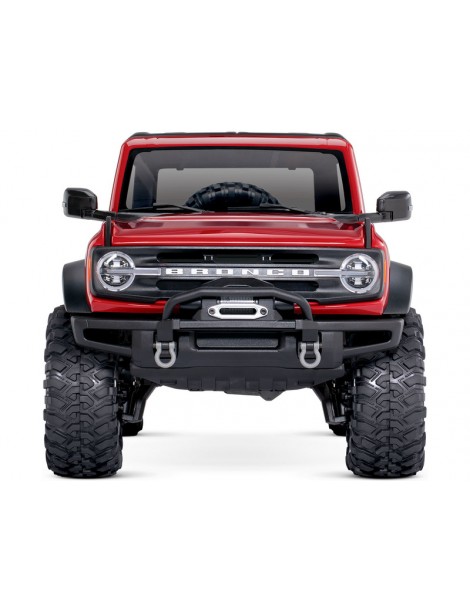

• Front and rear Bronco bumpers with skid plate and replica winch

Clipless Body mounting:

• Clipless design for smooth body appearance

• Rugged internal body cage for added rigidity

• Body details mount directly to internal frame

Trail-tuned XL-5 HV Waterproof Electronic Speed Control:

• Fully waterproof design

• Five drive profiles

• Sport Mode — forward / brake / reverse

• Race Mode — forward / brake / no reverse

• Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)

• Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral

• Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake

• Traxxas EZ-Set® one-button setup

• Large, efficient heat sink

• Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)

• Two stage low voltage protection (LVD)

Motor

• Powerful Titan™ 21T reverse rotation motor with internal cooling fan

• Precision, preset gear mesh adjustments

• Motor retention separate from gear mesh

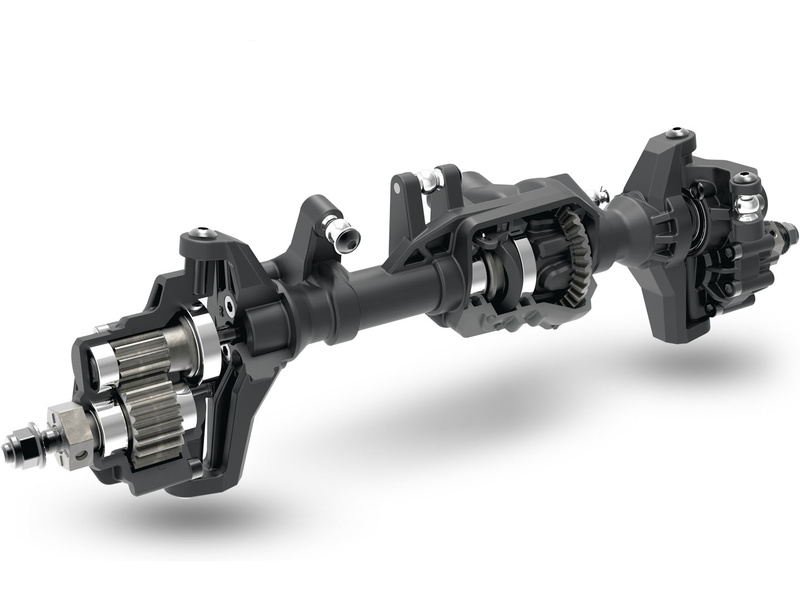

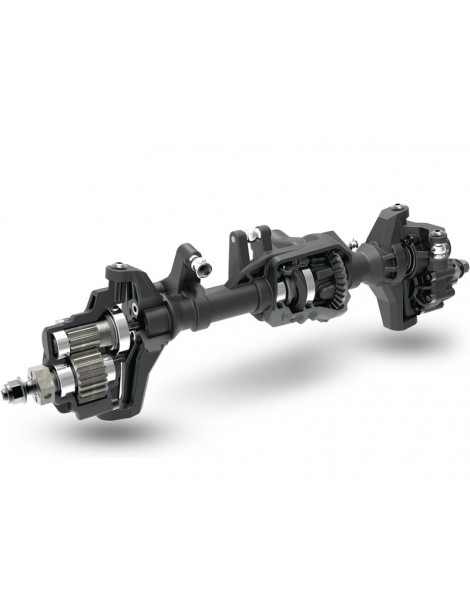

Portal Axles

• Increase ground clearance

• Eliminate torque twist

• Steel gears

• Improve axle geometry and reduce strain on driveshafts

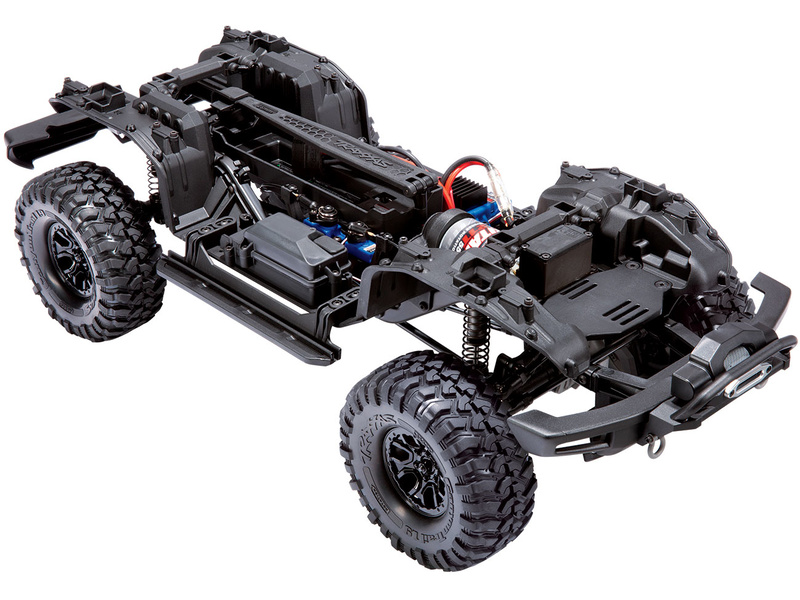

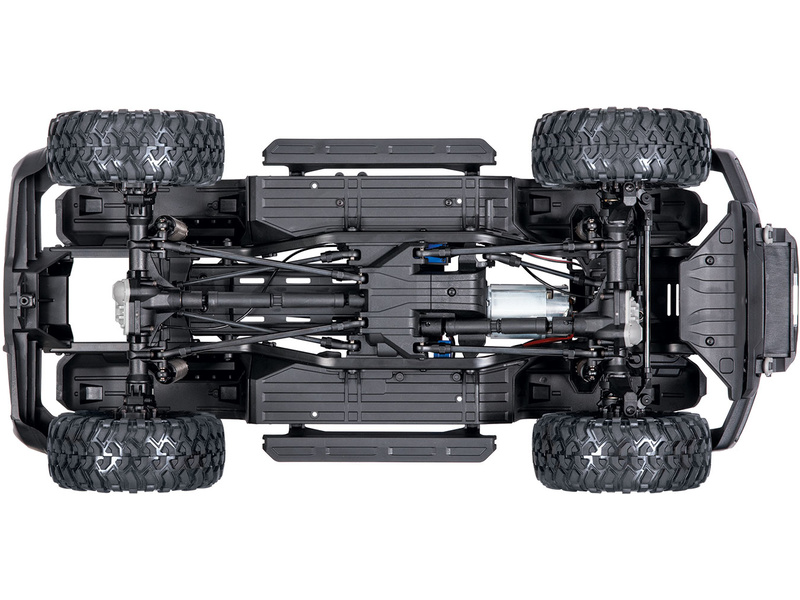

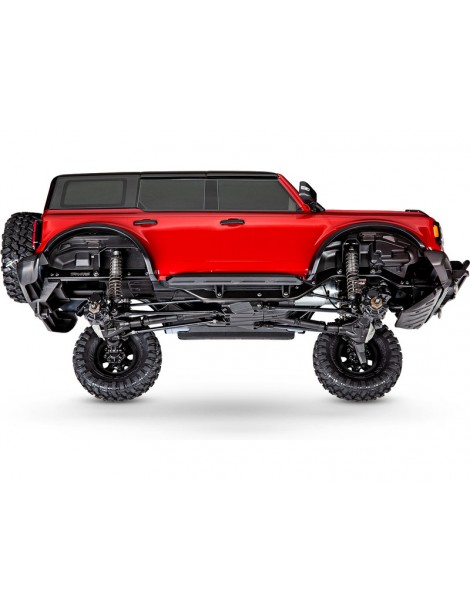

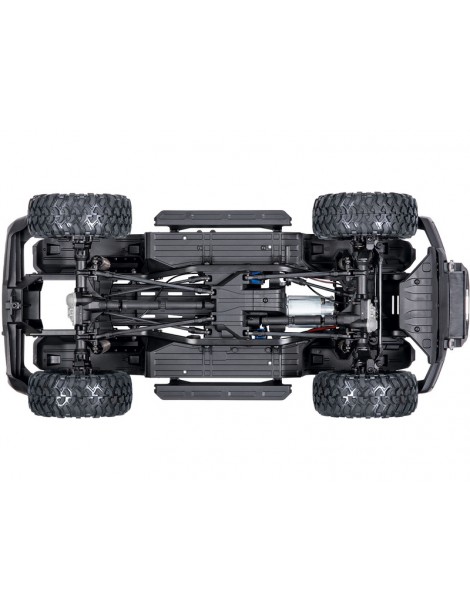

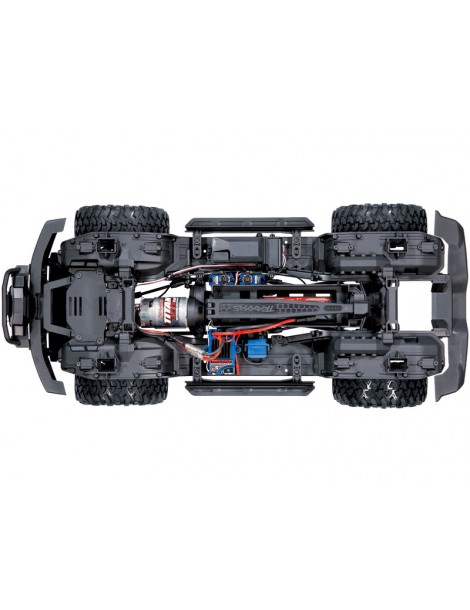

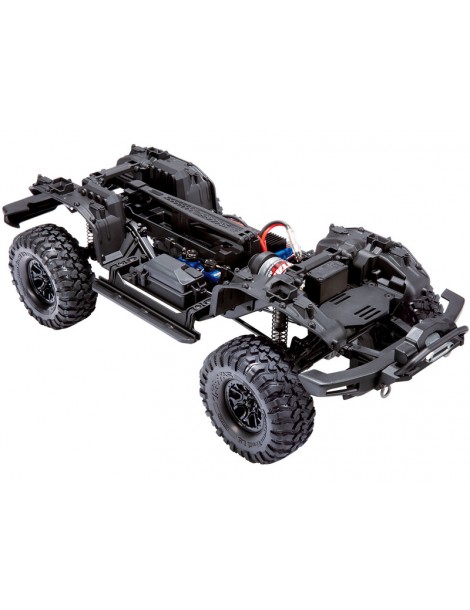

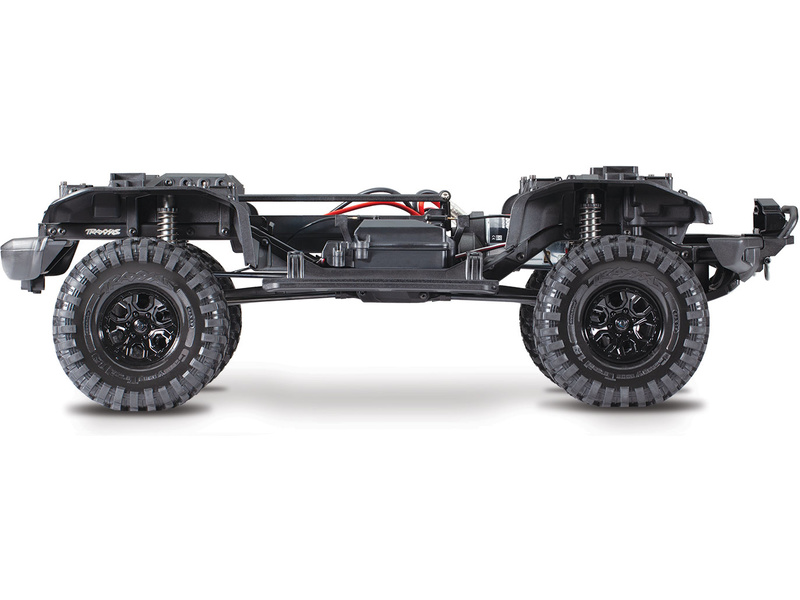

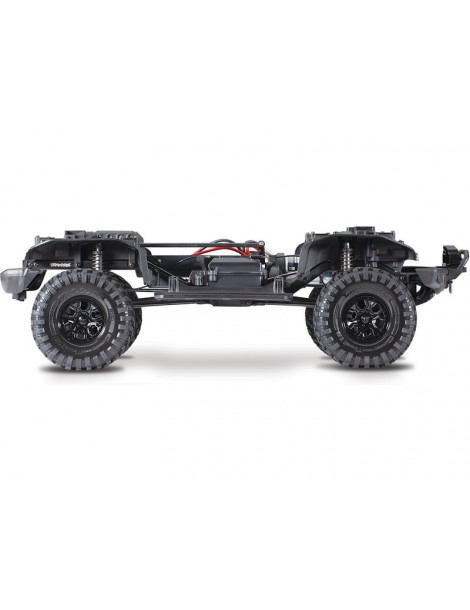

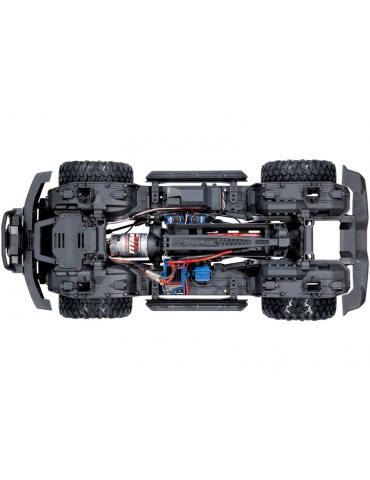

Rigid Steel Frame

• 1.5mm thick steel frame rails increase torsional rigidity

• Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)

• Adjustable rear shock tower positions for SWB and LWB configurations

• Rugged rock rails adjust for width

• Wire routing clips integrated into frame rails



Drivetrain

• Full-time shaft driven 4-wheel drive

• Tough 6mm stub axles

• Steel front CV driveshafts

• Hardened steel rear axle shafts

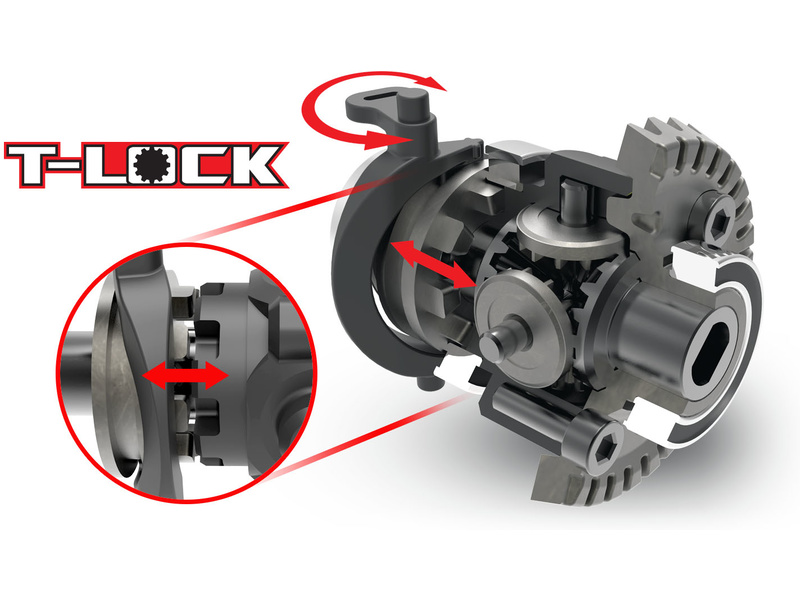

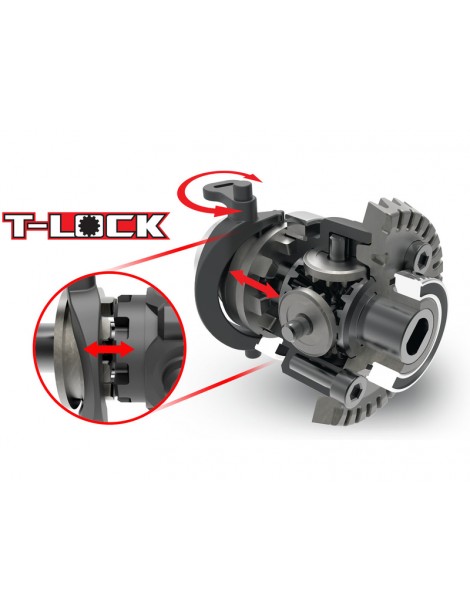

• Remote locking steel gear differentials with cable-actuation

• Steel gear transfer case

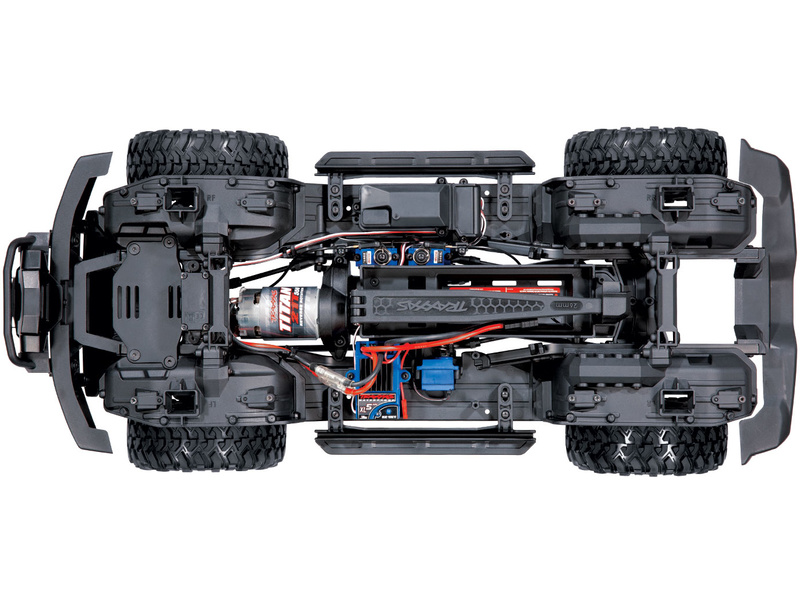

Innovative Battery Compartment

• Hinged battery strap allows quick and easy battery access

• No pins to lose

• Accommodates different height batteries

• Accepts full-size long battery packs

• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

• Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

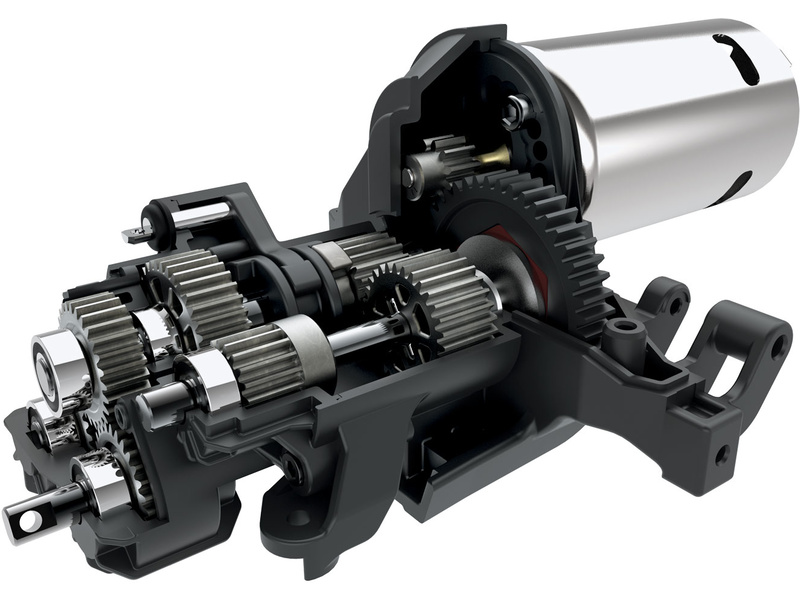

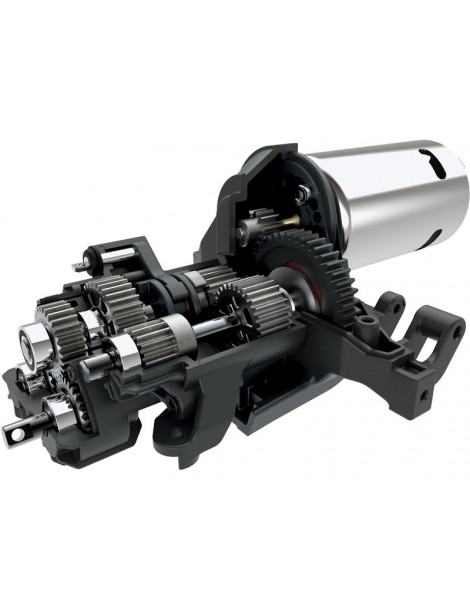

Transmission

• Two speed high/low range with remote shifting

• Dual horizontal shafts

• Twin friction plate slipper clutch

• Easily removed for servicing

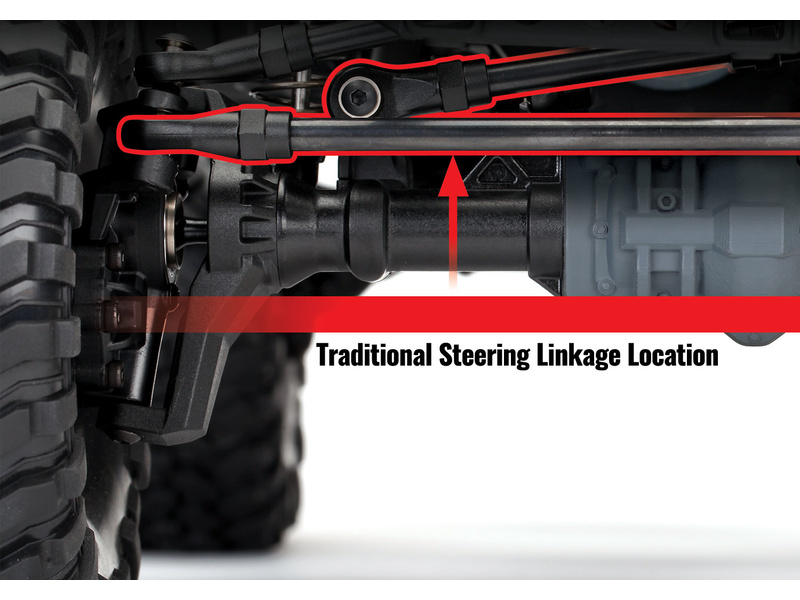

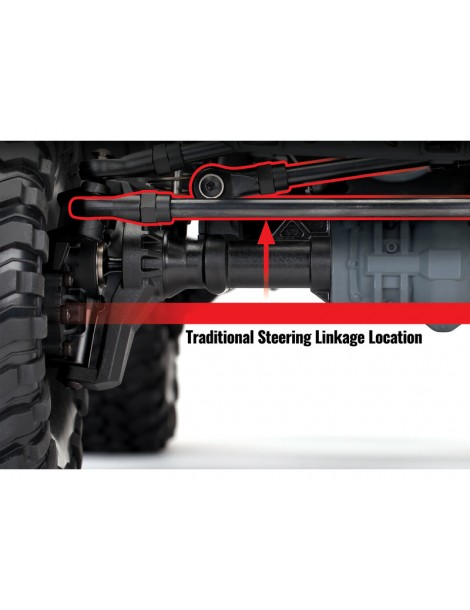

Steering

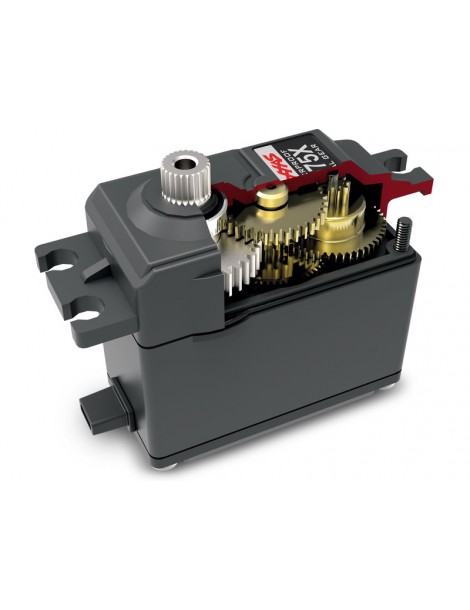

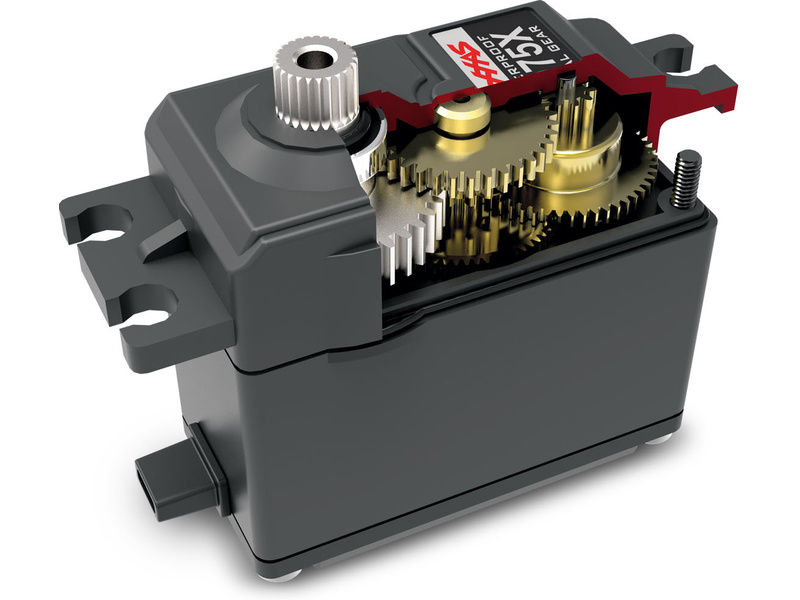

• Chassis mounted 2075X metal gear digital servo

• Superior 45° steering angle

• Direct steering (no servo saver)

• Steering geometry corrected for bump steer

Suspension

• Front — 3 link with panhard

• Rear — Triangulated 4 link

• Heavy-duty rod ends with steel hollow balls

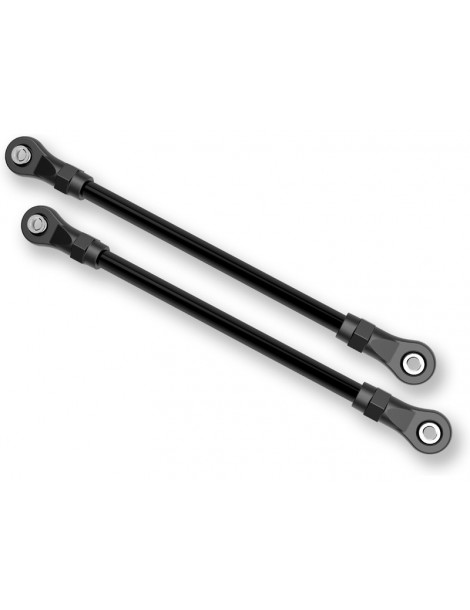

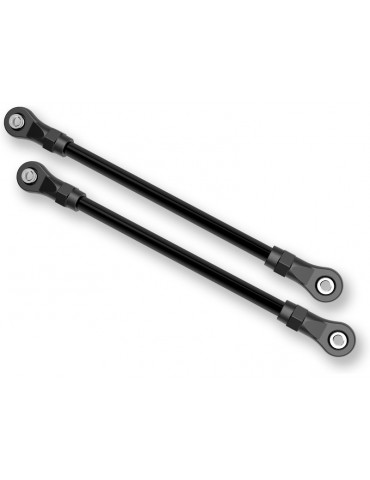

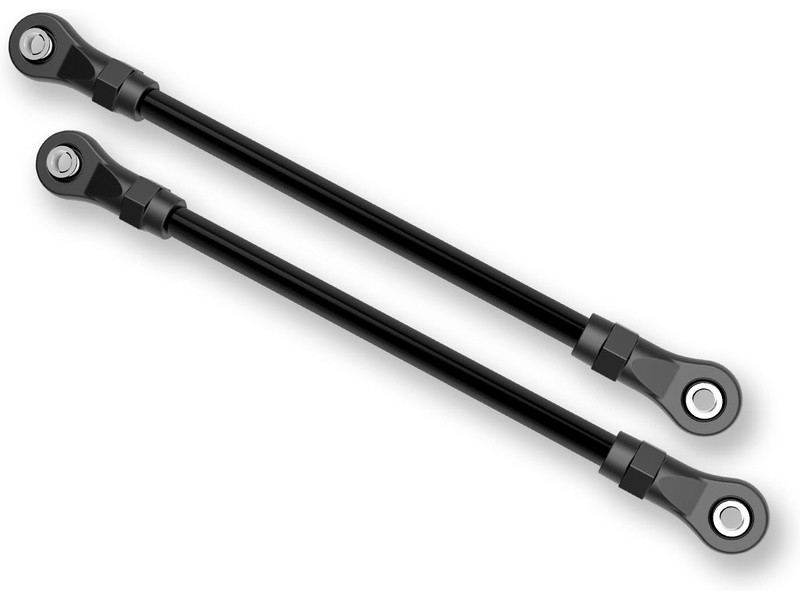

• 5mm diameter steel link rods with 4mm threaded ends

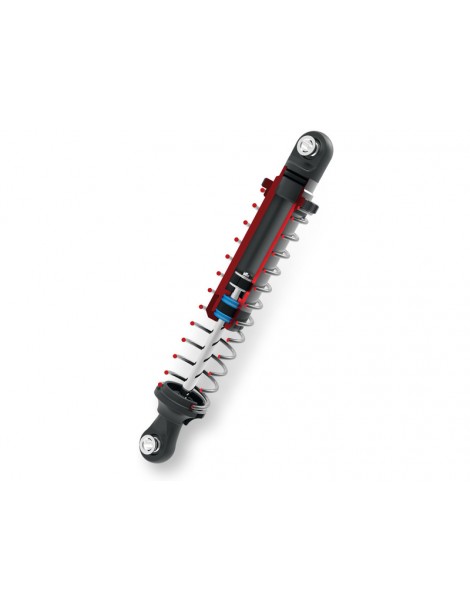

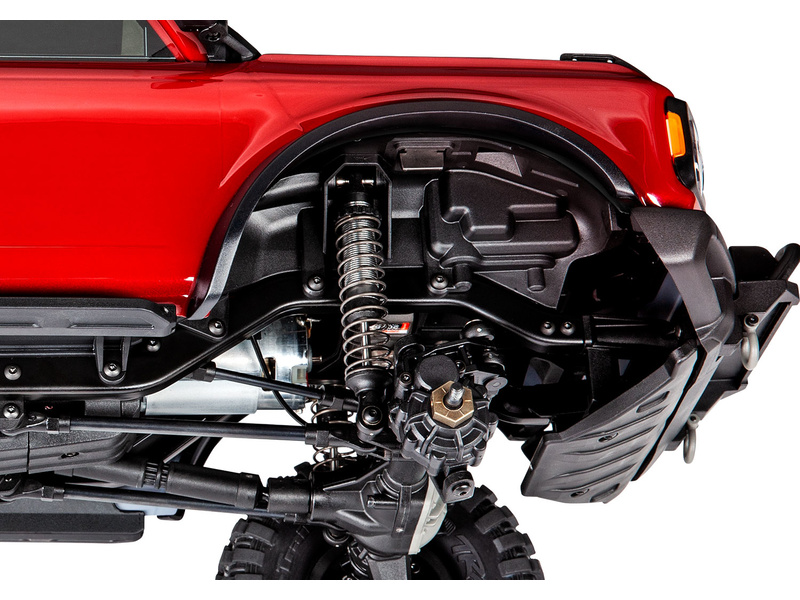

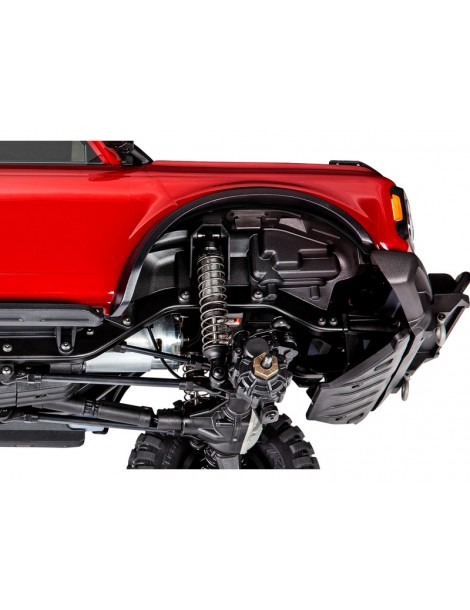

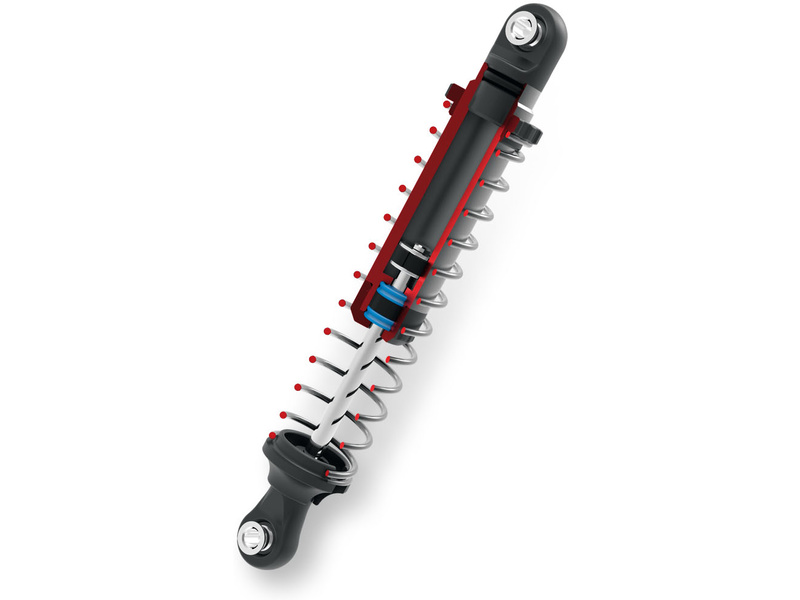

Aluminum GTS Shocks

• Oil-filled coilover GTS shocks

• Silver-anodized aluminum bodies

• Threaded bodies with collars easily adjust ride height

• Silky smooth damping for the toughest trails

• O-ring cap seal and dual X-ring shaft seals

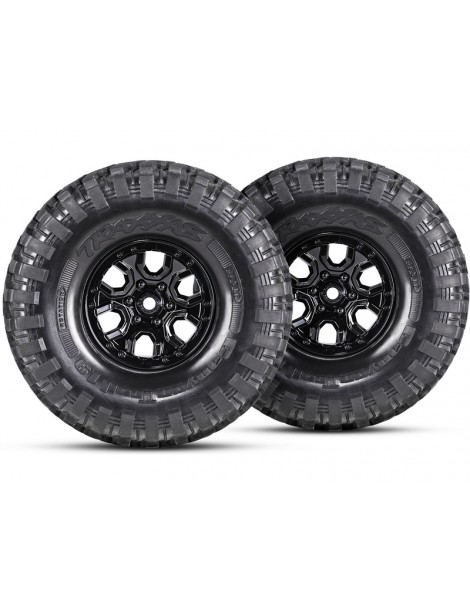

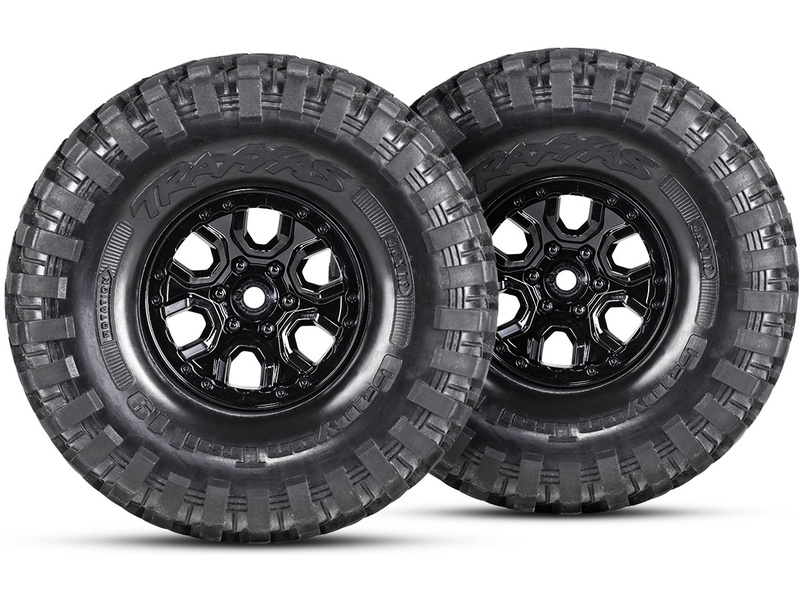

Wheels and Tires

• Replica black 2021 Bronco wheels

• Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts

• Trail tuned S1 rubber compound

• 12mm steel hex

Transmitter

• TQi™ 2.4GHz 4-channel transmitter

• Traxxas Link enabled

• Telemetry ready #6533 5-channel micro receiver with failsafe

• Automatically stores and loads settings for up to 30 Traxxas Link enabled models

• Exclusive Cruise Control feature for extended trail driving

• Adjustable steering and throttle sensitivity (exponential)

• Adjustable steering and throttle endpoints

Patented O-ring sealed watertight receiver box keeps the micro receiver dry

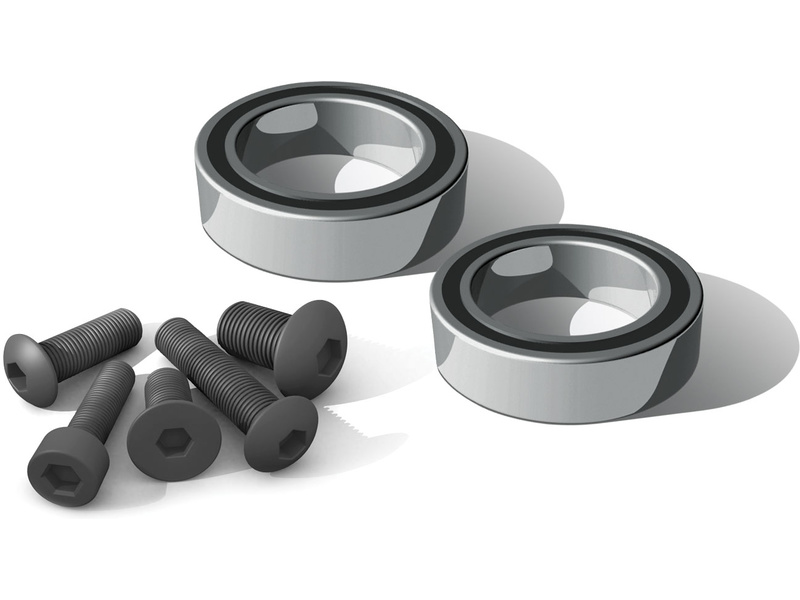

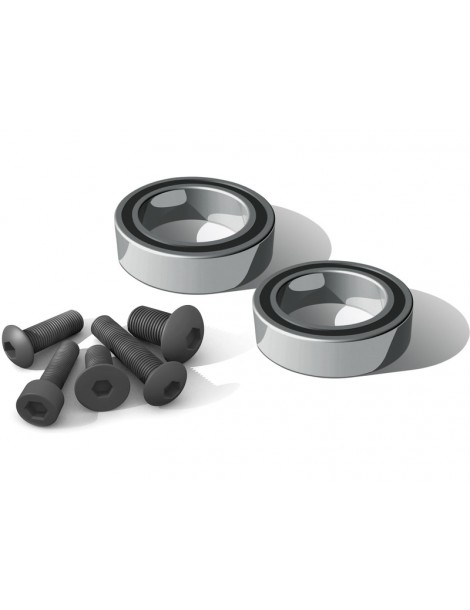

Sealed Ball Bearings

Hex hardware with rust-resistant black oxide coating

Specification:

Vehicle Specs:

• Length (overall): 584mm

• Length (chassis): 549mm

• Front Track: 249mm

• Rear Track: 249mm

• Ground Clearance: 80mm

• Weight: 2.91kg

• Height: 239mm

• Wheelbase: 324mm

• Front Shock Length: 90mm

• Rear Shock Length: 90mm

• Front Wheels: 49 x 26mm

• Rear Wheels: 49 x 26mm

• Front Tires: 118 x 48mm

• Rear Tires: 118 x 48mm

• Approach Angle: 52°

• Departure Angle: 49°

• Breakover Angle: 58°

• Hex Size: 12mm

• Speed Control: XL-5 HV

• Motor (electric): 21T Reverse Rotation

• Transmission: 2-speed Hi-Lo, Remote Shifting

• Gear Pitch: 32P

• Differential Type: 4 Gear, Remote Locking

• Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers

• Brake Type: Electronic “Hill Hold”

• Drive System: Shaft Driven 4WD

• Steering: Chassis Mounted Servo

• Servo: 2075X Metal Gear

• Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter

• Receiver: 6533

• Skill Level: 1

• Battery Tray: 158.75 L x 47 W x 23/26mm H

Motor Specs:

• Type: High-torque brushed motor

• Size: 550

• Weight: 390g (13.76oz)

• Length: 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)

• Turns: 21T reverse rotation

• Voltage: 16.8V

ESC Spec:

• Input Voltage: 6–7 Cells NiMH, 2–3s LiPo

• Case Size: 1.23” W x 2.18” D x 1.04” H

• Weight: 2.6oz (74g)

• Motor Limit: 21-turns (550 size)

• On Resistance Forward: 0.004 Ohms

• On Resistance Reverse: 0.004 Ohms

• Peak Current - Forward: 100A

• Peak Current - Reverse: 100A

• Braking Current: 60A

• Continuous Current: 18A

• BEC Voltage: 6.0 VDC

• BEC Current: 1A

• Power Wire: 14 Gauge / 5”

• Input Harness Wire: 26 Gauge / 14.5”

• Transistor Type: MOSFET

• PWM Frequency: 1700Hz

• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)

• Thermal Protection: Thermal Shutdown

• Profile selection:

• Sport Mode: 100% FWD, 100% brakes, 100% REV

• Race Mode: 100% FWD, 100% brakes, no REV

• Training Mode:* 50% FWD, 100% brakes, 50% REV

• Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral

• Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral

• Single-button setup: Yes, Traxxas EZ-Set®

Include:

• Traxxas TRX-4 2021 Ford Bronco Orange Version , Ready-To-Race® model

• XL-5 HV waterproof electronic speed control

• Titan™ 21T reverse rotation motor

• TQi™ 2.4GHz radio system with cruise control

• High quality maintenance tools

Require:

• Batteries

• Charger

• AA Batteries (4 pcs)
