FOXY G3 Brushless Motor C2820-1150
The FOXY G3 motors are brushless 14-pole rotary casing electric motors with excellent electrical properties, a very sophisticated design and high-end manufacturing. Hardened steel shafts and high-quality bearings ensure a long service life, while the quality of materials used to make the stator on the rotor also guarantee excellent performance at a high efficiency. They are low-speed, high-torque engines that handle large diameter propellers and pitches without the need for gearboxes.
|Engine marking system: CxxYY / zzzz|
|C - brushless motor ("outrunner", "circular")|
|xx - stator diameter in mm|
|YY - stator length in mm|
|zzzz - revolutions per volt (rpm / V), "KV"|
The FOXY G3 C2820-1150 is a brushless motor designed to power up to 2200 g models with two-cell or three-cell Li-po batteries. Perfect for models like Classic EP, Acromaster, Stinson EP, Piper Cub EP 1520mm from Phoenix, etc.

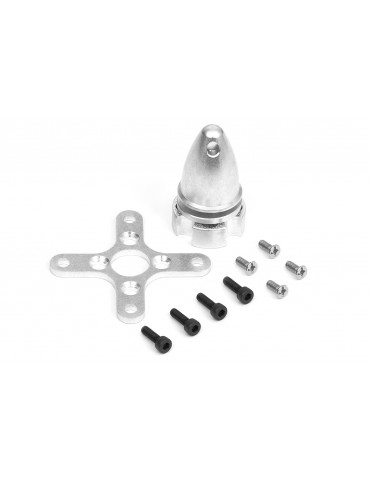

Engine Mounting: The FOXY G3 C2820-1150 is designed for both front and rear mounting. For front mounting at the front of the motor, use four M3 screws that extend into the front of the motor within 3.5-4 mm. The pairs of holes for the fixing screws at the motor front are regularly spaced 180 ° on 25 and 19 mm diameter circles. The engine bulkhead should be 4-5 mm aviation plywood. Rear mounting kit (mounting cross, rear mounting prop) is supplied with the engine.
Engine set includes: FOXY G3 C2820-1150 brushless motor with 3.5mm gold-plated connectors, rear mounting kit, Instruction manual.
Supply voltage LiXX cells: 3 - 4 ; RPM/V [RPM/min/V]: 1150 ; Max. power (30 s/4S LiPo) [W]: 570 ; No load current (3S) [A]: 1.9 ; Max. peak current (30 s) [A]: 52 ; Diameter [mm]: 35 ; Length [mm]: 44.7 ; Shaft diameter [mm]: 4 ; Weight [g]: 142 ; Nr. of poles: 14 ; Trimming [°]: 15 - 25 ; ESC [A] : 60 - 70 ; Sailplane up to Weight [g]: 2200 ; Trainer up to Weight [g]: 2100 ; Acrobat up to Weight [g]: 1800 ; 3d up to Weight [g]: 1200The marking according to the engine dimensions: C3542; The marking according to the stator dimensions: C2820
|Powering LiXX cells||3 - 4|
|Max. power (30 s/4S LiPo) [W]||570|
|Open-circuit current (3S) [A]||1.9|
|Max. peak current (30 s) [A]||52|
|Shaft diameter [mm]||4|
|Timing [°]||15 - 25|
|ESC [A]||60 - 70|
|Weight of glider (up-to) [g]||2200|
|Weight of trainer (up-to) [g]||2100|
|Weight of acrobat (up-to) [g]||1800|
|Weight of 3D (up-to) [g]||1200|
|Doporučená vrtule||3S: 12x6”|
