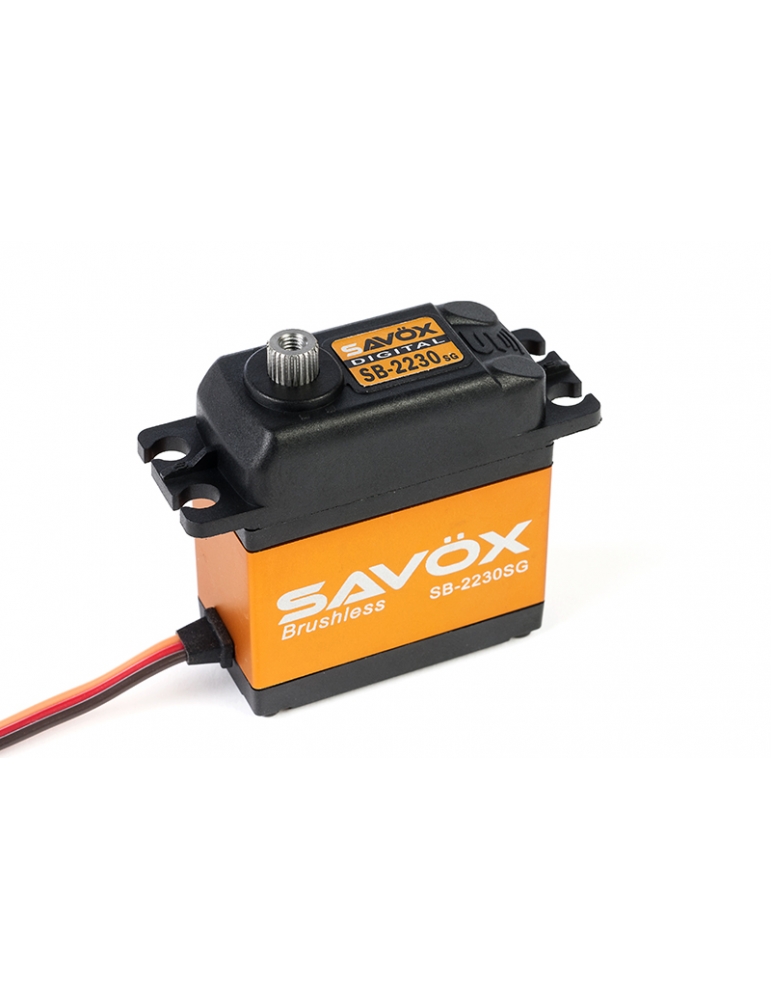

Savox SB-2230SG+ BRUSHLESS HiVOLT Digital servo (42kg-0,13s/60°)

The Savox SB-2230SG+ Monster Torque Brushless servo contains unique steel gears to accommodate the massive output torque of this servo in a slightly taller case design.

Features:

Combines leading edge technology with super high 12 bit (4096) resolution.
Ideal for giant scale aircraft, monster truck, and 1/8 scale off road.
Brushless motor provides longer life and cooler operating temps.
Extremely strong unique steel gears ensure long-life and durability
NEW: SSR mode compatible
NEW: SOFT START

Specifications:

Torque @ 6v - 36.0kg
Torque @ 7.4v - 42.0kg
Speed @ 6v - 0.16 sec/60 deg
Speed @ 7.4v - 0.13 sec/60 deg
Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9
Weight: 84g

Technical Details

Operating Temperature: (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 200 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless
