RC8B4.2e Team kit

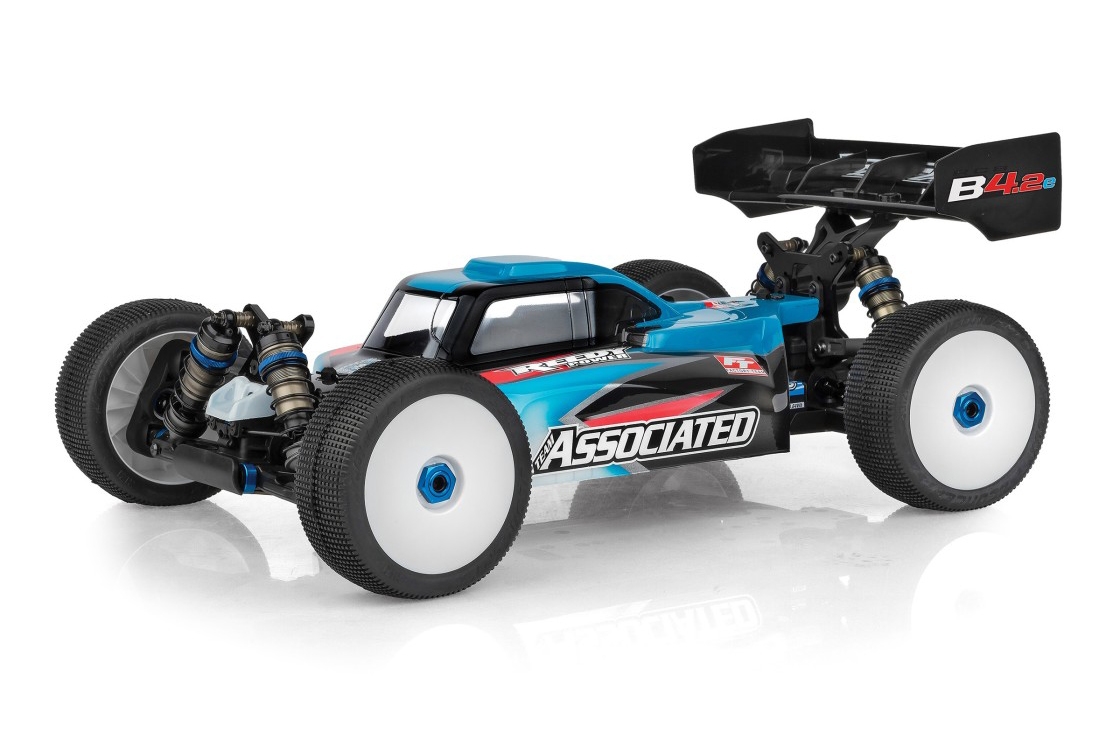

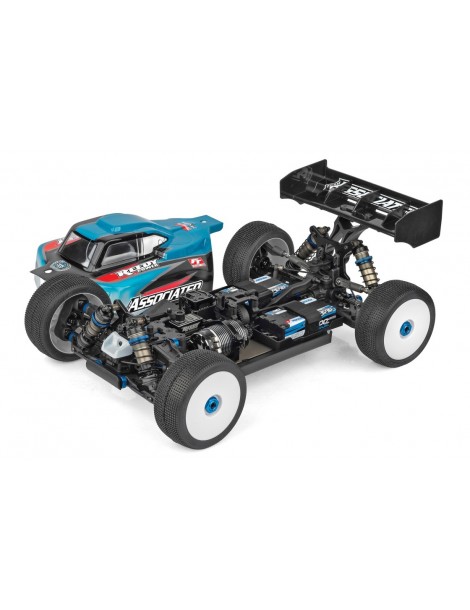

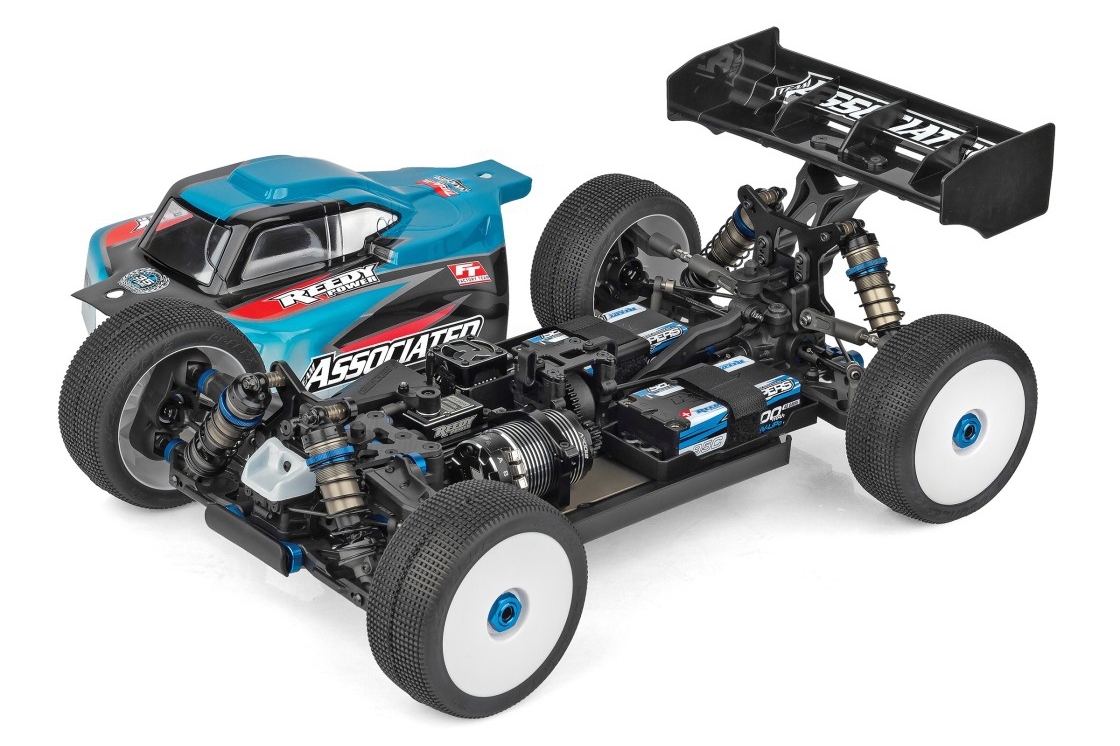

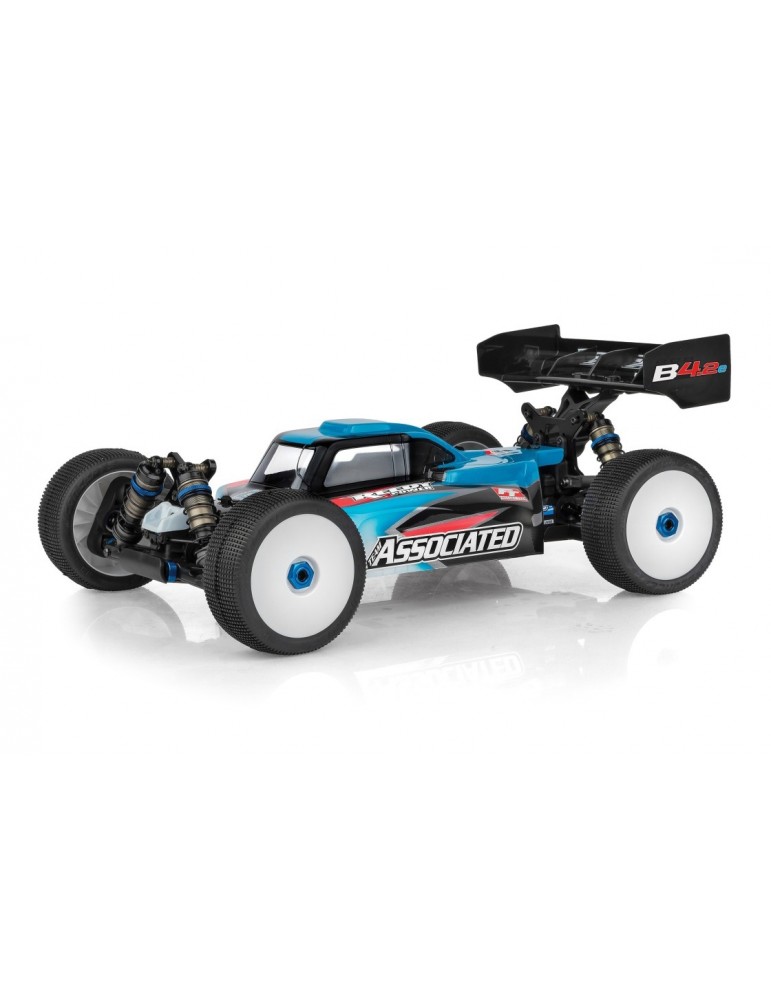

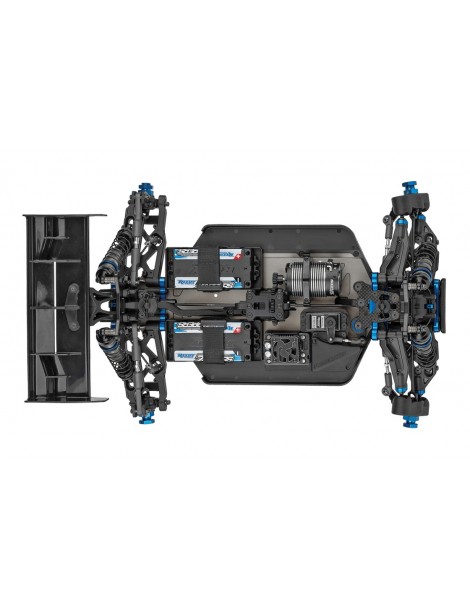

Team Associated RC8B4.2e 1:8 Electric Buggy Team Kit

Off-road racing in 1:8 scale is one of the most demanding and toughest disciplines in the entire RC car hobby. It requires not only driving skills at the absolute highest level, but also uncompromising precision and extreme attention to detail in vehicle development. The latest evolution from the legendary “Area 51” development labs of Associated Electrics has been specifically engineered to push performance boundaries and continue the long list of victories and titles achieved by the historic RC8 platform.

Built on world champion DNA
The new RC8B4.2e is directly based on groundbreaking developments that made motorsport history in 2025. Top driver Marcus Kaerup secured the title at the first official 1/8 E-Buggy World Championship using this technology. With the RC8B4.2e Team Kit, you get exactly this race-proven high-end DNA that led to that historic world title, directly on your track.

Features at a glance:

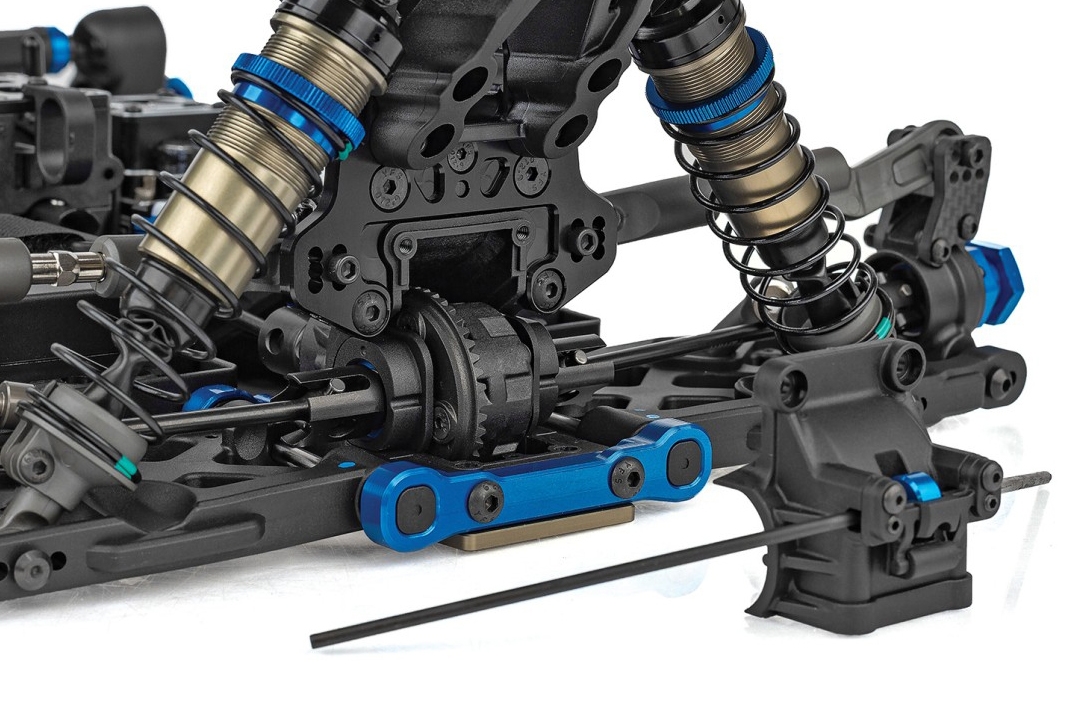

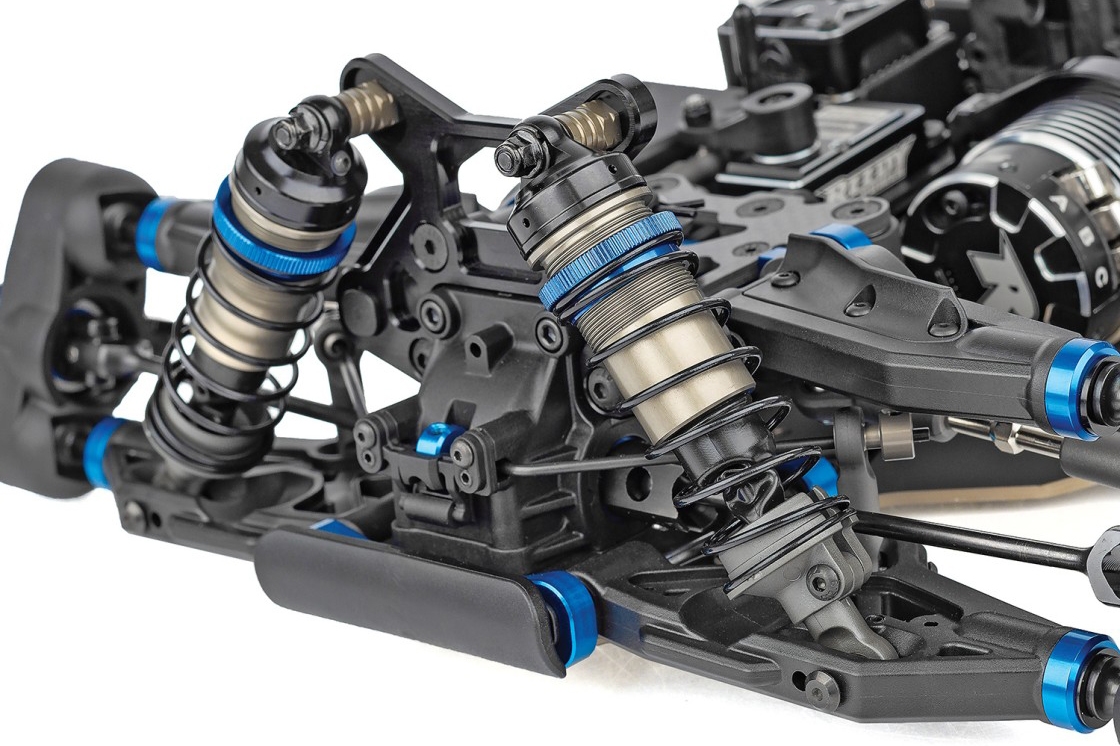

• New adjustable gearbox housings at front and rear axle for optimal adjustment of driveshaft angle

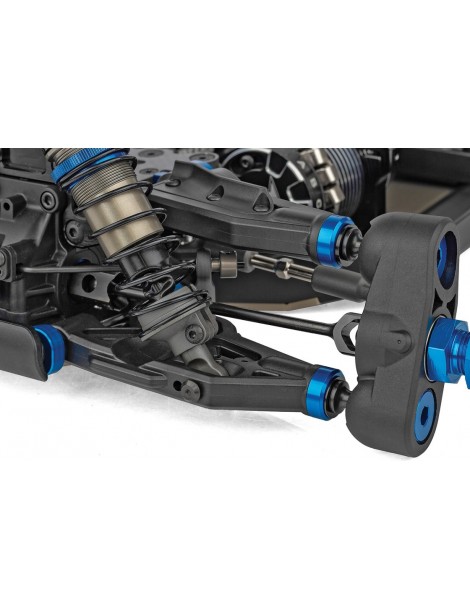

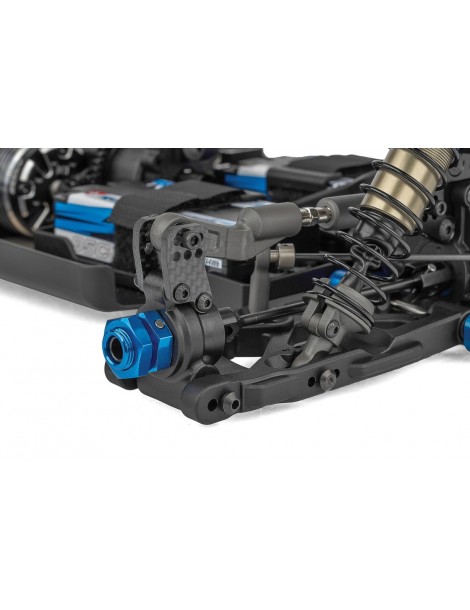

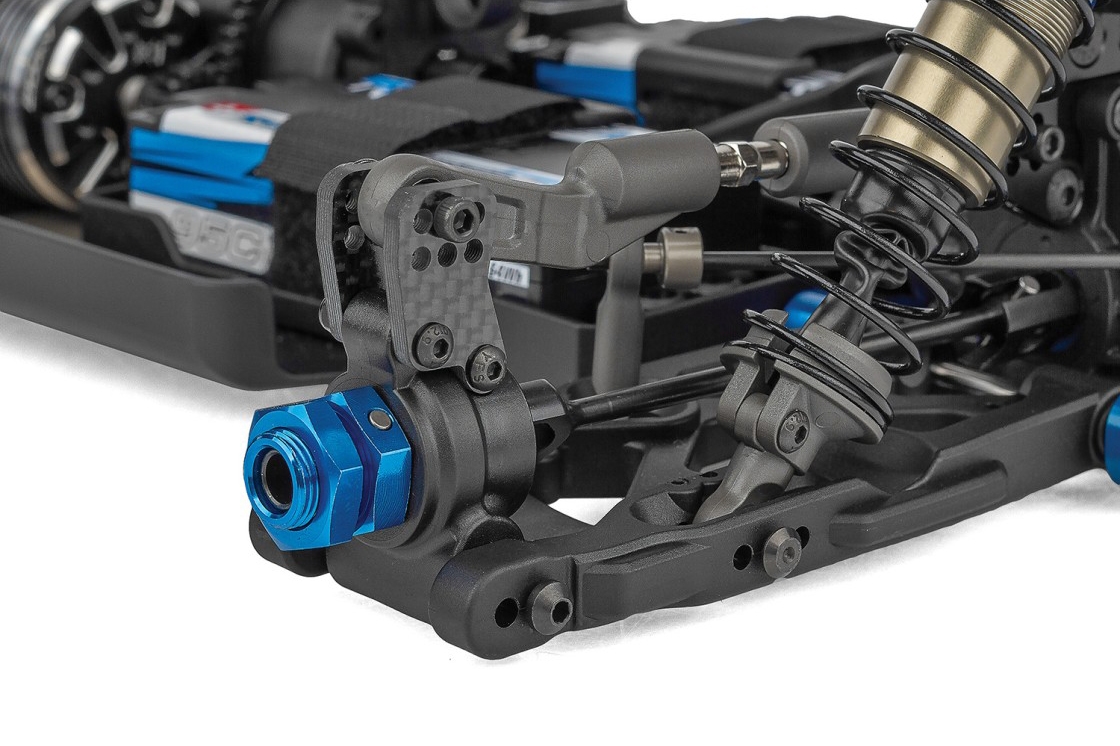

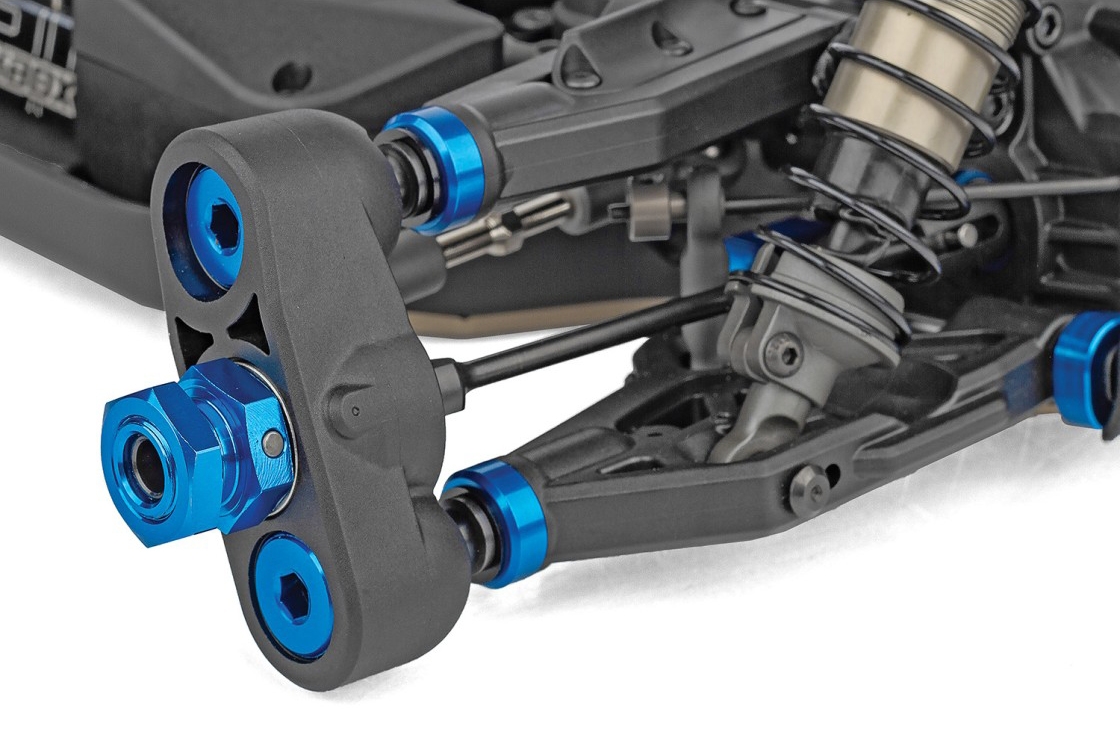

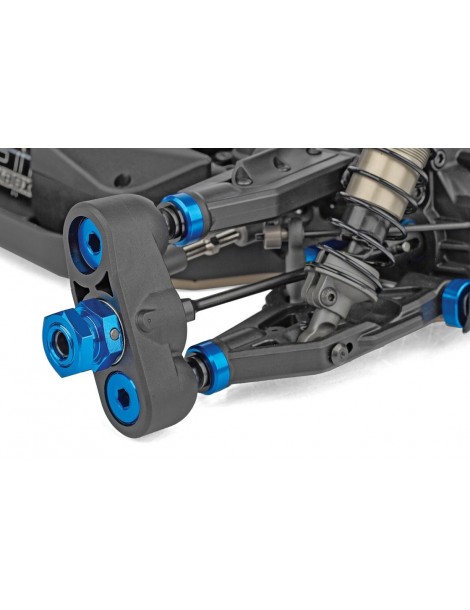

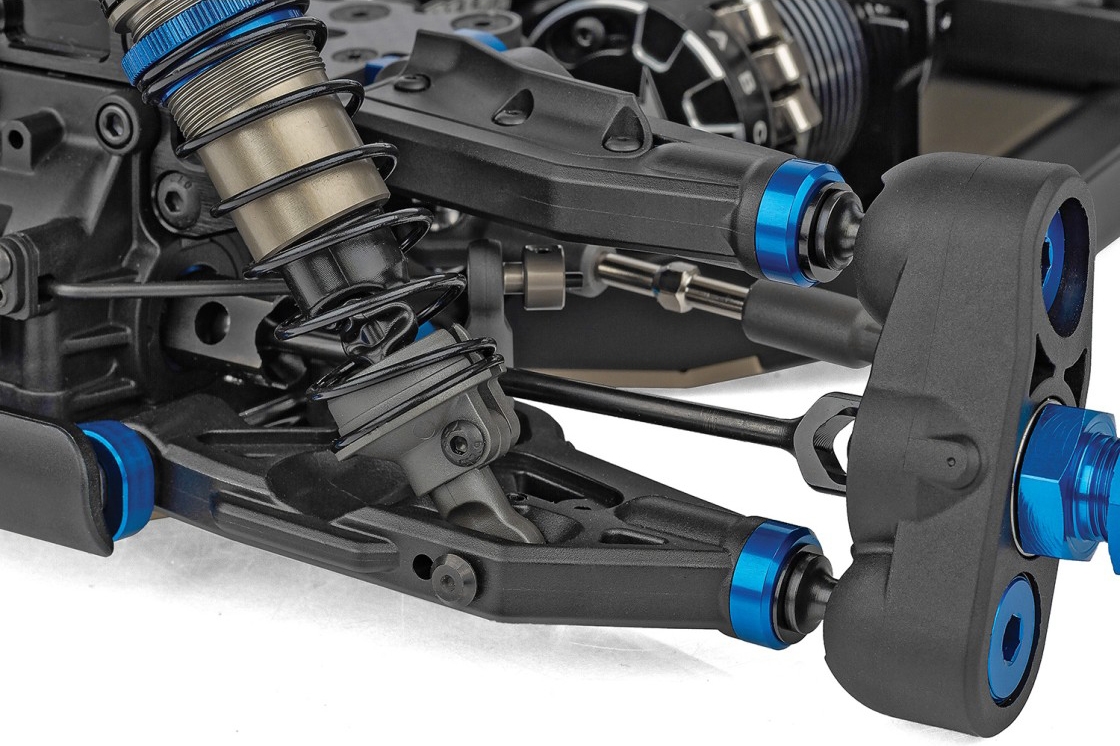

• New offset hub carriers and updated rear suspension arms, perfectly matched to the new geometry

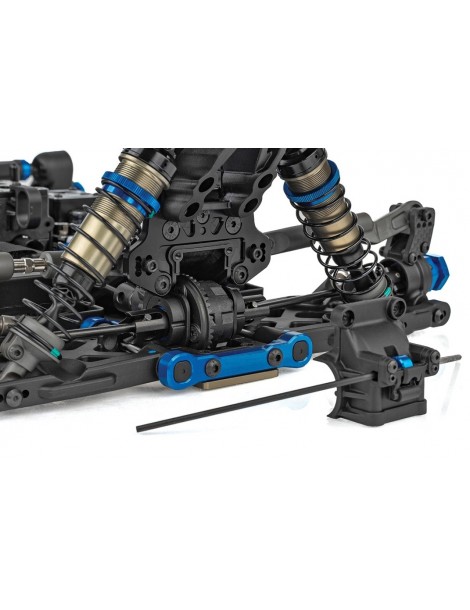

• New high volume center differential for maximum consistency and optimal handling in long finals

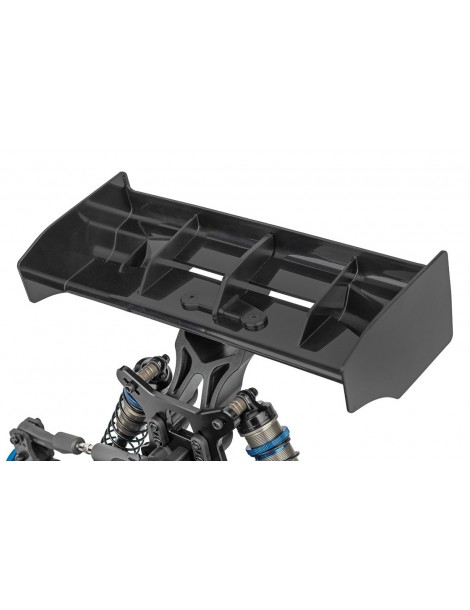

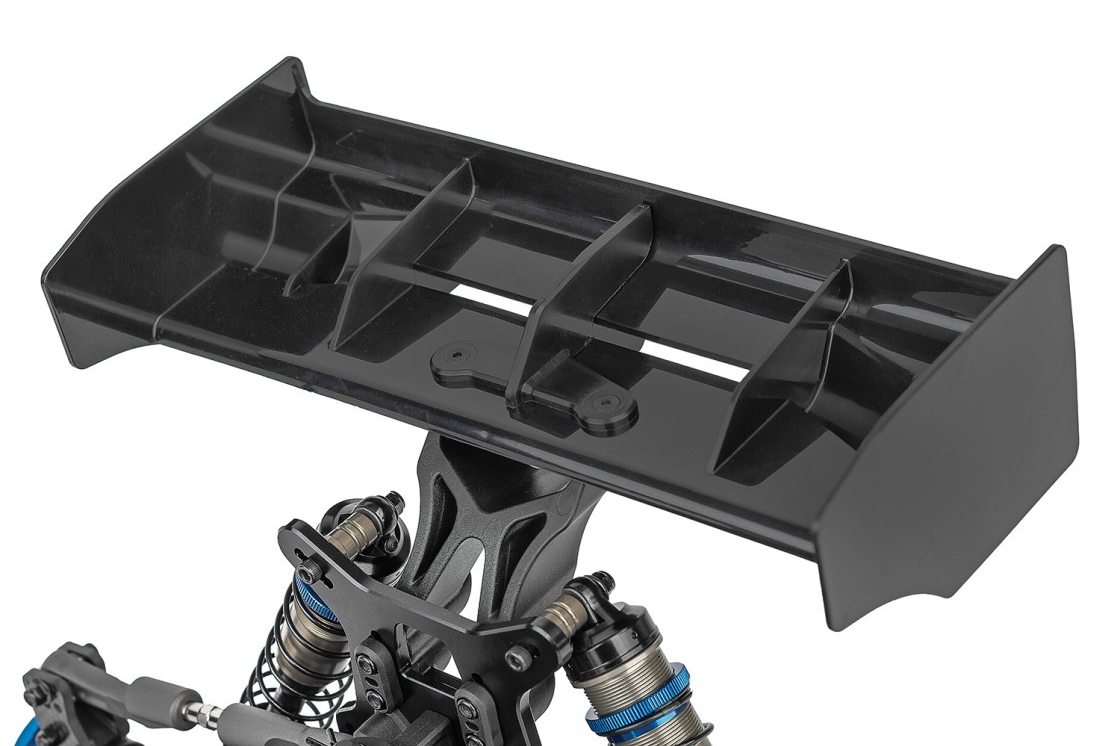

• New high downforce rear wing for increased downforce and stability in high speed sections

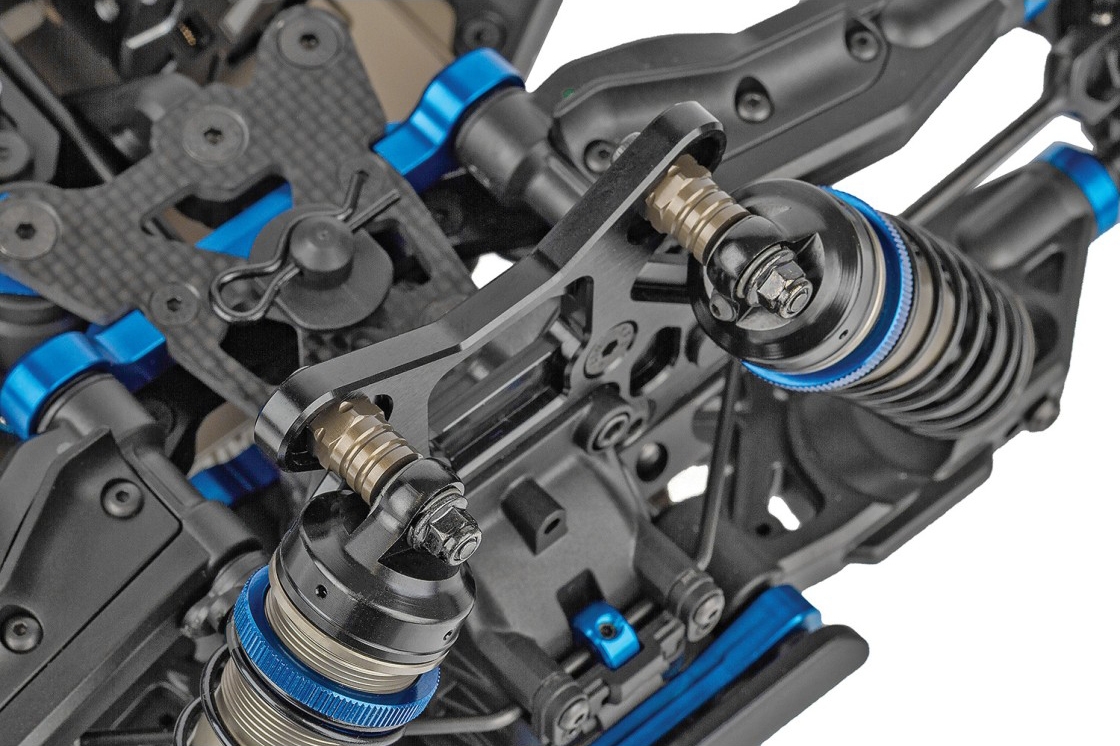

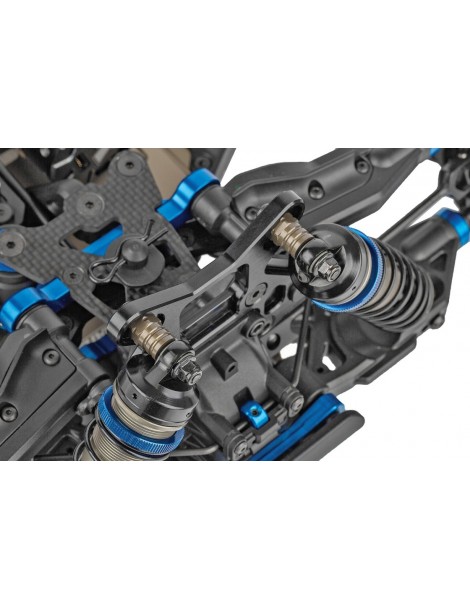

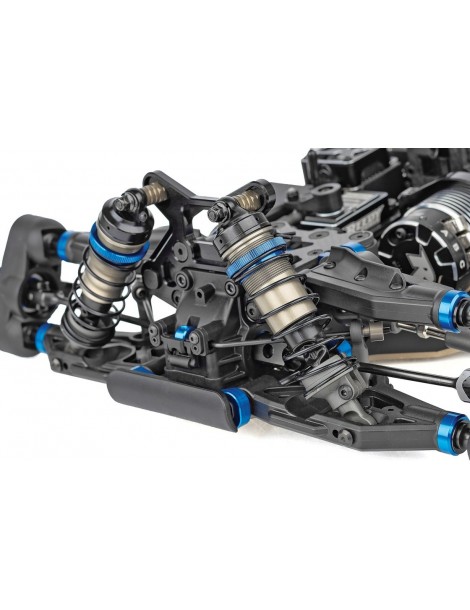

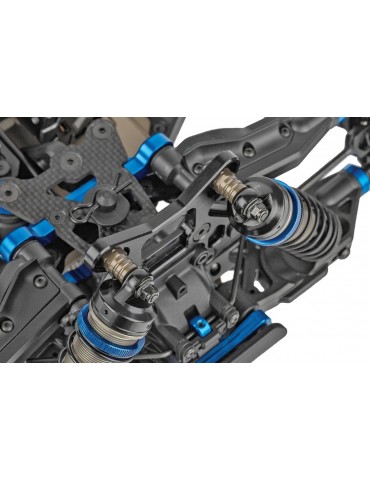

• Factory Team hard anodized aluminum shock mounts included as standard
• RWB FWB chassis design with adjustable weight distribution (rear weight bias / front weight bias)
• Suspension arms made from soft blend material for optimized flex and maximum mechanical grip
• 8 degree KPI steering blocks for extremely precise and responsive steering
• 44/13 spiral and ring gear set for an efficient and robust drivetrain
• 92mm universal driveshafts with 17mm outdrives
• HTC differential gear sets with 19mm and 20mm versions included for maximum tuning options
• Precision machined 47T steel spur gear included

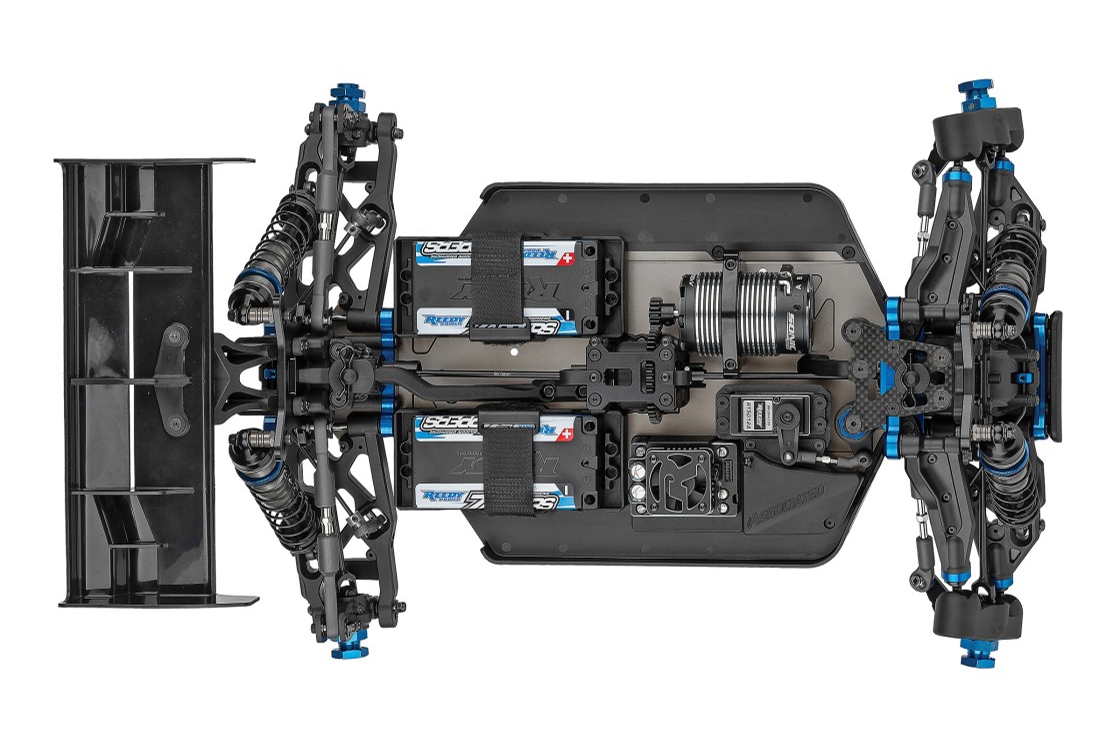

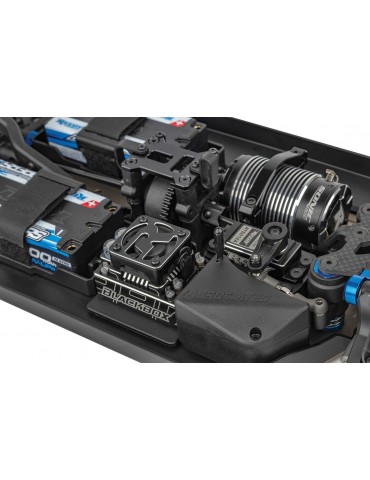

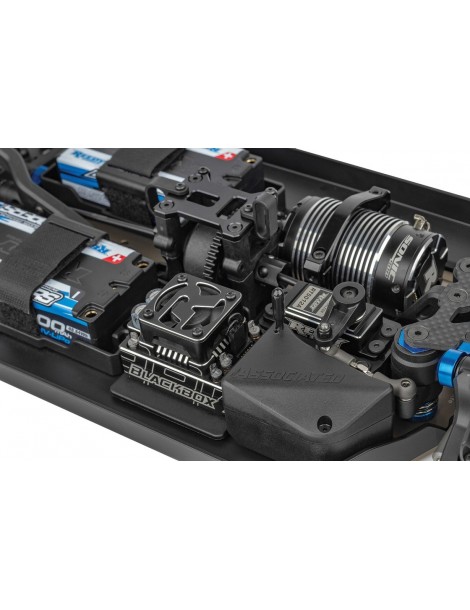

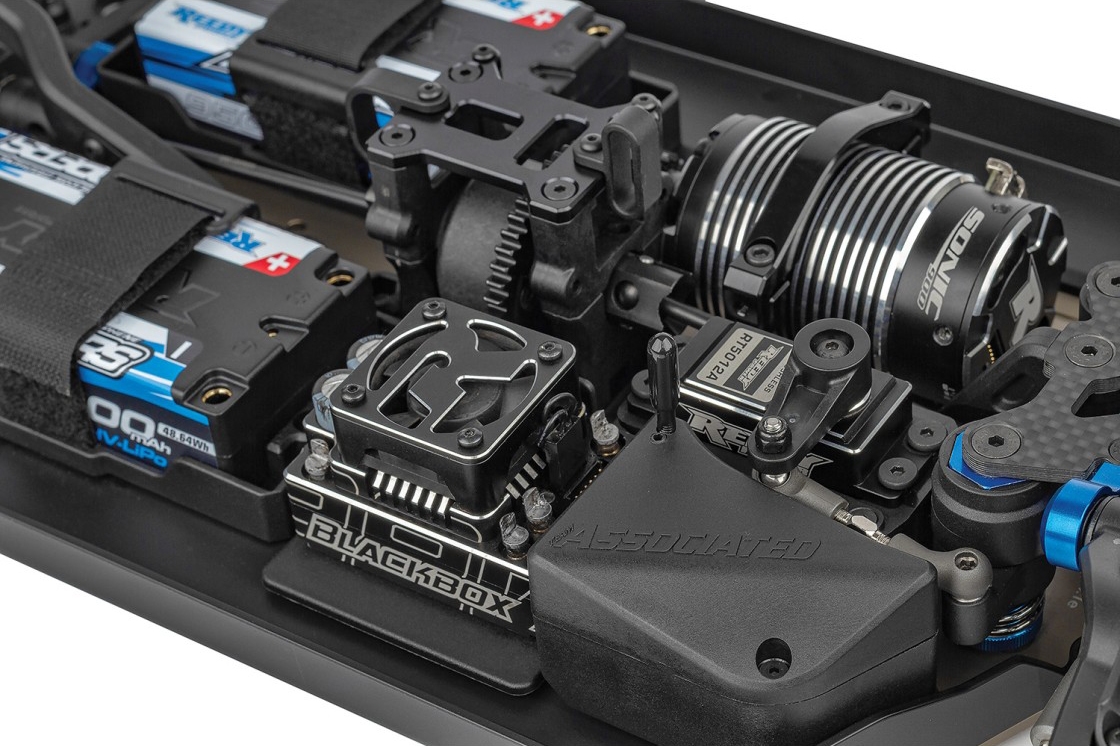

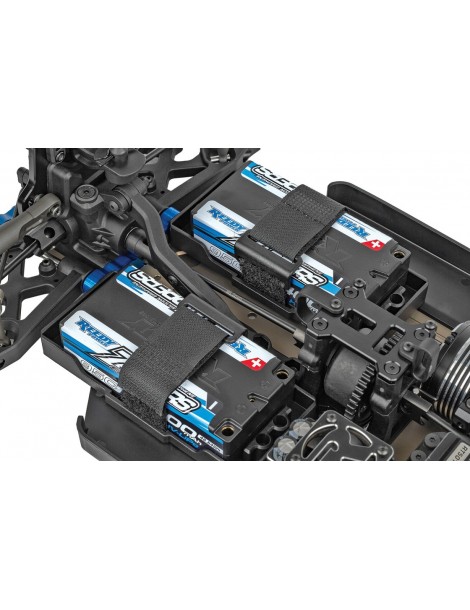

• Centralized drivetrain and chassis layout optimized for shorty battery configurations

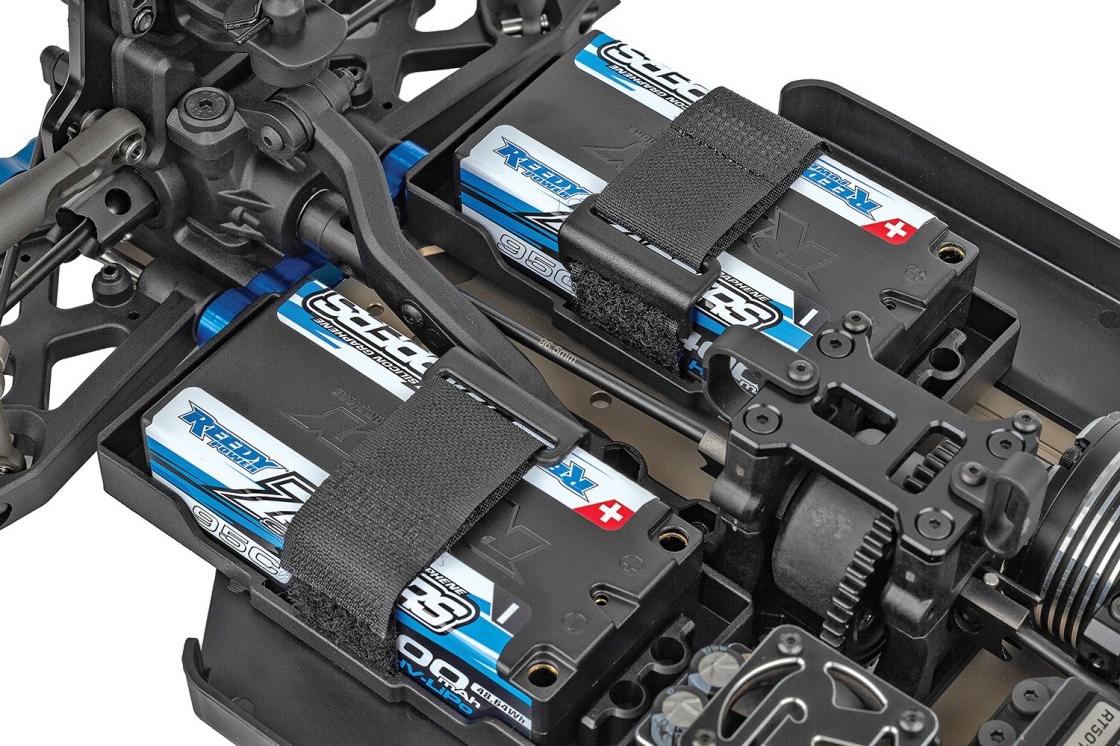

• Adjustable battery mount with strong hook and loop strap for secure fixation

Required accessories:

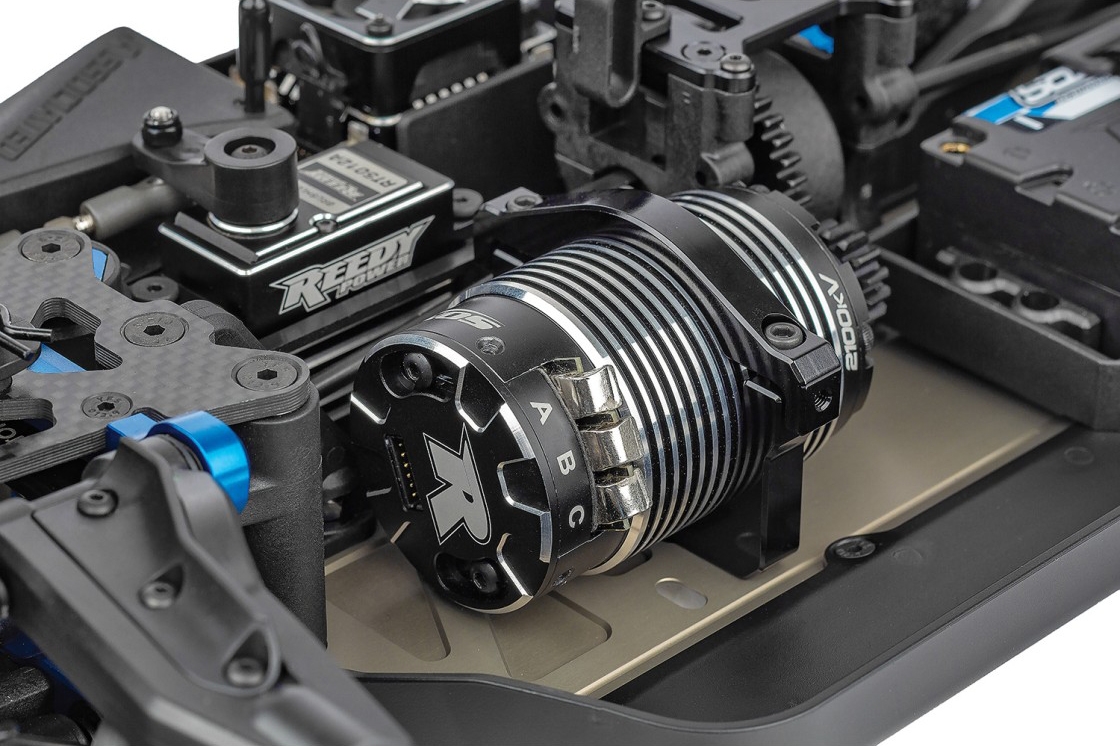

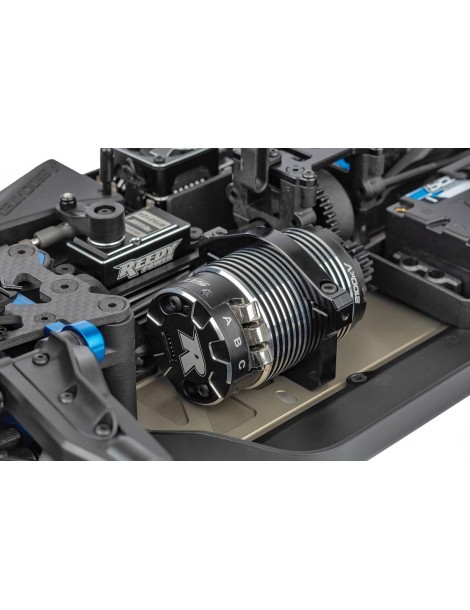

• Brushless motor for 1:8 vehicles
• Brushless ESC for 1:8 vehicles
• Steering servo
• Charger
• Suitable Mod 1 motor pinion gear
• High quality 2 channel radio system
• Transmitter batteries or packs
• 2x 2S or 1x 4S shorty LiPo battery
• 1:8 buggy wheels
• 1:8 buggy tires
• Cyanoacrylate glue
• Paint for polycarbonate bodies
• Thread lock medium strength
• Pliers
• Side cutters
• Hobby knife
• Body reamer
• Ride height gauge

Vehicle specifications:

• Drive type: Electric
• Terrain: Off-road
• Body type: Buggy
• Scale: 1:8
• Assembly level: Kit
• Length: 486 mm (19.13 in)
• Width: 304.5 mm (11.99 in)
• Wheelbase: varies
• Weight: varies
• Internal gear ratio: 3.38:1
• Drivetrain: 4WD

Setup and maintenance notes
As a high end competition model, the RC8B4.2e Team Kit requires maximum precision during assembly. Always use high quality tools to avoid damaging carbon and aluminum parts. After initial break in and the first runs on track, all screw connections, especially metal to metal joints, should be checked for tightness.

Important note
This model is supplied as a kit and must be fully assembled by the user. Electronics, motor, exhaust system, tires, and wheels shown in product images are for illustration only and are not included in the delivery. The body is supplied unpainted.
