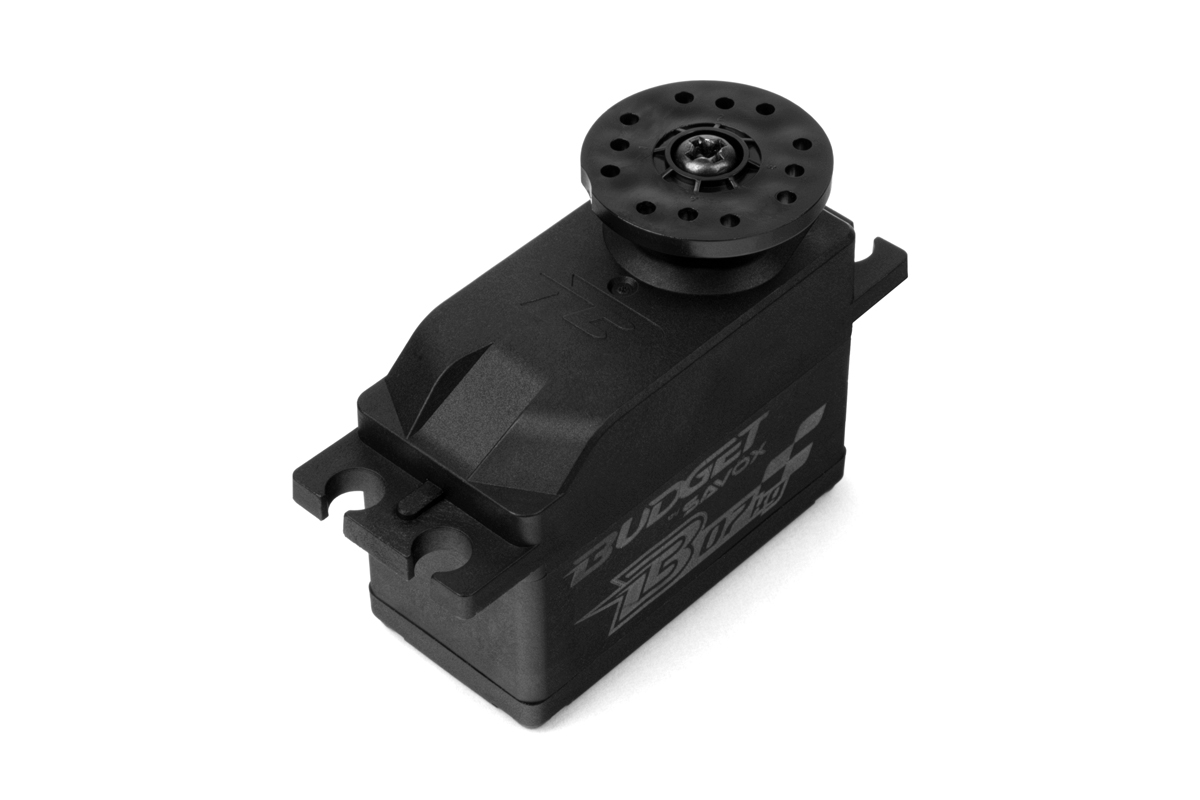

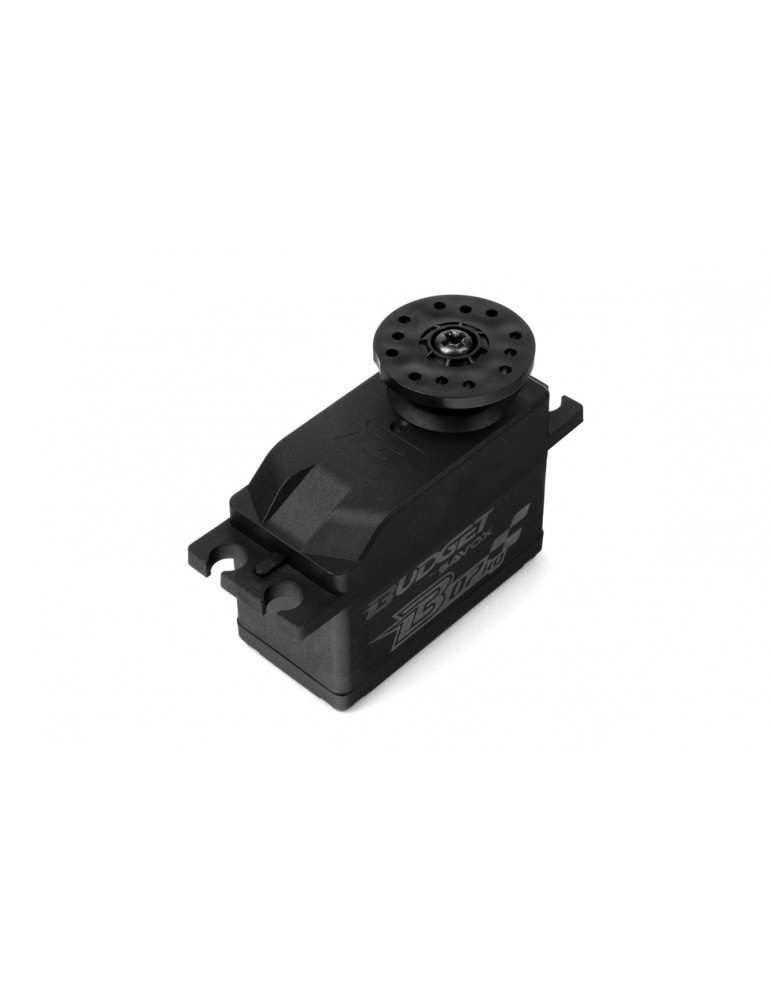

B-07 MG ANALOG Low profile servo (7kg-0,15s/60 )
Atsiliepimai
Pateikti atsiliepimą
"Budget by Savox" analog servos offer the same level of quality as the digital servo line, but at a much lower price, making them a great value!
Specifications:
- Torque @ 4.8v - 5.5kg
- Torque @ 6v - 7.0kg
- Speed @ 4.8v - 0.19 sec/60 deg
- Speed @ 6v - 0.15 sec/60 deg
- Dimensions L x W x H (mm): 40.8 x 20.2 x 31.7
- Weight: 46.0g
Technical Details
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 220mA @4.8V, 240mA @6.0V
- Stall Current (at locked): 1300mA @4.8V, 1600mA @6.0V
- Idle Current: 6mA @4.8V, 6mA @6.0V
- Wire Length: 250 +/- 10mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 700 → 2100 µ second
- Maximum Travel: Appx 130° (700 → 2100 µ second)
- Refresh Rate: 333Hz
- Motor Type: Brushed
