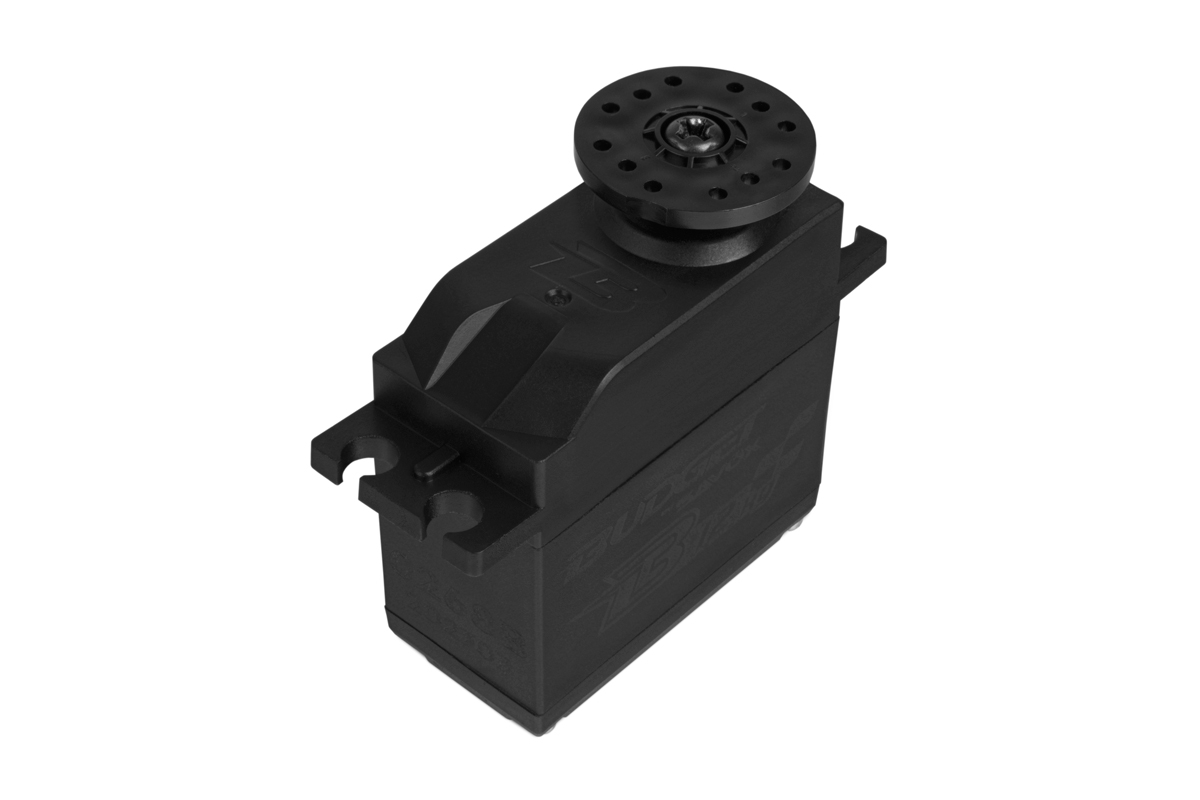

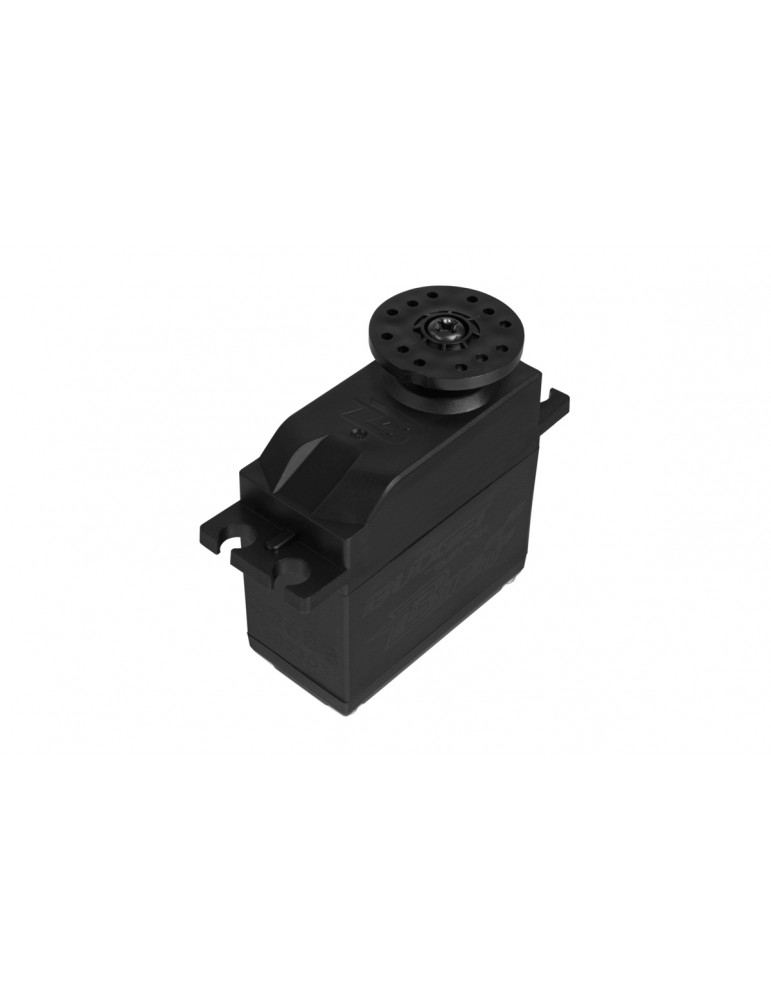

B-12 MG ANALOG servo (12kg-0,23s/60 )

"Budget by Savox" analog servos offer the same level of quality as the digital servo line, but at a much lower price, making them a great value!

Specifications:

• Torque @ 4.8v - 10.0kg
• Torque @ 6v - 12.0kg
• Speed @ 4.8v - 0.26 sec/60 deg
• Speed @ 6v - 0.23 sec/60 deg

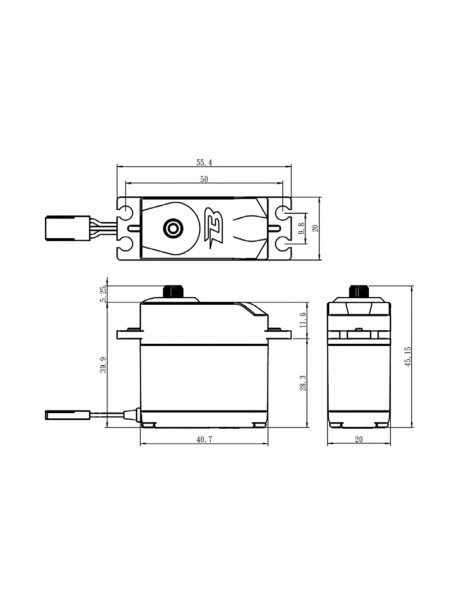

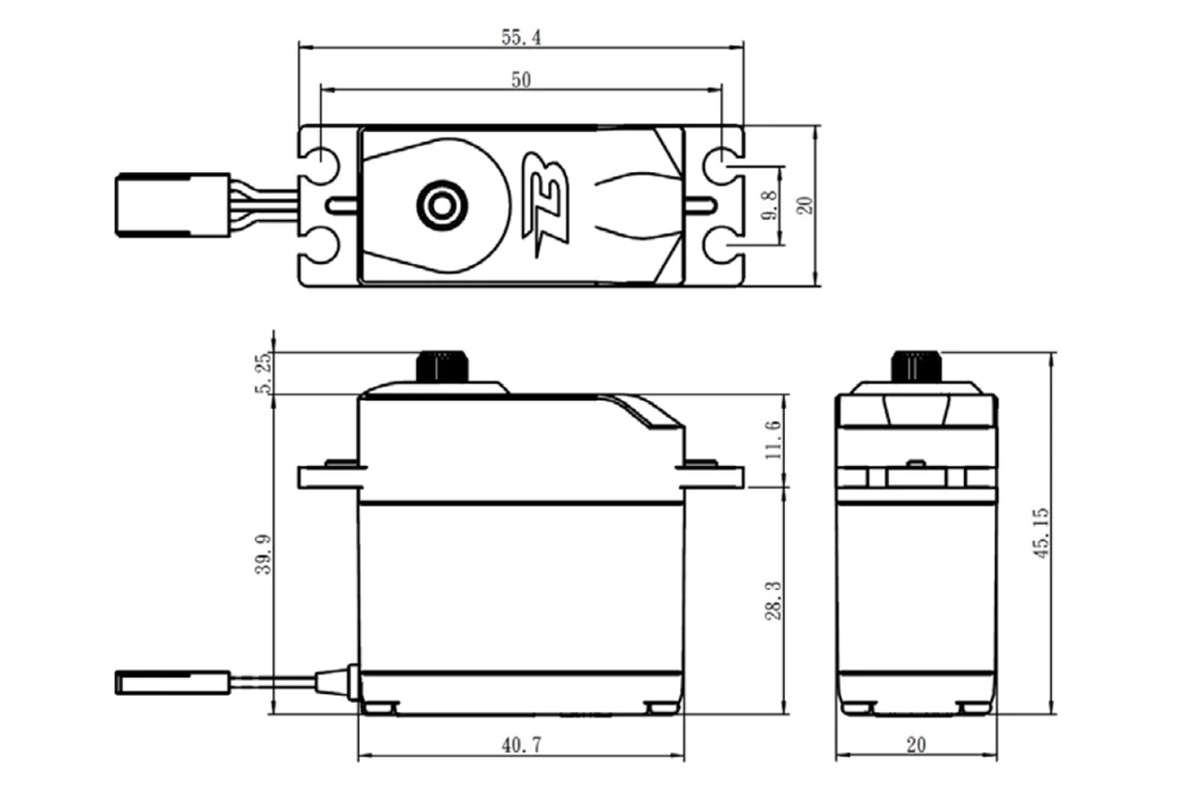

• Dimensions L x W x H (mm): 40.7 x 20 x 45.2
• Weight: 52.0g

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 220mA @4.8V, 240mA @6.0V
• Stall Current (at locked): 1300mA @4.8V, 1600mA @6.0V
• Idle Current: 6mA @4.8V, 6mA @6.0V
• Wire Length: 250 +/- 10mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 700 → 2100 µ second
• Maximum Travel: Appx 130° (700 → 2100 µ second)
• Refresh Rate:  333Hz
• Motor Type: Brushed
