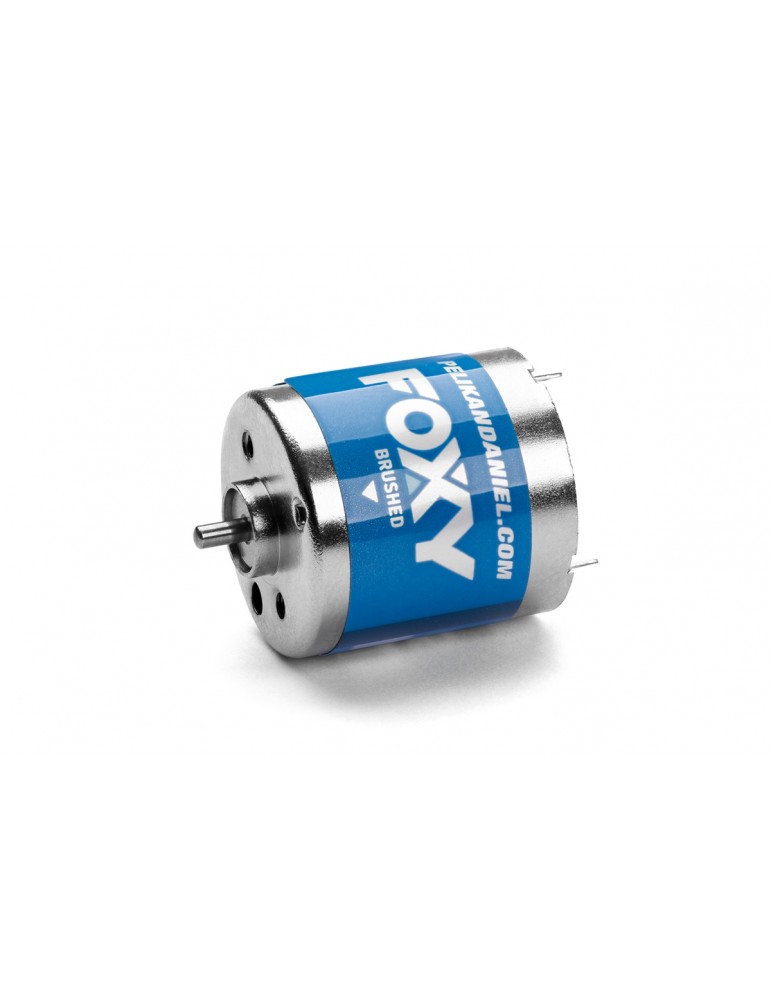

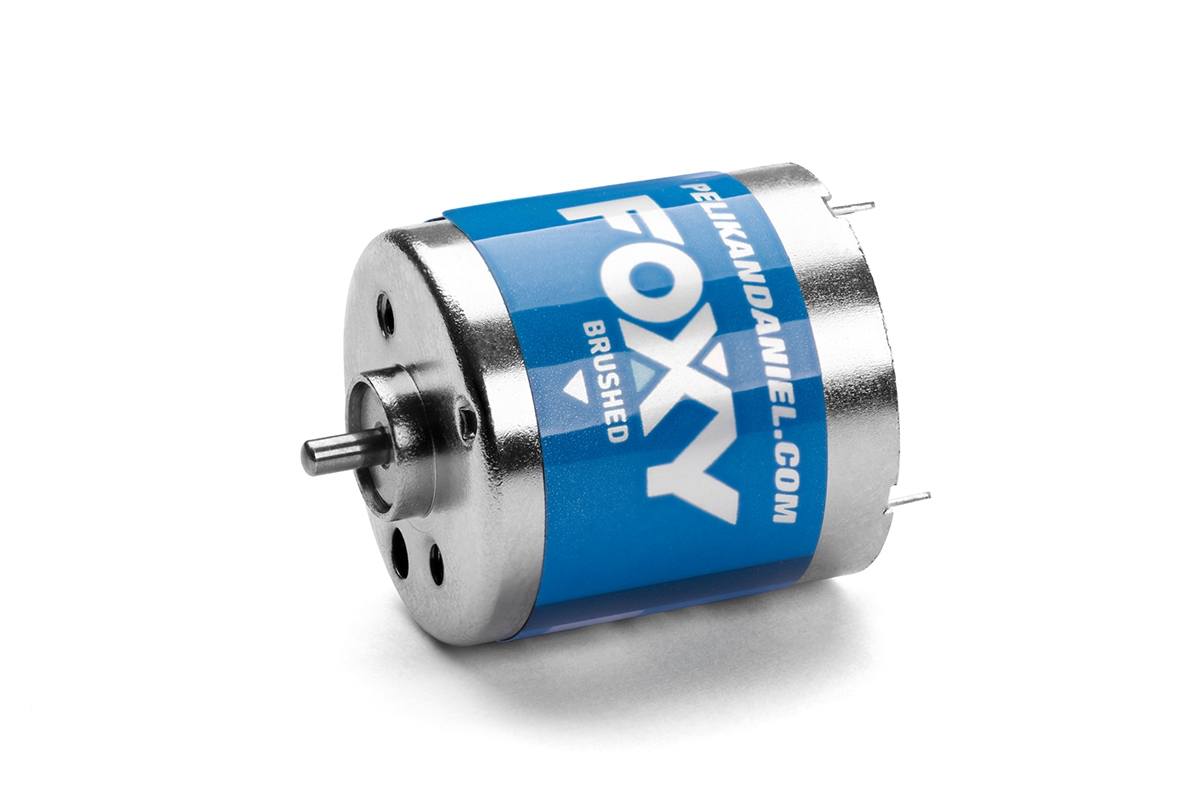

FOXY 180 4.5V brushed motor

Brushed electric motors of „FOXY Brushed“ range are perfect for a whole lot of model builder's applications - for powering aircraft, boat, car, tank and other ground vehicle models either with direct drive or with a  gearbox.
When connecting and installing foxy motors, pay attention to the allowed voltage and load current limit.

Motor cooling: operating temperature of the housing shouldn't exceed 80°C. The model should always have sufficient air intake and air-flow around the motor. For boat models, we recommend using water cooling.  High motor loads are possible only for short periods. After every driving/riding/flying session, you should let the motor cool down to a room temperature before the next ride/flight/drive.

FOXY 180 4.5 V is a brushed electric motor size "180" with a shaft with a diameter 1.5mm and plain bearings. It is suitable for powering indoor aircraft models with direct drive (3x1.2" propeller) or with a gearbox for a small car and boat models.

For controlling the RPM, you will need an ESC with a load capacity of 3–6A.

FOXY 180 4.5V is a suitable replacement for a motor SPEED 180 4.5V (product number 6392).

Set contains:

• Brushed electric motor FOXY 180 4.5V
• User manual
