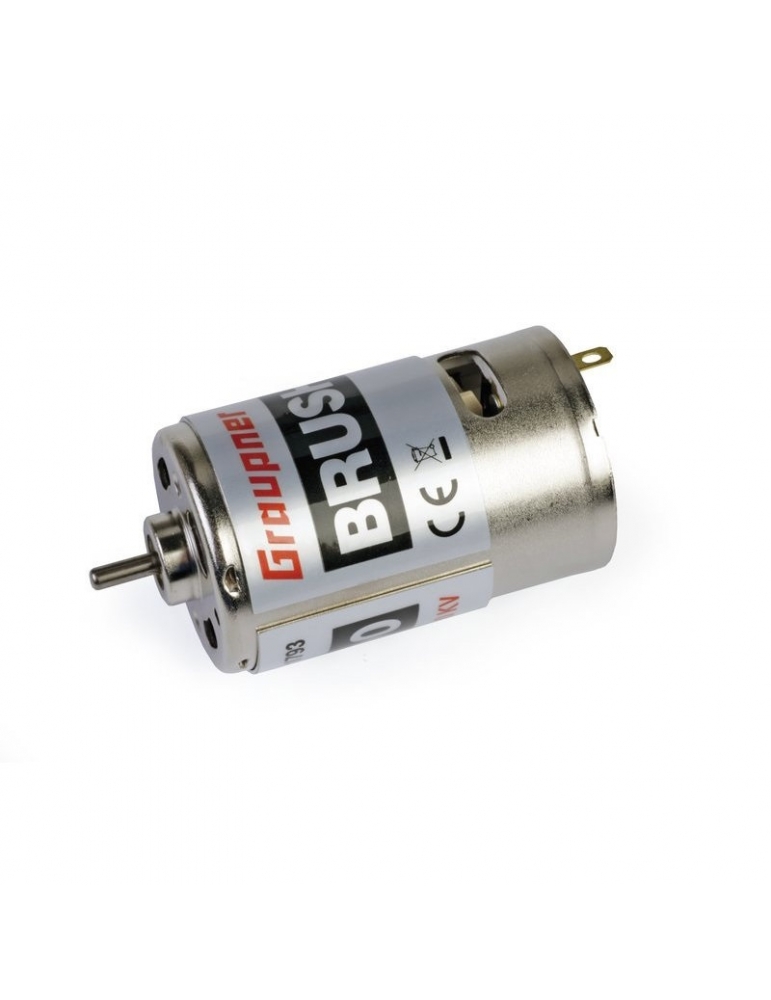

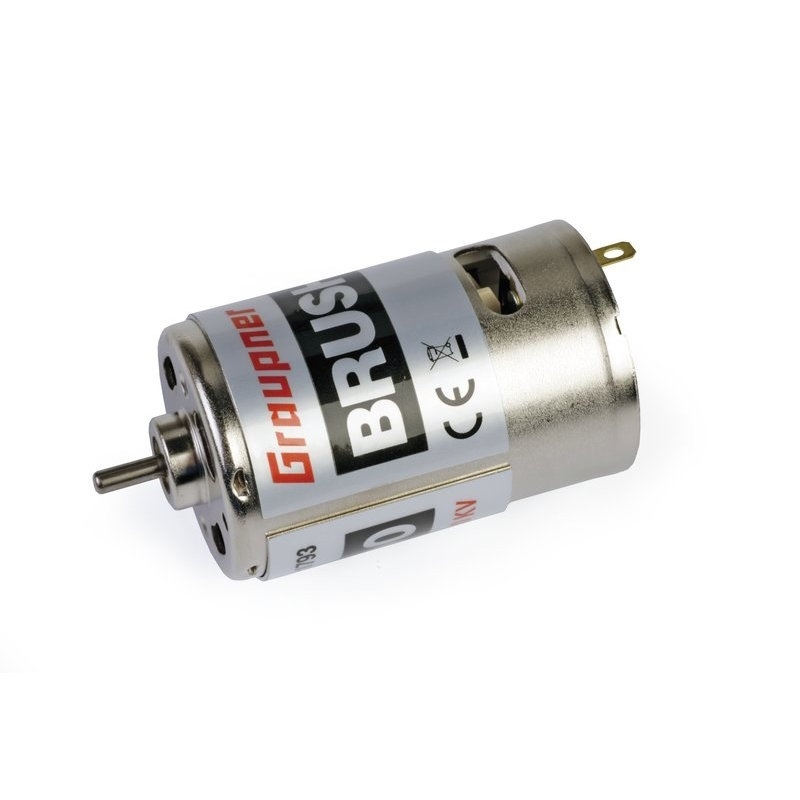

Brushed Variklis Graupner,SPEED 600 7,2 V,1793

SPEED 600 7,2 V Graupner 1793 Powerful standard electric motor with high torque. Particularly suitable for direct drive operation on 6 cells.

Nominal voltage 7,2 V
Operating voltage range 3,6 ... 8,4 V
No-load rpm 18200 min–1
No-load current drain 2 A
Current drain at max. efficiency 12 A
Current drain when stalled 85 A
Max. efficiency without gearbox 69 %
Length of case, excl. shaft 57 mm
Diameter 35,8 mm
Free shaft length 8,7 mm
Shaft diameter 3,17 mm
Weight 195 g
