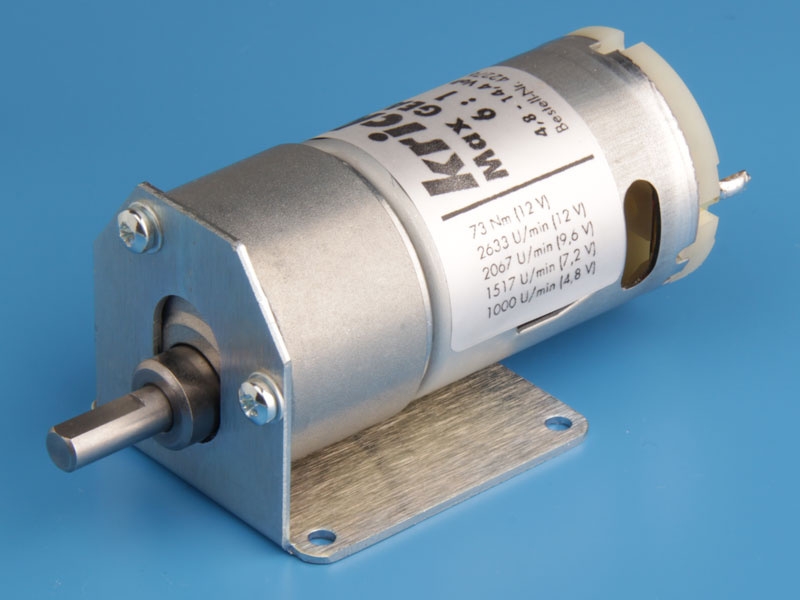

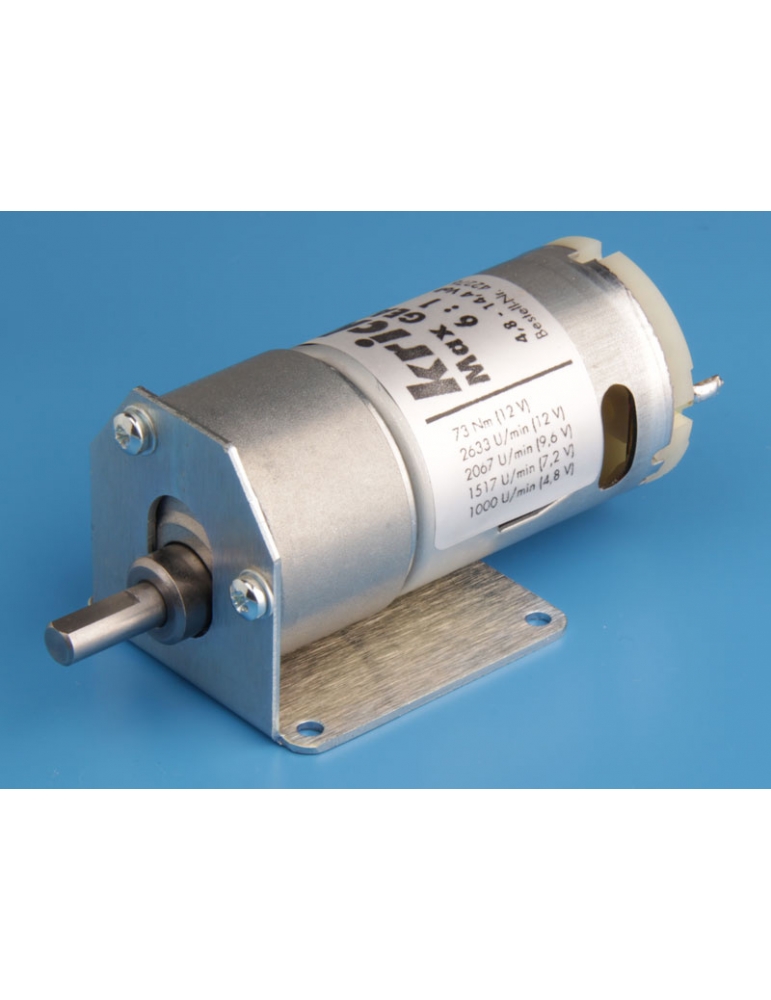

MAX Gear Motor 6:1
Made in EU
MAX GEAR gear motors are characterized by their quiet running and low power consumption. Universally applicable for many applications. Whether as ship propulsion or as a slowly rotating motor for special functions - MAX GEAR gear motors are the solution.
Depending on the reduction ratio, the gearboxes are designed with one or more stages. Robust metal gears are installed in the closed gearbox. The metal housing keeps noise levels very low.
Available in different reduction ratios. Due to the wide voltage range of the installed motor, in the 540 size, shaft speeds of approx. 40 - 7400 rpm can be achieved.
Scope of delivery: Motor
with gearbox 6:1 mounted
Motor mounting bracket attached
instruction
Technical SpecificationsReduction ratio 6:1Weight 274 gDimensions LxHxW 92 x 40 x 47 mmoutput shaft 6 x 15 mmHeight shaft outlet approx. 14 mmMotor housing dimensions 36 mm x 50 mmVoltage range 4.8 - 14.4 VCurrent consumption at 12 V approx. 0.5 A without loadMotor speed at 12 V approx. 15800 rpm without loadCurrent consumption at 12 V approx. 2.95 A at max. efficiencyLoad speed at 12 V approx. 13400 rpm at max. efficiencyBlocking current max. 12 ATorque 7.5 NcmPre-suppressed
