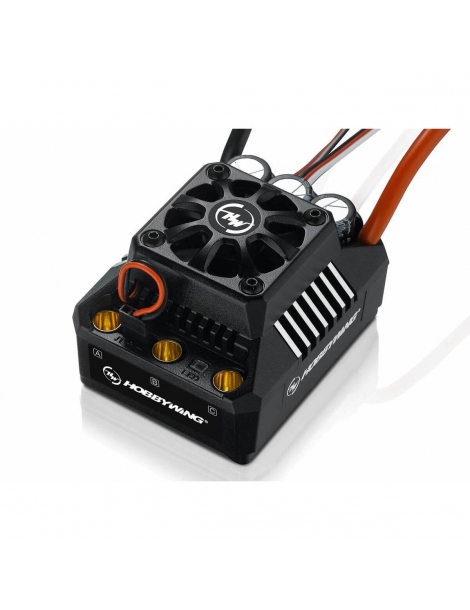

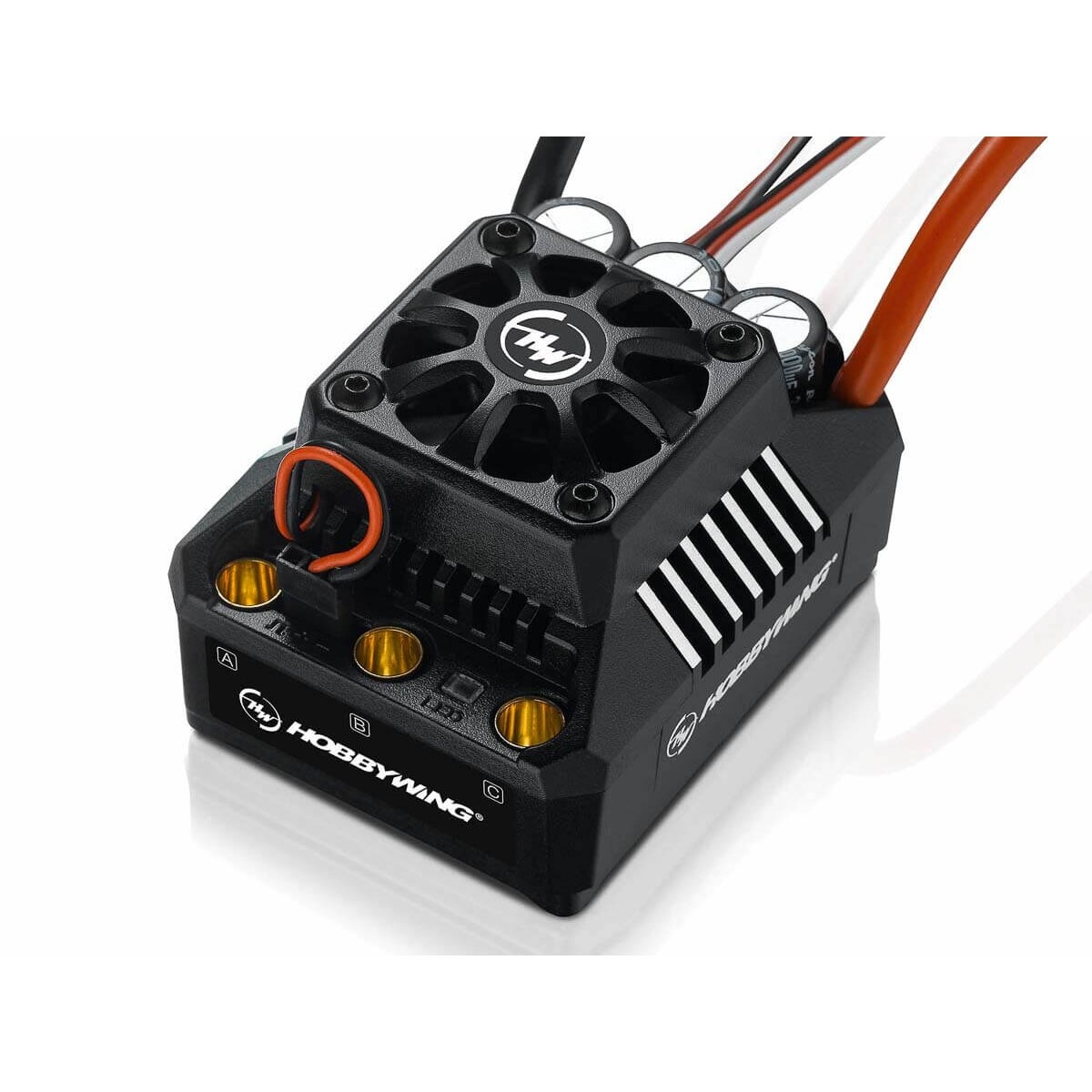

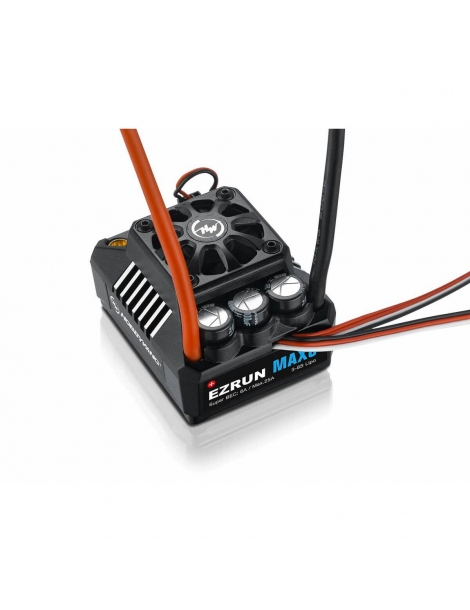

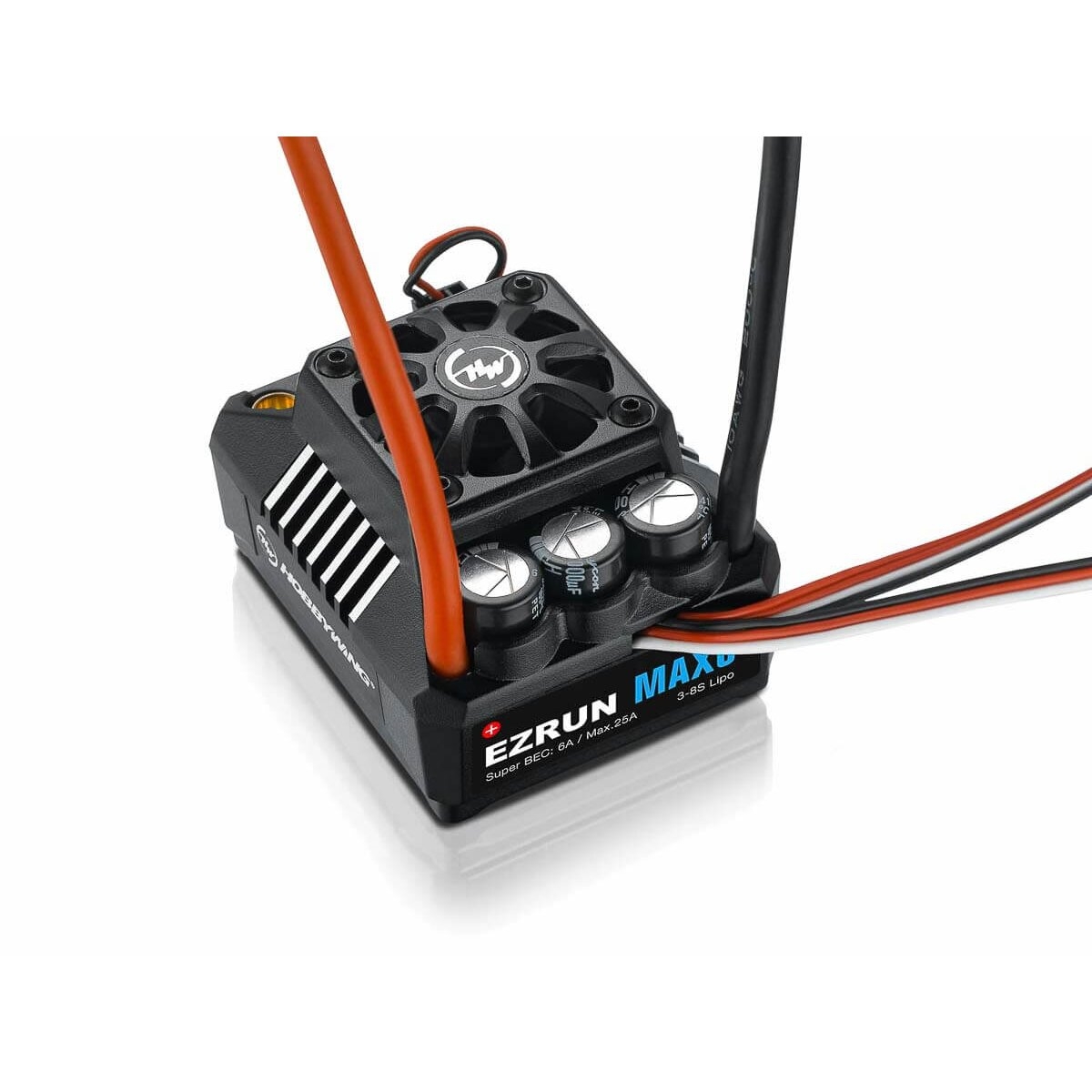

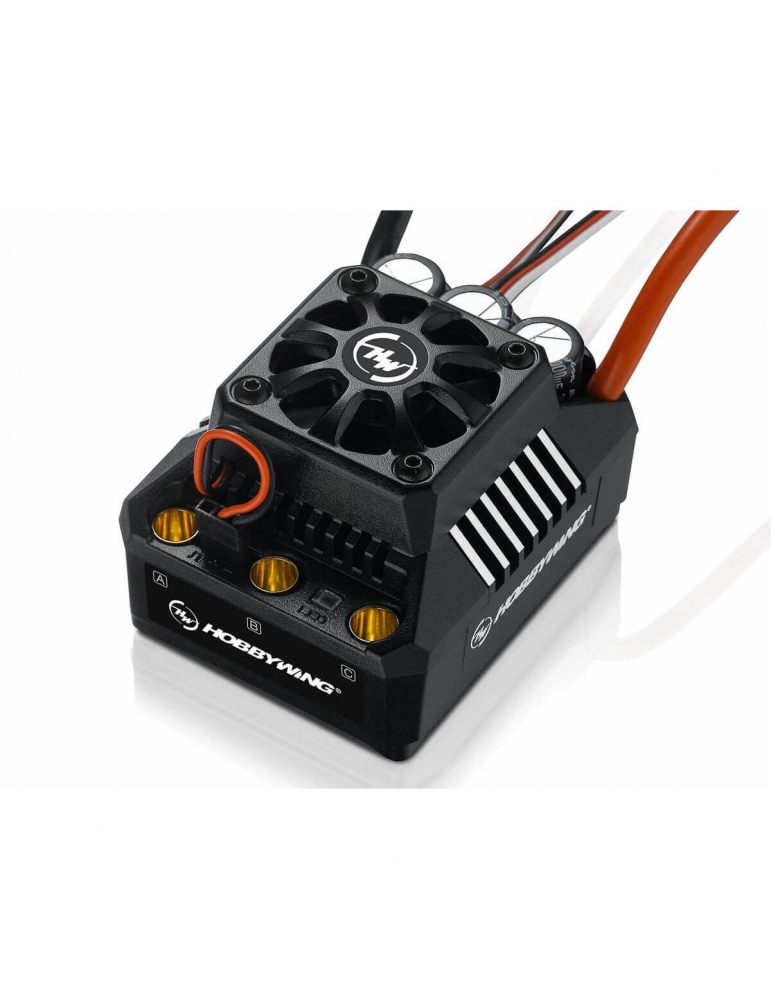

Hobbywing EZRUN MAX6 V3 - 160A 1/6th ESC

The Ezrun Series are sensorless brushless power systems for high-end entertainment. They are for satisfying drivers’ desire for great power, and for providing powerful power solutions to intermediate/high-end RTR vehicles ranges from 1/18th scale to 1/5th scale.

Great Flexibility & Versatility

With incredible acceleration capabilities and a rock-solid, stable output, the MAX6 can handle instant full-torque start-ups for wheelie, high speed racing on straightaways and powering through the bumpiest terrain. It always provide the power more than sufficient. Besides, driver can adjust relevant parameters for smooth and soft start-up and personal preferences.

High Reliability & Durability

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX6 is able to deliver unmatched power and performance for even the most hardcore racing application, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

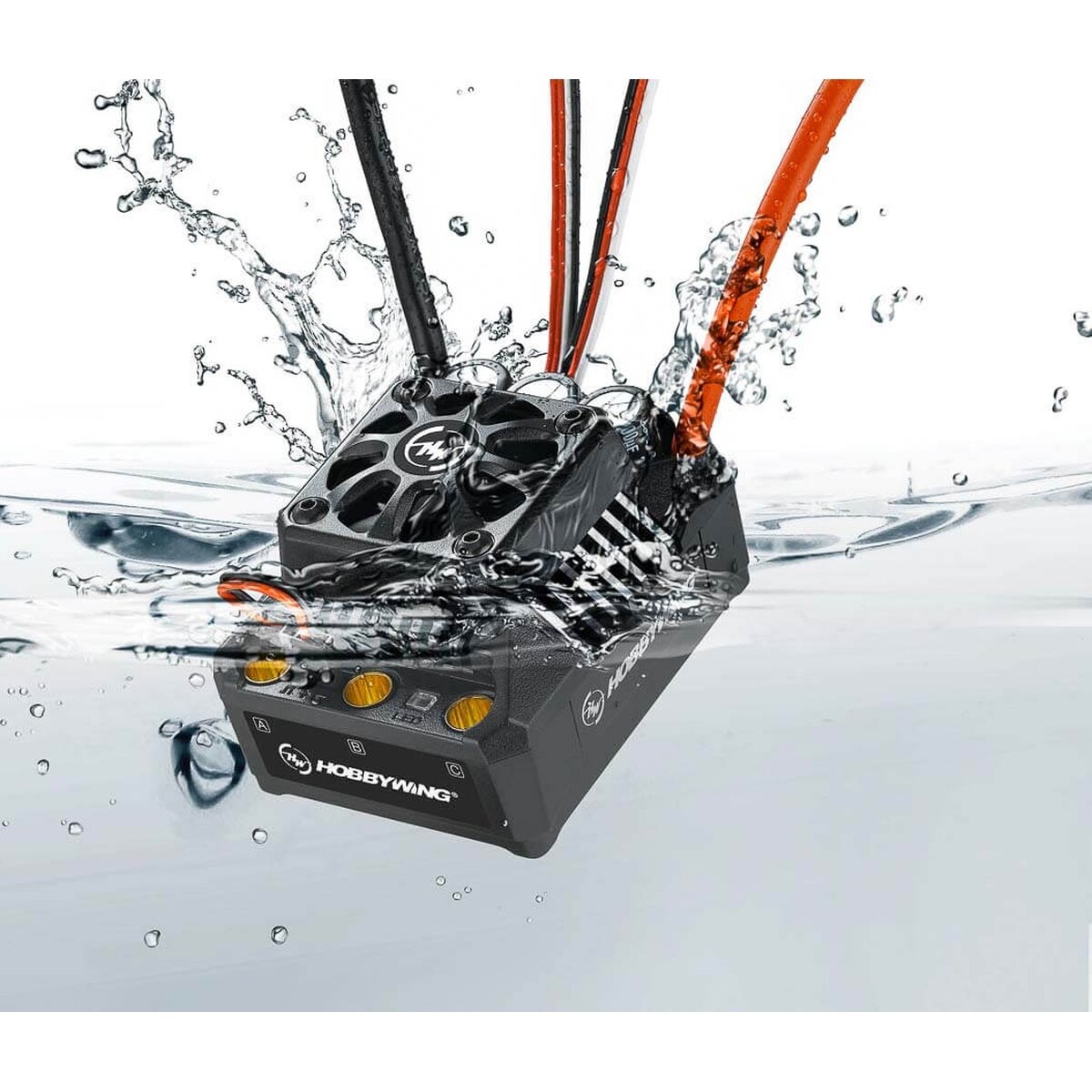

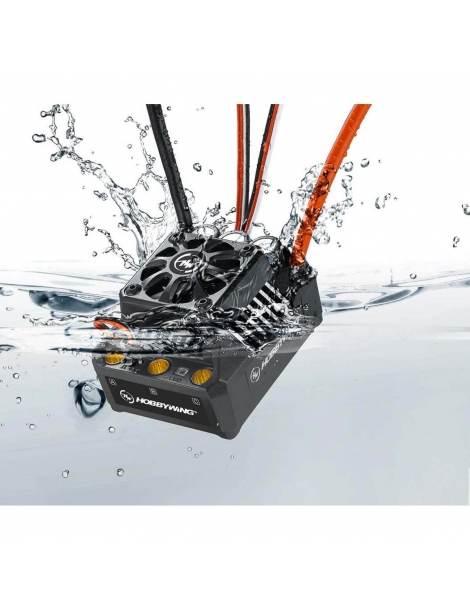

Applicable to All Weather Conditions

Outstanding waterproof and dust-proof capability makes the ESC applicable to all weather conditions, no matter the track is covered with dust, gravel, snow or puddles.

Super Built-in BEC

The MAX6 has adopted the world’s 1st HV built-in BEC with the max. output current of up to 25A and switchable output

voltage (6V/7.2V). The high voltage BEC is designed to handle today's high voltage servos on demand used by many large scale or 1/8 vehicles.

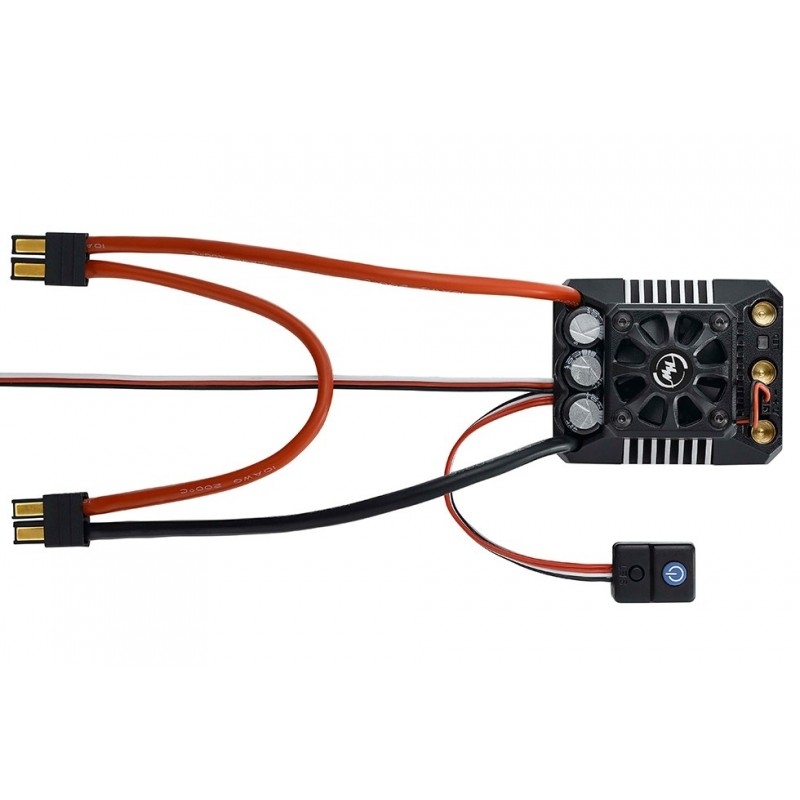

Advanced and Secure Electronic Switch

The electronic switch with the lifespan of over 50000 times of switching on & off features a completely waterproof, dust-proof and shock-resistant design, completely solved problems like stuck reed and rust contact points caused by dust and moisture,  switching off automatically caused by violent dash (like landing after flying over slopes) conventional mechanical switches often have.

Regular Firmware Updates Free of Charge

You can upgrade the MAX6 with the Hobbywing USB Link software, a multifunction LCD program box and a laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.

Maintenance Free

The ESC minus the cooling fan is basically maintenance free. The cooling fan is designed to be shockproof, which in turn will reduce damage brought on by frequent vehicle high jumps and landings on hard surfaces.

Built-in Anti-Spark System

The Max6 is built with internal anti-spark circuitry that protects not only the battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).

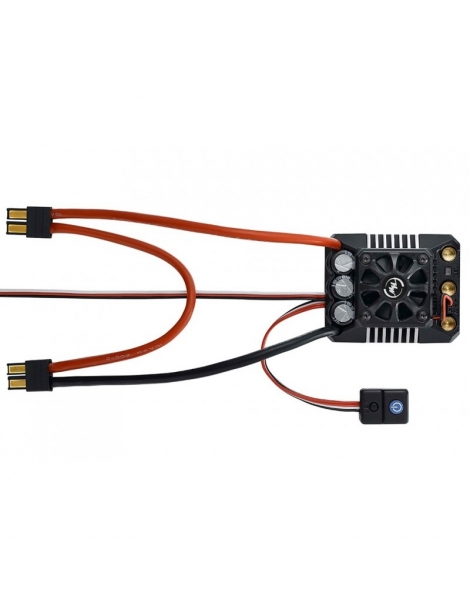

Plug and Play

Standard 6.5mm gold-plated connectors at the ESC’s output end are perfectly compatible with stock motor connectors of many popular brushless engines. Moreover, TRAXXAS style plug has been soldered to the ESC’s input end for different battery connectors, driver can plug and play and free from possible re-soldering work.

Wide Applicability

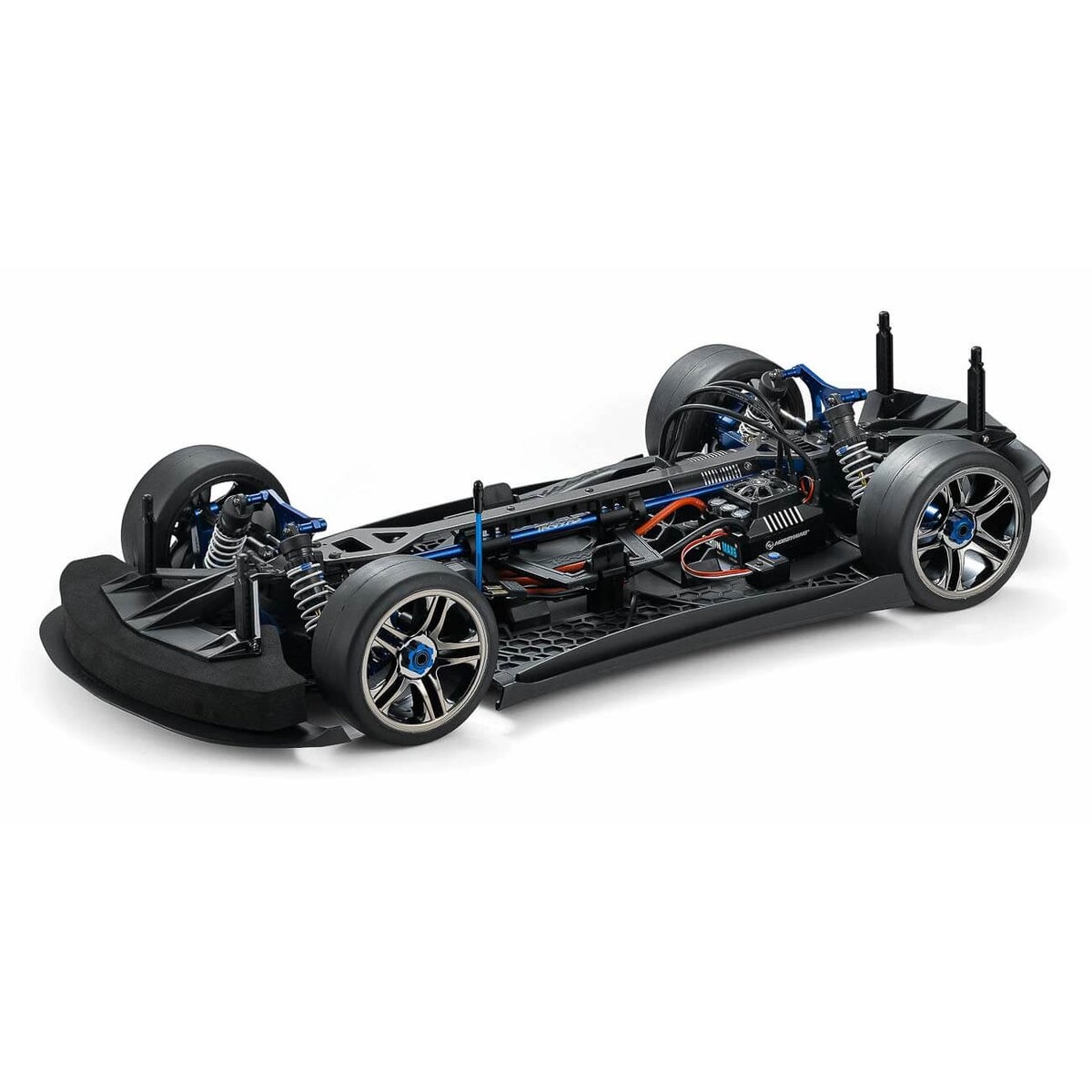

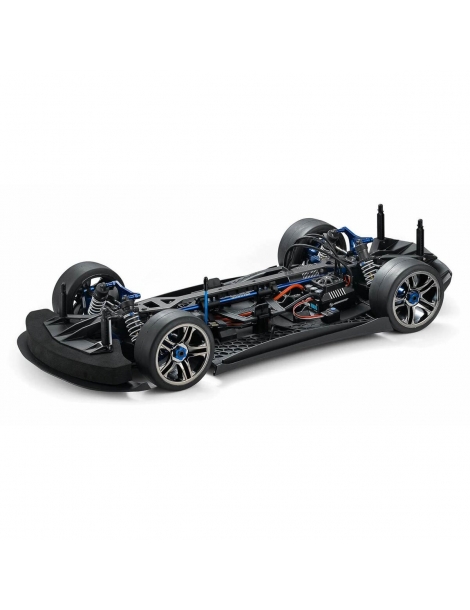

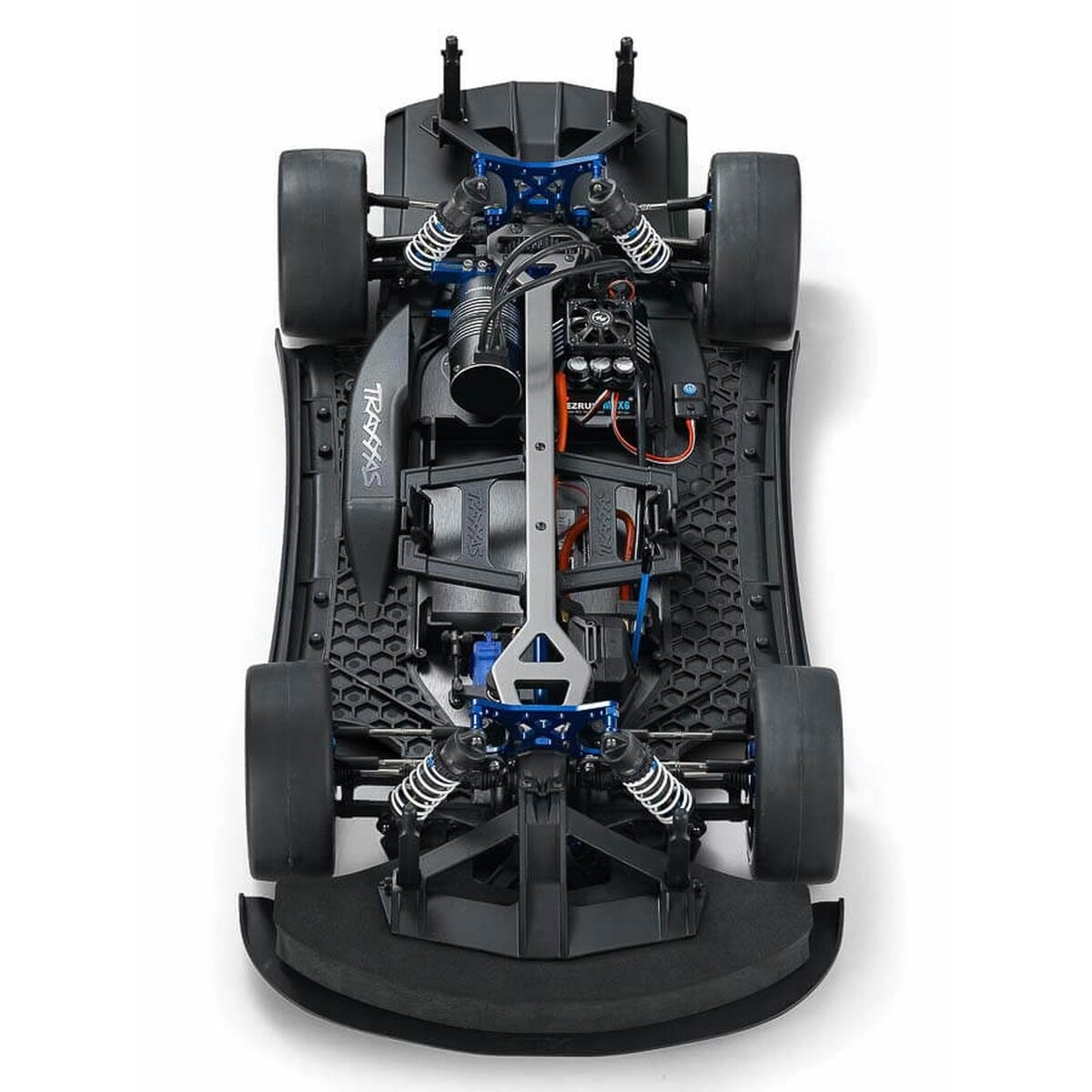

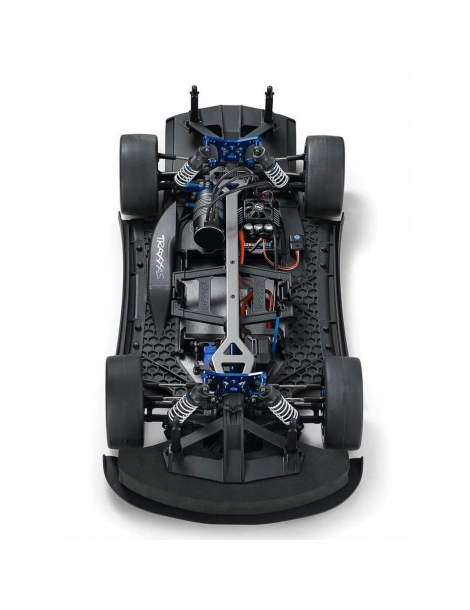

The ESC is applicable to various 1/6 & 1/7 scale vehicles like Traxxas XO-1, and also suitable to various 1/8 scale heavy vehicles like the CEN GTS-E. It's the ideal option for high-end aggressively powered builds.

Technical Data

Connection Battery: None only wires

Wire Input: 10AWG ca. 20cm (red & black)

Connection Motor: 6,5mm Female Gold Connectors

Wire Output Motor: 10AWG ca. 20cm (3 times)

Cont./Peak Current: 160A/1050A

Motor Type: Sensorless Brushless Motor

Applications: 1/6th & 1/7th Touring Car, Buggy, Truggy and Monster Truck w/ High-end Configuration (for Recreation)

Motor Limit Brushless Motor:

6S LiPo/18S NiMH: KV<=1500 (5892 Size)

8S LiPo/24S NiMH: KV<=1200 (5892 Size)

LiPo/NiMH Cells:

9-24S NiMH

3-8S LiPo

BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)

Resistance:  Ohm

Cooling Fan: Yes (Powered by the stable BEC voltage of 6V/7.2V)

Size (LxWxH): 70 x 56 x 46,5mm

Weight: 240g

Programming Port: FAN/PRG Port

ESC Programming Via:

SET button
LED Program Box
LCD Program Box
WiFi Module
