Castle Motor 1515 2200Kv sensored, ESC Mamba Monster X

Putting the X in Extreme!

Our Mamba Monster X ESC  and 1515-2200Kv are paired together and perform incredibly in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor.  Mamba Monster X takes Castle’s legendary “monster” performance to a whole new level.

New Firmware Available! Version 2.06 added 'Drag Brake Ramp' feature. Allows user to adjust the rate at which the drag brake is applied at neutral. Click here for additional information and be sure to update your new Mamba Monster X ESC!
FEATURES:

 Input Voltage range 2S-6S
8A Adjustable BEC (5.25V-8.0V)
1515-2200Kv, 4-pole 12-slot sensored motor.
Waterproof design.
Removable 30MM cooling fan.
Convenient transmitter programming for six common adjustable settings.
Easily program and update ESC with use of Castle Link USB (coupon included for free USB with purchase) and freely downloadable Castle-Link Windows™ program.
Data Logging capable
Telemetry Ready
Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
Audible Alerts that will notify you of possible issues with calibrations and error conditions.
Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

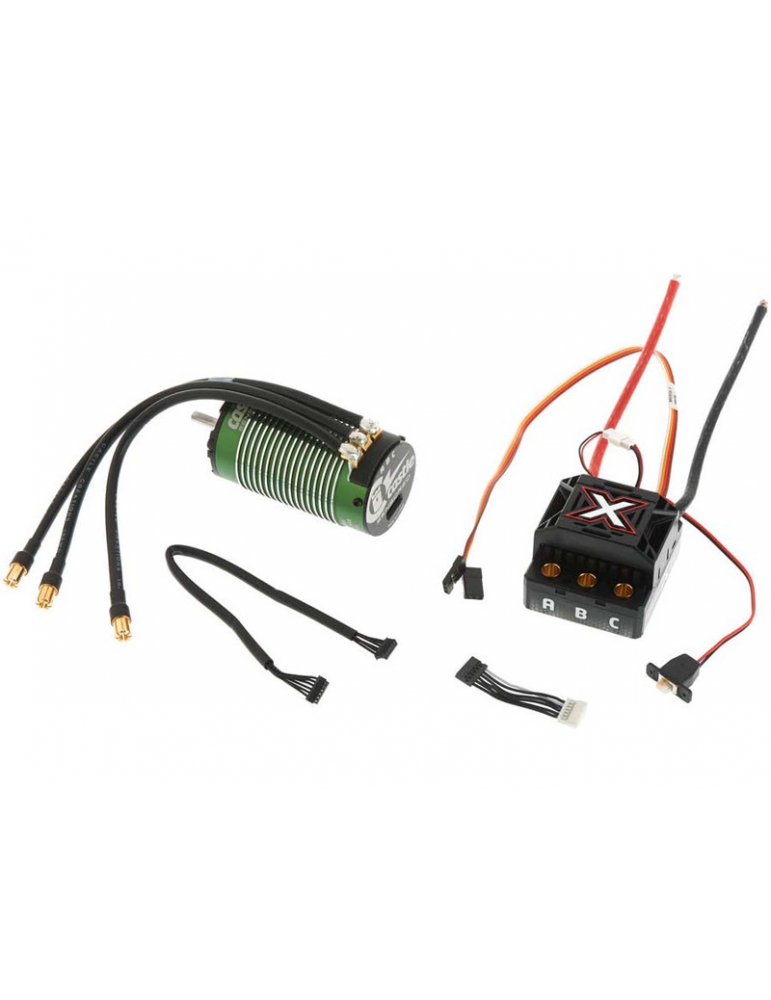

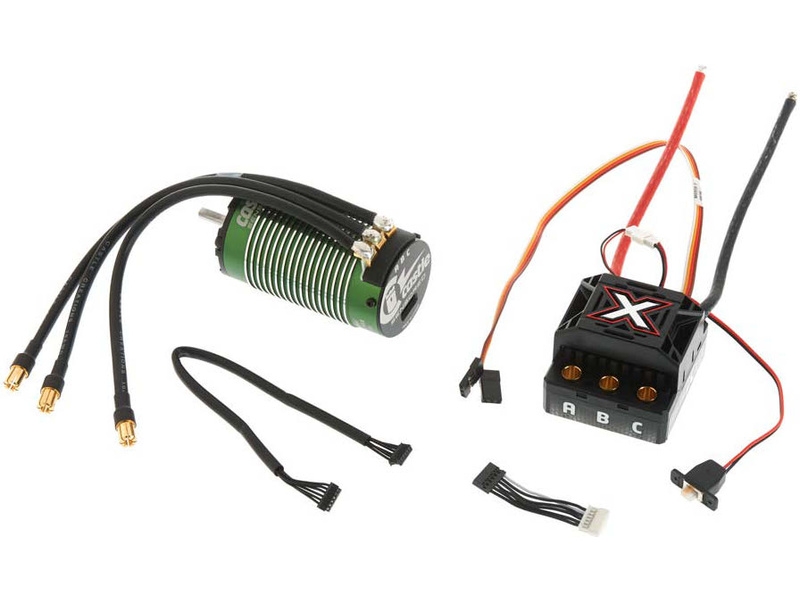

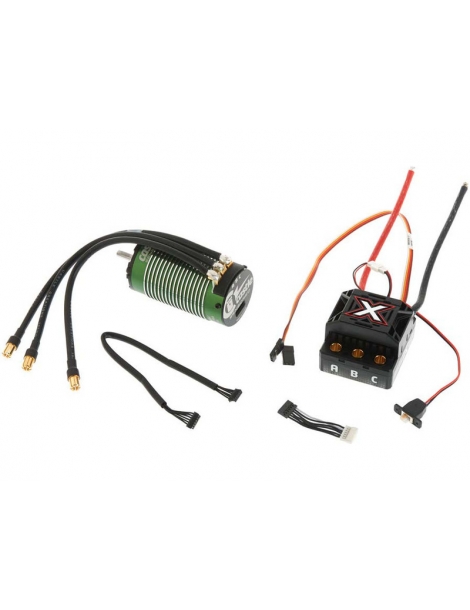

Mamba Monster X Combo Includes:

Mamba Monster X ESC
1515-2200Kv Sensored Motor
Castle Sensor Harness adapter
210mm length sensor wire (for sensored operation)
Coupon for free Castle Link USB adapter
Driver's Ed and Quick Start Guide
Castle Decals
