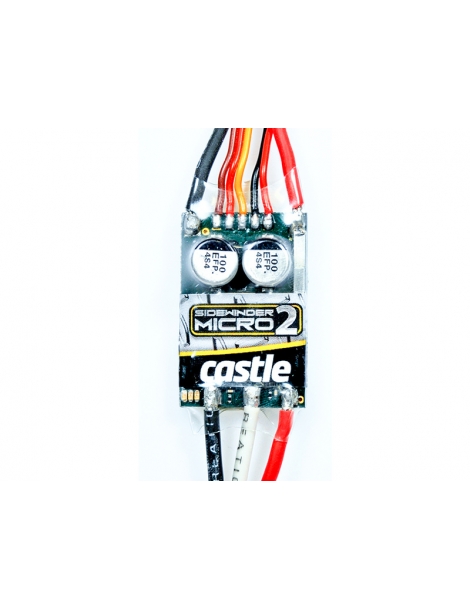

Variklio ir esc komplektas Castle 0808 5300Kv + ESC Sidewinder Micro 2

Sidewinder Micro 2 yra pradinio lygio 1:18 skalės valdiklis, galintis naudoti 2S - 3S LiPo, su 2 amperų srovės BEC, ir puikiai tinkantis 1:18 skalės 2WD automodeliams ir mažesnėms 4WD (iki 0.9kg), tokiems rc kaip „Team Associated“ RC18B2 arba Dromida SC4.

Pristatysime per 4-6 darbo dienas

Atsiliepimai Pateikti atsiliepimą

Aprašymas
Prekės informacija

Awesome, Affordable Micro Performance!

Sidewinder Micro 2 is our entry level 1:18 scale controller capable of 2S - 3S LiPo, with a 2 amp peak BEC, and is perfect for 1:18 scale 2WD vehicles and smaller 4WD (up to 2 lbs.) such as the Team Associated RC18B2 or Dromida SC4. Whether you are converting to a brushless setup or simply want more power than your current brushless power system is putting out, Sidewinder Micro 2 is the perfect controller to fit your needs.
(Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)

Sidewinder Micro 2 features:

Adjustable BEC functionality: 5.5V or 7.5V (default 5.5V)
The ability to diagnose and resolve problems in the field are made easy as this ESC will communicate with audible tones when certain conditions are present. Alerts are present for start fail, voltage cutoff, radio glitch, over-temperature, over-current and excessive load detection.
Updated circuitry and refined software makes for ultra-smooth starts.
Link Live to communicate power system information to an external device. This feature, when enabled, will allow users to experience real-time telemetry data such as battery voltage, ESC temperature, motor power output and battery ripple. Compatibility with the Futaba S.BUS® T4PX transmitter (requires purchase of Castle Telemetry Link for S.BUS2).
Manual programming settings include Brake/Reverse Type, Voltage Cutoff, Brake Amount, Drag Brake and Motor Type.

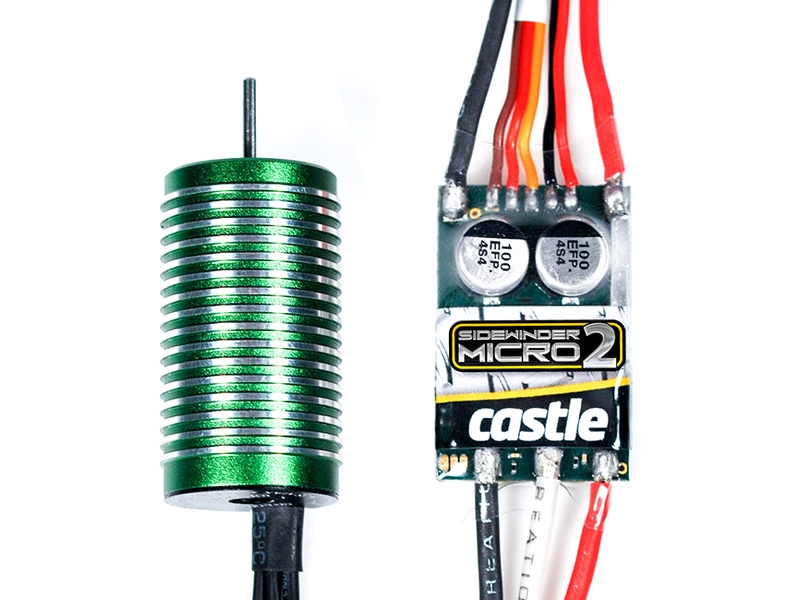

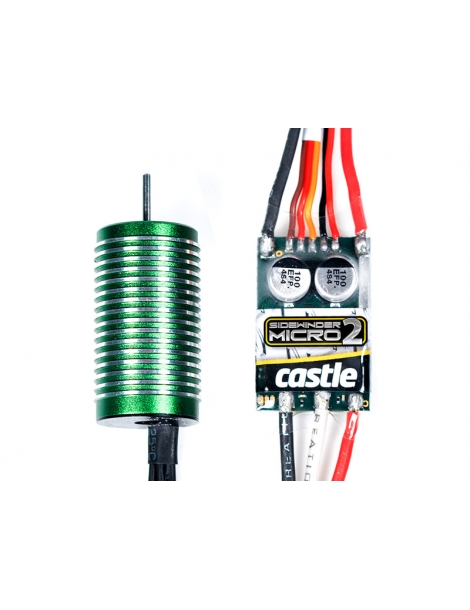

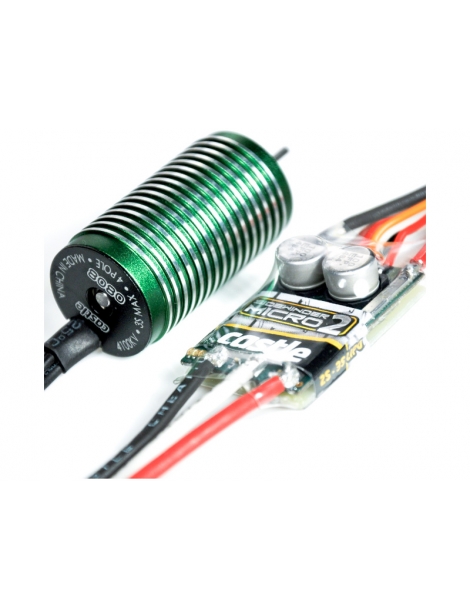

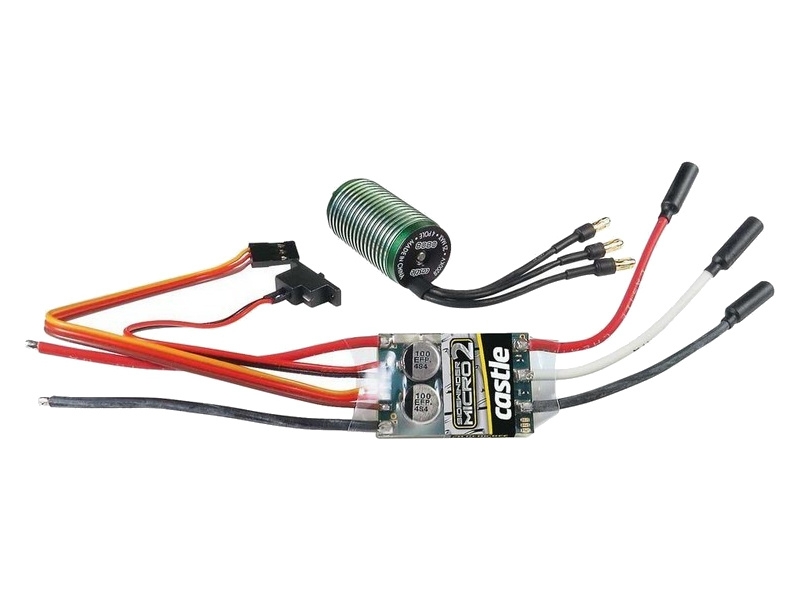

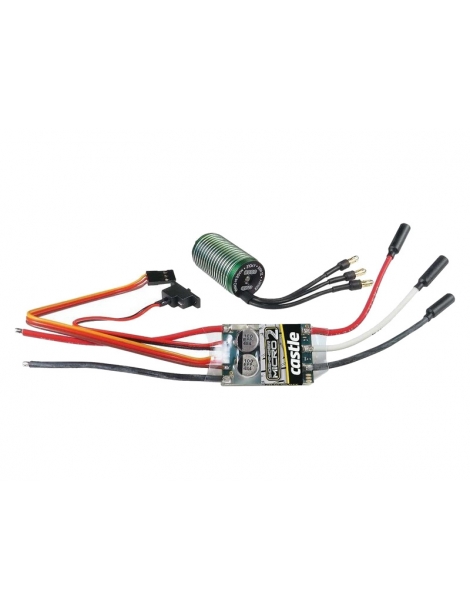

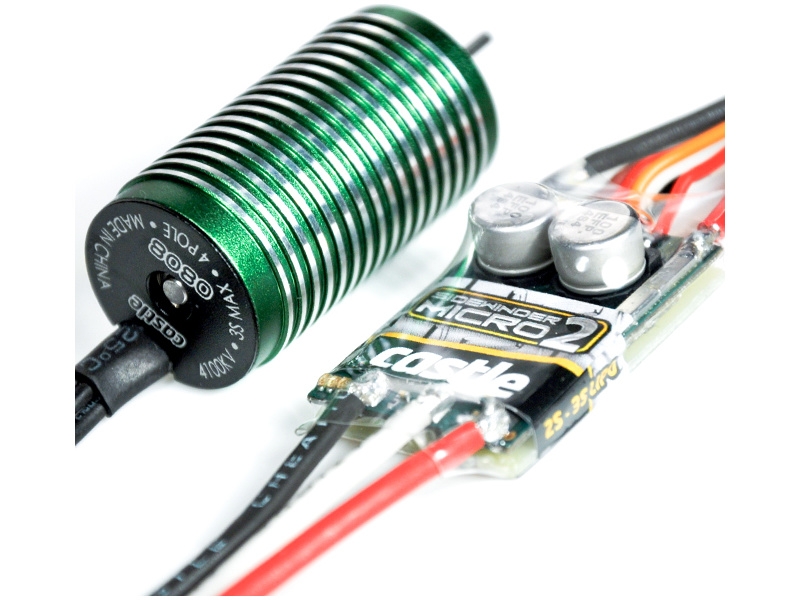

This combo includes a Sidewinder Micro ESC and Castle 0808-5300Kv motor.

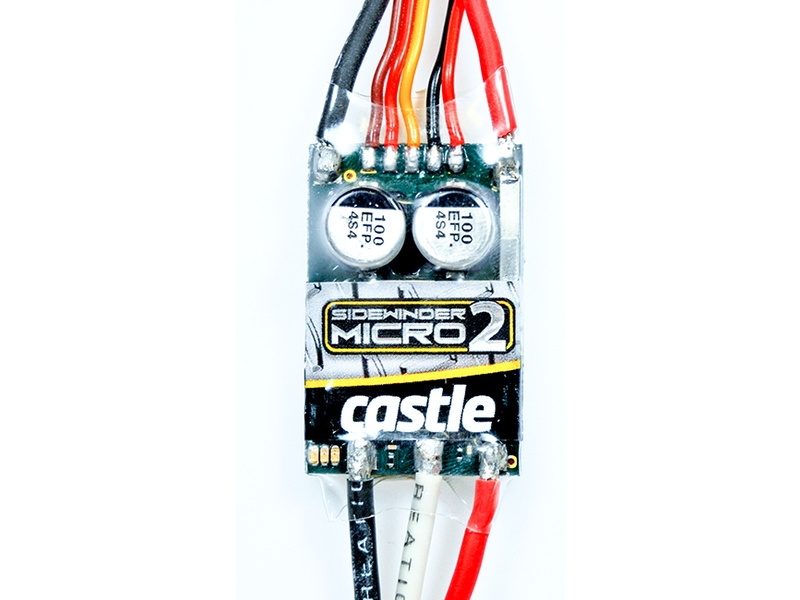

Controller
Input Voltage Range:	MIN: 2S LiPo MAX: 3S LiPo 4-9 cell NiMH
BEC Specifications:	2A Peak BEC, Adjustable: 5.5V or 7.5V, default 5.5V
Operating Environment:	Not intended for use in wet conditions, ESC is not waterproof
Brake:	Proportional
Reversible:	Yes, but may be disabled for racing
On/Off Switch:	Yes
Cooling Fan:	No
Size:	L: 1.5" (38mm) W: 0.87" (22mm) H: 0.5" (12.7mm)
Weight (without wires):	0.92 oz. (26g)
Connectors:	3.5mm bullet connectors on the motor wires
Items Needed for Operation:	Battery connectors
Product Use Statements:	N/A
Application Guidelines:	1:18th scale RC hobby vehicles weighing up to 2 lbs.
Recommended Motors:	Combo includes Castle 0808 5300Kv: Max Cells: 3S Lipo or 9 NiMH
Max. Recommended Vehicle Weight:	2lbs.
Programmability:	Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
Telemetry Link Capable:	Yes
Tech Notes:	The Sidewinder Micro 2 has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.

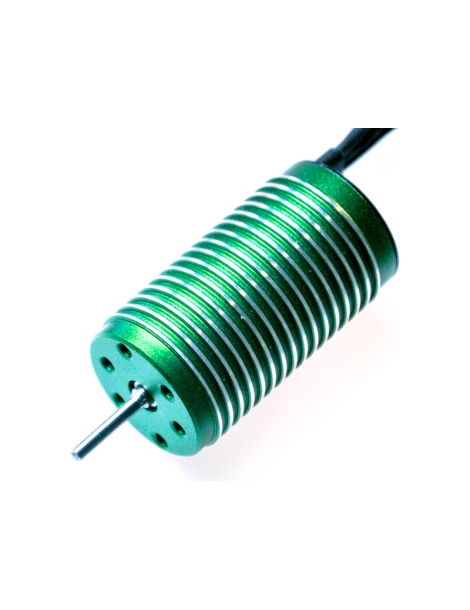

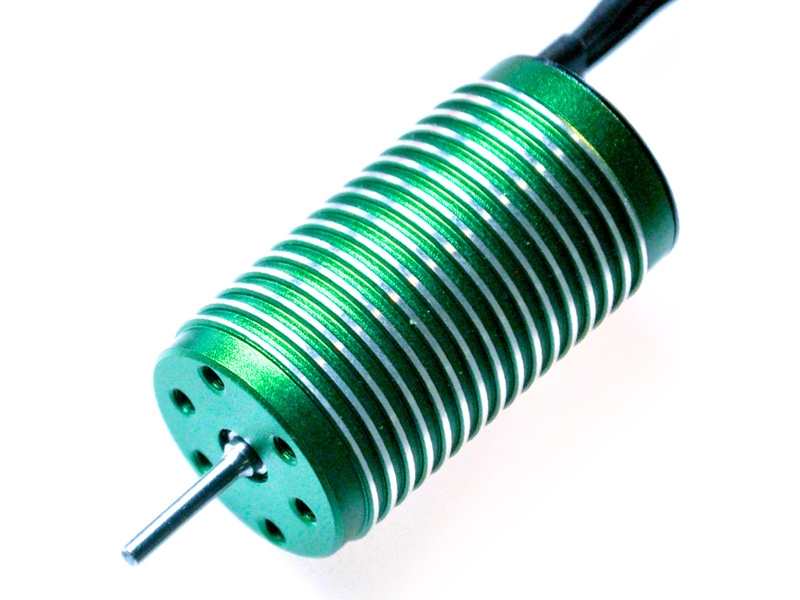

Motor
Input Voltage Range:	2-3S LiPo, 4-9 cell NiMH
Kv:	5300
Max. RPM:	N/A
Motor Size:	Length: 1.5" (38.1mm) Diameter: 0.79" (20mm)
Shaft Size:	Diameter: 0.08" (2mm) Length: 12mm
Weight (w/wires):	1.8 oz. (50g)
Mounting Hole Specifications:	2.5mm holes @ 1/2”, 14MM, 5/8”
Cooling Fan:	No
Connectors:	3.5mm male bullet
Items Needed for Operation:	N/A
Product Use Statements:	N/A
Application Guidelines:	Intended for 2WD and lighter 4WD vehicles (<2lbs)
Max. Recommended Vehicle Weight:	2lbs.
Tech Notes:	Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
