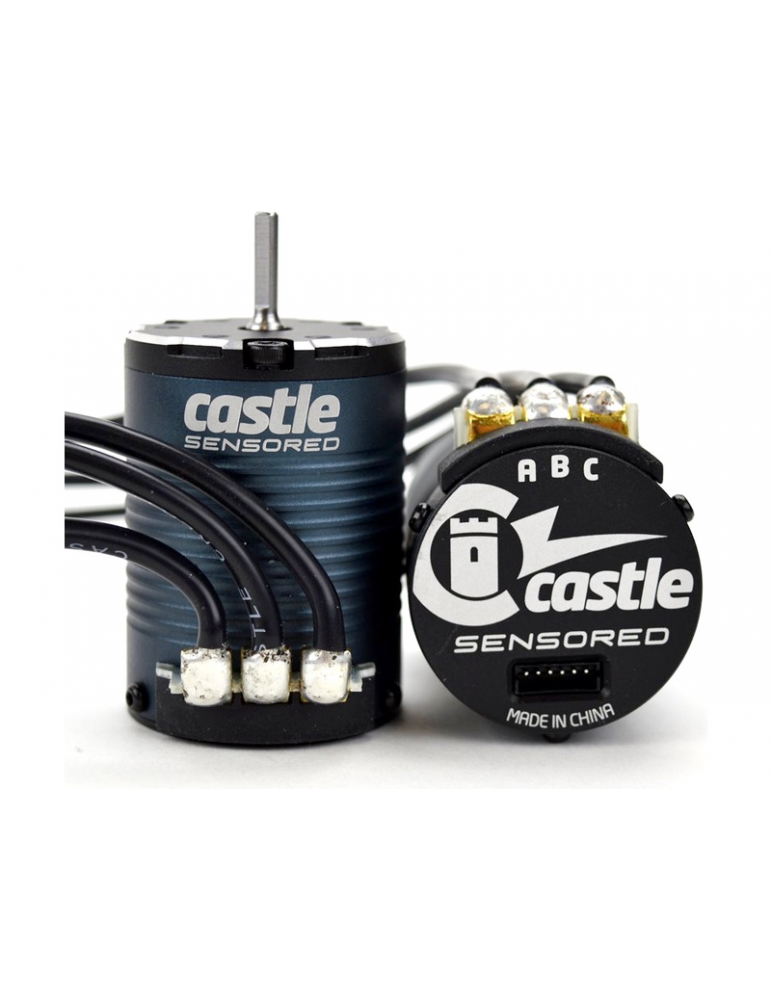

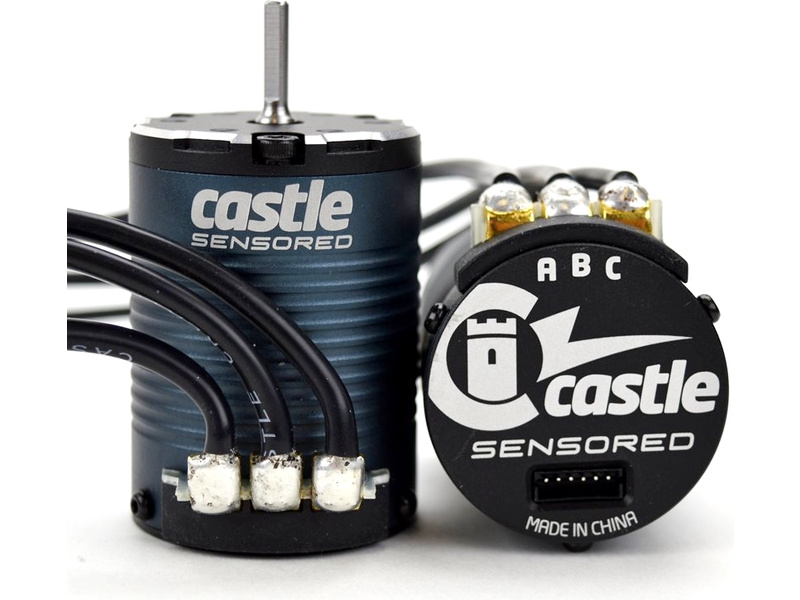

Castle Creations Sensored 1406 2850KV 4-Pole Brushless Motor CC-060-0070-00

WHY SENSORED?

Drivers in all applications demand clean starts when coming off the line. Crawler fans require high-precision low speed control and torque for climbing, racers need precision and predictability, and dragsters don’t have a millisecond to spare. To achieve all of these performance demands and more, we have integrated rotor position sensor technology with our improved high power and high efficiency motor design. Through the use of our sensors, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup. Users will experience PRECISE throttle control and BUTTERY SMOOTH starts plus the RAW POWER and LONGER RUN TIMES that our highly efficient motors produce.


WHAT MAKES AN EXCEPTIONAL MOTOR?

Efficiency
You can push it harder (gear it up)
You can run it longer (with the same battery)
It stays cool under extreme loads
Reliability
Ability to withstand the harsh demands of any RC application
Long-life, high-quality components
Proven manufacturing techniques


EFFICIENCY IS KEY

The higher the efficiency of a motor the more power it can produce without overheating, which allows you to safely run higher gear ratios. The higher the efficiency of a motor, the less power it takes to produce the same output power, which allows you to run longer on a single charge. The higher the efficiency of the motor, the less energy it turns into heat; keeping it cool under extreme loads. Efficiency equals performance.

RELIABILITY CAN’T BE IGNORED

Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it. Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible. High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions. Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the highest efficiency possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.

Specifikacijos:

Input Voltage Range:    2S-4S LiPo
Kv:    2850
Max. RPM:    100,000
Size:    Length: 49.5mm
Diameter: 36mm
Weight (w/wires):    197 g / 6.9oz
Shaft Size:    Length: 15mm
Diameter: 1/8" (3.17mm)
Mounting Hole Specifications:    M3 @ 25mm
Cooling Fan:    Optional - Coming Soon
Connectors:    4mm male Castle Bullet Connectors
Items Needed for Operation:    Compatible Electronic Speed Control (ESC)
Application Guidelines:    Ideal for 1:10 scale rock crawlers, trail rigs, touring cars, stadium trucks and buggies on 2S-4S with appropriate gearing.
Recommended ESC(s):    Mamba Max Pro, Mamba X, Mamba Micro X
Max. Recommended Vehicle Weight:

Tech Notes:

Running modes: SMARTSENSE, Sensored, Sensorless with Castle sensored capable ESCs.

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.

INTEGRATED SOPHISTICATION

Castle engineers always add a little something extra in their designs that takes your performance to the next level. We have not skimped here. Many customers have utilized our industry leading software functionality that Castle Link* offers. When paired with a Castle Creations sensor supported ESC, like the MAMBA MICRO X, MAMBA MAX PRO, MAMBA X or MAMBA MONSTER X, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors.

SmartSense

SMARTSENSE uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.

With a Castle sensored ESC and sensored motor you will have the ULTIMATE POWER PLANT for your vehicle. Users will experience PRECISE throttle control, BUTTERY SMOOTH starts, PEAK PERFORMANCE and EFFICIENCY throughout the full throttle range. You will feel the POWER and LONGER RUN TIMES that a WORLD-CLASS motor produces.


Atkreipiame dėmesį, jog prekių aprašymas yra paremtas prekės gamintojo ir/ar tiekėjo pateikiama informacija, todėl jis gali būti neišsamus, jame gali būti užsienio kalbos raidžių ar trumpinimų. Nuotraukoje pateiktos prekės spalvos, užrašai gali skirtis, o aprašyme pateikta informacija yra bendro pobūdžio, tad gali būti paminėtos ne visos prekės savybės.
Kilus klausimams, visada laukiame Jūsų skambučio telefonu: +370 68519282 arba el. paštu: [email protected]
Vilniuje - Kontaktai
BSS-CC-060-0070-00

Charakteristikos

Svoris
197 g
Reguliatorius
Rekomenduojamas Mamba X
Naudojama
Idealiai tinka 1:10 skalės - rock crawlers, trail rigs, touring cars, stadium trucks, buggies 2S-4S su tinkama pavara
Išmatavimai
36 x 49.5 mm
Polių skaičius
4
Apsisukimai per minutę
2850 aps./min
Maksimali maitinimo įtampa
Max. 4 cel. LiPo
Maksimali darbinė temperatūra
Max. 90 C
Velenas
3.17 x 15 mm
Jungtys
Lituojamos
Rotoriaus padėties jutiklis
Taip
Efektyvumas
90%
