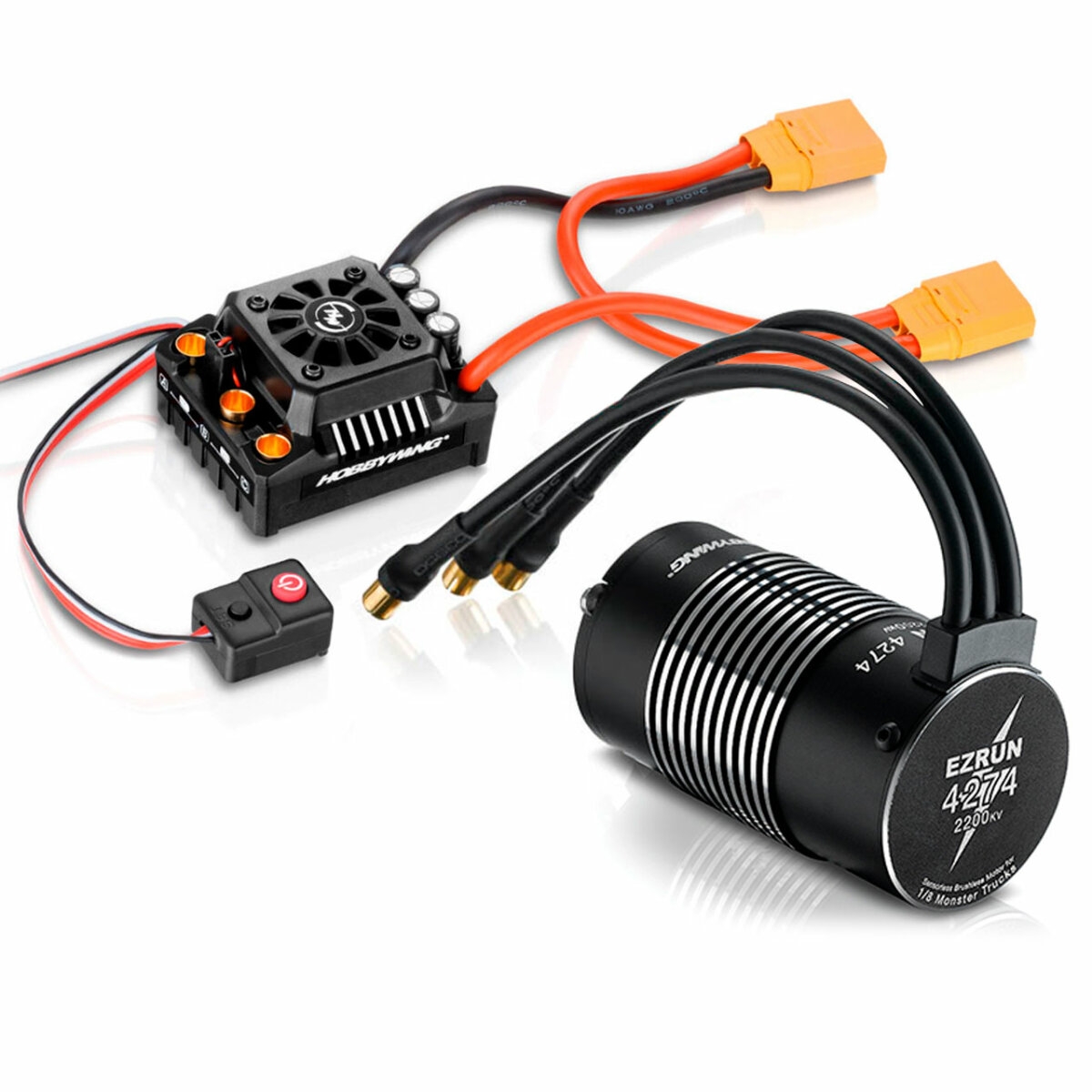

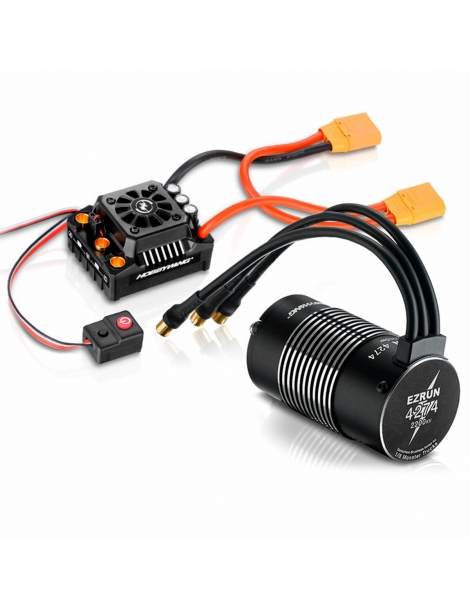

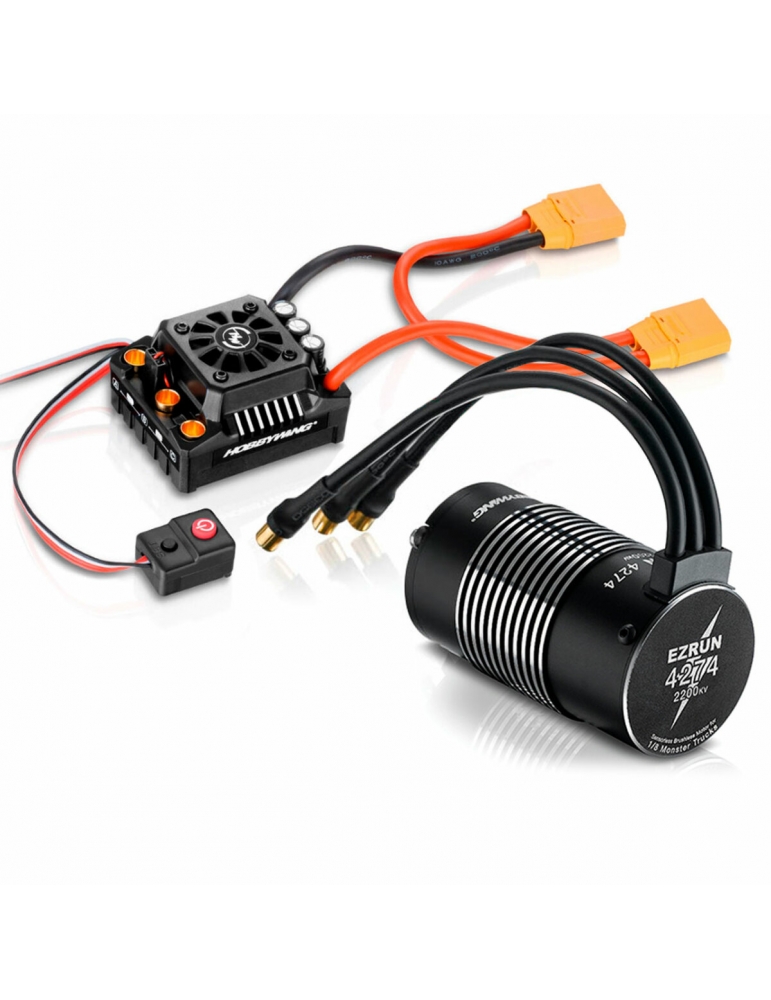

COMBO MAX8 XT90 plug + EZRUN 4274 SL 2200Kv - black

HOBBYWING EZRUN MAX8 T-PLUG & EZRUN 4274SL SENSORLESS MOTOR COMBO

The MAX8 ESC provides the optimal upgrade solution for many popular 1/8th scale monster trucks like TRAXXAS E-REVO & E-MAXX, HPI SAVAGE, and THUNDER TIGER E-MAT. It’s also applicable to other trucks and buggies. The whole ESC except the cooling fan is basically maintenance free. Besides, the fan has also adopted the special anti-shock design, reduced damage brought by frequent jumps of the vehicle, greatly reduced maintenance work to the fan.

Reliable hardware combined with advanced software allows the ESC to not only provide extremely high output but also protect itself timely from damages caused by overload. It significantly reduces the possibility of getting damaged by heavy load and improves the reliability and durability.

The ESC has strong outbreak and stable output, so vehicle can do different moves without a problem, no matter aggressive start-up and wheelie, 720-degree flip (note 1), high speed running on straight tracks or flying over slopes. It always provide the power more than sufficient. Besides, driver can adjust relevant parameters for smooth and soft start-up.

The world’s 1st 1/8th scale ESC adopted the super built-in BEC with the max. output current of up to 15A and switchable output voltage (6V/7.4V). It can drive different servos, high voltage servos at ease and bring amazing control feel to drivers. The electronic switch with the lifespan of over 50000 times of switching on & off features a completely waterproof, dust-proof and shock-resistant design, completely solved problems like stuck reed and rust contact points caused by dust and moisture, switching off automatically caused by violent dash (like landing after flying over slopes) conventional mechanical switches often have.

Outstanding waterproof and dust-proof capability makes the MAX8 applicable to all weather conditions, no matter the track is covered with dust, gravel, snow or puddles.

HobbyWing EzRun MAX8 V3 Features:

    High Reliability & Durability
    Great Flexibility & Versatility
    Advanced and Secure Electronic Switch
    Applicable to All Weather Conditions
    Super Built-in BEC
    Plug and Play
    Almost Maintenance Free

ESC Spec Check:

    Scale: 1/8th
    Brushed/Brushless:BL
    Sensored/Sensorless: SL
    Waterproof: Yes
    Cont./Peak Current: 150A/950A
    Input: 3-6S LiPo/9-18 Cells NiMH
    BEC Output: Switch Mode:6V/7.4V,6A
    Input Wires: Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1
    Output Wires: Black-10AWG-200mm*3
    Input Connectors: XT90
    Output Connecotors: 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
    Fan Size: 30.0x30.0x10.0mm
    Fan Voltage Range: 5-7.4V
    WiFi Module: Supported
    Program Port: FAN/Program Port
    Size: 59.8x48.0x36.8mm
    Weight: 174g

The 4 pole design of the EzRun 4274 will guarantee the motor to produce very large amounts of torque, a much faster acceleration response and a very stable output of power to the drivetrain.

Hobbywing’s temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficient the motor will run and perform. The output performance of this motor has an efficiency rate of up to 90% meaning that if the energy consumption of the motor is at 1000 watts your guaranteed that 900 watt of that power will be available and no less

The motor housing is made from hard anodized aluminum, motor windings are wound from pure oxygen-free double insulated copper wire, the advanced rotor structure is designed to handle high temperature from the use of rare earth magnets, output shaft from high quality polished alloy steel and the imported bearings which are implemented are high precision metal caged for a minimum to zero friction which in turn will guarantee strength, outstanding performance, high durability and smoothness of the motor.

This motor can also provide a powerful upgrade solution for all popular 1/8th scale monster trucks such as TRAXXAS E-REVO, E-MAXX, HPI SAVAGE, and THUNDER TIGER E-MAT plus other trucks and buggies.

HobbyWing EzRun 4274SL G2 Features:

    High Torque
    High Efficiency
    Solid Construction
    Quality Materials & Excellent Design

Spec Check:

    Scale: 1/8th
    Brushed/Brushless: BL
    Sensored/Sensorless: SL
    Pole Count: 4
    KV Rating: 2200
    LiPo Cells: 2-6S
    No-load Current(A): 5
    O.D.(mm): 42.0
    Length (mm): 74.0
    Shaft Diameter (mm): 5.0
    Weight (g): 418
