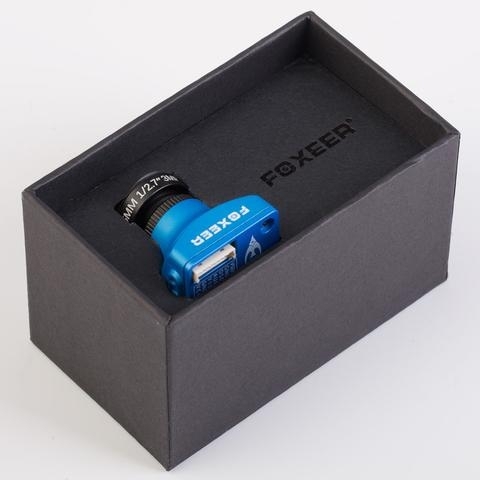

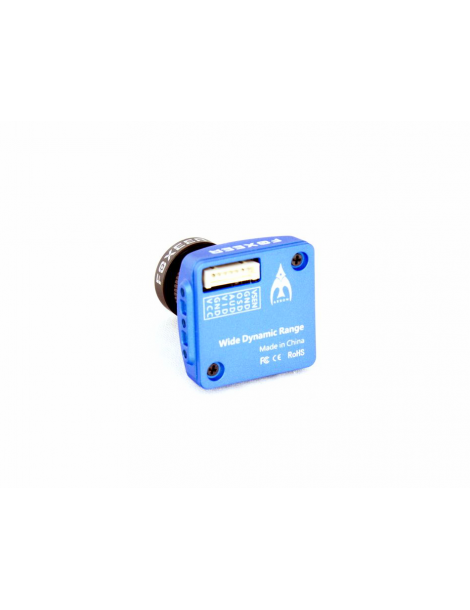

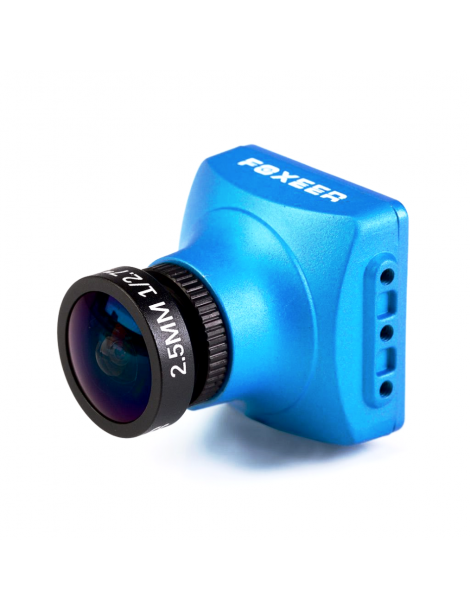

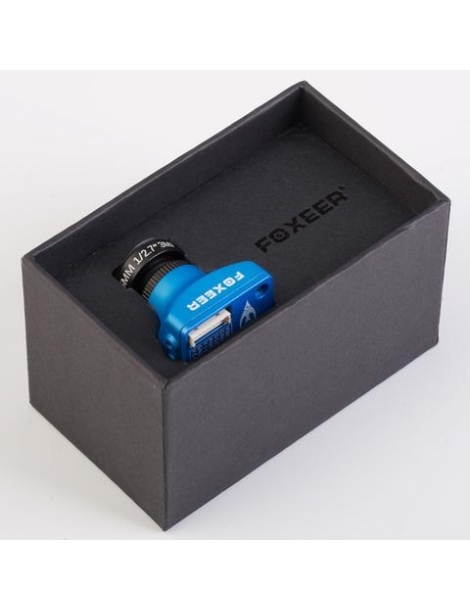

FOXEER Arrow V3 kamera

Foxeer Arrow V3 FPV camera is upgraded to alloy case, and it is more easy for installation. Foxeer Arrow V3 with built-in OSD and MIC, FOXEER ARROW V3 is the advanced version of FOXEER HS1177, it features great WDR and brilliant image quality. The camera case is made of light metal, which can better survive from vibrations and crashes. The built-in MIC makes the flying experience more immersive.

Specifikacijos:
 CCD 1/3” Sony SUPER HAD II CCD
Pixel PAL: 976(H) x 494(V);NTSC: 768(H)×494(V)
TV System PAL/NTSC(according to country)
Resolution 650TVL(b/w), 600tvl(color)
OSD Edit Name, Power, Flying time
Synchronization internal synchronize
Shutter Speed (CCD IRIS) PAL: 1/50~1/100000 sec; NTSC: 1/60~1/100000 sec
Noise > 60 (AGC OFF)
Video Out 75ohm, synchronize
Min. Illumination 0.01Lux
Auto Gain Off/Low/Mid/High
Back Light Compensation (BLC) Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY) 1~8 private shading area
Motion Detection (MD) On/ Off (Multi level sensitivity settable)
Auto White Balance Manual / Auto / Auto track
Mirror Horizontal Mirror optional
Negative Positive / Negative optional
Color to B&W Auto
DNR 2DNR
WDR D-WDR
Day / Night Shift Auto/ Color/ B&W
Menu (OSD) English menu
White Dot Repair Support
Image Adjustment Support
Camera Title Support
Power Requirement DC5V~35V
Working Temperature -10 C ~ 50 C
Working Humidity 20~80%
Storage Temperature -40 C ~ 60 C
Storage Humidity 20~95%
Dimensions(mm) 26X26(W*L)
Power Consumption 70mA
