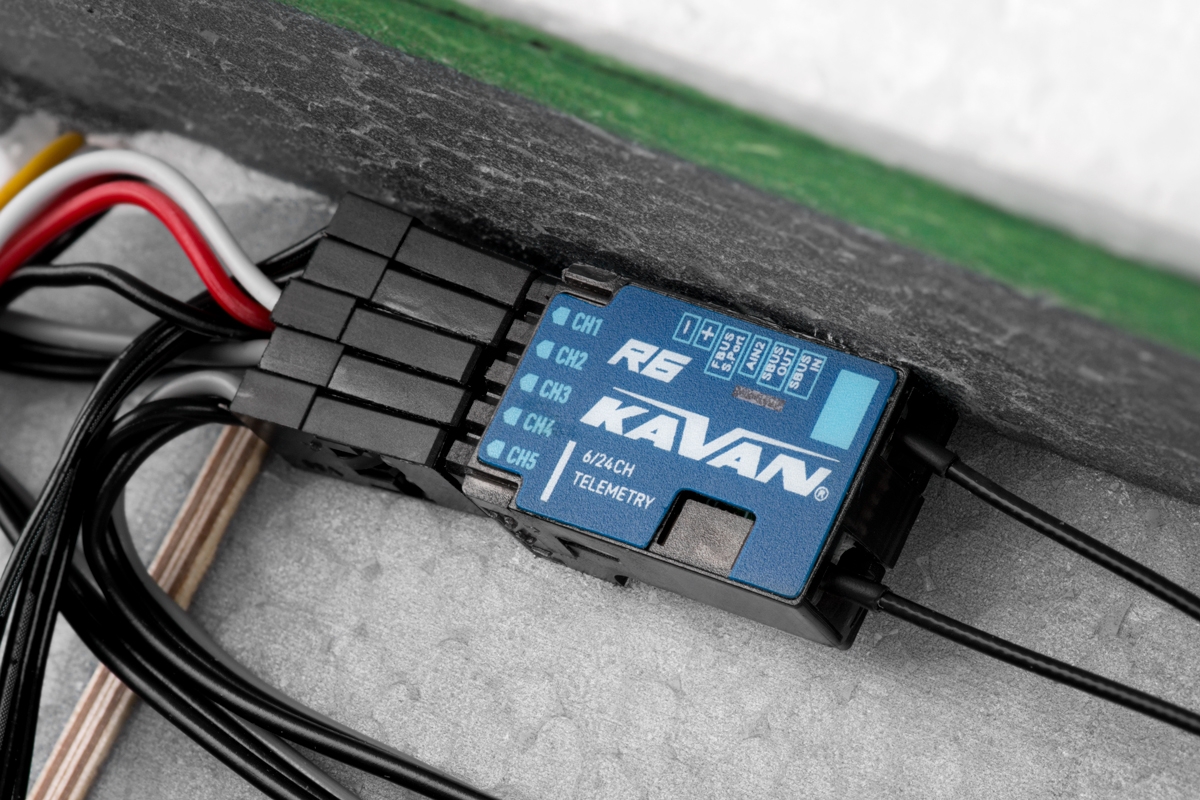

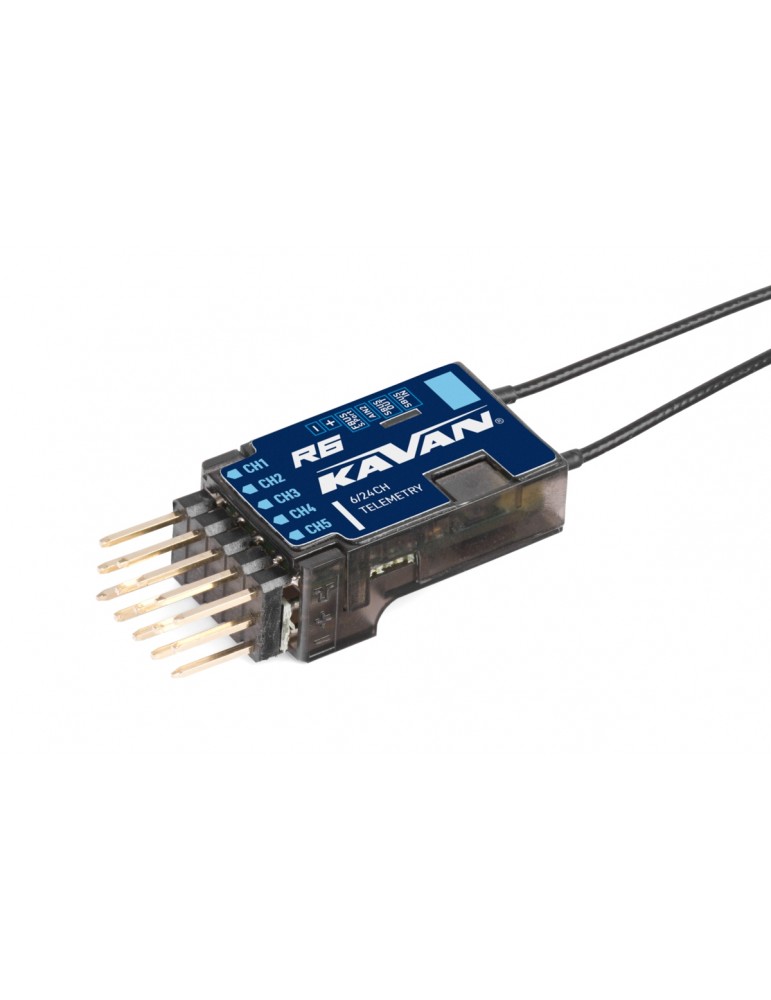

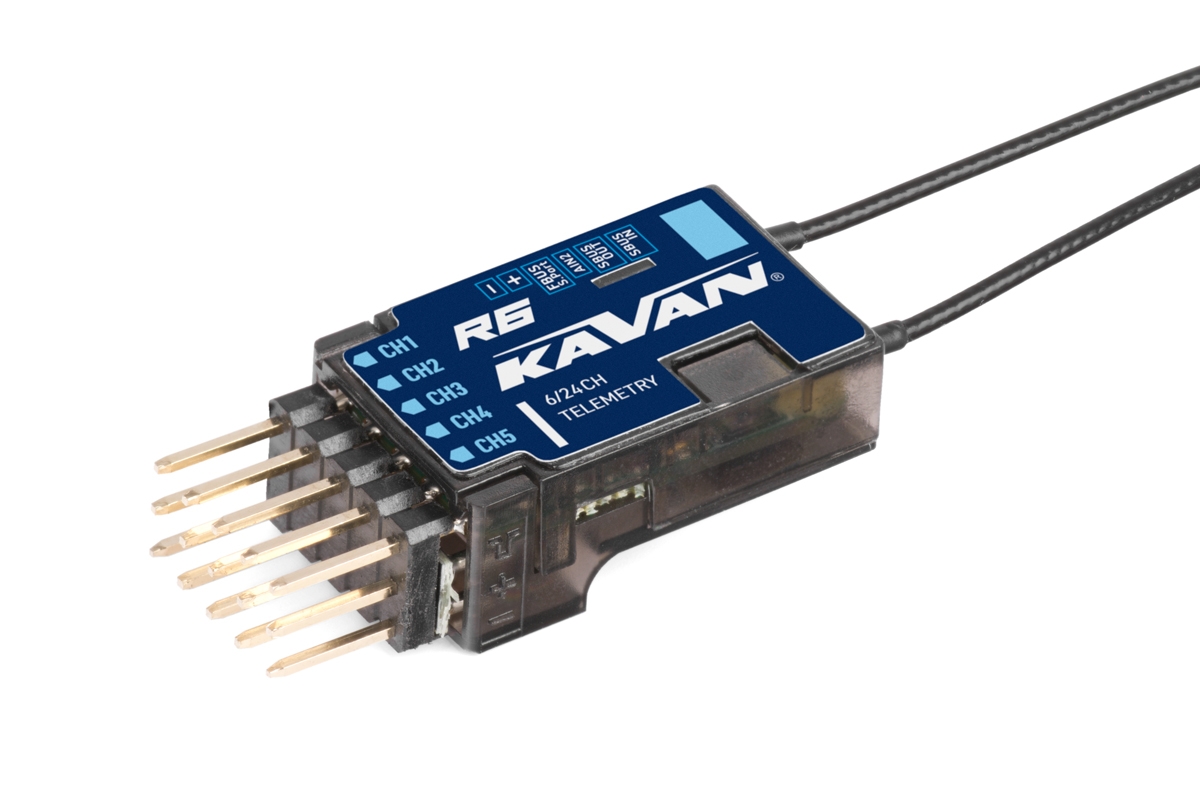

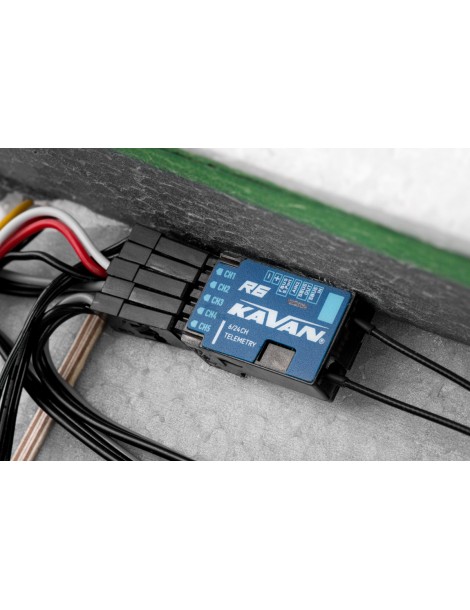

KAVAN R6 receiver

Advanced 6-channel 2.4GHz telemetry receiver for ACCESS RC protocol, with 6 high-precision PWM channels and 16 or 24-channel S.BUS modes. Two detachable antennas with IPEX4 connector provide full signal strength throughout the range. It's especially ideal for gliders, but you can use it for various other models as well. Thanks to its size and low weight, it is also suitable for small models. With redundancy support, it can be connected as a primary receiver via S.BUS. Thanks to the F.BUS connection option, you can also pair it quickly and easily to several different telemetry devices.

It features advanced anti-interference protection for reliable and stable signal transmission across the entire range. Smart-match system speeds up pairing. The black box function preserves basic flight data. LED indicates the receiver's operating status. A Smart matching function allows firmware updates wirelessly.

Features:

• Increased protection against RF interference and more stable RF transmission
• ACCESS RC protocol with smart pairing
• Basic black box function support
• 6 high-precision PWM channels
• S.BUS output port（with 16/24 channel mode)
• S.BUS input port (with support for redundant connection of 2 receivers)
• Full-range telemetry (S.Port or F.BUS)
• Wireless firmware updates (OTA)
• External battery/device voltage detection

Technical Specifications:

• Dimensions: 33×15×9.7 mm (L×W×H)
• Weight: 4.2 g
• Number of channels: 6 PWM channels + 16/24 channel mode via S.BUS
• Operating voltage range: 3.5–10 V
• Operating current: ＜65 mA at 5 V
• Operating range: ＞2 km (full range, may vary according to actual ambient conditions)
• External voltage measurement range via AIN2: 0-35 V (battery voltage divider ratio: 1:10)
• Antenna connector: IPEX4
• Compatibility: 2.4GHz ACCESS

Online user manual: wiki.kavanrc.com
