|Svoris||1.4 g w/o wires|
|Maitinimo įtampa||3.3 - 8.4 V|
|Antenos ilgis||100 mm|
|Telemetrija||Yes, range approx. 400 m (transmit power 5 dBm)|
|SRXL išėjimas||Yes, SRXL2|

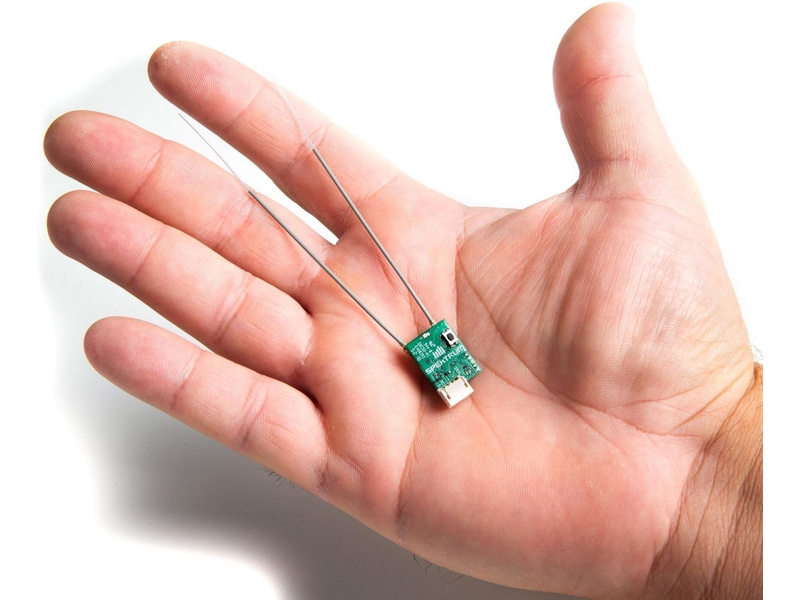

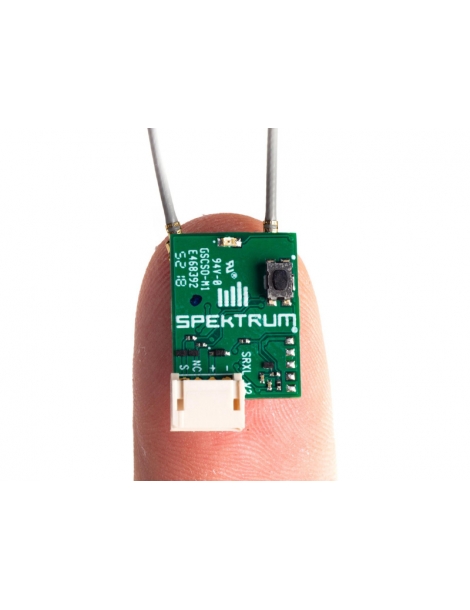

Small, Lightweight and Perfect for the DIY Enthusiast
Wide Voltage Input Range

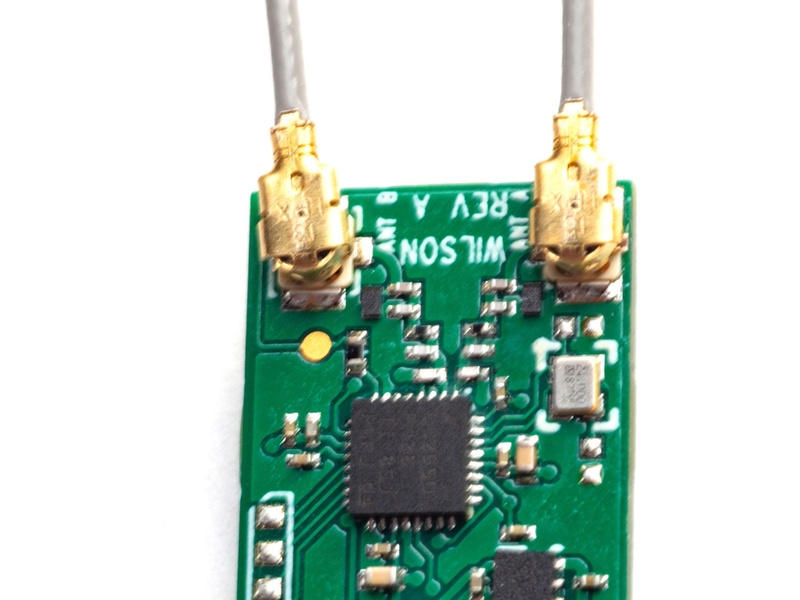

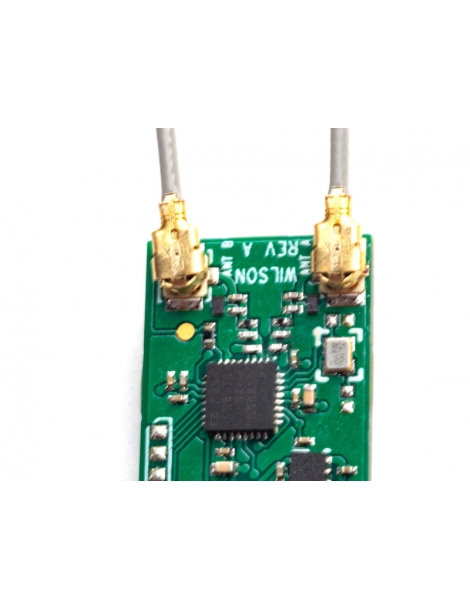

Dual Diversity Antennas

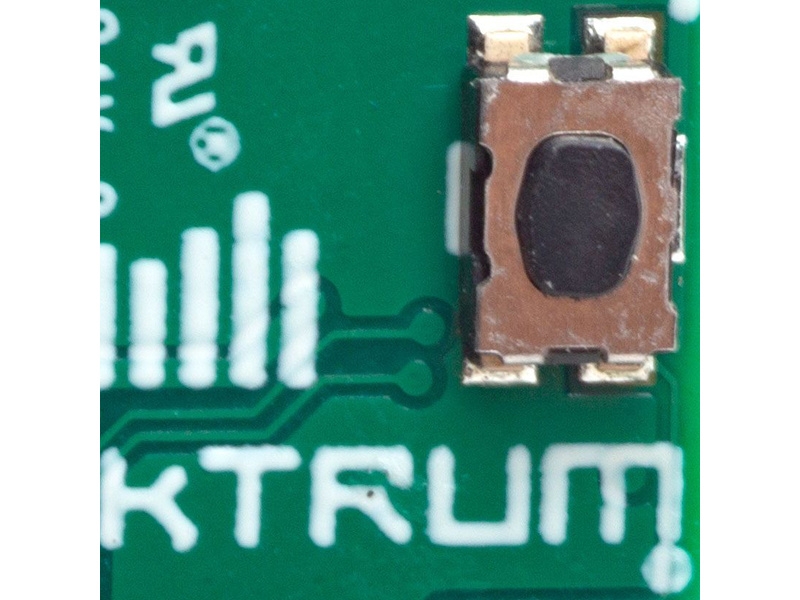

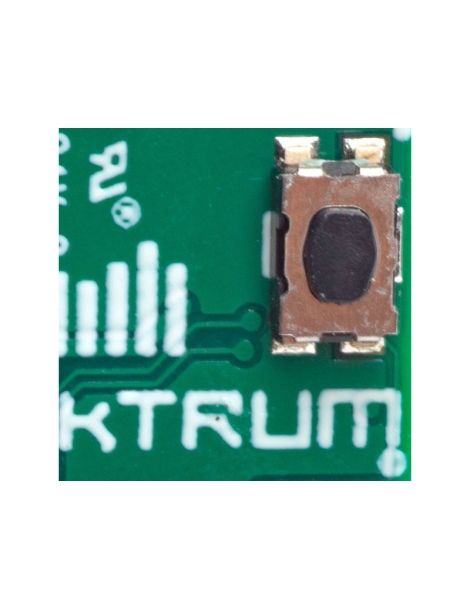

Bind Button installed for Easy Binding

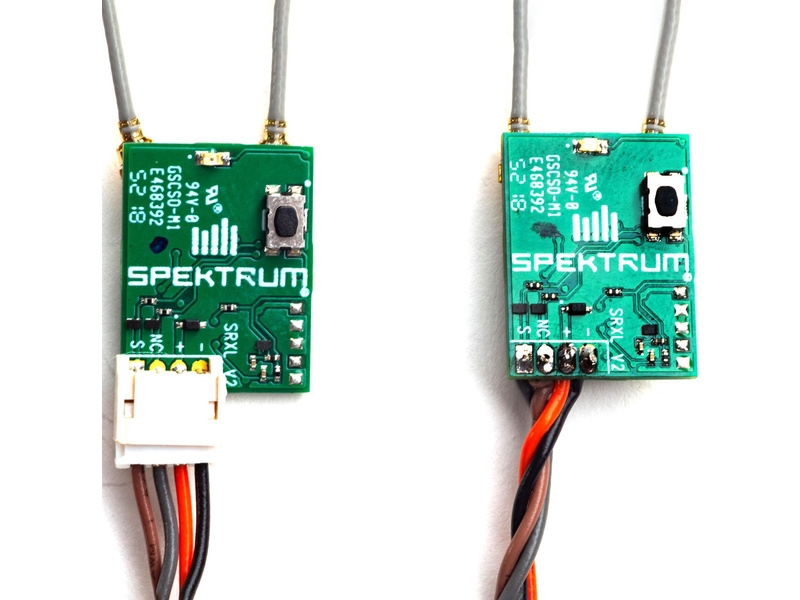

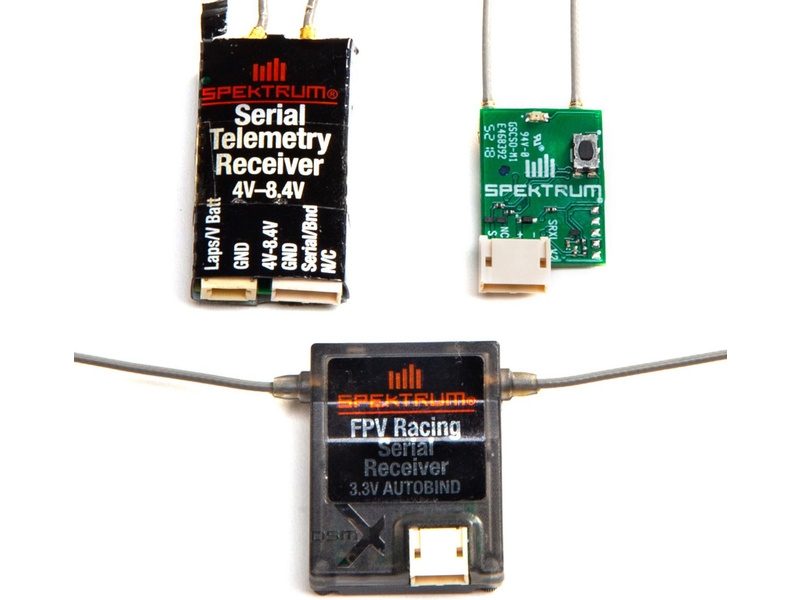

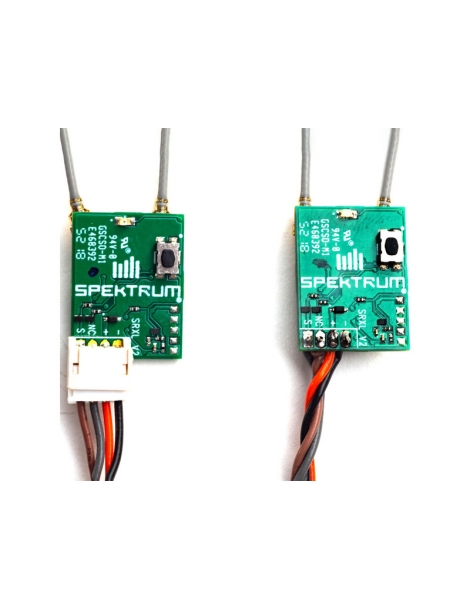

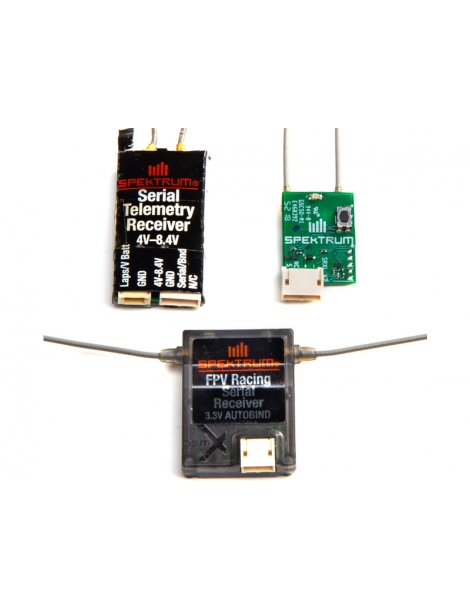

The SPM4650 DSMX SRXL2 Serial Micro Receiver takes the original SPM4648 receiver and adds more value, functionality and fly-by telemetry, while decreasing the size and weight of the already micro sized Spektrum serial receiver. The SPM4650 uses our feature-rich SRXL2 protocol to give pilots a blazing fast serial data connection with up to 20 channels. SRXL2 is a powerful communication protocol that improves bi-directional communication between the radio system and flight controller for added telemetry functionality and flight control configuration right from the pilots Spektrum Transmitter*, all over one signal wire.

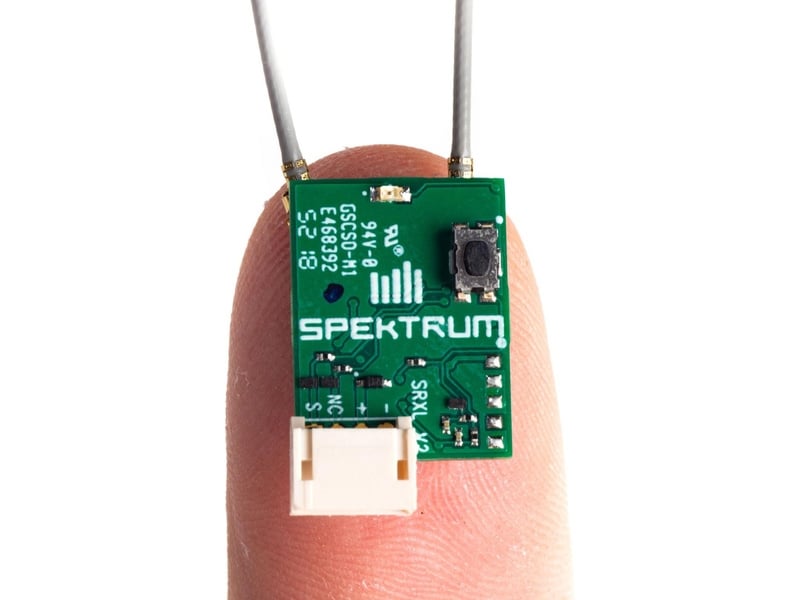

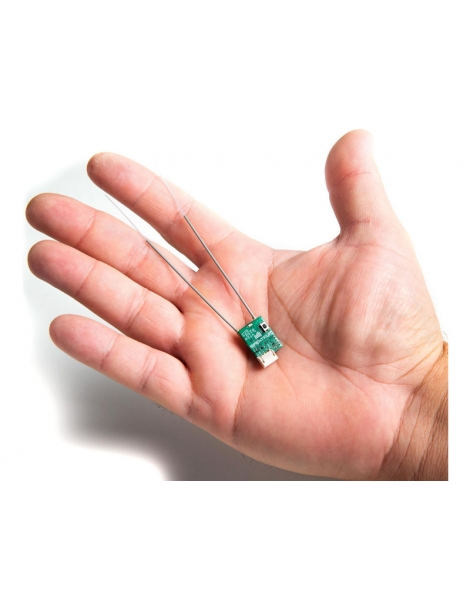

The SPM4650 is small, lightweight, and customizable, providing an excellent receiver for even the smallest of applications. It also features a simple bind button so pilots no longer need to carry a separate receiver or bind plug to bind. Dual antennas provide receiver diversity for solid signal and the long coax antennas help to provide maximum signal strength in all orientations for challenging installations where carbon fiber, metal and batteries shield the antenna. And with Spektrum DSMX 2.4GHz RF protocol the Spektrum SRXL2 Serial Micro Receiver provides remarkable range and interference free performance.

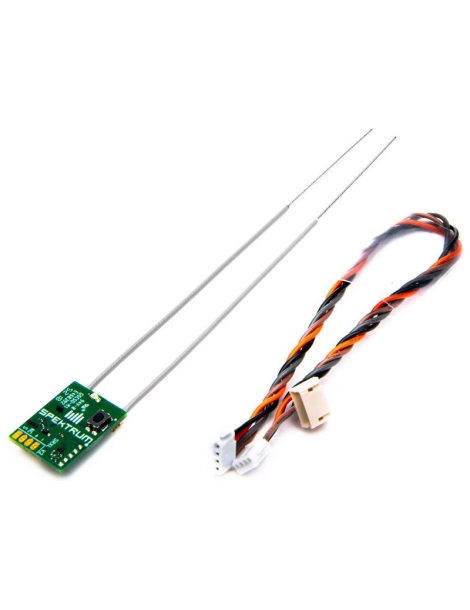

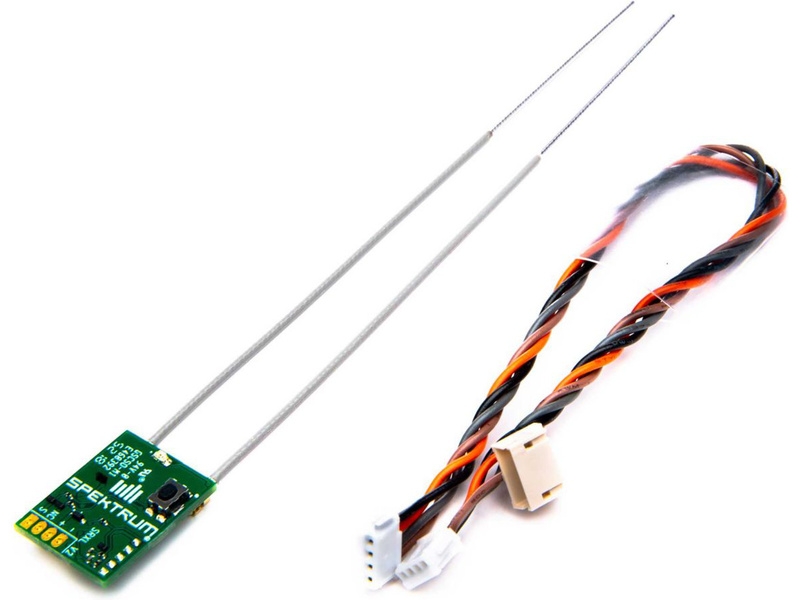

Kas yra pakuotėje?

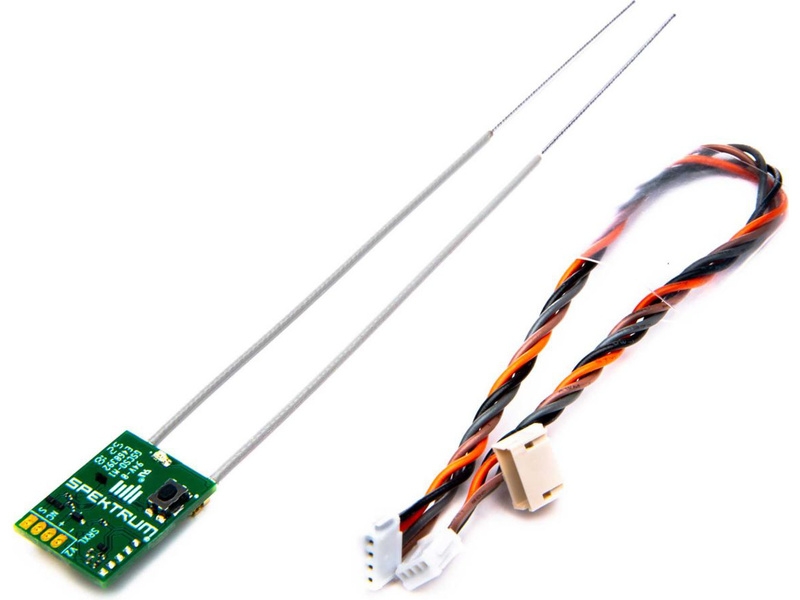

(1) SPM4650 Receiver
(2) U.FL Antenna

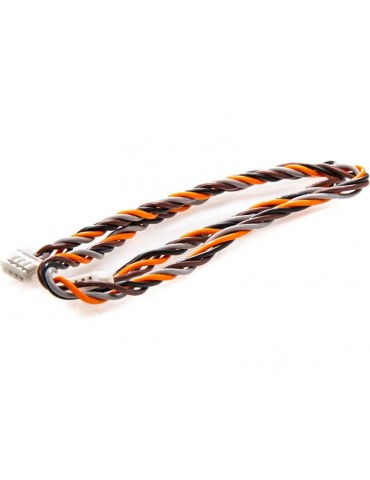

(1) 6” Receiver Extension Cable
(1) Product Manual
Clear Heat Shrink Wrap
