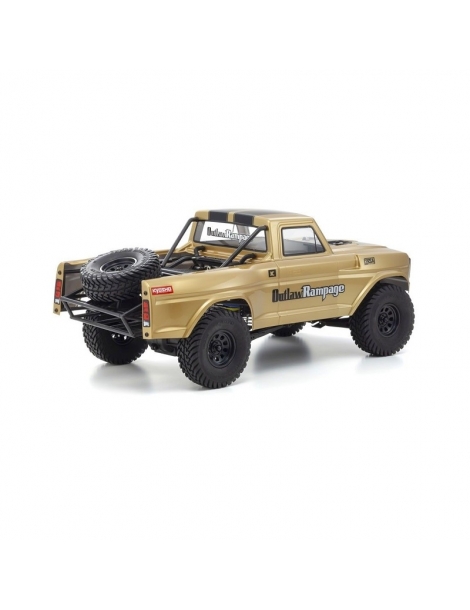

KYOSHO OUTLAW RAMPAGE PRO 1:10

Realistic 2WD truck delivers the optimal combination of style and performance for the perfect introduction to R/C trucking.

The OUTLAW RAMPAGE PRO ready set with a realistic roll cage adds more scale-oriented to the new concept full-scale 2WD truck and improving driving performance. The mechanism based on the actual truck gives a new driving feeling and brings more fun to drive R/C cars than ever. With a new chassis designed from the ground up, the underbody features double wishbone suspension on the front with a link system suspension on the rear in combination with the long stroke of high volume aerating oil shocks to deliver a standard of performance worthy of a 2WD trophy truck. Heavy-duty drive system realizes high durability and reliability and is designed to handle high loads with its 32-pitch module counter gear and diff gear and slipper clutch to manage sudden load changes from jump landings etc. With a power center combination consisting of the newly developed ‘G15’ brushed motor and large capacity Vortex WP Brush ESC 45A, the dynamic performance of the OUTLAW RAMPAGE is matched by its stunning 1970-80’s trophy truck style with pre-cut and painted body with decals applied. Whether it’s the rough road or no road at all, the OUTLAW RAMPAGE puts the ultimate trucking experience in your hands.

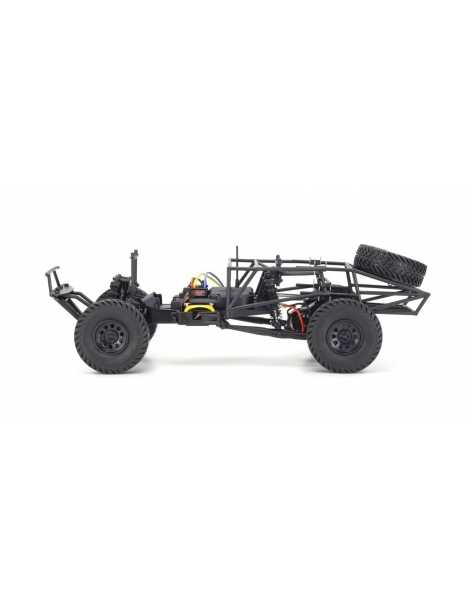

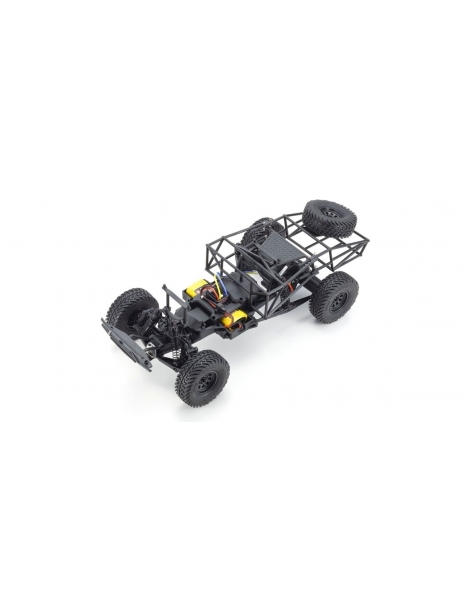

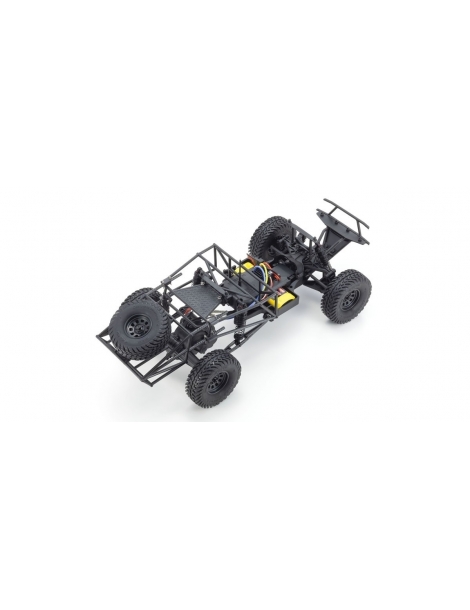

● High strength and easy maintenance of the bathtub type chassis combines with a reinforced frame and dustproof monocoque radio box for high durability in hard driving.

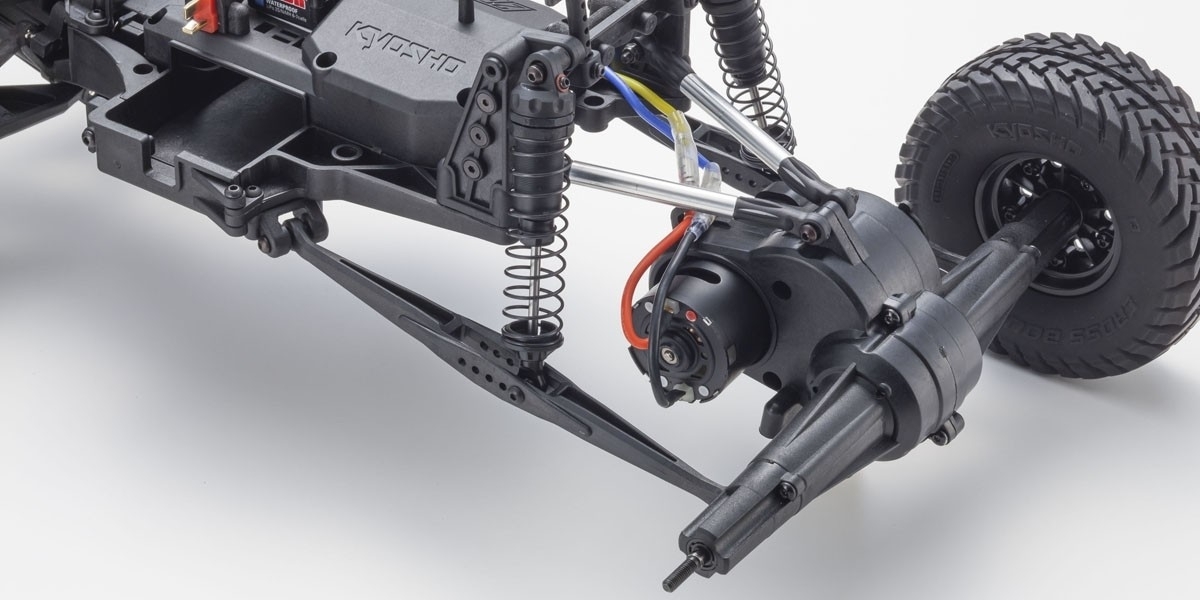

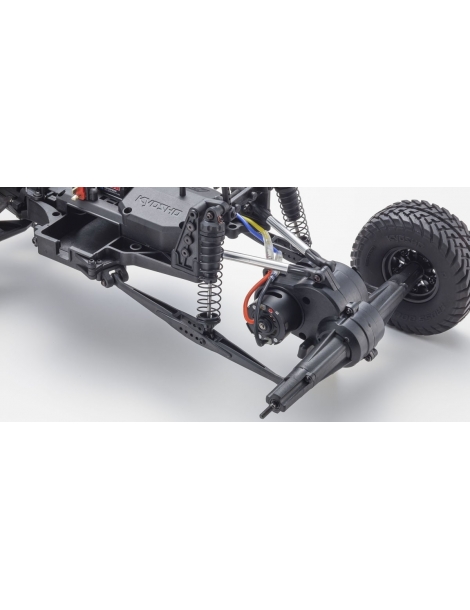

● Equipped with underbody worthy of the 2WD trophy truck motif. Solid rear axle differential with link system delivers smooth suspension movement and traction for superior performance.

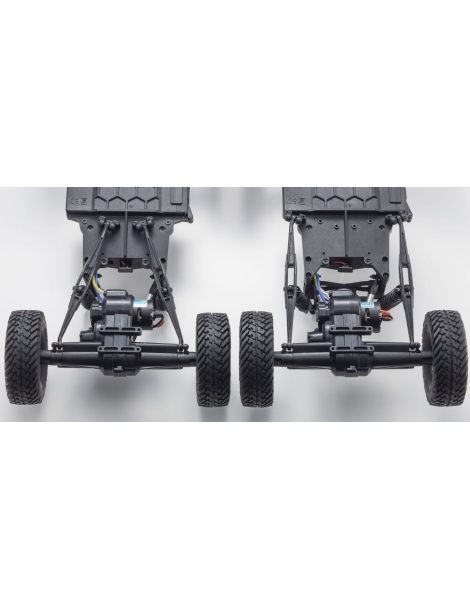

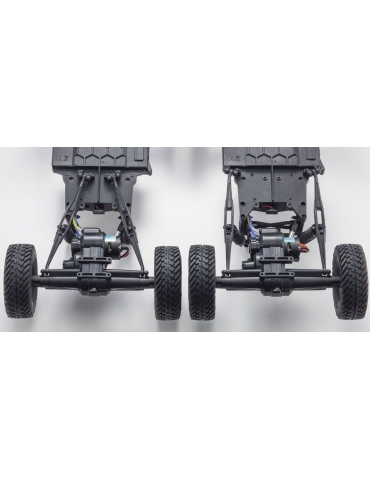

● Two mounting positions (on chassis) for rear suspension links allow setup to suit different driving conditions.

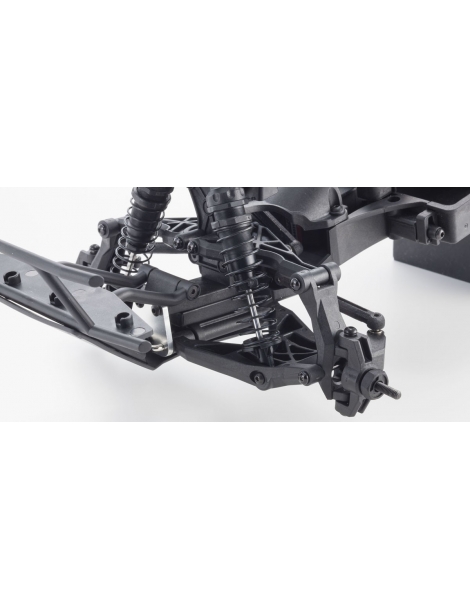

● Long suspension arms on the front double wishbone suspension deliver high traction and stability. Reflects real car mechanics, just as the rear does.

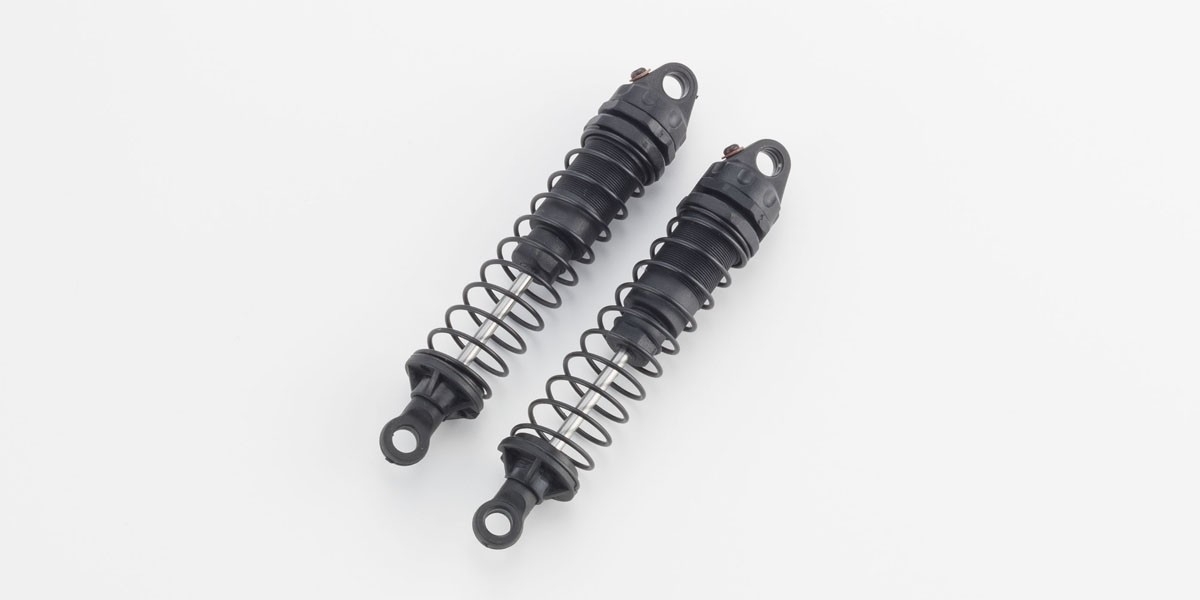

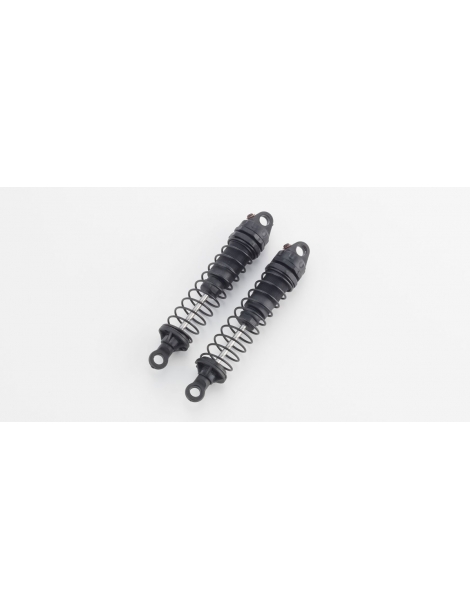

●Large capacity plastic aeration shocks maintain long suspension stroke in combination with the front and rear suspension systems.

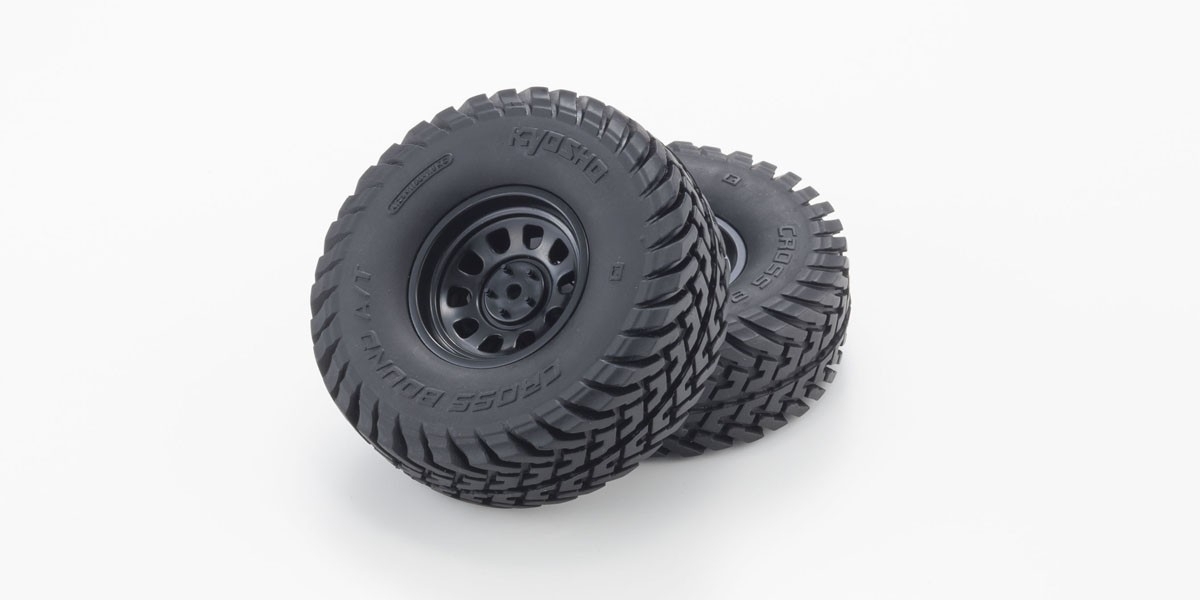

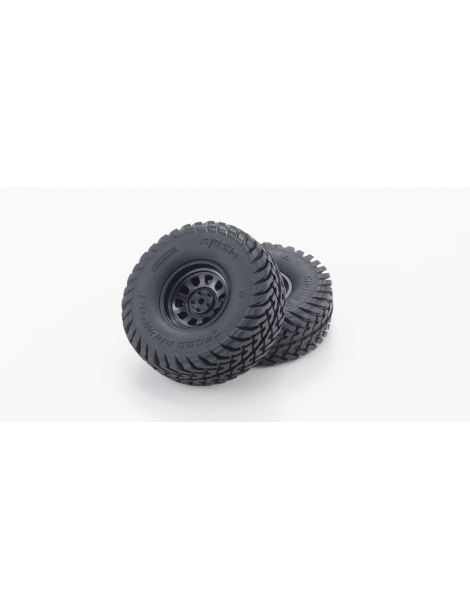

● Omnipotent tires feature original tread pattern to deliver performance and style that matches the appearance of the scale body. Tires are fixed to the 3-piece wheel structure with screws so no gluing is required.

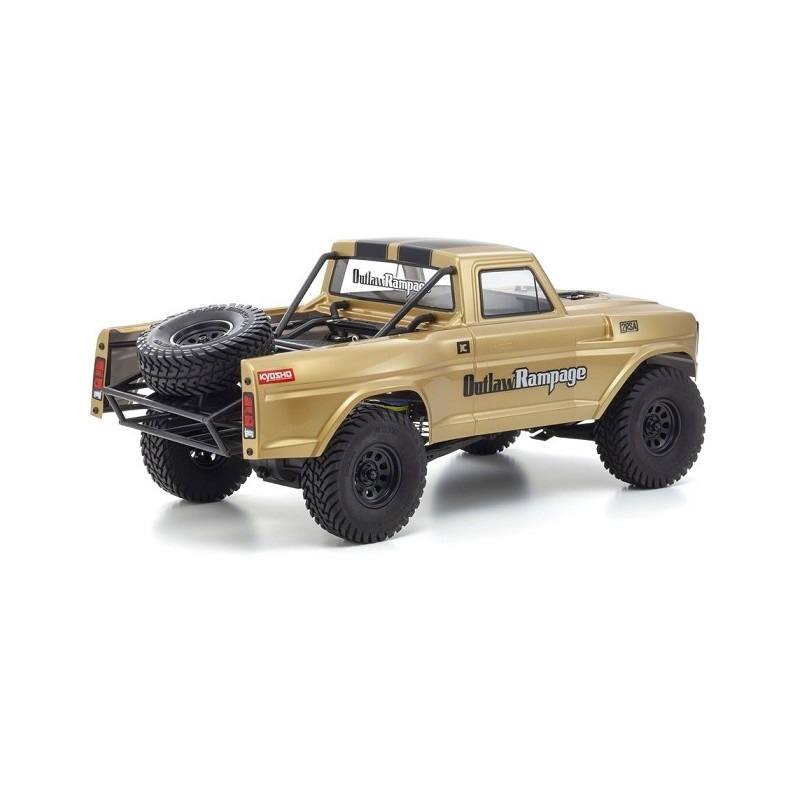

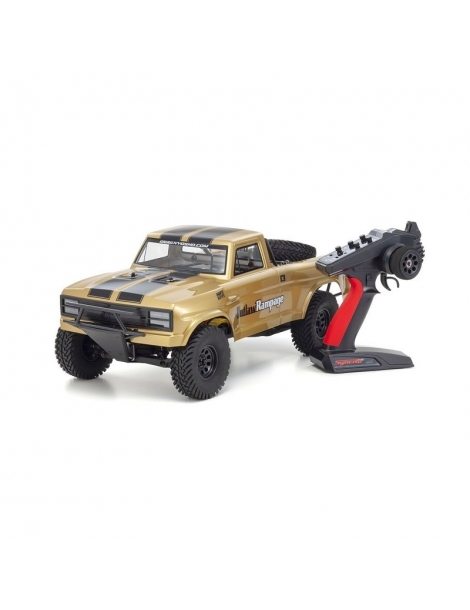

● Original truck body is designed in the image of a 1970’s trophy truck. Chrome grill is available as optional parts (No. OLB051-01SM).

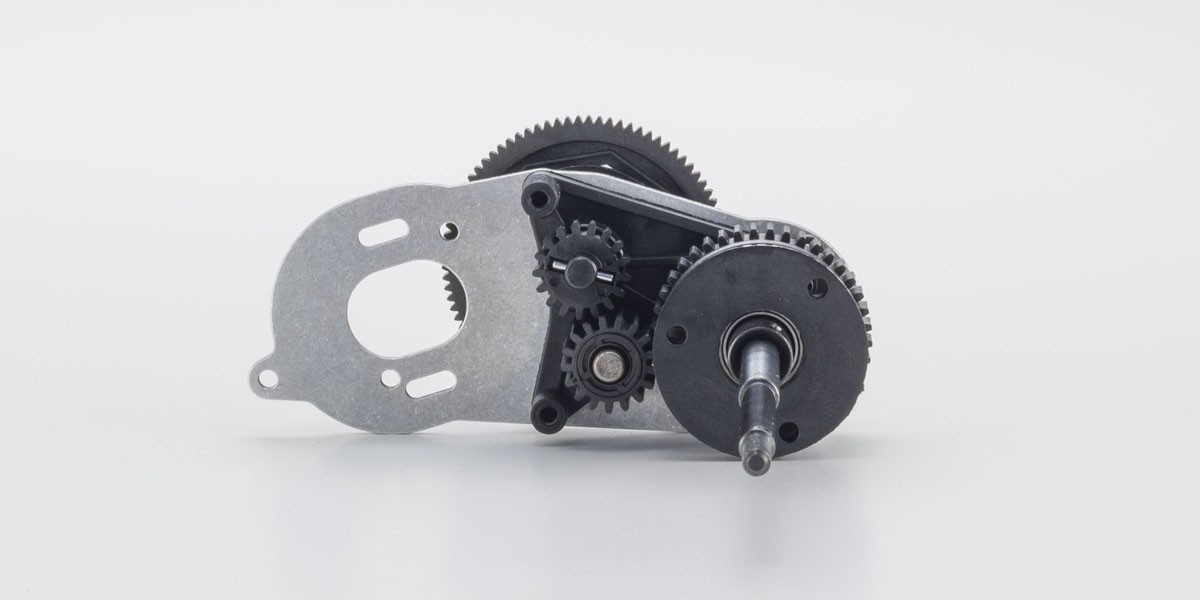

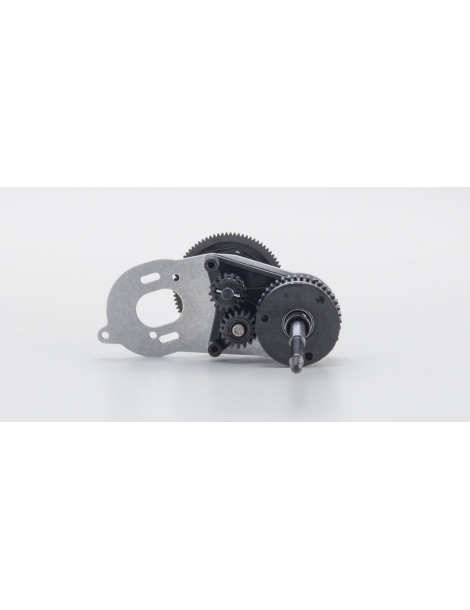

● Thicker and larger 32-pitch module counter gear and diff gear inside gearbox provide added strength. Spur gear is 48-pitch.

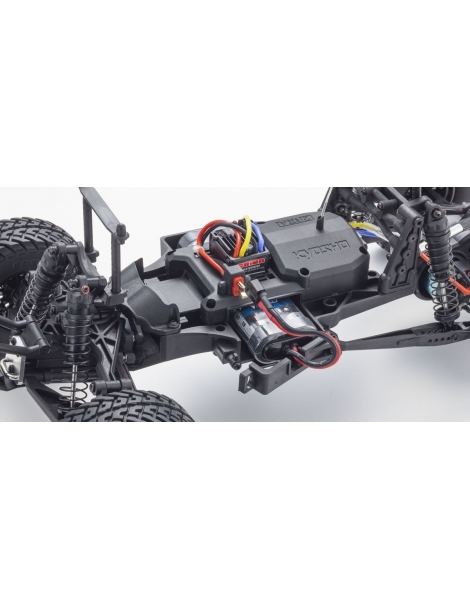

● Easy battery installation is possible with the lever lock battery holder. Radio plate with connector holder allows connection or disconnection with one hand.

Technical datas

● Length 561mm (with body)
● Width 262mm (with body)
● Height 231mm (with body)
● Wheelbase 335mm
● Tread (F/R) 204mm/204mm
● Tires (F/R interchangeable) φ108×38mm
● Gear Ratio 12.65 : 1
● Motor 15 turn 540 type (G15 motor)
● Weight 2,400g approx.

Ready Set Contents

● Pre-assembled chassis installed with R/C unit
● Factory finished body with coloring and painted
● Syncro KT-231P+ transmitter
● TEAM ORION VORTEX WP Brush 45A ESC
● G15 brushed motor
● Hex wrench
● Cross wrench

Required for Operation

4 x AA-size batteries for transmitter
AC charger and battery
