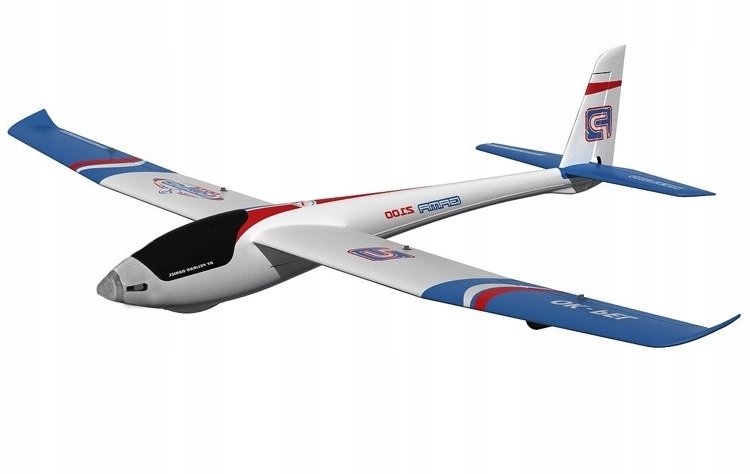

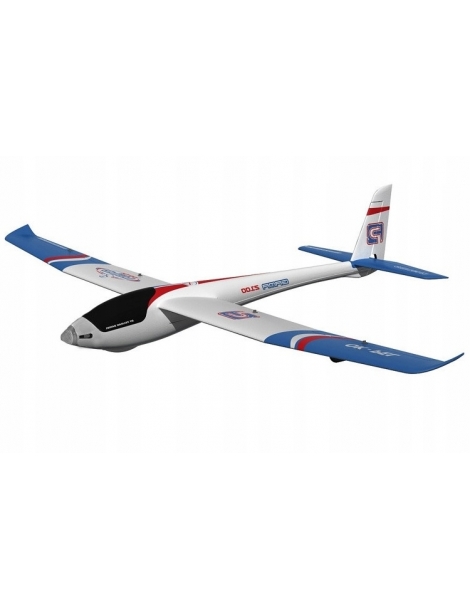

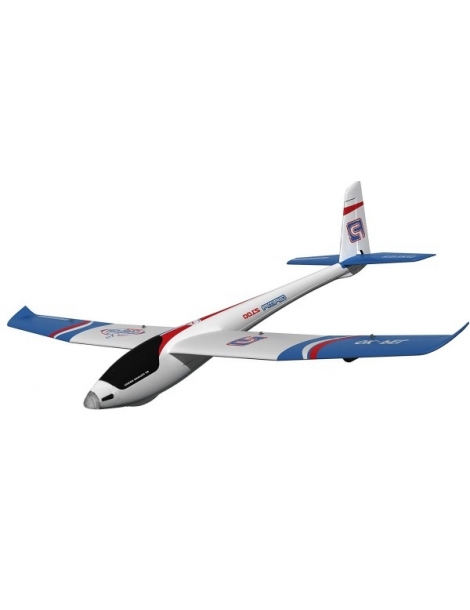

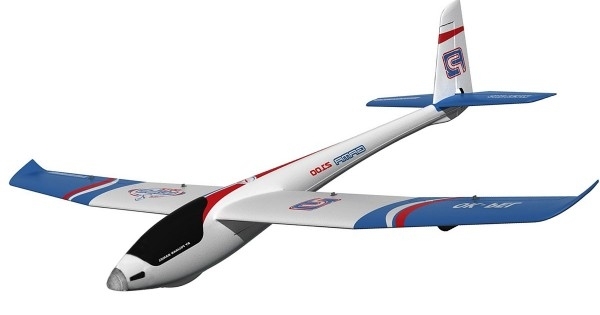

Sklandytuvas Gama 2100 ARF

Charakteristikos

Gamintojas	PELIKAN

Apie prekę

Almost finished model performance motor glider from extruded foamed polypropylene (EPP), the AC motor. Rudder, elevator, ailerons, flaps can be added. Equipped with brushless motor, controller and 4 servos.

New GAMA 2100 at a glance builds on our successful and very popular Alpha 1500. In addition to the simple increase in size (range 2100 mm) are endowed gave her a thorough construction of EPP foam ingeniously paved reinforcements of carbon pipes and flanges; standard control functions (aileron, rudder, elevator, engine speed), we have added the ability to control the flaps. GAMA 2100 because it represents an excellent model for school beginners - is large and therefore easily "readable" in the air is stable and has excellent lubricity - as well as an ideal recreational model, which can further "breed" and without large additional costs to meet the piloting "proper" gliders with advanced mechanization wings.

Preserved remains of course proven benefits of Alpha wing with a large bearing area controlled by the ailerons, rudder and elevator, powerful AC motor drive. Robust - yet very lightweight - construction of EPP foam with carbon reinforcements ensures excellent resistance to damage in a crash, or at least very easily repairable, if any damage already there. To operate you just basically even the most ordinary four-channel radio system - of course, to take full advantage of the model is good to use six or seven-channel computer transmitter with mixes for glider with 4 servos in the wing. Power ensure normal Li-Po 1500-2700 mAh - again, nothing challenging, it has today everyone. GAMA 2100 is simply a model that will grow with you - from the first steps with a common to enter the world of high performance sailing "orchid" with advanced computer radio.

GAMA 2100 is a powerful motor glider made from high grade extruded polypropylene EPP driven by an AC motor. The hull fitted with a motor (outrunner, C2835, 1000 rev. / Min to V), the controller 25 A and installed rudder and elevator servos is extracted from EPP foam, solid "backbone" of the fuselage is a carbon tube. Canopy is removable with magnetic closures. The speed controller is easily programmed using the transmitter, it can be powered from a Li-po, i LiFe NiCd / NiMH batteries, the most important is that it has a powerful built-in Switching Regulator SBEC enabling power onboard electronics with up to six servos - thanks to the addition of two more servos for flaps very easy. The propeller is reclining, with with openings for cooling air in the middle. Cooling motor, controller and battery helps more cooling air inlets on the sides of the nose, necessary outlet for heated air vents are on the sides of the hull in the area under the wing.

Two-piece wing with the proven "soaring" profile is also molded from EPP, wings (reinforced carbon flanges are controlled by 2 servos stored in the wing with short straight wire rods. Wing halves are joined two carbon pipe connections; releasing halves of the wings in flight prevents the plastic clips " "on the clutch. Flaps (reinforced carbon flange) and pits for their servos are already in pre-stamped wing - just enough to cut through the slot on both short sides and mounted servo - servo brackets with handles and levers are part of the delivery model." Hot Rods "Set servo valves for GAMU 2100, sold as a separate accessory.

The tail surfaces in a classical arrangement are made of EPP, are controlled by means of wire cables. The elevator is again reinforced carbon flange.

Preparing to fly the model in the standard version only includes mounting tail (gluing medium glue), deployment of wing halves and connect the drive battery. Controlled by the ailerons, rudder, elevator and motor speed.

To control the model you need at least a four-channel RC kit (if you are happy with just to control the ailerons, rudder and elevator), but to take full advantage of the model is suitable to use at least a six-channel computer radio system (in this case, the servo flaps involve using the Y-cable one channel receiver), or better yet, at least seven-enabling to connect and set all servos separately.

For the power you need GAMA 2100 Li-poly battery 11.1V with a capacity of at least 1500 mAh. Model without problems "can carry" until about 3300 mAh, the optimal set of 1800-2700 mAh.

GAMA 2100 is designed for beginners - as always supply - under the supervision of an experienced pilot, as well as for anyone who wants just so beautiful holiday travels. Flight characteristics are pleasant, straightforward and accurate control of the model. Model will acquaint you with full control of the model around all three axes coordinated control with the right rudder, ailerons and elevator. This experience is "like finding" no later than right after you start flying with their first aerobatic model or even greater glider. Even if you have a computer RC kit, changing the ratio of the lengths of servo and rudder deflections can adjust the size of a large range. Beginner, start with small, safe and excessive "steerage"; experienced pilot sets the size, allowing a little bit of that basic engine-větroňové aerobatics - loops, barrel rolls, headland turns go game with a little help from the engine very easy and good! The power is sufficient for sustained climb at an angle of about 30-40 degrees, so to gain sufficient height for catching thermals will not be long! GAMA 2100 is sensitive even to weak thermals easily with the precise control about all axes settles into the rising stack of small diameter. And with controlled flaps it will still completely different story!

ARF set includes: body molded from EPP with mounted AC motor, folding propeller 10x7 "speed controller 25A, and 2 servos, wing molded EPP installed with 2 servos, tail of EPP, 2 carbon tube wing joiner, accessories for control valves and detailed instructions for building and flying.

Priedai, reikalingi modeliui :

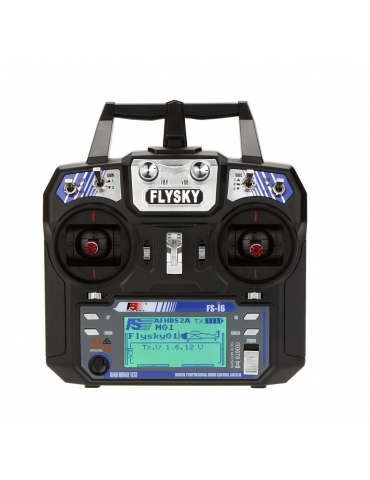

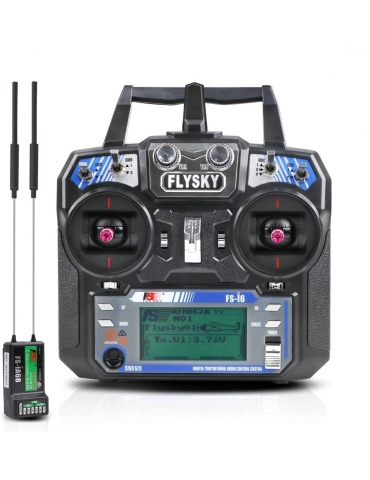

- Valdymo pultas (min. 5 kanalų)

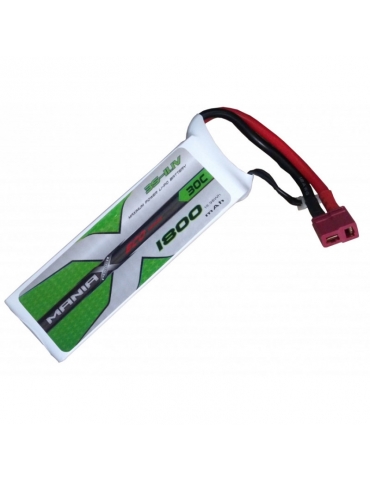

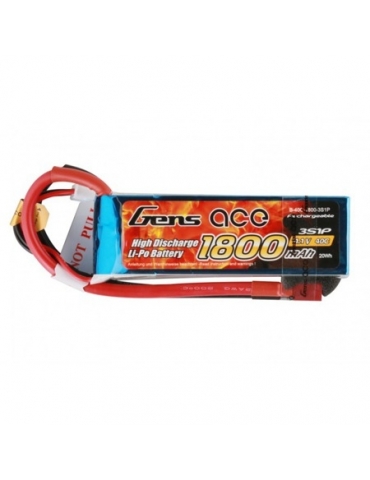

- Baterija (rekomenduojama LiPo 1800mAh 11,1V, T-Plug)
- LiPo baterijų įkroviklis
- Klijai uodegos klijavimui
- Elementai valdymo pultui

Techniniai duomenys:

Sparnai - 2100 mm
Ilgis: - 1230 mm
Svoris - 1150 - 1300 g
Sparno paviršius - 37,3 dm2
