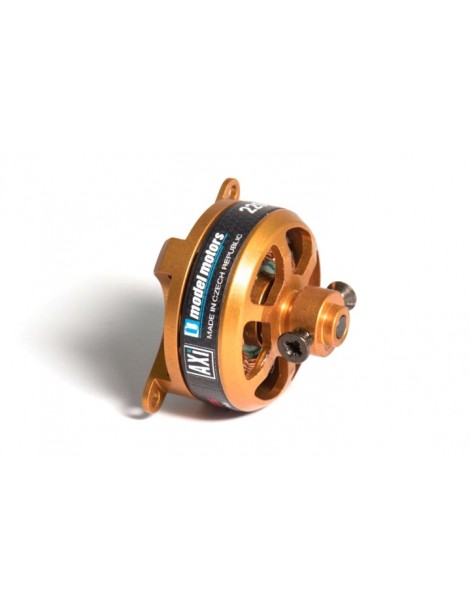

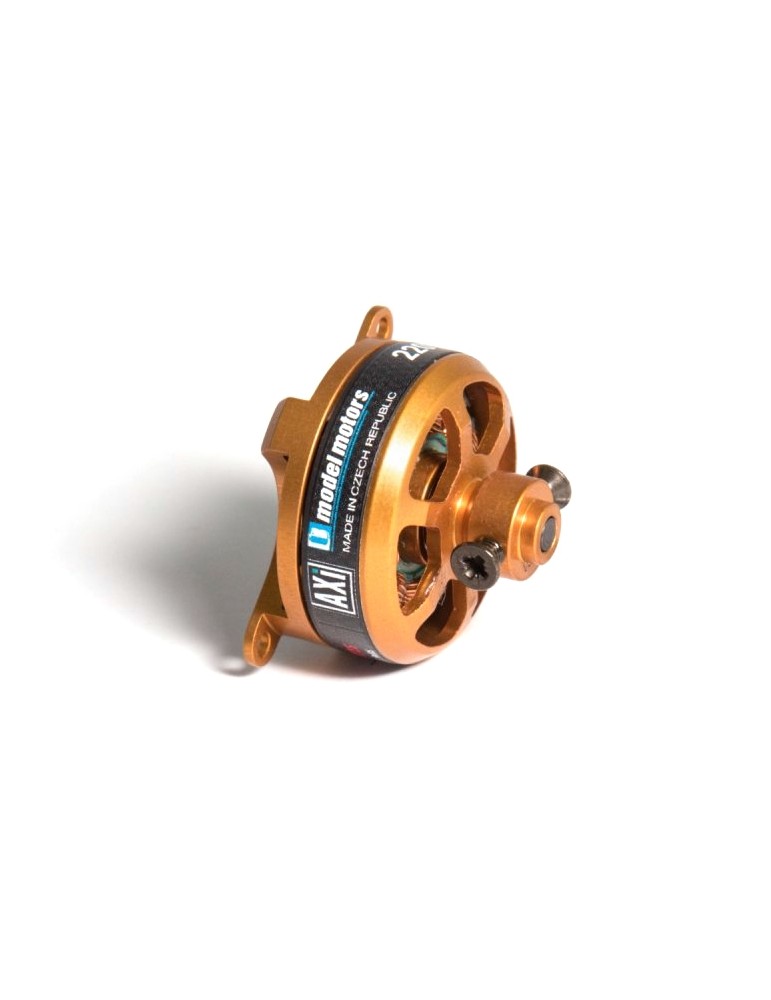

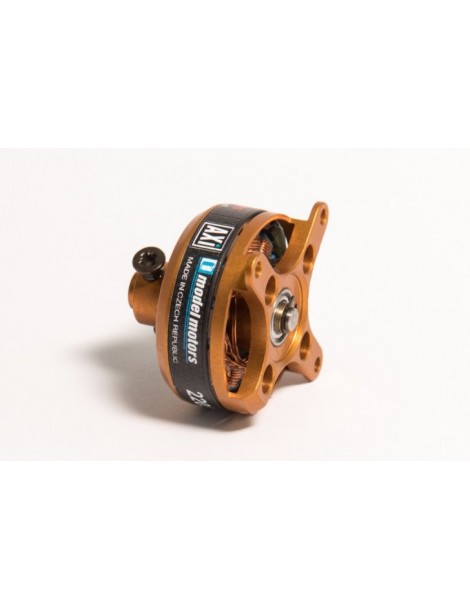

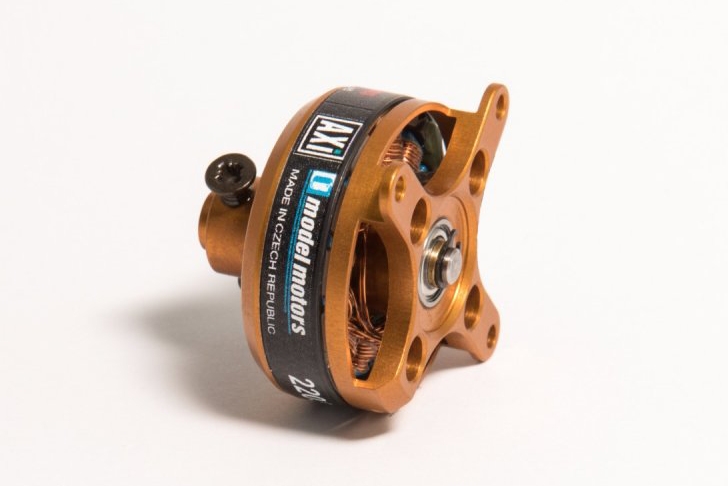

AXI 2203/46 V2

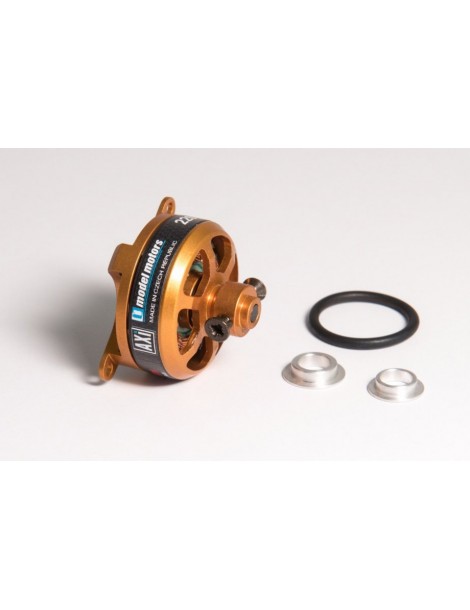

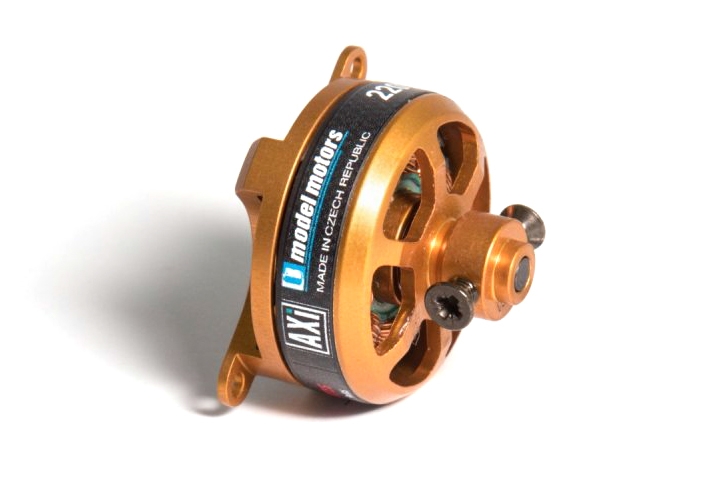

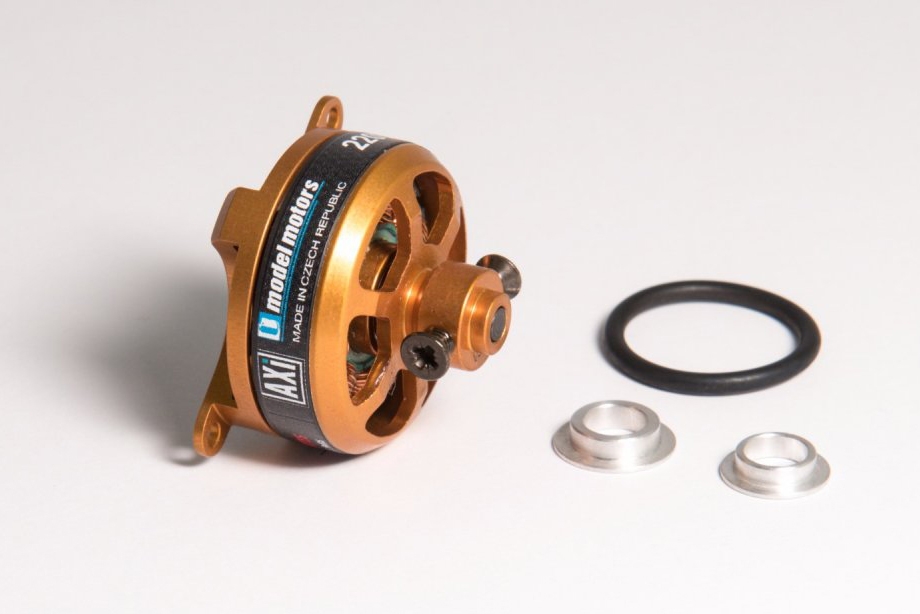

New very light motor AXI 2203/46 GOLD LINE V2 with shaft, integrated prop saver and three-point mounting lugs reach just 20g in weight. This motor was designed especially for area of the lightest indoor aerobatic models. New three-point mounting lugs allows easy mounting to the fuselage of model and fast centering of motor. 3,17mm best quality shaft is supported by two ball bearings. This motor is suitable particularly for light 3D and aerobatic indoor models up to 220g in weight.

Supply voltage LiXX cells: 2 ; RPM/V [RPM/min/V]: 1720 ; Nr. of turns: 46 ; Internal resistance [mOhm]: 285 ; No load current [mA]: 500 ; max. effenciency [%]: 76 ; Max. efficiency current (η>75%) [A]: 2.5 - 7 ; Max. peak current (20 s) [A]: 9.5 ; Max. power [W]: 61 ; Diameter [mm]: 27.7 ; Lenght [mm]: 21 ; Shaft diameter [mm]: 3.17 ; Weight [g]: 20 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 10 - 12 ; Trainer up to Weight [g]: 280 ; Acrobat up to Weight [g]: 220 ; 3d up to Weight [g]: 160

Powering LiXX cells	2
RPM/V [ot./min/V]	1720
Turn count	46
Internal resistance [mOhm]	285
Open-circuit current [mA]	500
Max. efficiency [%]	76
Max. efficiency current (η>75%) [A]	2.5 - 7
Max. peak current (20 s) [A]	9.5
Max. power [W]	61

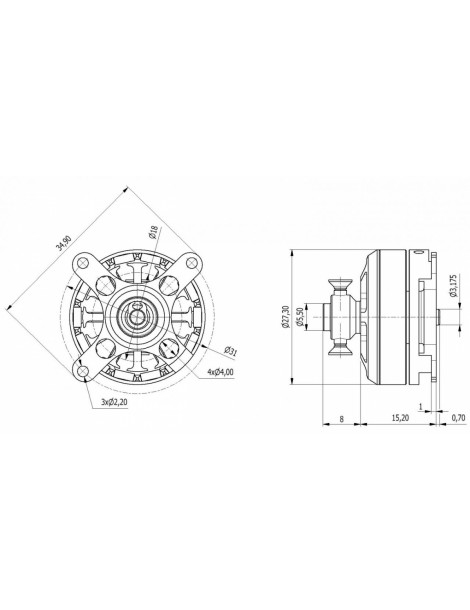

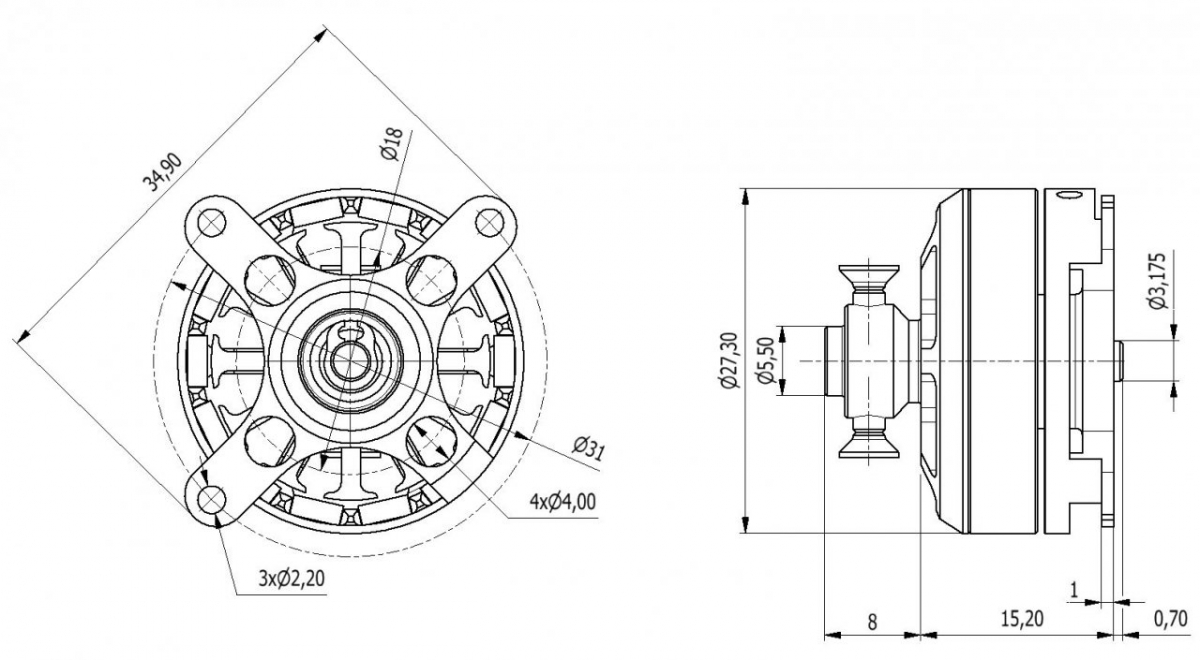

Diameter [mm]	27.7
Length [mm]	21
Shaft diameter [mm]	3.17
Weight [g]	20
Poles count	14
Timing [°]	15 - 25
ESC [A]	10 - 12
Weight of trainer (up-to) [g]	280
Weight of acrobat (up-to) [g]	220
Weight of 3D (up-to) [g]	160

Doporučená vrtule

2S: 8x4,3"
