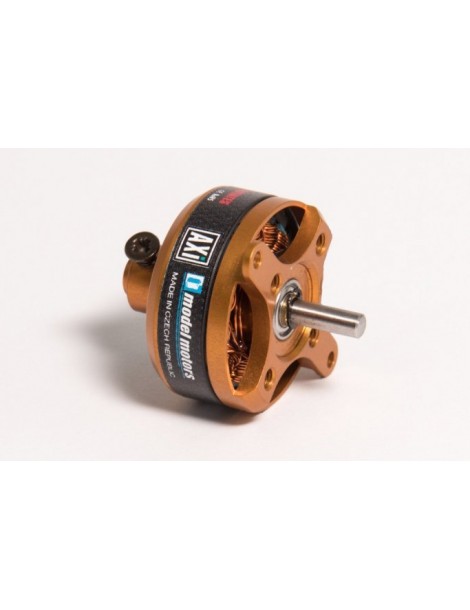

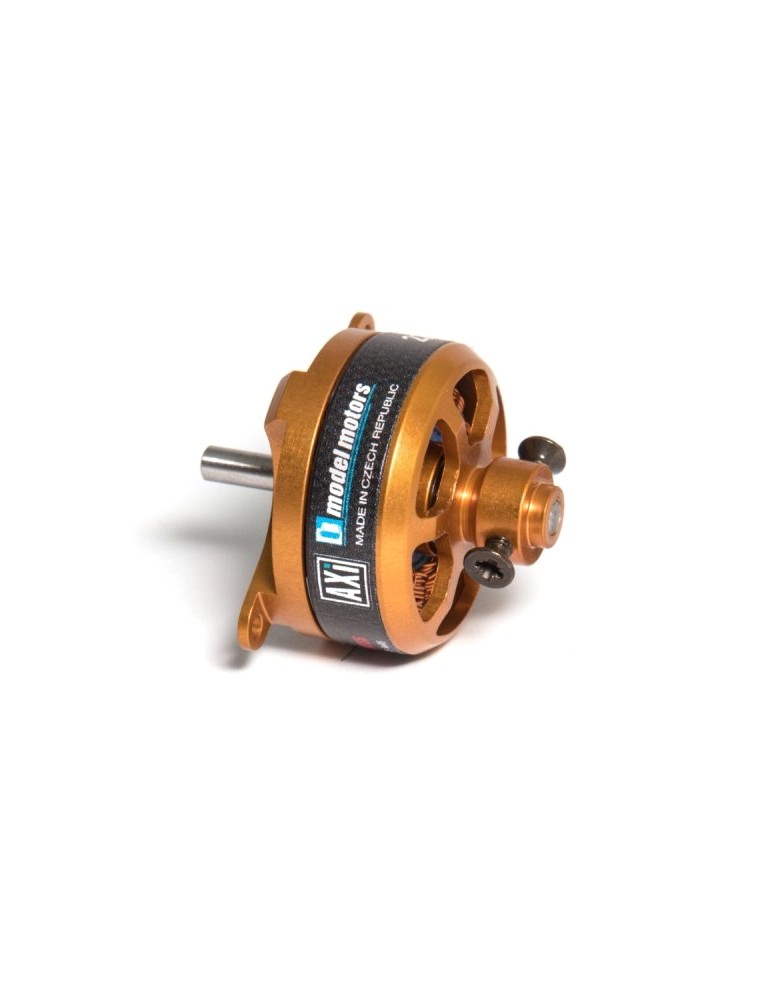

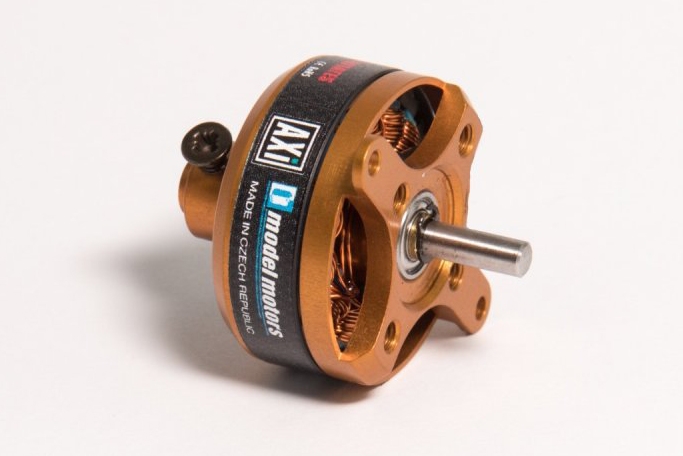

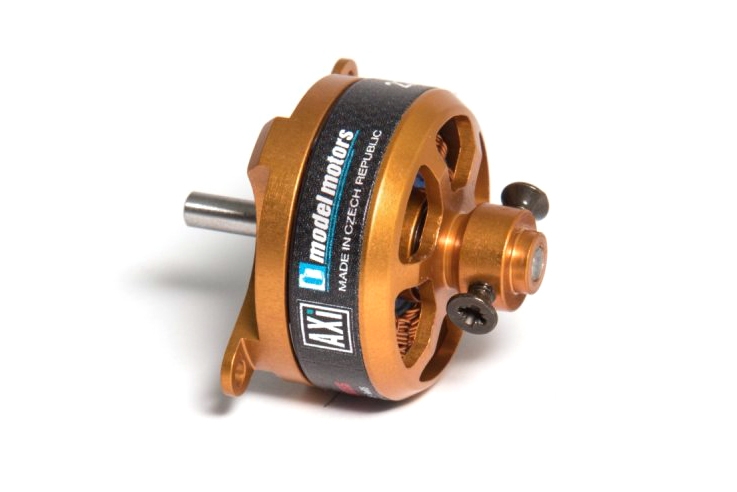

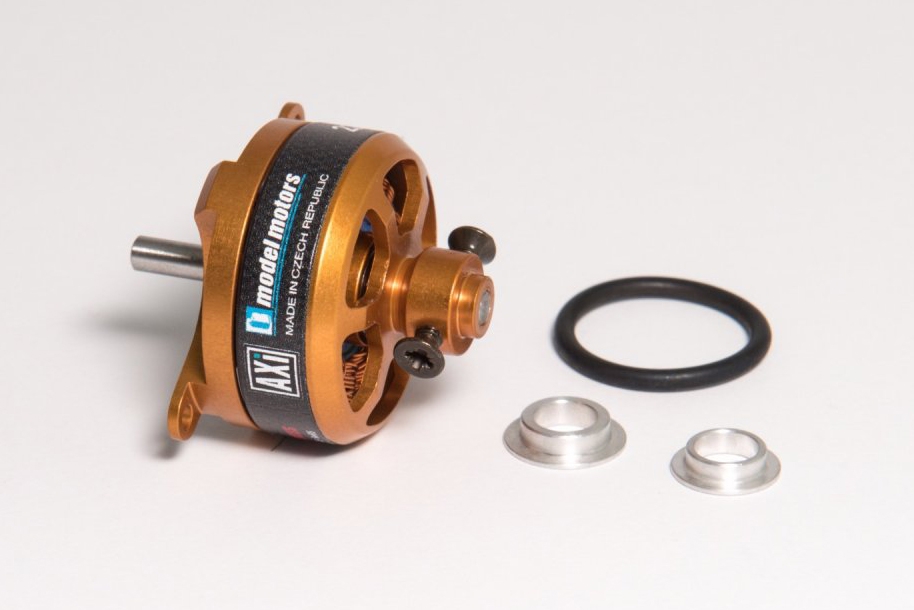

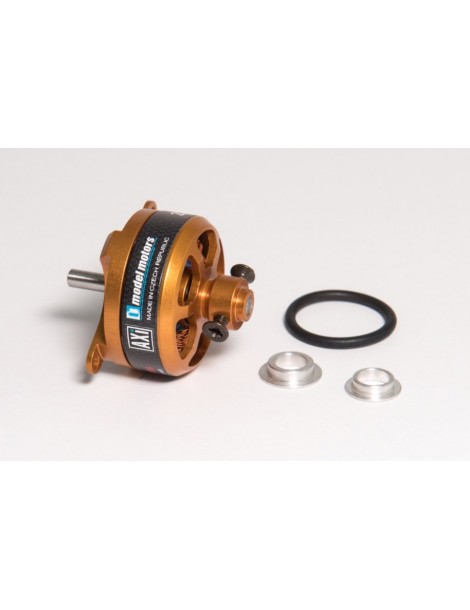

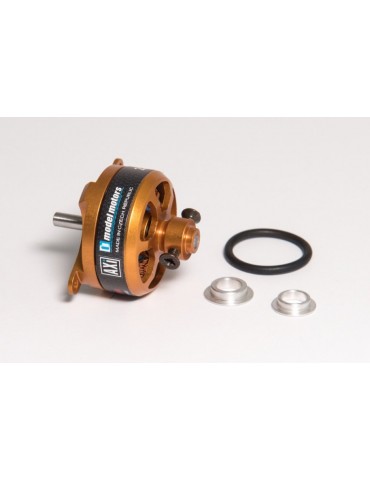

AXI 2204/54 V2 Brushless

This improved and more powerful brushless motor with neodymium magnets and a rotating case was designed especially for the fast growing area of indoor aerobatic models. The AXI2204/54 GOLD LINE V2 is very light (under 28g including prop saver and cables) and offers different mounting options.The integral prop saver makes the fitting of propellers very easy, and is safe for both the model and the propeller if they are involved in a hard landing which can happen indoors. Although the construction of the motor is very light, the motor is still robust, and the hardened steel shaft is supported by two ball bearings. This motor is suitable for indoor or outdoor aerobatic models weighing up to 280g.

Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1400 ; Nr. of turns: 54 ; Internal resistance [mOhm]: 320 ; No load current [mA]: 350 ; max. effenciency [%]: 78 ; Max. efficiency current (η>67%) [A]: 2 - 6 ; Max. peak current (30 s) [A]: 8.5 ; Max. power [W]: 74 ; Diameter [mm]: 27.7 ; Lenght [mm]: 28 ; Shaft diameter [mm]: 3.17 ; Weight [g]: 27.4 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 10 - 12 ; Trainer up to Weight [g]: 300 ; Acrobat up to Weight [g]: 260 ; 3d up to Weight [g]: 220

Powering LiXX cells	2 - 3
RPM/V [ot./min/V]	1400
Turn count	54
Internal resistance [mOhm]	320
Open-circuit current [mA]	350
Max. efficiency [%]	78
Max. efficiency current (η>67%) [A]	2 - 6
Max. peak current (30 s) [A]	8.5
Max. power [W]	74

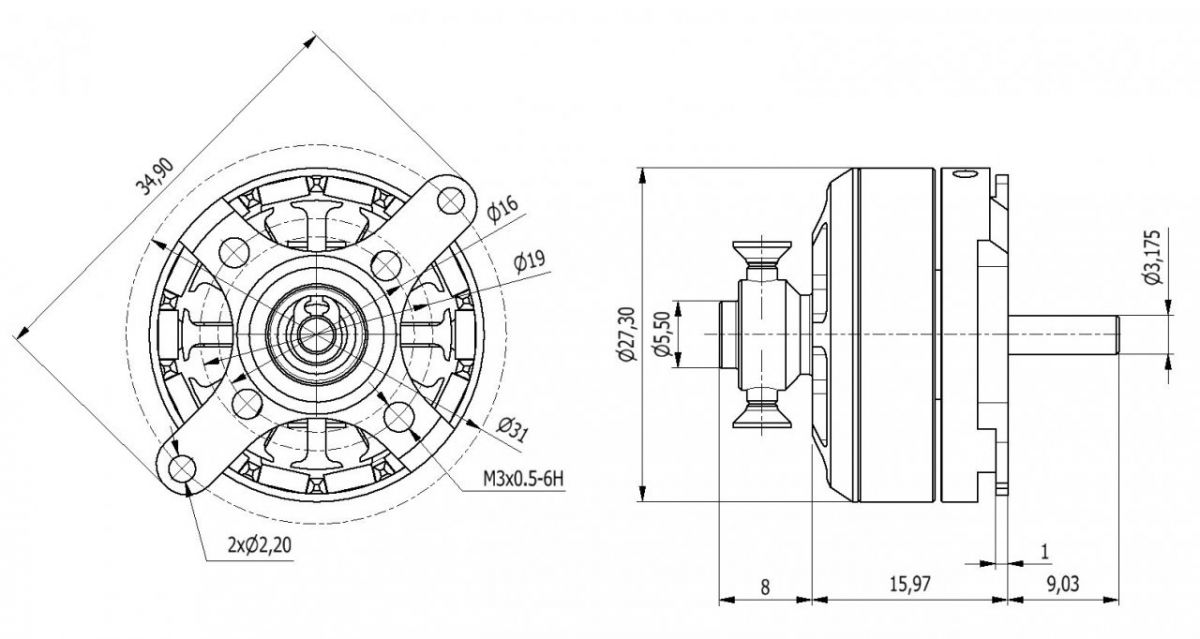

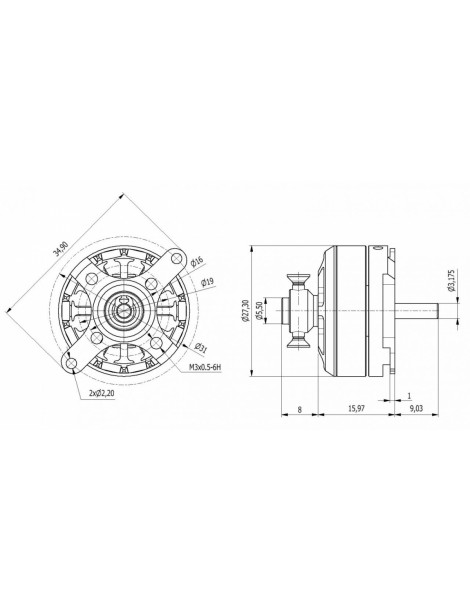

Diameter [mm]	27.7
Length [mm]	28
Shaft diameter [mm]	3.17
Weight [g]	27.4
Poles count	14
Timing [°]	15 - 25
ESC [A]	10 - 12
Weight of trainer (up-to) [g]	300
Weight of acrobat (up-to) [g]	260
Weight of 3D (up-to) [g]	220

Doporučená vrtule	2S: 9x5"
Doporučená vrtule	3S: 7,5x3,5", 8x4", 9x3,8"
