AXI 2212/34 V2 Brushless

97,14 €
Su PVM
Pristatysime per 7-14 darbo dienų
Atsiskaitymas visa paypal mastercard
message Klauskite apie šią prekę

Klauskite apie šią prekę

AXI 2212/34 V2 Brushless

AXI 2212/34 V2 Brushless

* Privalomi laukai

  Atšaukti

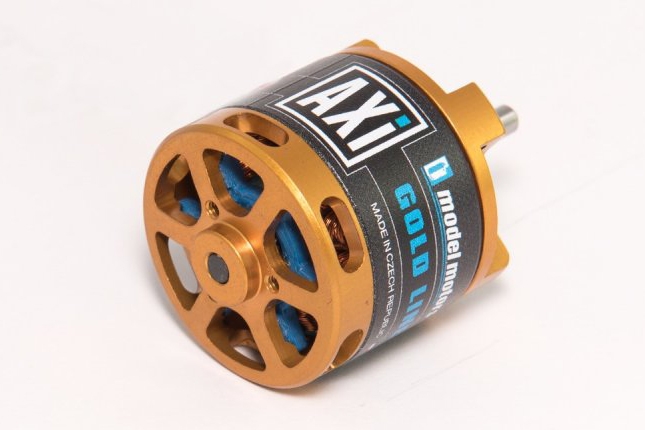

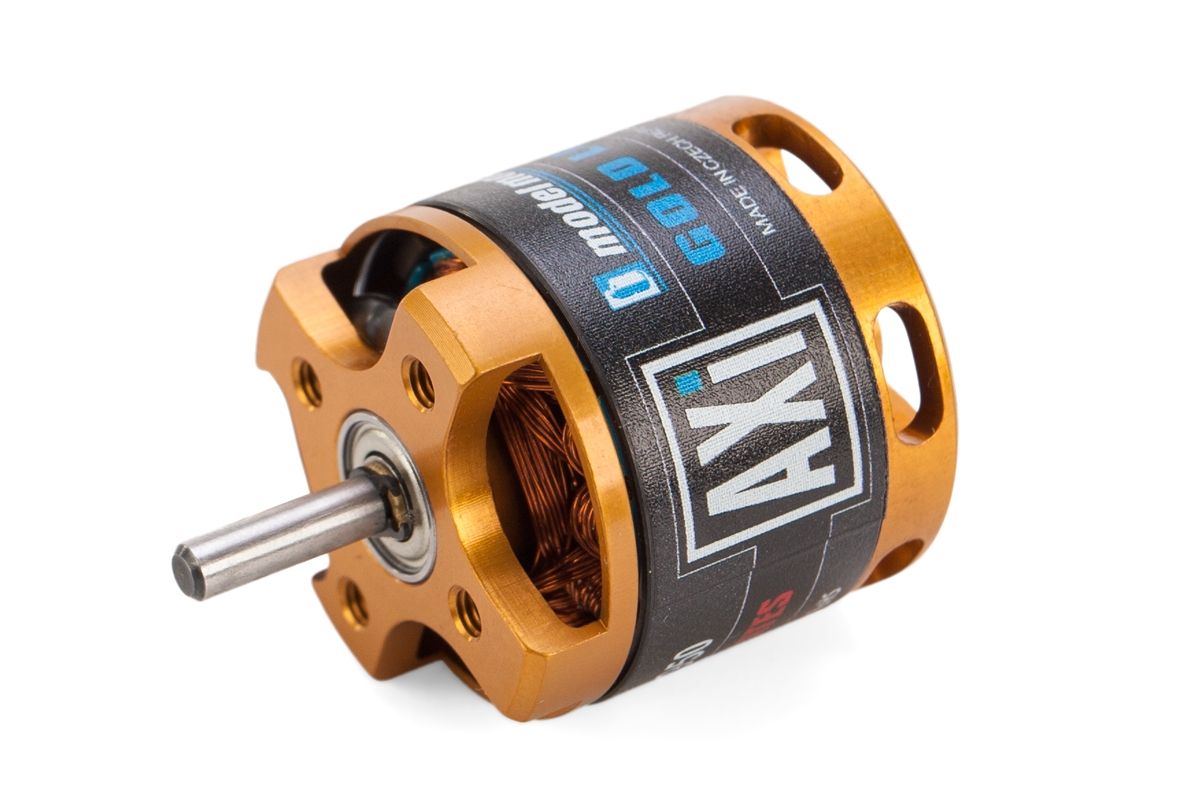

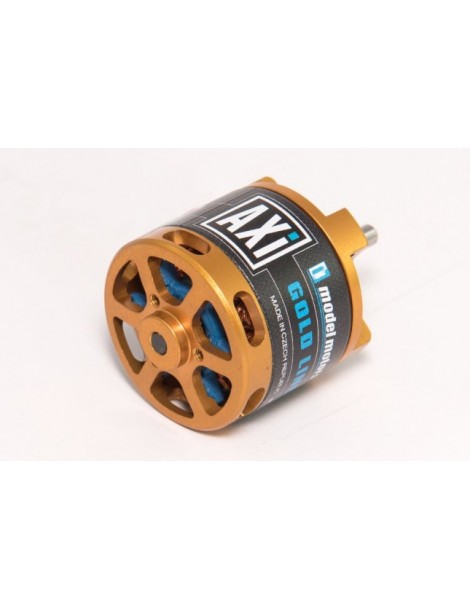

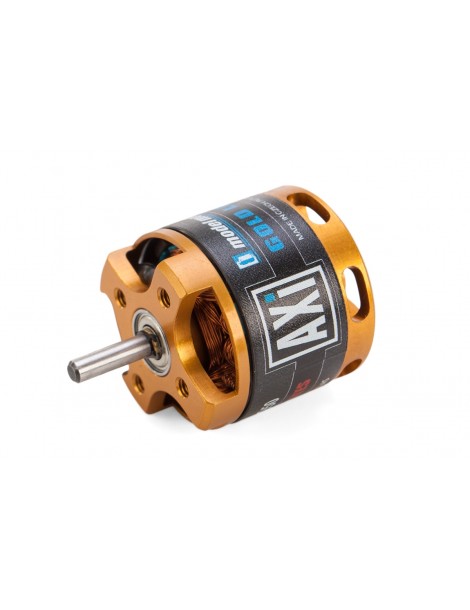

You will be surprised by the very high power delivered by these small and very robust, but light weight (56g with power cables) brushless motors with rotating case suitable for all models of Slow and Park Fly size weight up to 650 g. The hardened steel 3,17mm diameter shaft is supported by two large ball bearings which ensure very good mechanical reliability with front or radial mounting. As a result of using the latest ferromagnetic materials the AXI 22xx/xx V2 motors offer extremely high efficiency and high load capability for their weight.

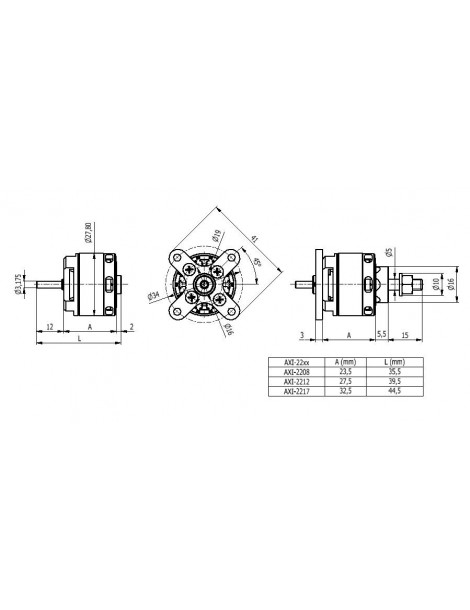

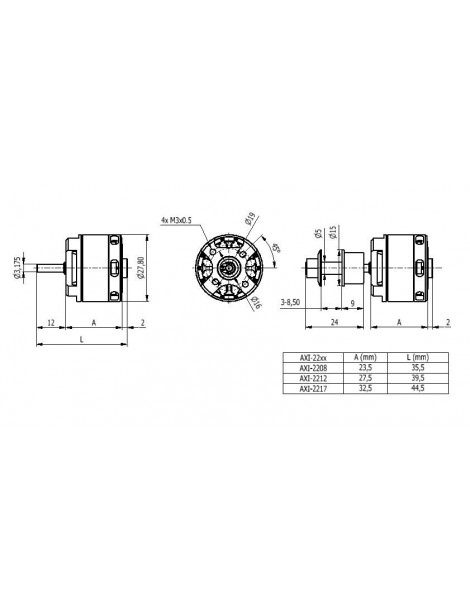

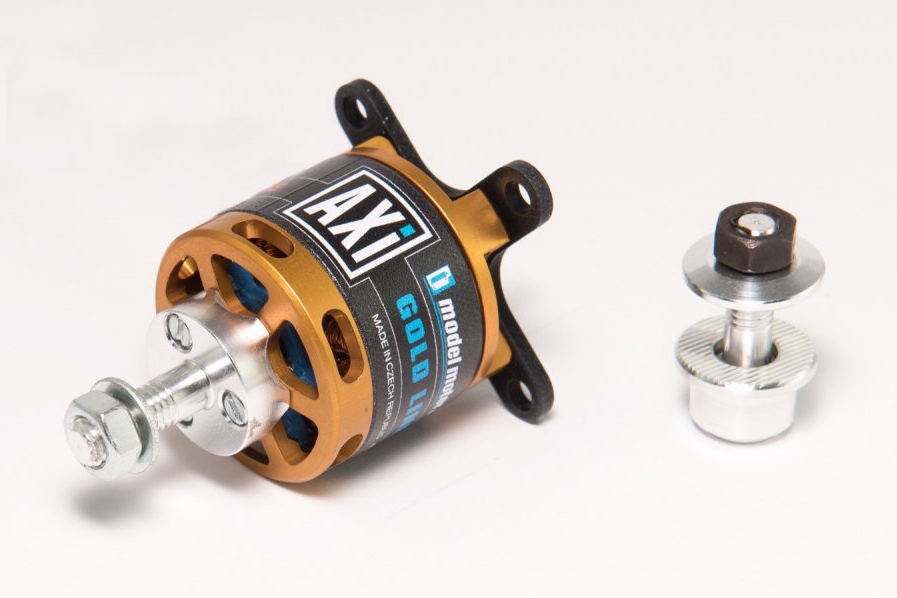

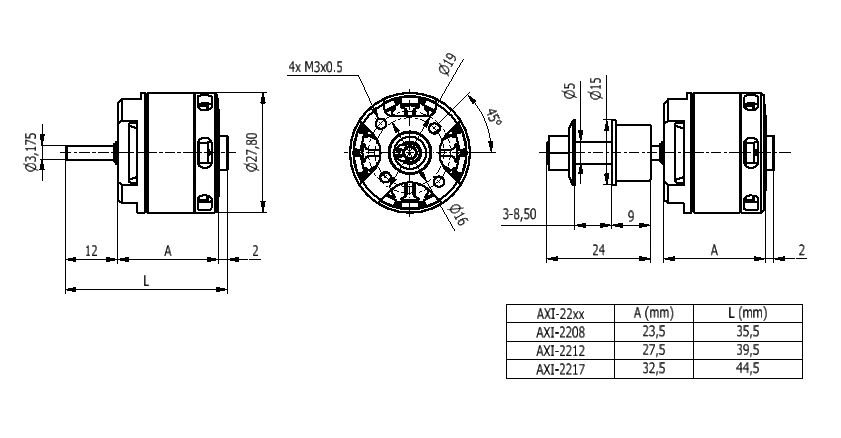

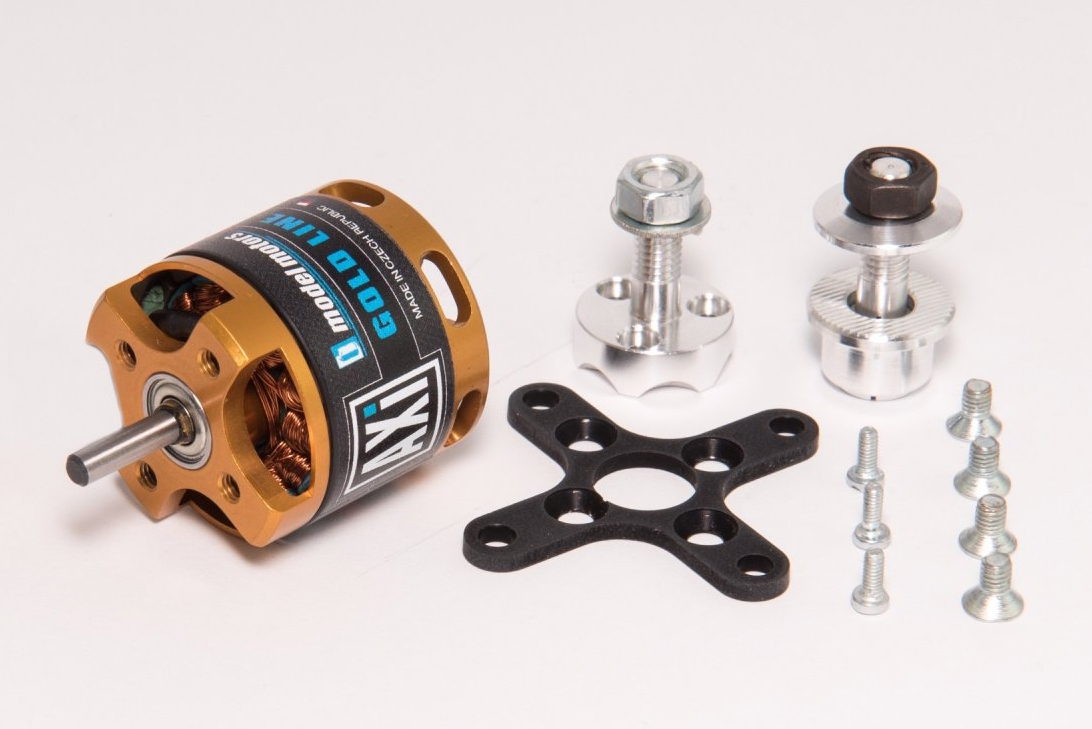

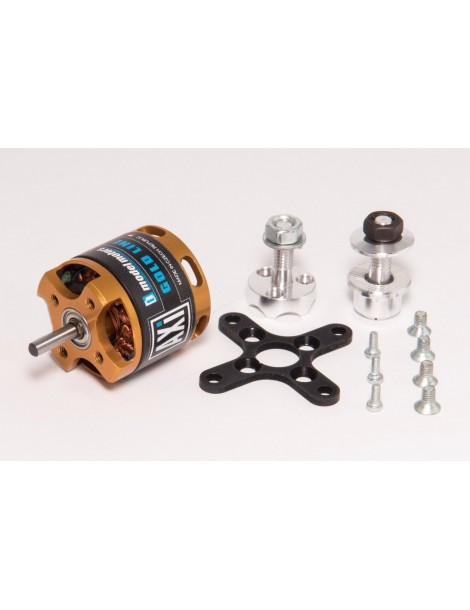

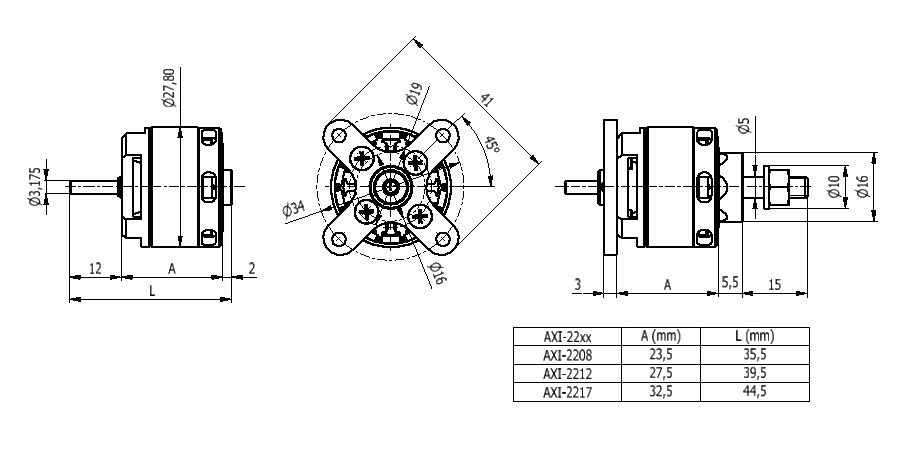

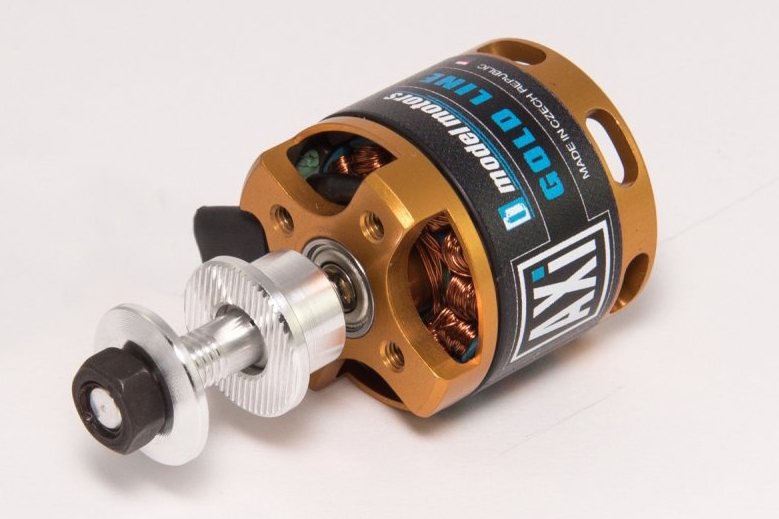

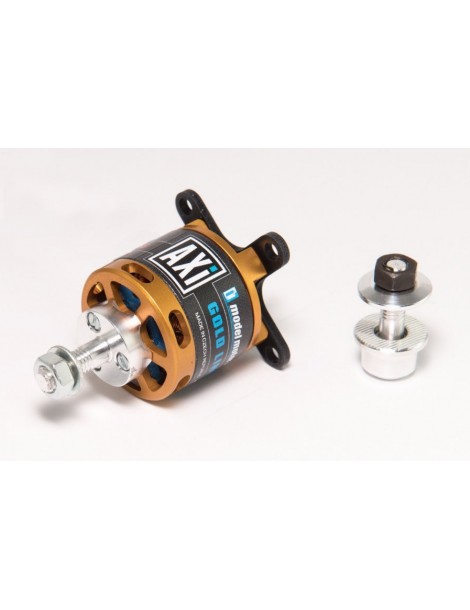

AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. A feature of the AXI design is provision for radial mounting (see picture). Delivered as standard radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.

Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 710 ; Nr. of turns: 34 ; Internal resistance [mOhm]: 345 ; No load current [mA]: 400 ; max. effenciency [%]: 80 ; Max. efficiency current (η>72%) [A]: 4 - 8 ; Max. peak current (60 s) [A]: 12 ; Max. power [W]: 115 ; Diameter [mm]: 27.7 ; Lenght [mm]: 29.5 ; Shaft diameter [mm]: 3.17 ; Weight [g]: 56 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 12 - 20 ; Sailplane up to Weight [g]: 700 ; Trainer up to Weight [g]: 600 ; Acrobat up to Weight [g]: 480 ; 3d up to Weight [g]: 420

Powering LiXX cells2 - 3
RPM/V [ot./min/V]710
Turn count34
Internal resistance [mOhm]345
Open-circuit current [mA]400
Max. efficiency [%]80
Max. efficiency current (η>72%) [A]4 - 8
Max. peak current (60 s) [A]12
Max. power [W]115
Diameter [mm]27.7
Length [mm]29.5
Shaft diameter [mm]3.17
Weight [g]56
Poles count14
Timing [°]15 - 25
ESC [A] 12 - 20
Weight of glider (up-to) [g]700
Weight of trainer (up-to) [g]600
Weight of acrobat (up-to) [g]480
Weight of 3D (up-to) [g]420
Doporučená vrtule 3S: 10x7", 11x4", 11x4,7"
AXI
3EL105609V2
