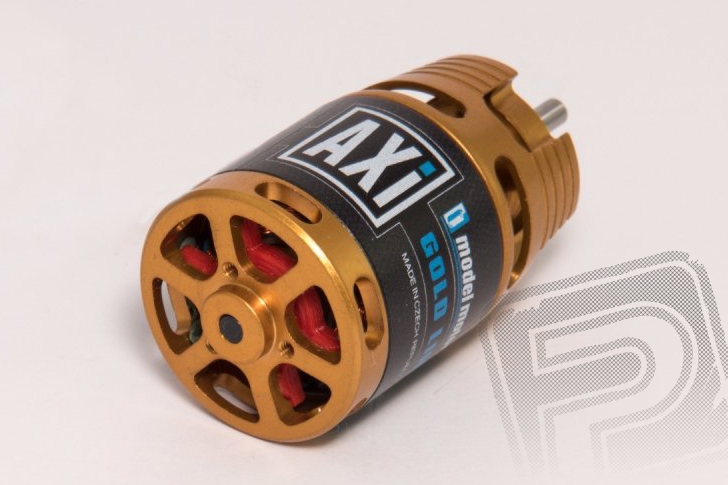

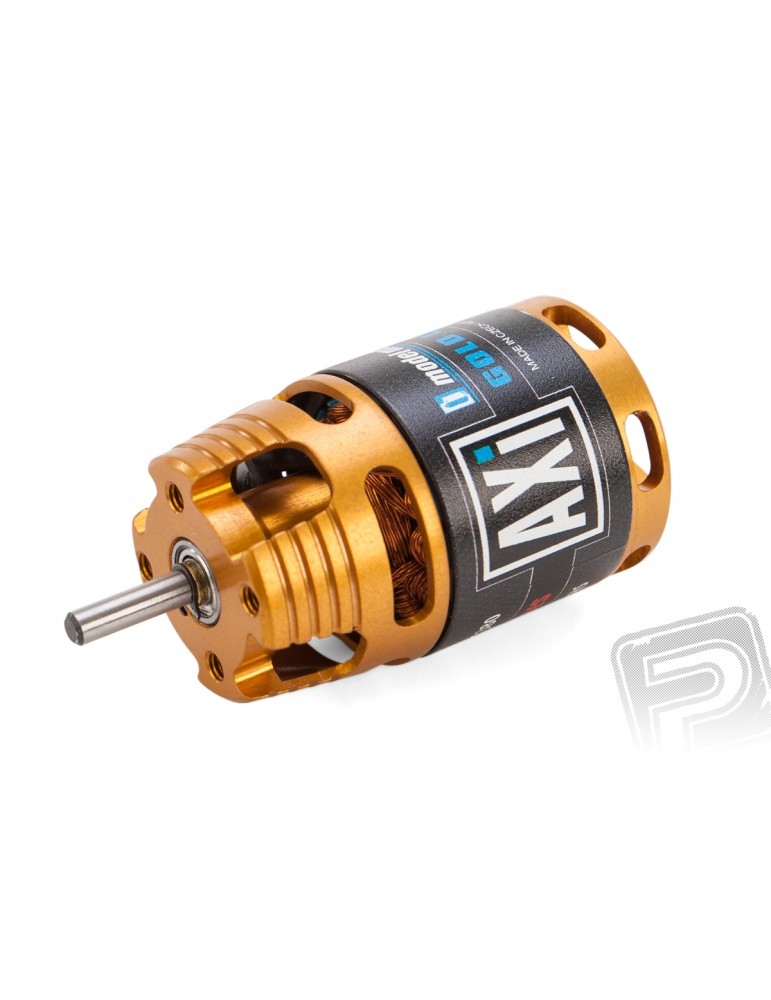

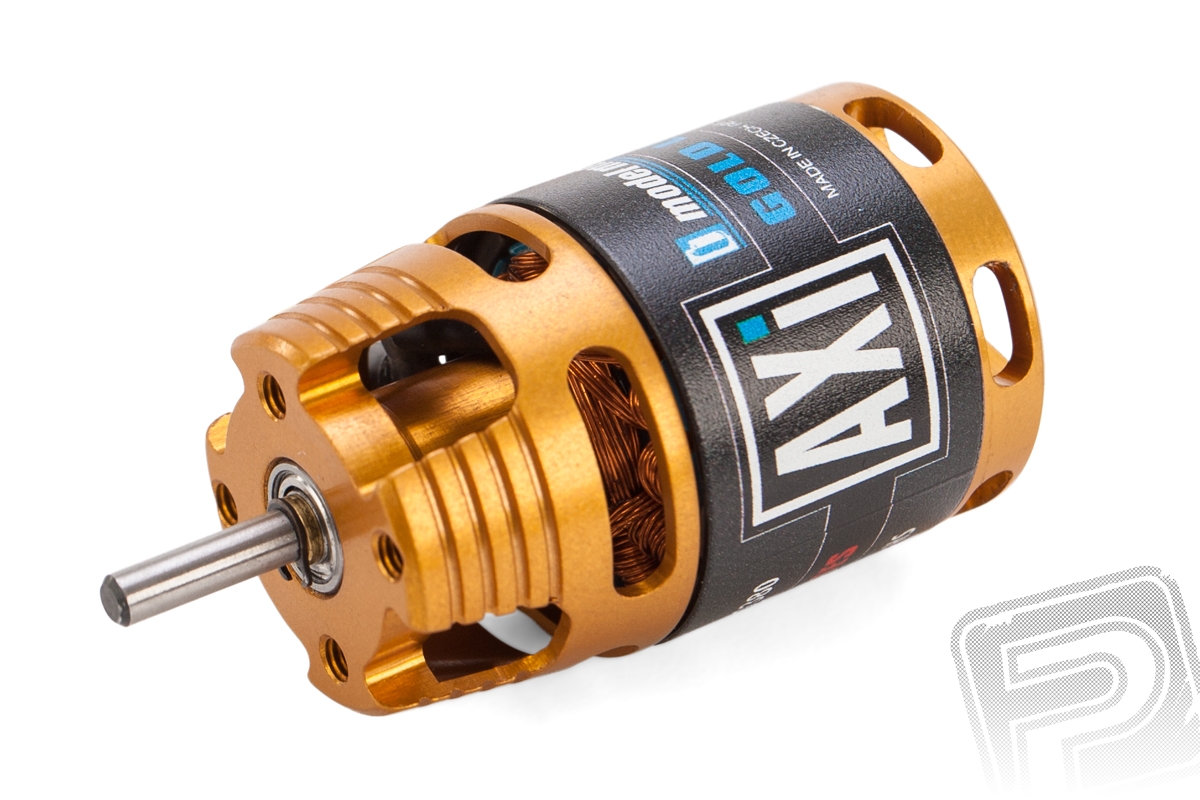

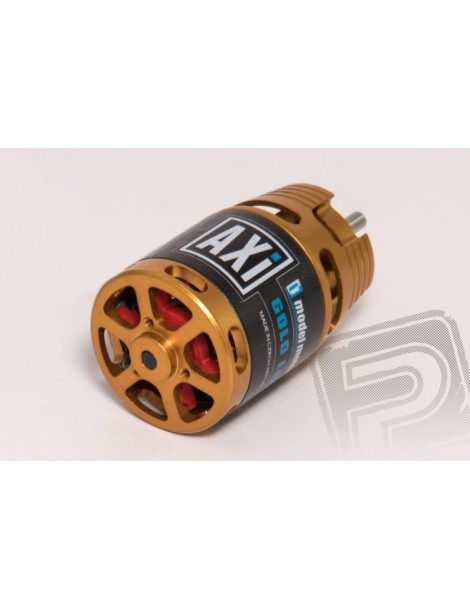

AXI 2217/20 V2 LONG F5J Brushless
The high quality and performance of AXI 22xx V2 motors meant that they were a perfect base for development of the new AXI 2217/xx GOLD LINE V2. New small and powerfull motor AXI 2217/20 GOLD LINE V2 with rotating case is suitable for trainers up to 900g, 3D models up to 650g and for sailplanes up to 1100g. Hardened steel Shaft have 4mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.
Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. Delivered without prop. holder and Radial mount set!
Supply voltage LiXX cells: 2 - 4 ; RPM/V [RPM/min/V]: 840 ; Nr. of turns: 20 ; Internal resistance [mOhm]: 185 ; No load current [mA]: 400 ; max. effenciency [%]: 84 ; Max. efficiency current (η>75%) [A]: 8 - 14 ; Max. peak current (60 s) [A]: 20 ; Max. power [W]: 270 ; Diameter [mm]: 27.7 ; Lenght [mm]: 44.4 ; Shaft diameter [mm]: 3.17 ; Weight [g]: 74 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 18 - 25 ; Sailplane up to Weight [g]: 1100 ; Acrobat up to Weight [g]: 800
|Powering LiXX cells||2 - 4|
|Internal resistance [mOhm]||185|
|Open-circuit current [mA]||400|
|Max. efficiency [%]||84|
|Max. efficiency current (η>75%) [A]||8 - 14|
|Max. peak current (60 s) [A]||20|
|Max. power [W]||270|
|Shaft diameter [mm]||4|
|Timing [°]||15 - 25|
|ESC [A]||18 - 25|
|Weight of glider (up-to) [g]||1100|
|Weight of acrobat (up-to) [g]||800|
