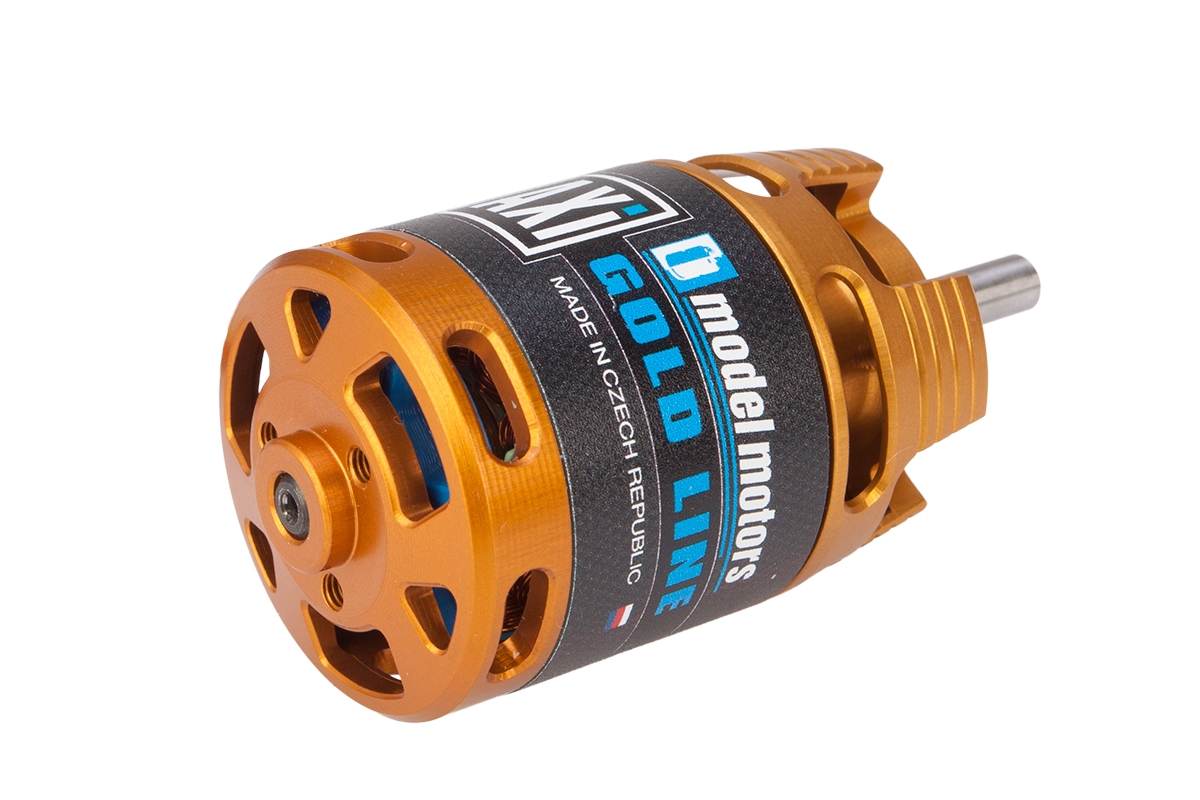

AXI 2808/16 V2 LONG Brushless
AXI 2808/16 V2 LONG Brushless
  • AXI 2808/16 V2 LONG Brushless
  • AXI 2808/16 V2 LONG Brushless
  • AXI 2808/16 V2 LONG Brushless
  • AXI 2808/16 V2 LONG Brushless

AXI 2808/16 V2 LONG Brushless

Atsiliepimai Pateikti atsiliepimą
92,70 €
Su PVM
Pristatysime per 7-14 darbo dienų
Atsiskaitymas visa paypal mastercard
message Klauskite apie šią prekę

Klauskite apie šią prekę

AXI 2808/16 V2 LONG Brushless

AXI 2808/16 V2 LONG Brushless

* Privalomi laukai

  Atšaukti

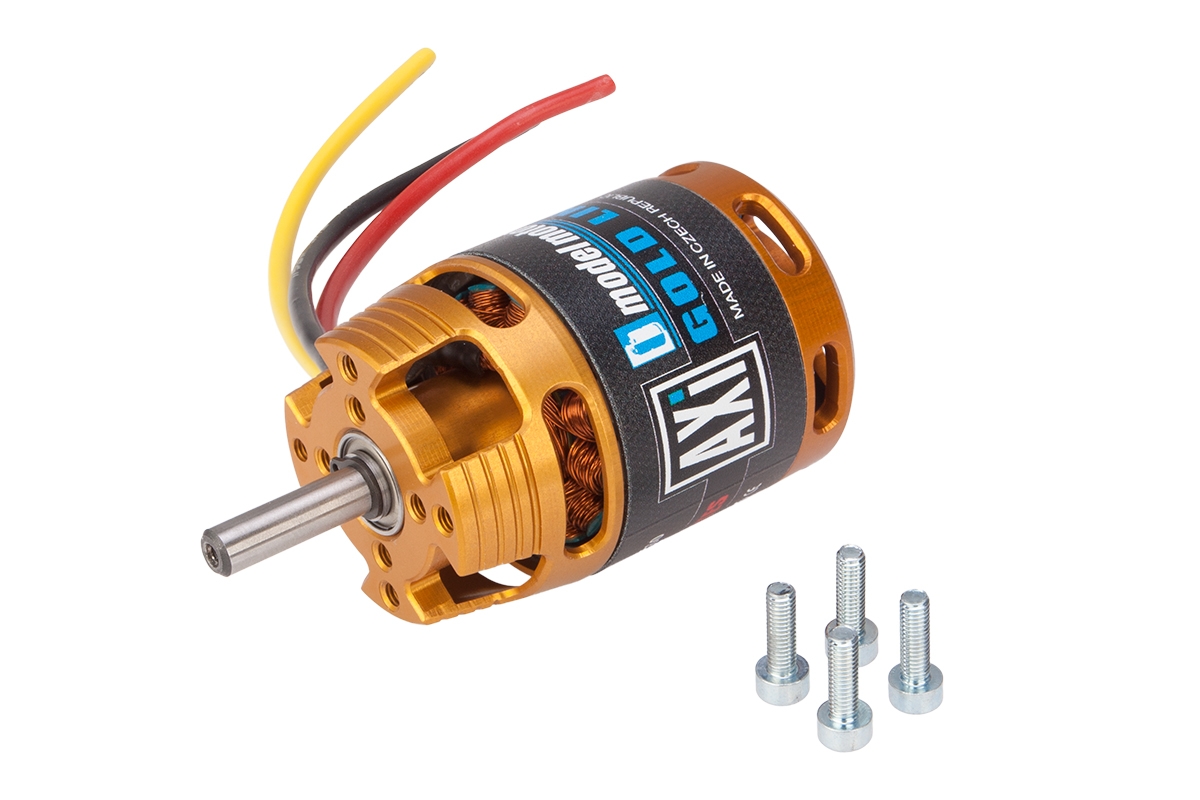

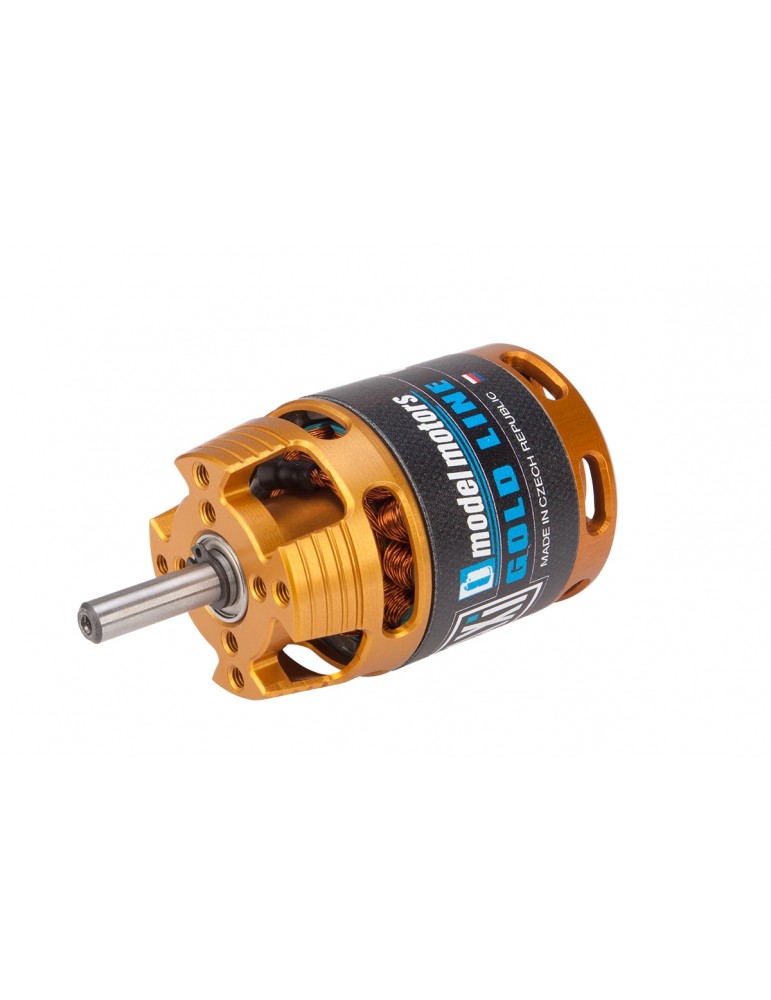

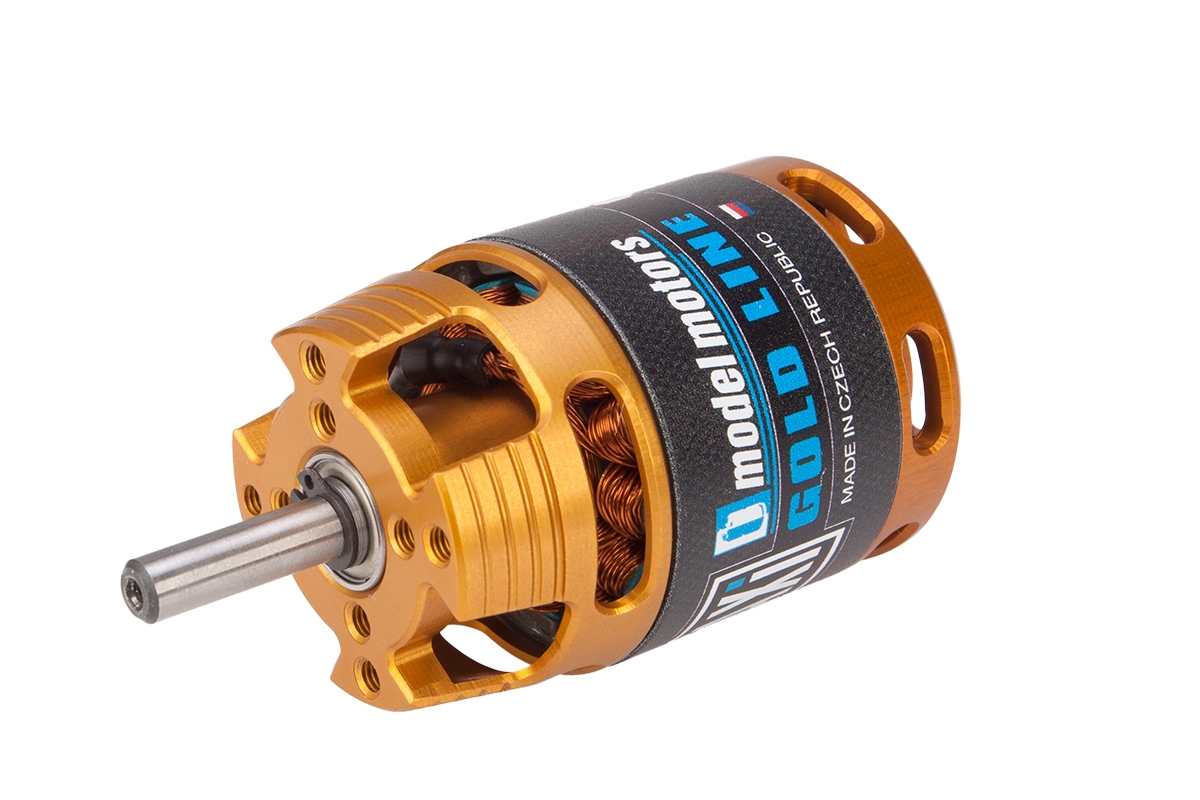

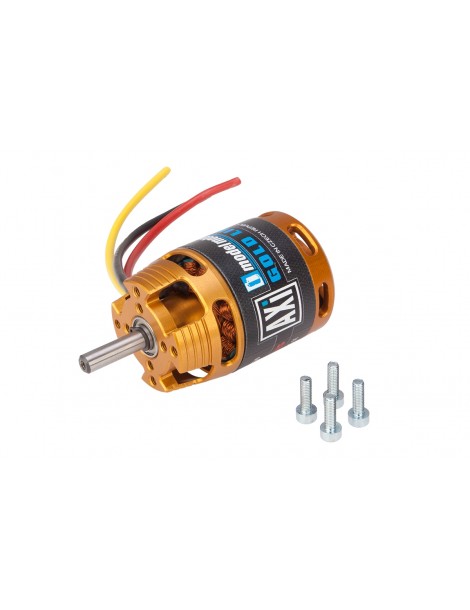

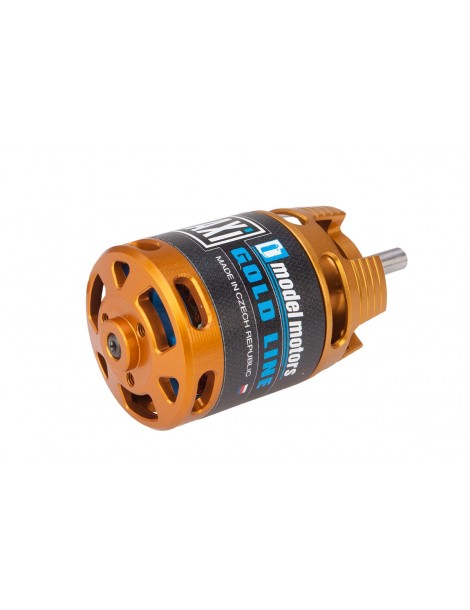

High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 400-500 size, and up to 1500g in weight. The hardened steel 5mm diameter shaft and is supported by three ball bearings.

Delivered without prop. holder and Radial mount set!

Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1820 ; Nr. of turns: 16 ; Internal resistance [mOhm]: 75 ; No load current [A]: 2 ; max. effenciency [%]: 82 ; Max. efficiency current (η>75%) [A]: 10 - 15 ; Max. peak current (60 s) [A]: 26 ; Max. power [W]: 170 ; Diameter [mm]: 35 ; Lenght [mm]: 39 ; Shaft diameter [mm]: 5 ; Weight [g]: 85 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 30 - 35 ; Acrobat up to Weight (hotliner) [g]: 800

Powering LiXX cells2 - 3
RPM/V [ot./min/V]1820
Turn count16
Internal resistance [mOhm]75
Open-circuit current [A]2
Max. efficiency [%]82
Max. efficiency current (η>75%) [A]10 - 15
Max. peak current (60 s) [A]26
Max. power [W]170

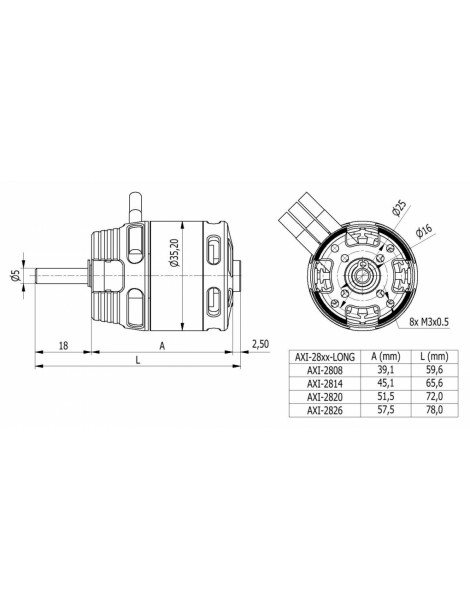

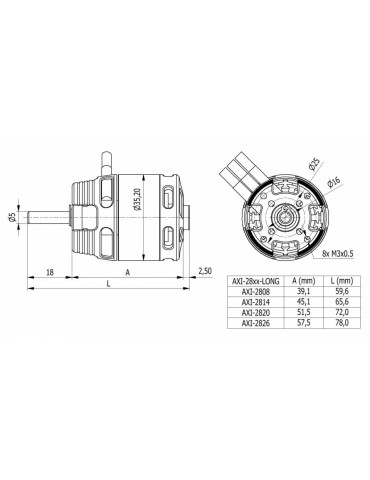

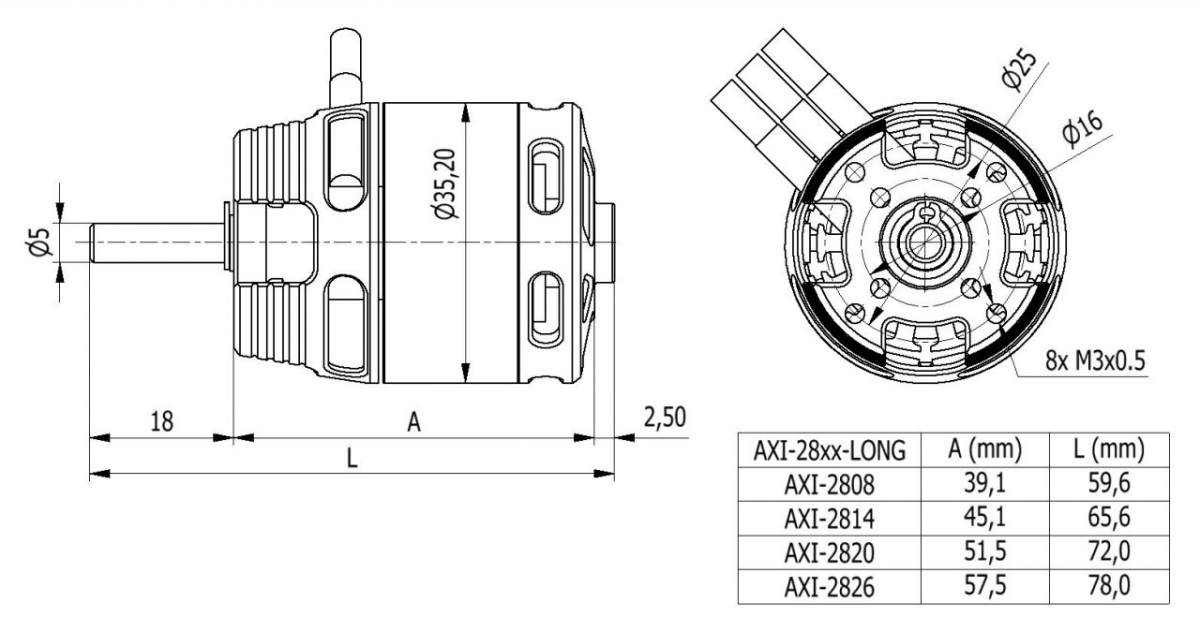

Diameter [mm]35
Length [mm]39
Shaft diameter [mm]5
Weight [g]85
Poles count14
Timing [°]15 - 25
ESC [A] 30 - 35
Weight of acrobat (up-to) (hotliner) [g]800
Doporučená vrtule3S: 6x6"
AXI
3EL10533V2L
