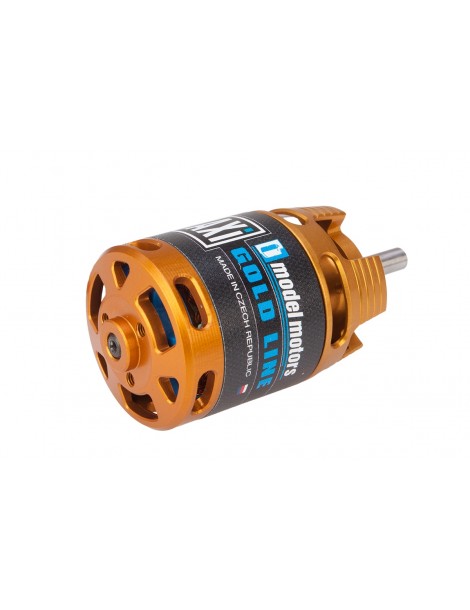

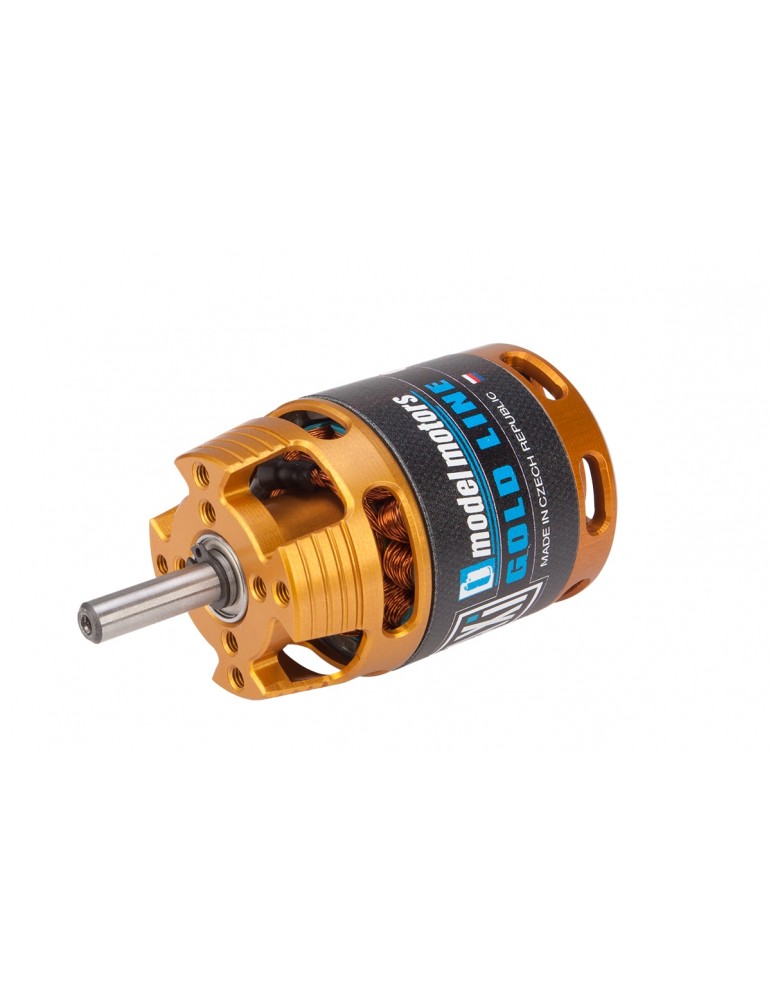

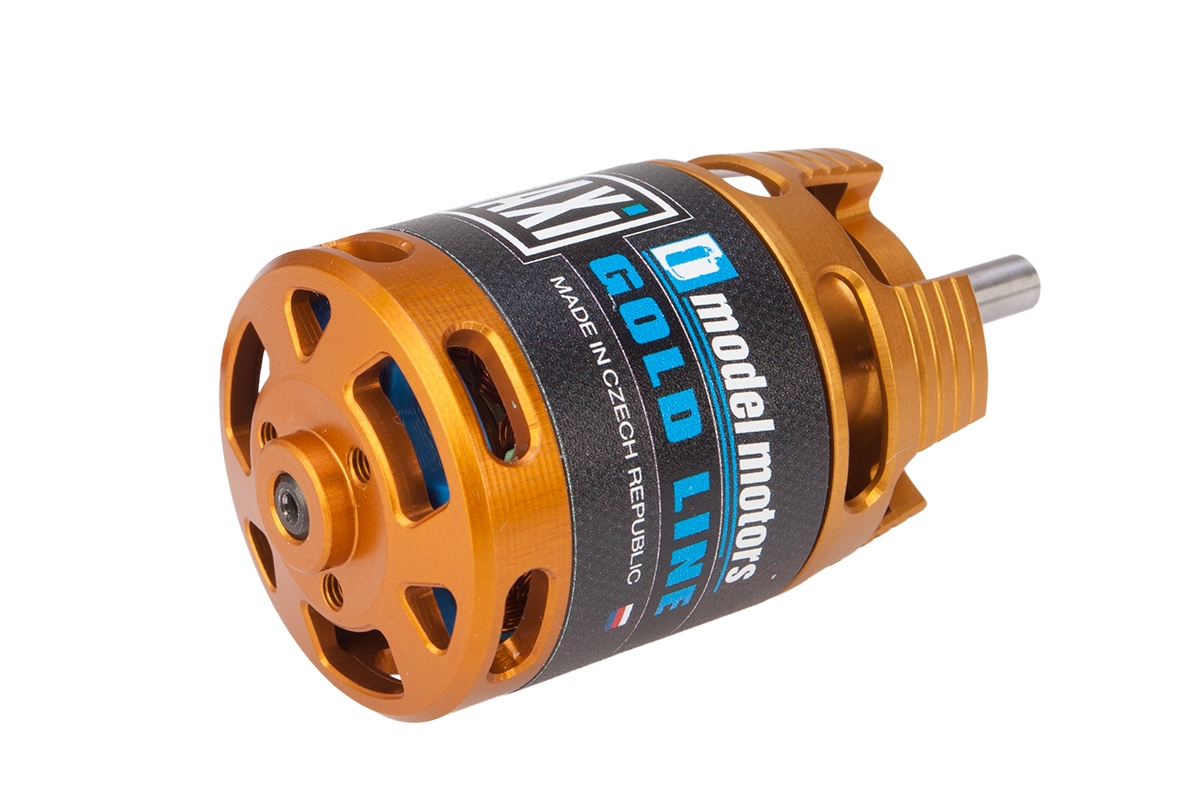

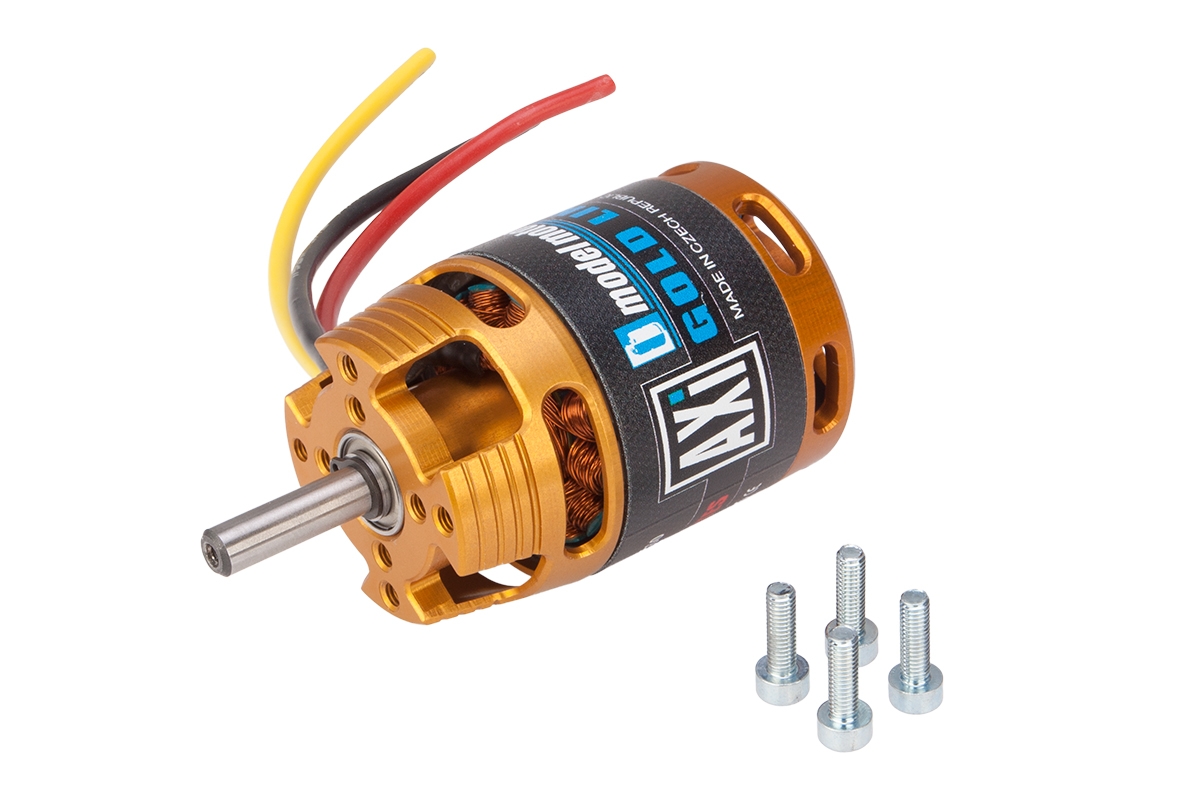

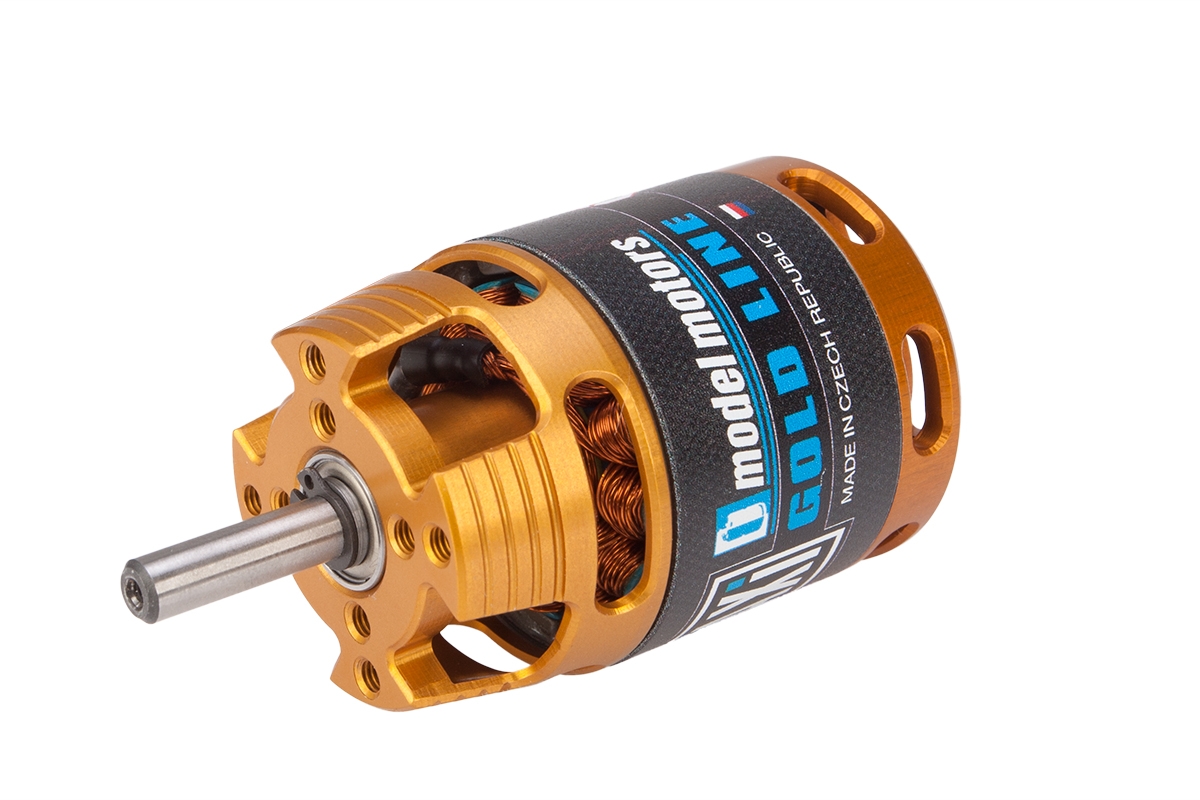

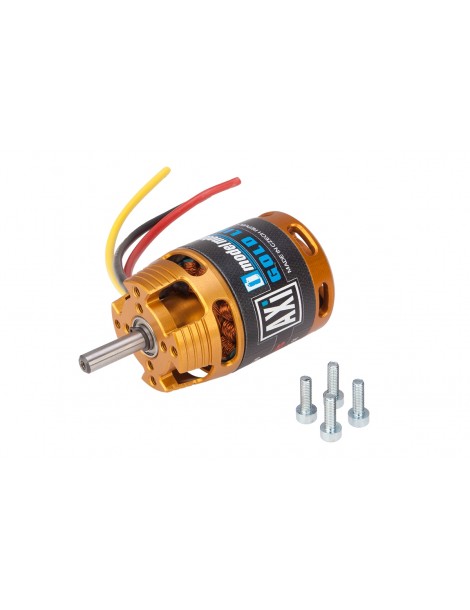

High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 400-500 size, and up to 1500g in weight. The hardened steel 5mm diameter shaft and is supported by three ball bearings.

Delivered without prop. holder and Radial mount set!

Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1490 ; Nr. of turns: 20 ; Internal resistance [mOhm]: 105 ; No load current [A]: 1.3 ; max. effenciency [%]: 82 ; Max. efficiency current (η>75%) [A]: 10 - 15 ; Max. peak current (60 s) [A]: 24 ; Max. power [W]: 256 ; Diameter [mm]: 35 ; Lenght [mm]: 39 ; Shaft diameter [mm]: 5 ; Weight [g]: 85 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 30 - 35 ; Acrobat up to Weight (hotliner) [g]: 900

Powering LiXX cells2 - 3
RPM/V [ot./min/V]1490
Turn count20
Internal resistance [mOhm]105
Open-circuit current [A]1.3
Max. efficiency [%]82
Max. efficiency current (η>75%) [A]10 - 15
Max. peak current (60 s) [A]24
Max. power [W]256

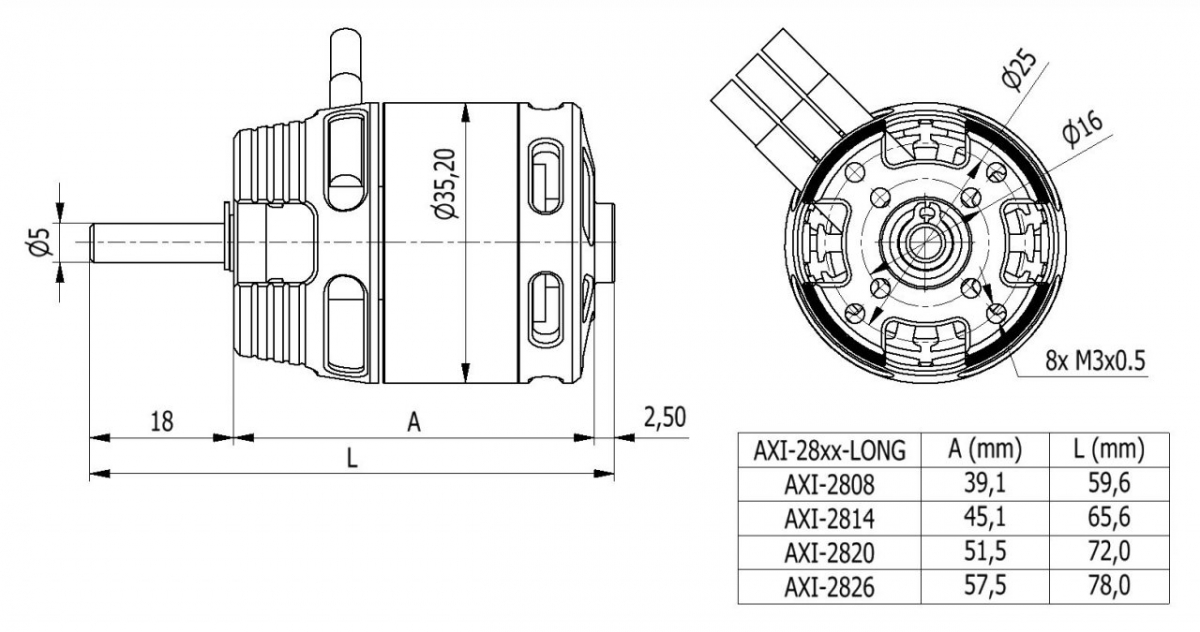

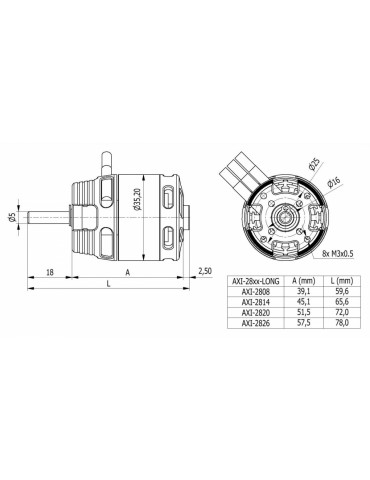

Diameter [mm]35
Length [mm]39
Shaft diameter [mm]5
Weight [g]85
Poles count14
Timing [°]15 - 25
ESC [A] 30 - 35
Weight of acrobat (up-to) (hotliner) [g]900
Doporučená vrtule3S: 7x7"
AXI
3EL10534V2L
