AXI 2808/24 Cyclone KV1190
AXI 2808/24 Cyclone KV1190
  • AXI 2808/24 Cyclone KV1190
  • AXI 2808/24 Cyclone KV1190
  • AXI 2808/24 Cyclone KV1190

AXI 2808/24 Cyclone KV1190

Atsiliepimai Pateikti atsiliepimą
119,30 €
Su PVM
Pristatysime per 7-14 darbo dienų
Atsiskaitymas visa paypal mastercard
message Klauskite apie šią prekę

Klauskite apie šią prekę

AXI 2808/24 Cyclone KV1190

AXI 2808/24 Cyclone KV1190

* Privalomi laukai

  Atšaukti

Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1190 ; Nr. of turns: 24 ; Internal resistance [mOhm]: 115 ; No load current [A]: 1 ; max. effenciency [%]: 84 ; Max. efficiency current (η>75%) [A]: 6 - 15 ; Max. peak current (60 s) [A]: 25 ; Max. power [W]: 240 ; Diameter [mm]: 40 ; Lenght [mm]: 57 ; Shaft diameter [mm]: 5 ; Weight [g]: 130 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 30 - 35 ; Sailplane up to Weight [g]: 1300

Powering LiXX cells2 - 3
RPM/V [ot./min/V]1190
Turn count24
Internal resistance [mOhm]115
Open-circuit current [A]1
Max. efficiency [%]84
Max. efficiency current (η>75%) [A]6 - 15
Max. peak current (60 s) [A]25
Max. power [W]240

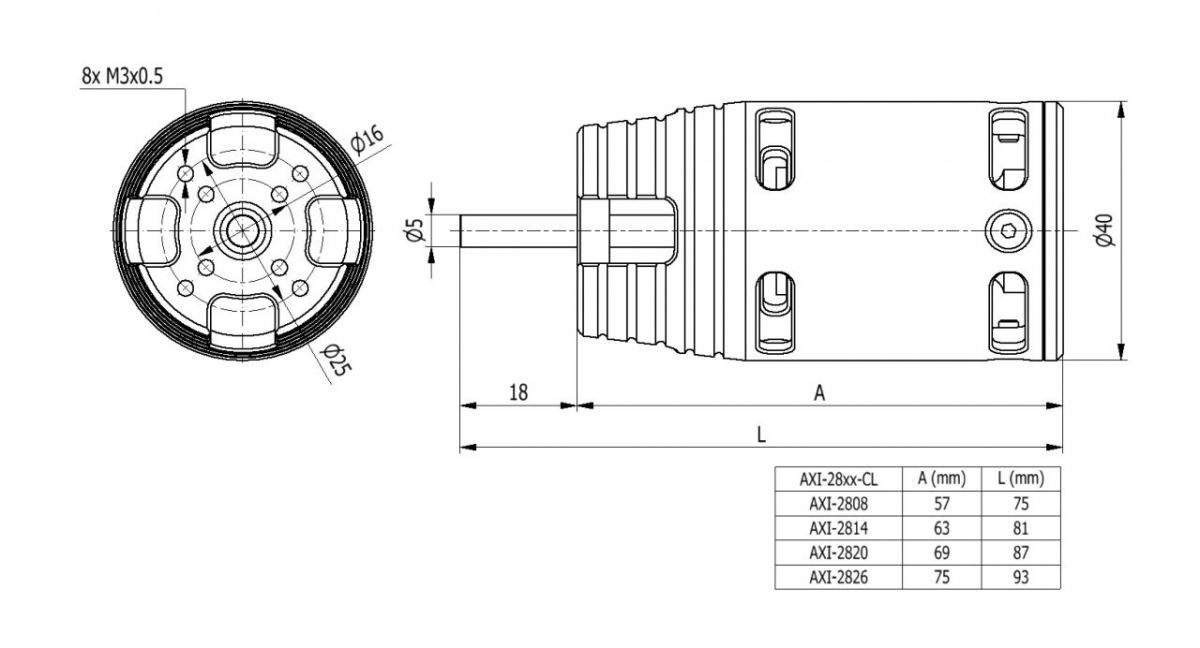

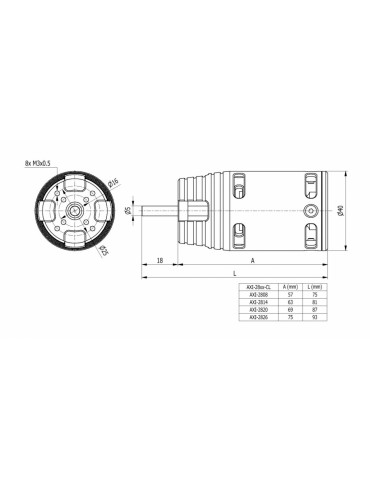

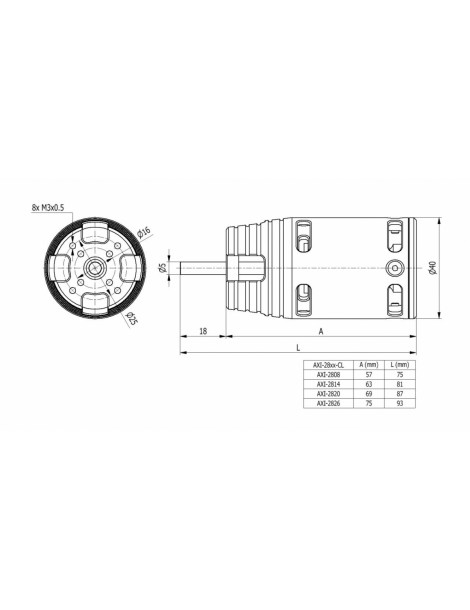

Diameter [mm]40
Length [mm]57
Shaft diameter [mm]5
Weight [g]130
Poles count14
Timing [°]15 - 25
ESC [A] 30 - 35
Weight of glider (up-to) [g]1300
Doporučená vrtule3S: 9x5"
AXI
3EL105700
