AXI 2826/8 V2 Brushless

Atsiliepimai Pateikti atsiliepimą
133,23 €
Su PVM
Pristatysime per 7-14 darbo dienų
Atsiskaitymas visa paypal mastercard
message Klauskite apie šią prekę

Klauskite apie šią prekę

AXI 2826/8 V2 Brushless

AXI 2826/8 V2 Brushless

* Privalomi laukai

  Atšaukti

Supply voltage LiXX cells: 2 - 3 ; RPM/V [RPM/min/V]: 1130 ; Nr. of turns: 8 ; Internal resistance [mOhm]: 30 ; No load current [A]: 2.9 ; max. effenciency [%]: 85 ; Max. efficiency current (η>75%) [A]: 35 - 37 ; Max. peak current (60 s) [A]: 56 ; Max. power [W]: 570 ; Diameter [mm]: 35 ; Lenght [mm]: 52 ; Shaft diameter [mm]: 5 ; Weight [g]: 177 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 60 - 70 ; Sailplane up to Weight [g]: 2500 ; Trainer up to Weight [g]: 2500 ; Acrobat up to Weight [g]: 2500

Powering LiXX cells2 - 3
RPM/V [ot./min/V]1130
Turn count8
Internal resistance [mOhm]30
Open-circuit current [A]2.9
Max. efficiency [%]85
Max. efficiency current (η>75%) [A]35 - 37
Max. peak current (60 s) [A]56
Max. power [W]570

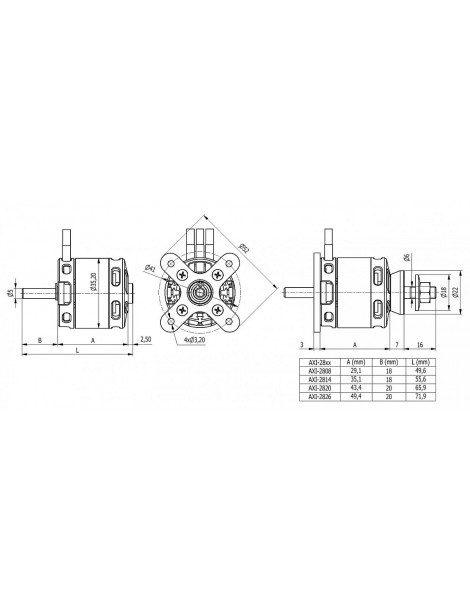

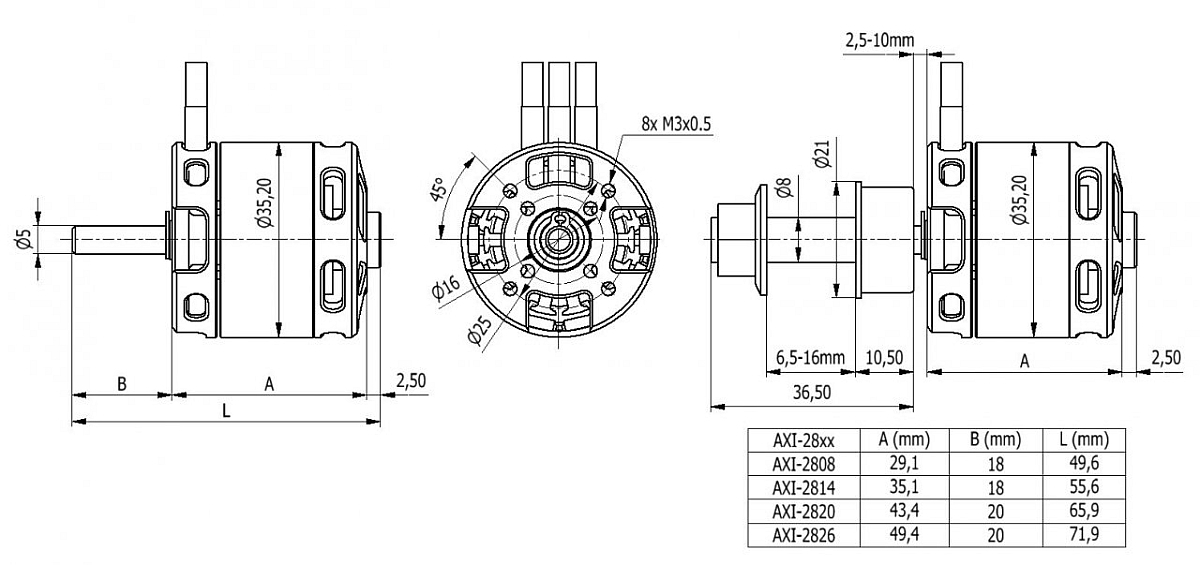

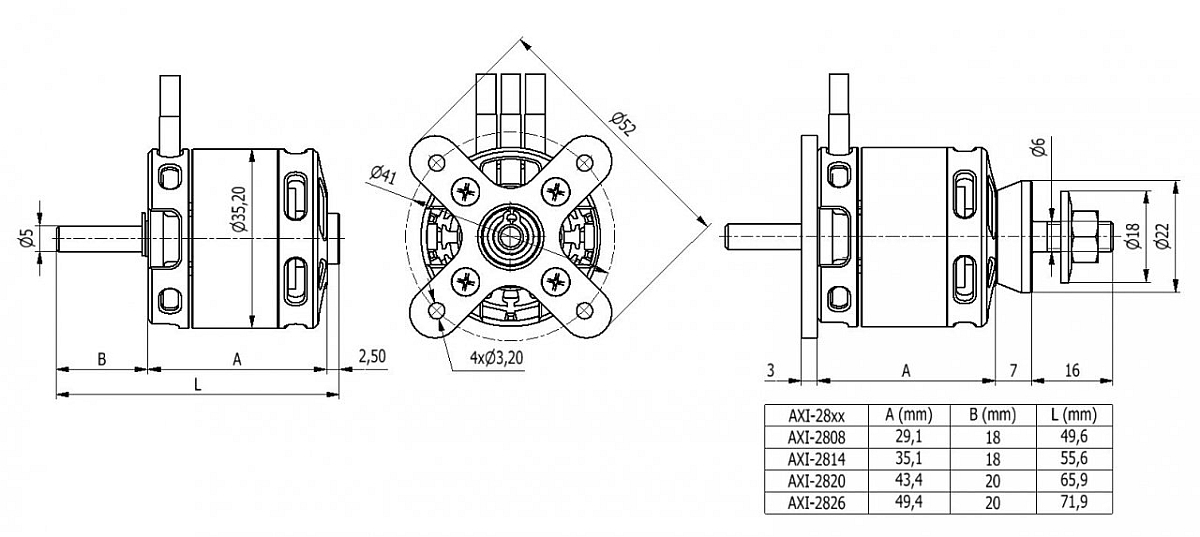

Diameter [mm]35
Length [mm]52
Shaft diameter [mm]5
Weight [g]177
Poles count14
Timing [°]15 - 25
ESC [A] 60 - 70
Weight of glider (up-to) [g]2500
Weight of trainer (up-to) [g]2500
Weight of acrobat (up-to) [g]2500
Doporučená vrtule3S: 12x6", 12x6,5", 13x8"
AXI
3EL105611V2
