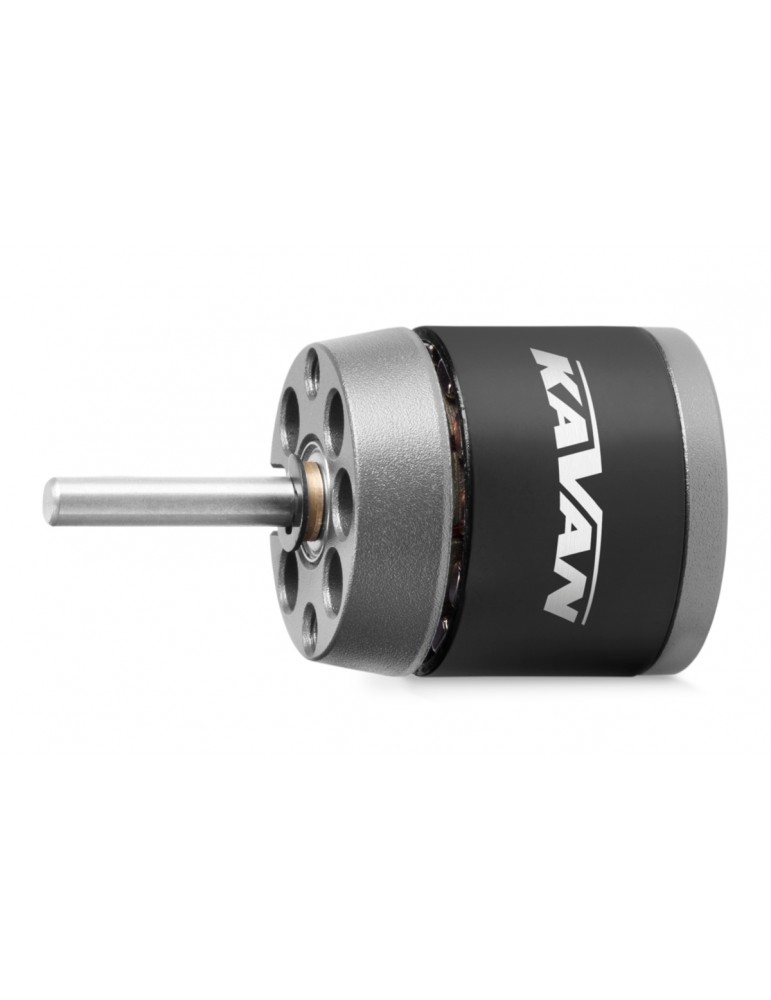

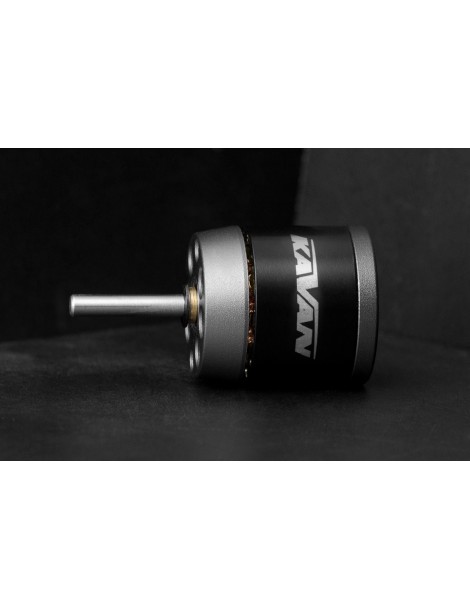

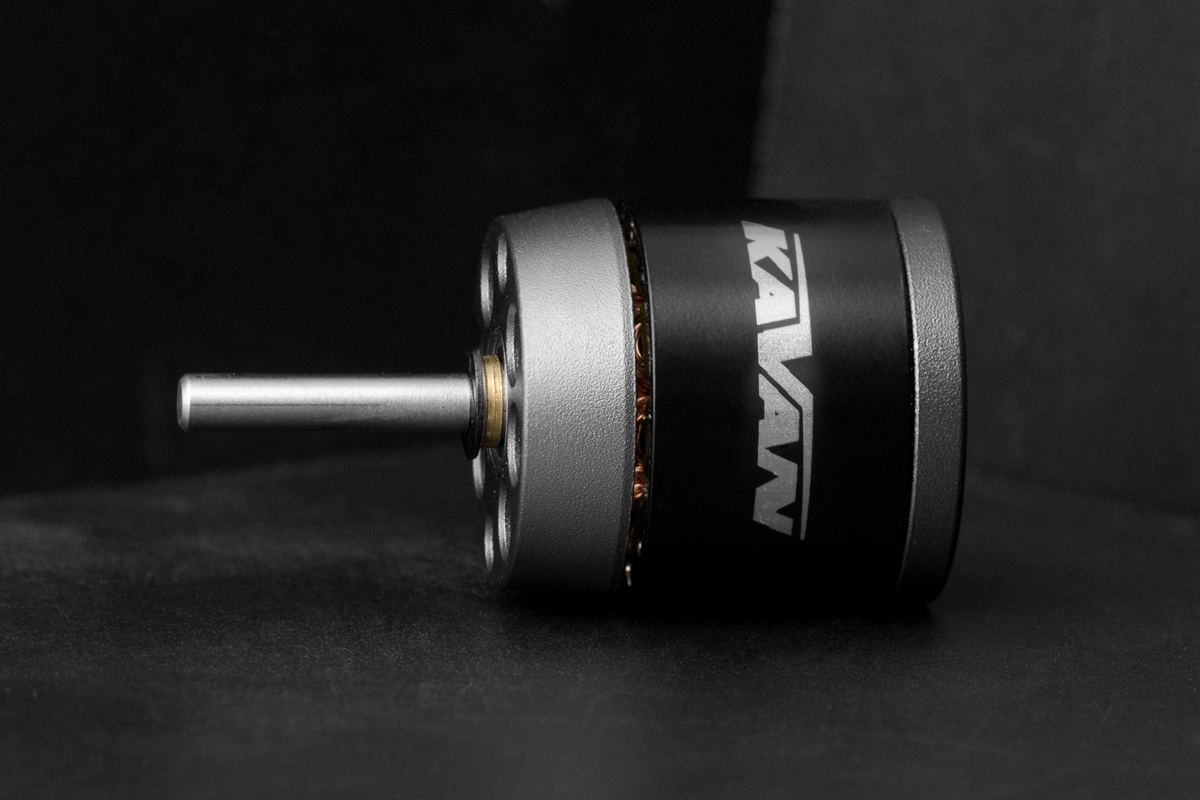

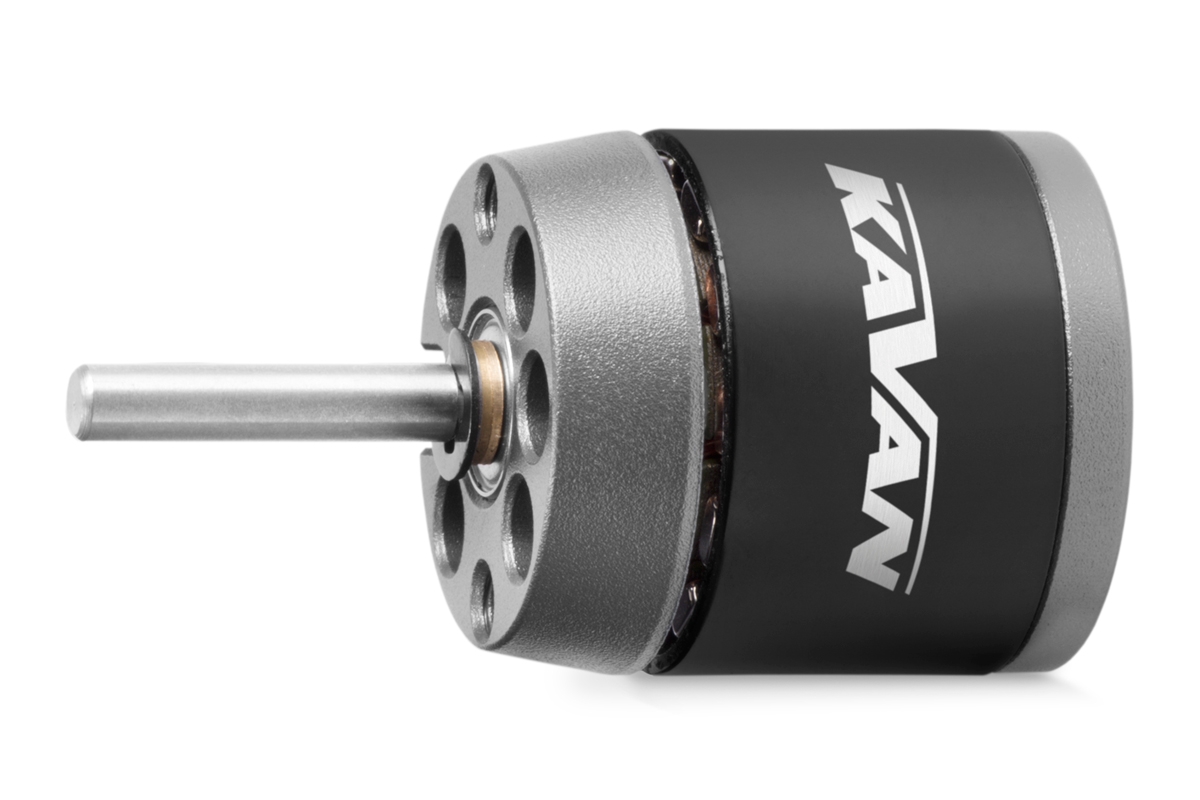

KAVAN Brushless Motor C2225-2000

The KAVAN motors are brushless 14-pole rotary casing electric motors with excellent electrical properties, a very sophisticated design and high-end manufacturing. Hardened steel shafts and high-quality bearings ensure a long service life, while the quality of materials used to make the stator on the rotor also guarantee excellent performance at a high efficiency. They are low-speed, high-torque engines that handle large diameter propellers and pitches without the need for gearboxes.

The KAVAN C2225-2000 is a miniature brushless motor designed to power small airplane models with a flying weight of up to 250 g, powered by a two or three cell Li-poly battery. With its help you can successfully "electrify" e.g. rubber bands from Guillow's or Dumas kits, it is also excellent for park-flyers, it is tailor-made for Kavan's CUMUL mini.

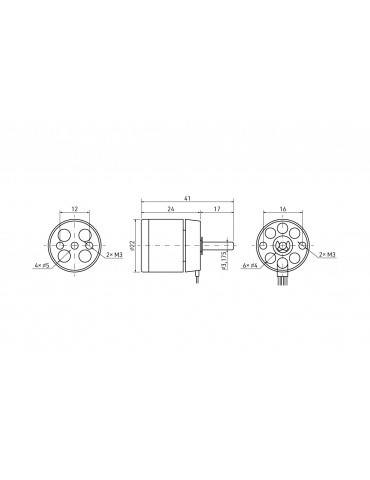

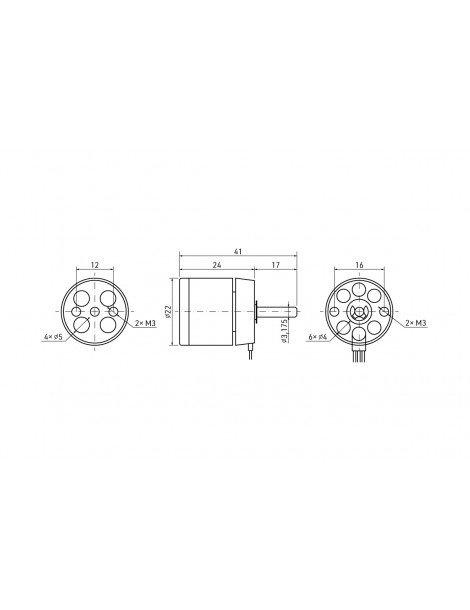

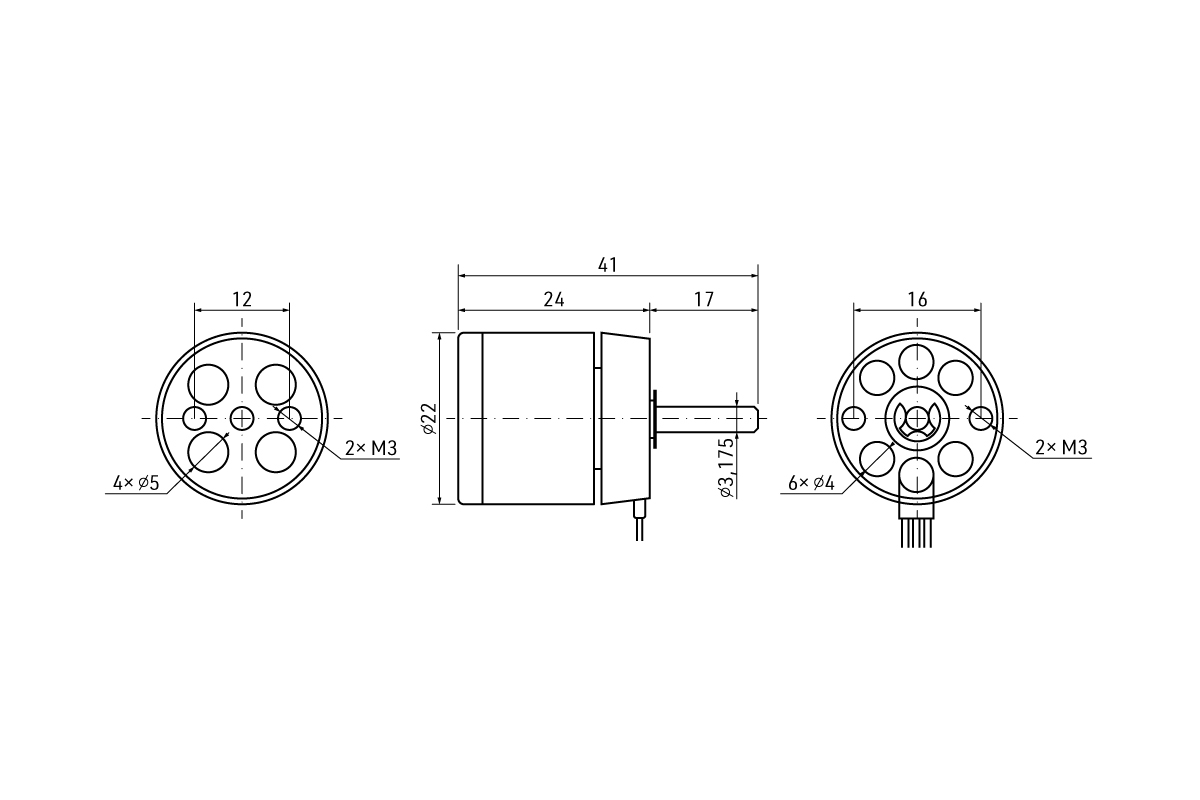

Motor mounting: KAVAN C2225-2000 is designed for front mounting. Use two M3 screws that engage the motor face between 3 and 4 mm. The holes for the mounting screws in the motor face are spaced 16 mm apart. The engine bulkhead should be 1,5-2 mm aerospace plywood.

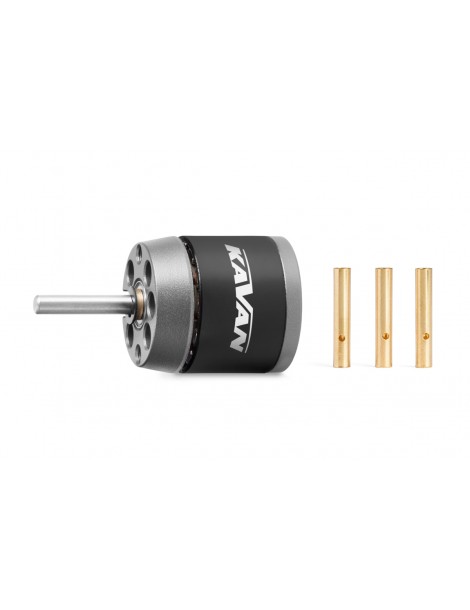

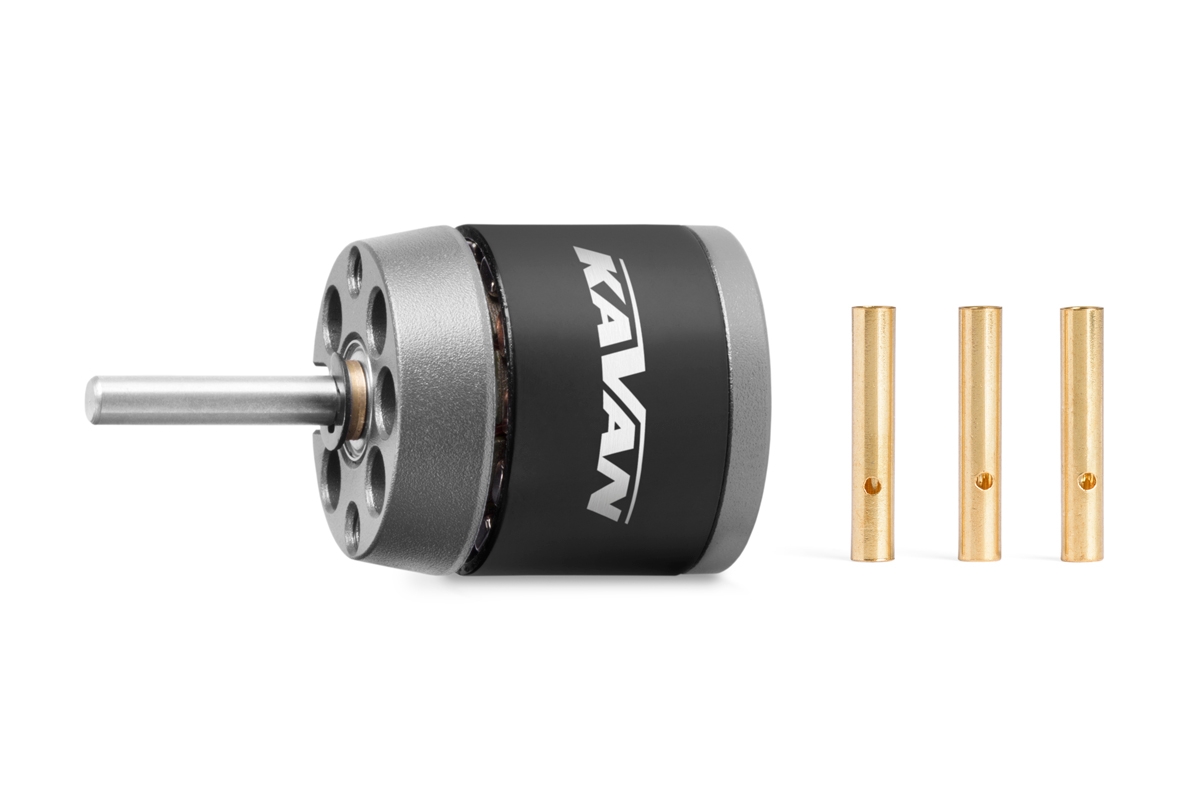

Motor kit includes: KAVAN C2225-2000 motor with cables and soldered 2 mm gold-plated connectors, 3pcs of 2 mm gold-plated sockets, manual.
