KAVAN Brushless Motor PRO 2225-1600

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox.

KAVAN PRO 2225-1600

KAVAN PRO 2225-1600 is a small diameter miniature motor for lightweight model aeroplanes up to 450 g all-up weight powered by 2-3S LiPo flight battery pack. The motor has been specially designed with slim fuselage 2M E-RES contest gliders like KAVAN MIRAI or MIRAI V in mind. It could also be used for “electrification” of rubber powered planes from of Guillow’s or Dumas kits (up to 1200 mm wingspan), it works great with indoor models, Dumas RC park-flyer kits and similar.

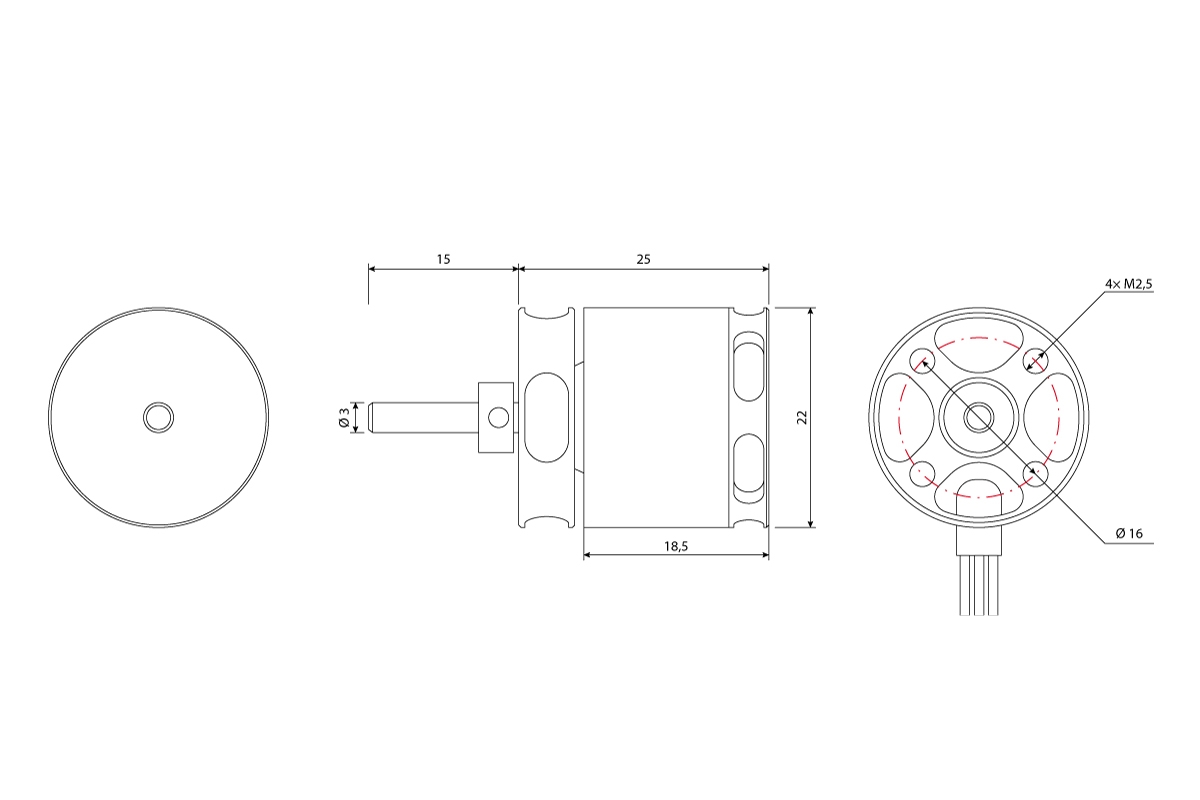

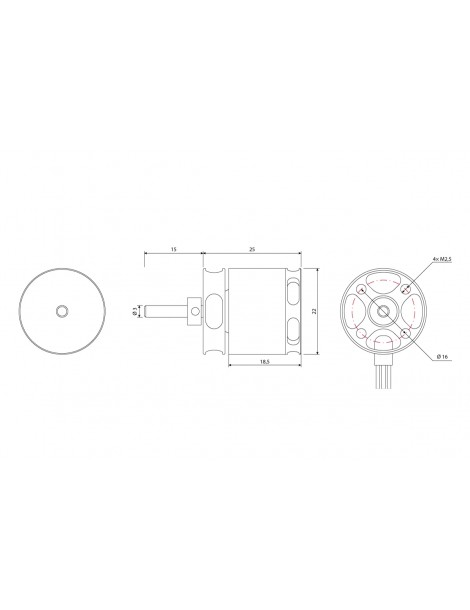

Motor installation: KAVAN 2225-1600 has been designed for the front mount installation only. Use at least two (opposite) or four M2.5 screws; these may not go deeper than 3-4 mm into the front case. The firewall should be made of 2.0 mm plywood.

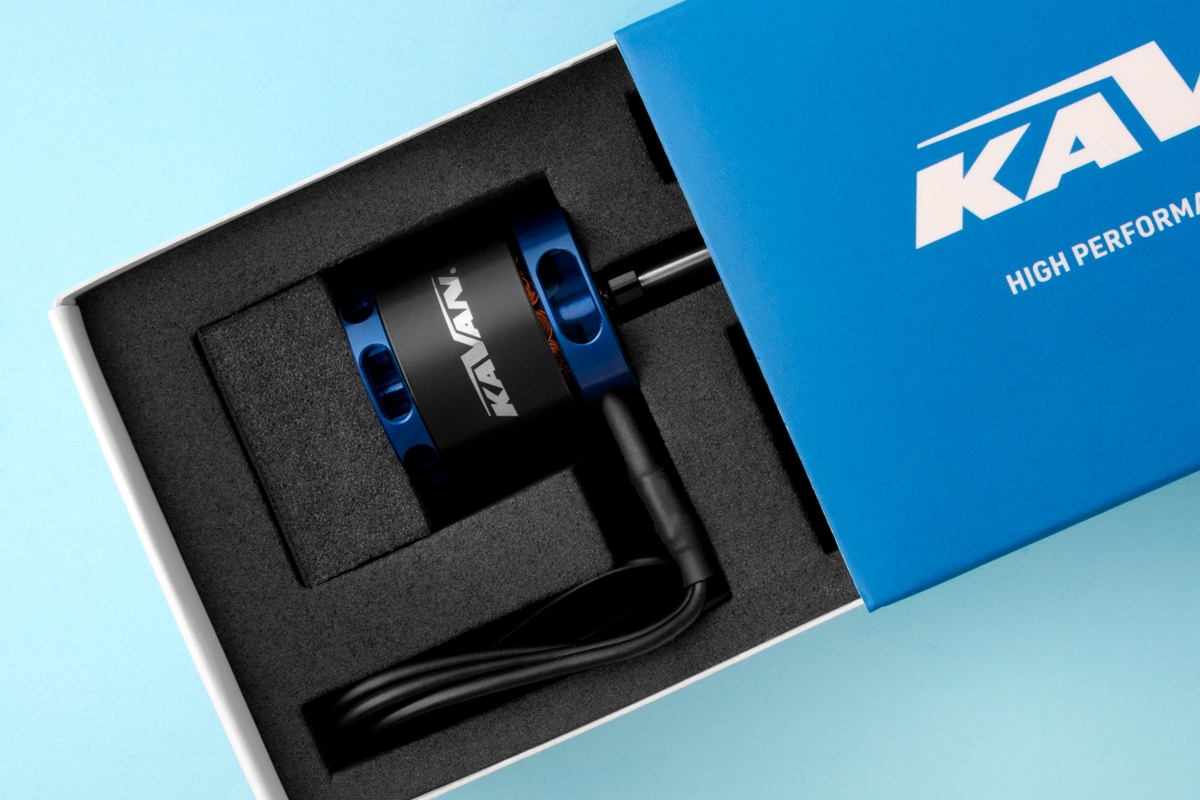

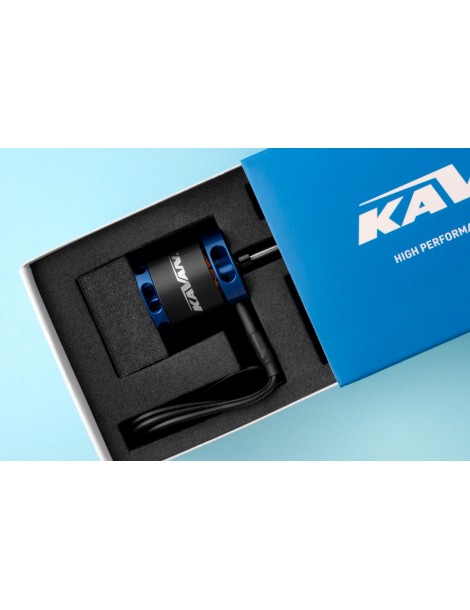

The motor set contents: KAVAN PRO 2225-1600 motor w. cables (no connectors). The full instruction manual can be downloaded here: KAVAN PRO Brushless Motors Instruction Manual
