SkyRC E4Q balansinis įkroviklis
SkyRC E4Q balansinis įkroviklis
  • SkyRC E4Q balansinis įkroviklis
  • SkyRC E4Q balansinis įkroviklis
  • SkyRC E4Q balansinis įkroviklis
  • SkyRC E4Q balansinis įkroviklis
  • SkyRC E4Q balansinis įkroviklis

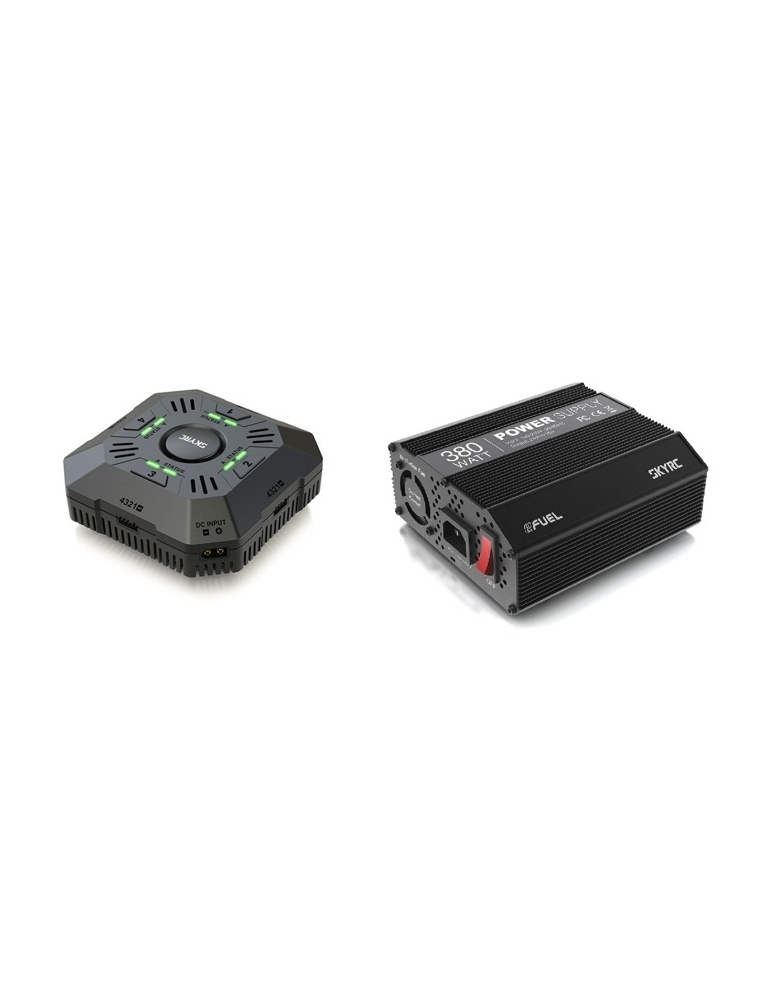

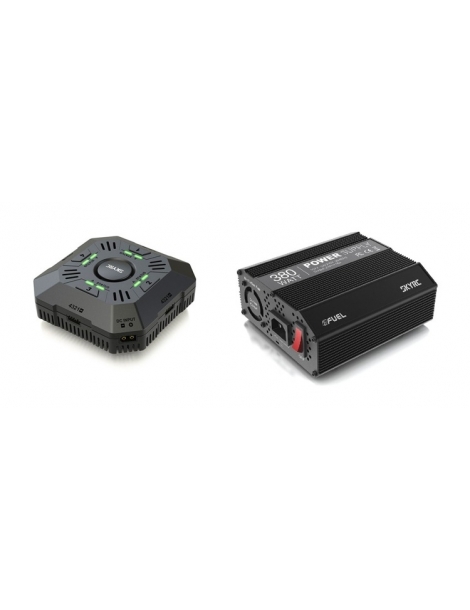

SkyRC E4Q balansinis įkroviklis + SkyRC Efuel 380W maitinimo šaltinis

Atsiliepimai Pateikti atsiliepimą
149,00 €
Su PVM
Turime vietoje
Atsiskaitymas visa paypal mastercard
message Klauskite apie šią prekę

Klauskite apie šią prekę

SkyRC E4Q balansinis įkroviklis + SkyRC Efuel 380W maitinimo šaltinis

SkyRC E4Q balansinis įkroviklis + SkyRC Efuel 380W maitinimo šaltinis

* Privalomi laukai

  Atšaukti

Gamintojo nurodoma informacija:

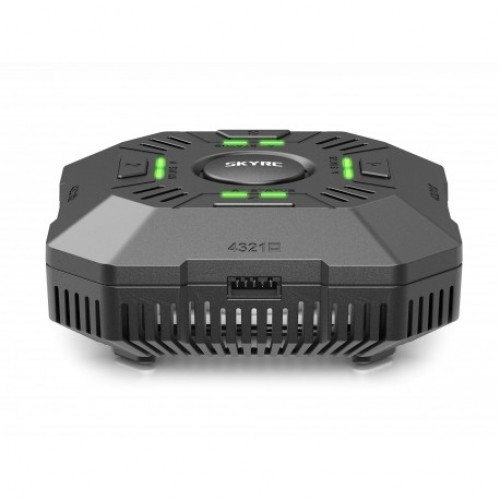

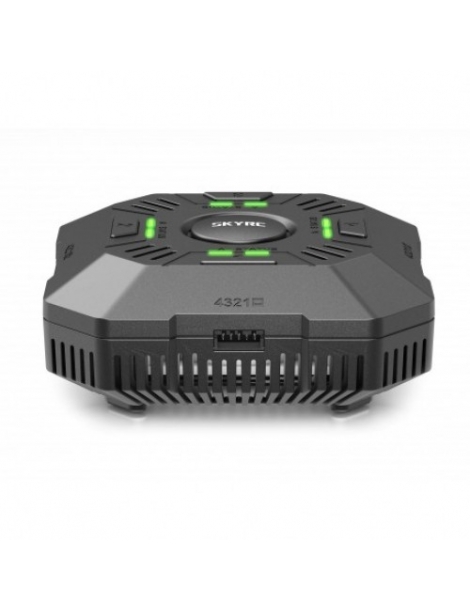

E4Q

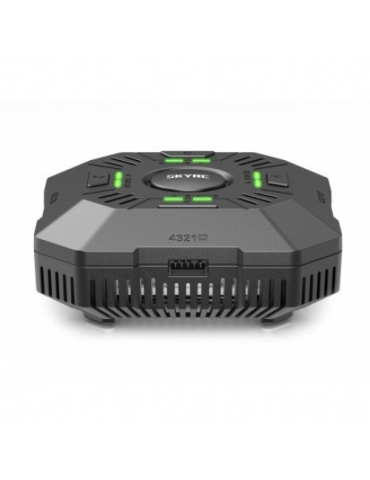

This product is a special LiPo battery balance plug charger, which can charge 2S/3S/4S LiPo battery in 4 channals simultaneously. The main power supply is DC input, the port adopts XT60 type, the output port adopts special design interface, and the three kinds of batteries do not need Transfer board. Can be plugged in directly.

Size and Weight


Dimension：128x128x50.5mm
Net Weight：280g

Buttons And Port

The e4Q multi-function charger uses four completely independent but identical circuits with a power output of 50W per power. It is designed for charging 2-4 LiPo batteries. Insert the battery into the right connector of each port, charge The appliance will also charge 4 battery times. The charging current can be adjusted by pressing the button 2A / 3A / 5A The charging capacity can show the charging current in the LED indicator through the color change


Power

DC Input: 11-26.1V
Charge Circuit Power: 4 x 50W ±10%
Charging model: balance charging
Charge Current Range: 2A/3A/5A
Charge saturation voltage:4.20V±0.02V/CELL
Balance current :Max 400mA/CELL

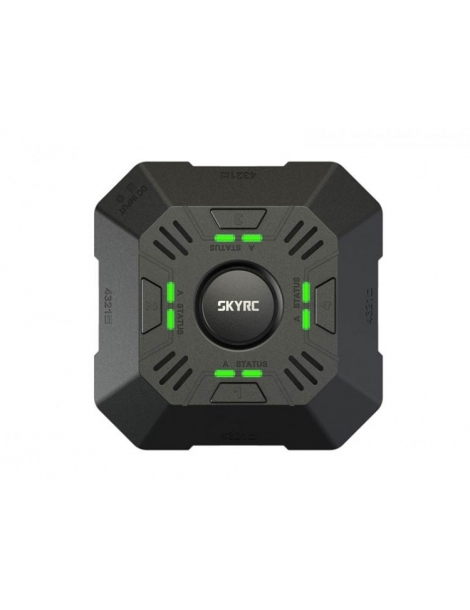

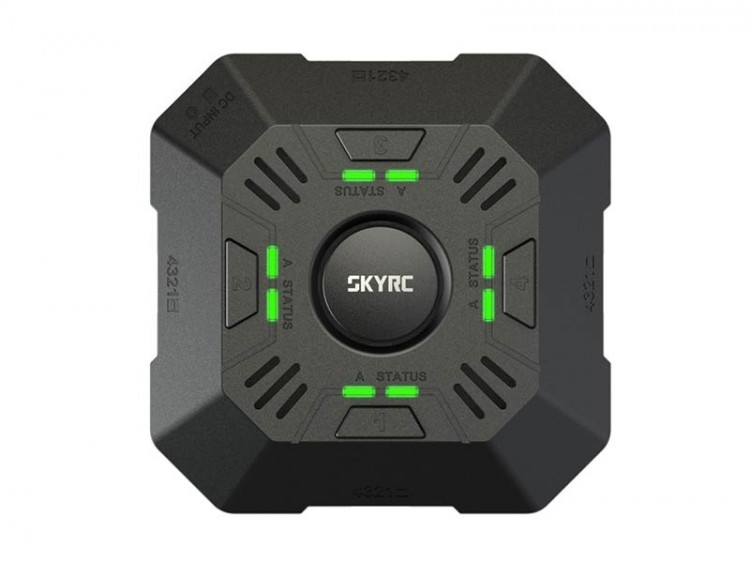

LED light

LED light charging current display

The first three-color LED lights represent Ampere (A)


The second tri-color LED light represent capacity (%)
LED light standby status indication: Not bright

LED light charging instructions: According to the power, the red light to the green light,And do breathing instructions

LED Light charge finished indication: Accompanied by the sound of the alarm, after 5 flashes,LED glows constant green

Working and Storage

Working environment
Operating temperature 0℃-40℃
Operating humidity 0%-75%

Storage environment

Storage temperature -10℃-70℃
Storage humidity 0%-75%

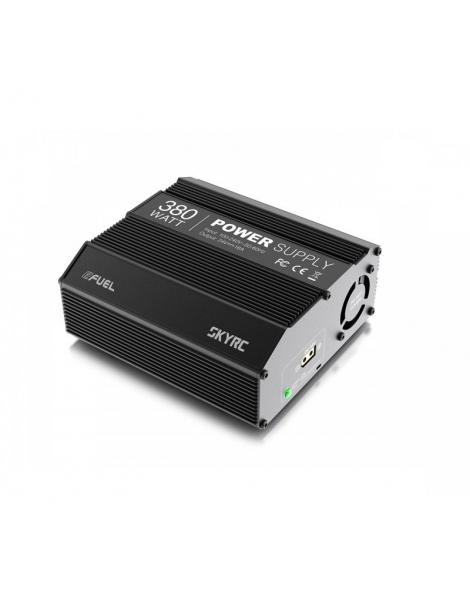

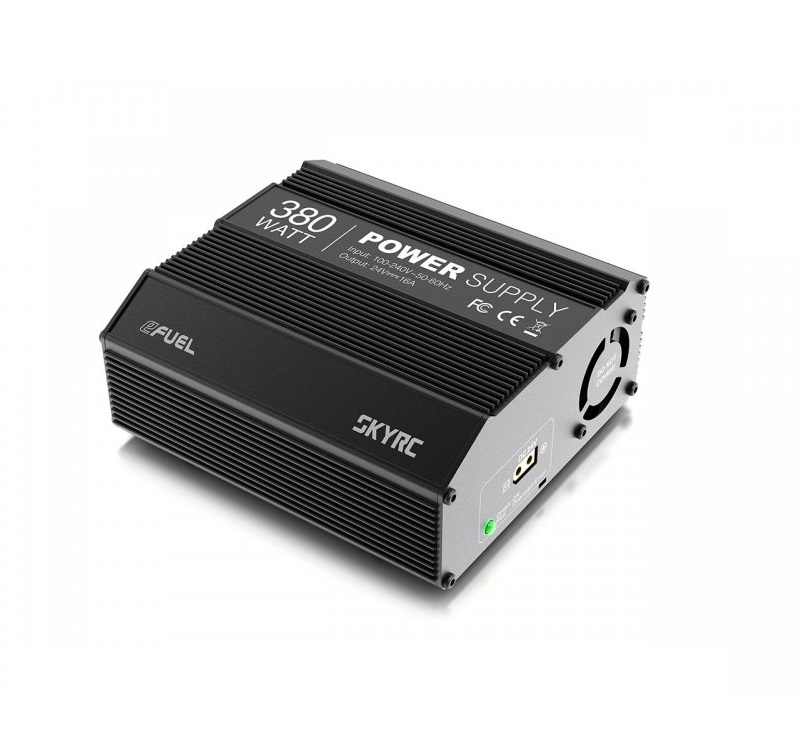

EFuel 380W



Specifications

POWER SUPPLY 380W

Converts standard household power 100-240V AC to 24V DC power and supply up to 16 amperes of continuous power.

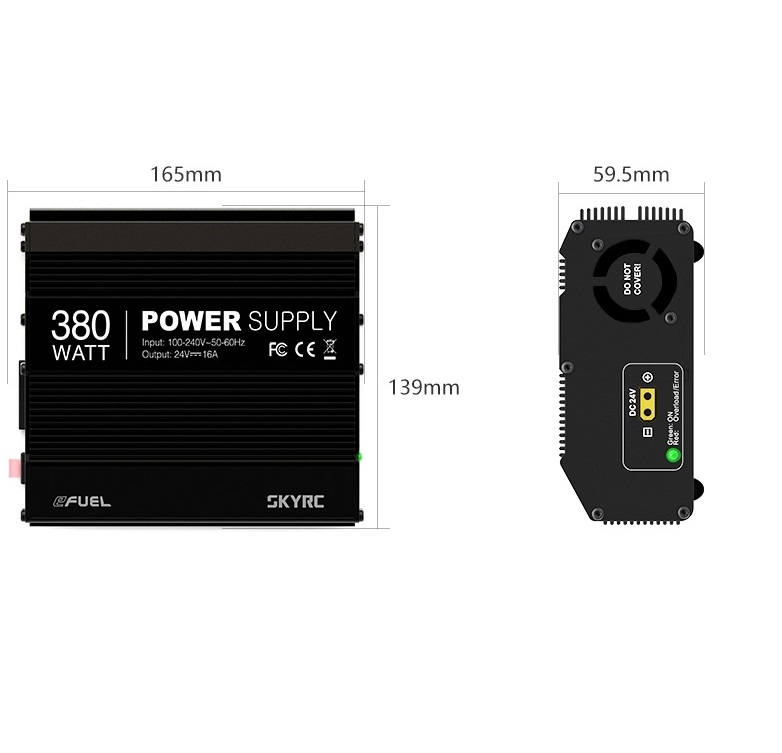

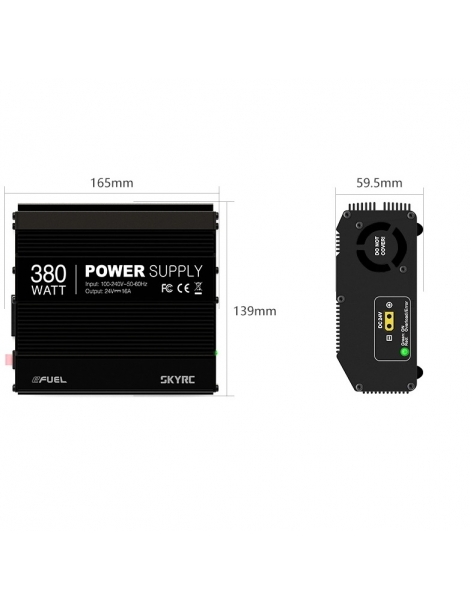

Size and Weight



Case Size：165x139x59.5mm
Weight：1.62kg

Power Supply

Voltage：100-240V
Input AC Frequency：50-60Hz
Output Current：16A
Output Voltage：24V DC±0.5V
Output Voltage Ripple：<300mV
Power Efficiency：88%
Power Factor：>0.98

Protection

Current Overload Protection：17A ±1A
Over Temperature Protection：<80℃
Cooling Method：Cooling Fan

Working

Operating Temperature：0-40℃

Operating Humidity：0-90%
