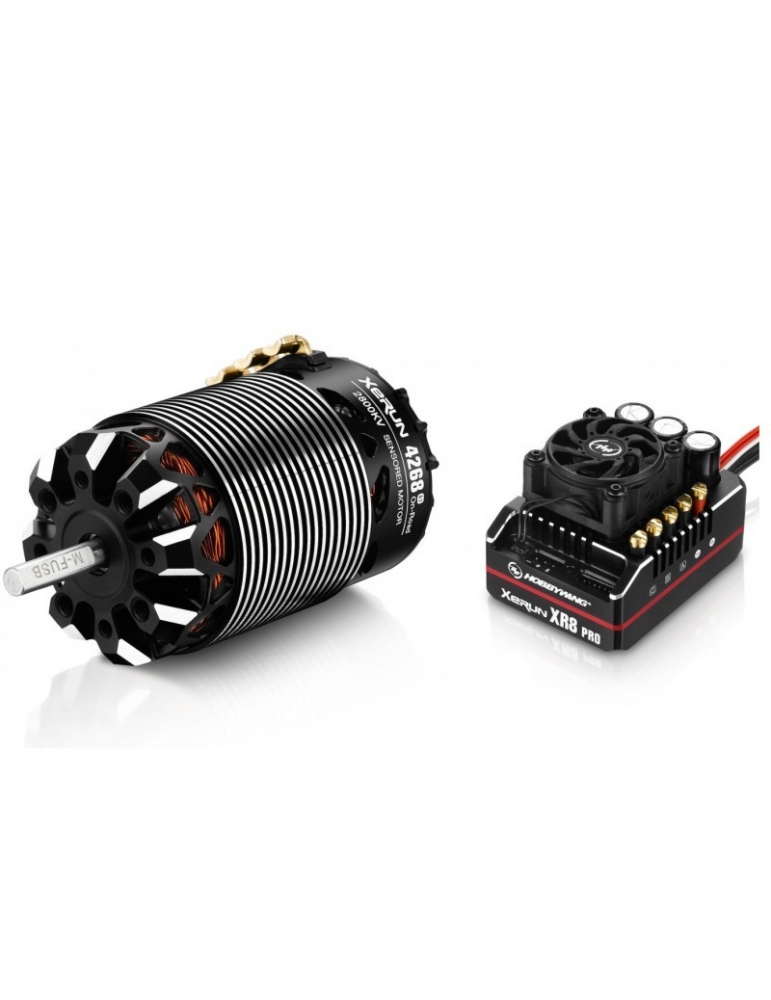

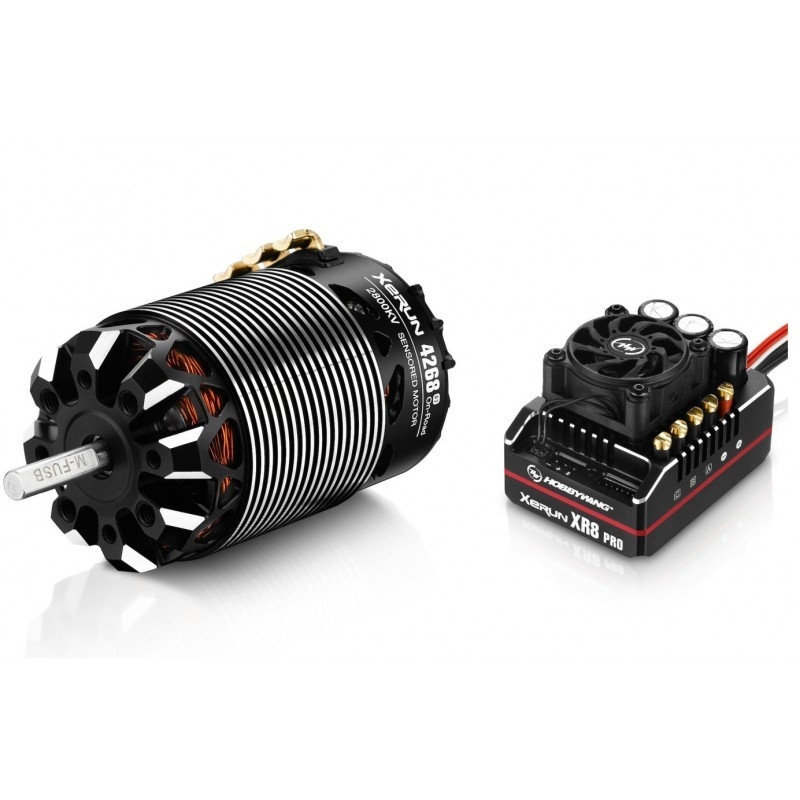

Hobbywing COMBO XR8 Pro G2/4268 G3 2200Kv

Hobbywing are pleased to introduce the XERUN XR8 Pro G2 competition combo set speed for 1/8th vehicles. Combined with the 4268 G3 2200KV motor.  This new version provides a host of new features including;

Full-sensored Mode Supported

The ESC can work the full-sensored mode at all times (when pairing it with a HOBBYWING matching motor).

1/8thpower system, Boost & Turbo Timing Technology

This ESC pairing with Hobbywing motor can start Turbo Timing technology which succeeded in 1/10th On-Road contest. It supports 48 degrees Boost and Turbo Timing. When pairing with Hobbywing 4268/4274 G3 motor, the max. speed can be promoted by 50%. Easily win your rival.

Internal Battery-Reverse Polarity Protection Circuit

With the Built-in Reverse Voltage Protection circuit, ESC's internal parts are all protected from Cross Connection of battery power.

Programming / Upgrading / Data reading wirelessly

With Hobbywing's OTA module and smartphone (with the HOBBYWING HW Link App installed), the user can program parameters, upgrade firmware and heck relevant data of the ESC.

Easy Obtain Running Status with Real-time Data Recording Function.

With Hobbywing's OTA module, Connect the HW Link App to the ESC and open the real-time data recording function, to check the throttle, voltage, current, temperature, RPM and other data in real-time. Easy obtain running status of ESC and motor.

Note: Due to transmission distance of bluetooth, the effective distance is only about 5m!

Fire-new communication protocol can speed up set parameter and upgrade firmware.

The ESC adopts fire-new communication protocol. It greatly improves the speed of setting parameters and upgrading firmware. The speed is improved by 2 times when matching with LCD G2 and 3-4 times when matching with OTA Programmer.

Note: LCD G1 / WIFI Express uses old protocol, so the speed is not improved!

Capacitor Thermal Protection

Capacitor thermal protection implemented by the ESC will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload.

Super Internal BEC

The built-in switch mode BEC with a maximum output of 15A and voltage adjustable from 6V to 8.4V (step:0.1V) allows the use of various standard servos, high voltage servos.

Multiple Programmable Items

The ESC contains nearly 30 adjustable parameters, including throttle PWM frequency, brake frequency, flexibility, boost/Turbo Timing which are commonly used in 1/10 power system. It can accurately adjust the power demand and make players enjoy the ultimate control experience.

Advanced and Secure Electronic Switch

The dust, dirt, and waterproof switch housing ensures a long reliable life for your ESC, will not suffer from the problems most standard on/off switches encounter.

Excellent dustproof performance

The ESC is IP5X. Its excellent dustproof performance can easy to overcome various On-Road & Off-Road contest track.

Specification

Type

Scale - 1/8th

Brushed/Brushless - BL

Sensored/Sensorless - SD

Waterproof - No

Specifications

Cont./Peak Current - 200A/1080A

Input Voltage - 2-4S Lipo/6-12 Cell NiMH

BEC Output - Switch Mode: 6V-8.4 adjustable,6A

Wires & Connectors

Input Wires - Black-12AWG-200mmx2

Output Wires -Black-12AWG-200mmx2

Input Connectors = No

Output Connectors - No

Fan

Size - 30x30x10mm

Voltage Range - 5-8.4V

Powered by - BEC

ESC Programing via

SET Button on ESC Not Supported

LED Program Box Not Supported

LCD Program Box Supported

WiFi Module Supported

OTA Programmer - Supported

Program Port Independant programming port

Firmware

Firmware Upgrade - Supported

Size & Weight

Size -56.1mmx42.1mmx38.6mm

Weight - 114g 114g (Including the weight of Rx wire and switch)

Applications

Motors SL BL Motors SD BL Motors

Vehicles -1/8th Off-Road/On-Road competition

KV Rating/T Count - 4S LiPo： 4268/4274≤3000KV
