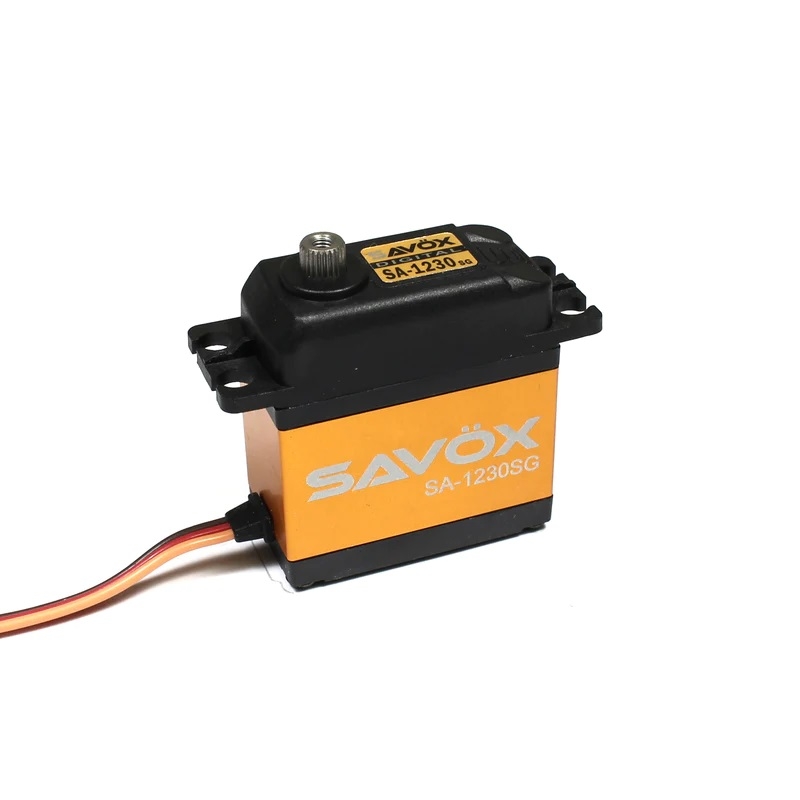

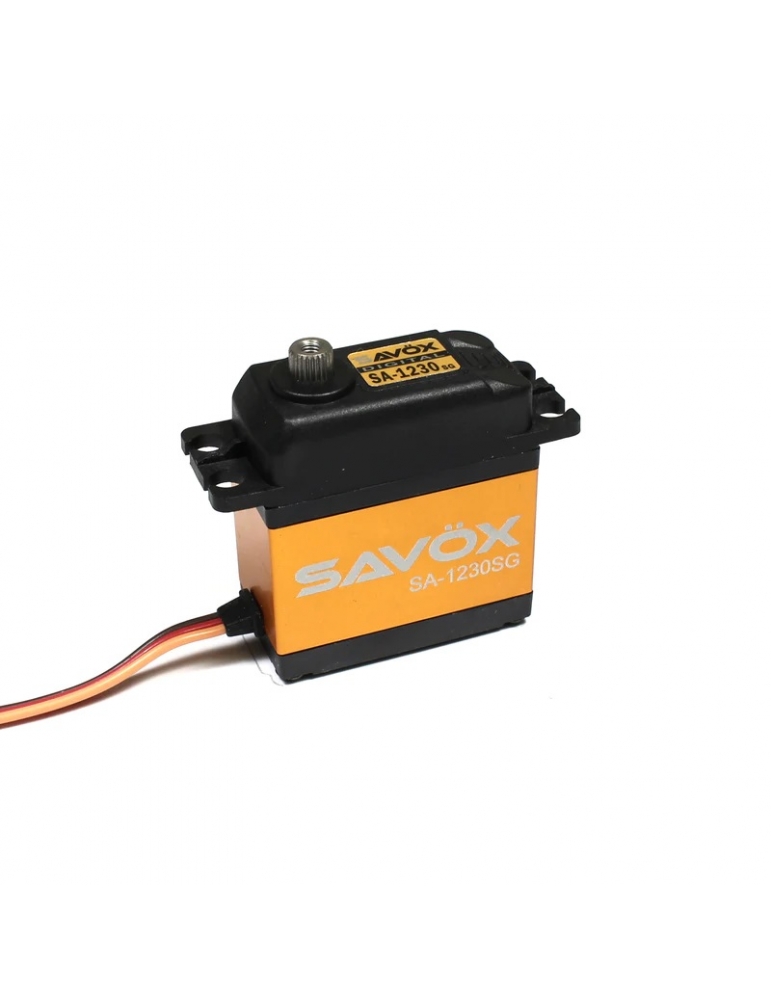

SAVOX 1230SG+ Digital servo (36kg-0,16s/60°)

The Savox SA-1230SG+ Monster Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.

Features:

Combines leading edge technology with super high 12 bit (4096) resolution.
Extremely strong unique steel gears ensure long-life and durability.
Ideal for steering on rock crawlers, monster trucks, and 1/8th scale vehicles.
NEW: SSR mode compatible
NEW: SOFT START

Specifications:

Torque @ 4,8v - 30.0kg
Torque @ 6.0v - 36.0kg
Speed @ 6v - 0.20 sec/60 deg
Speed @ 7.4v - 0.16 sec/60 deg

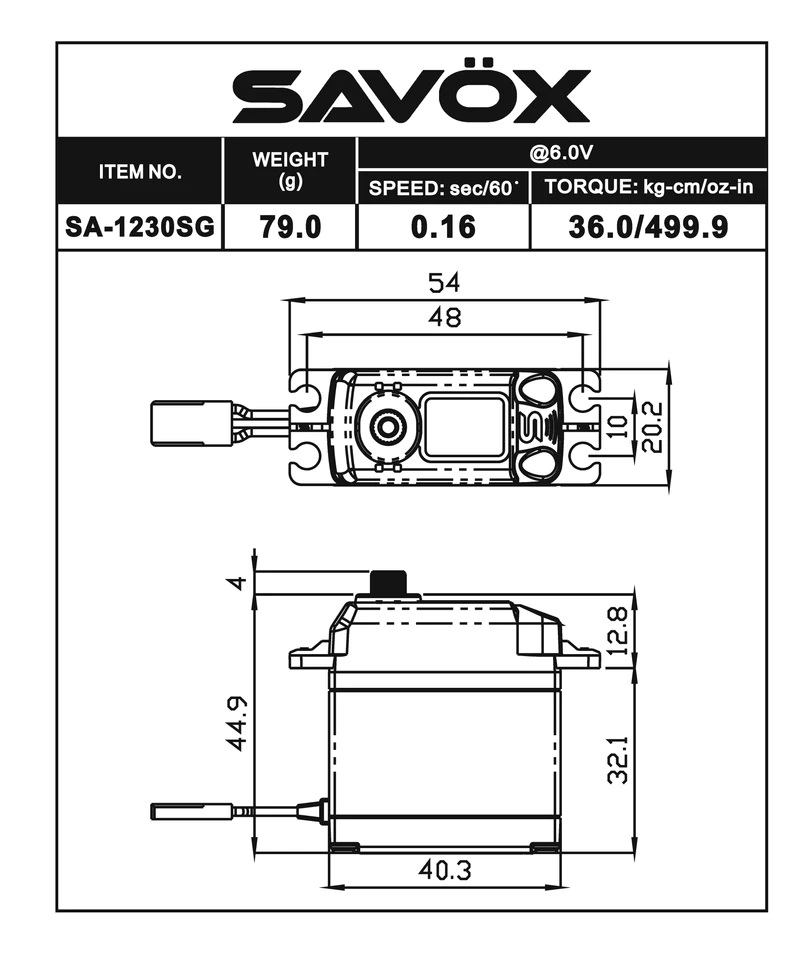

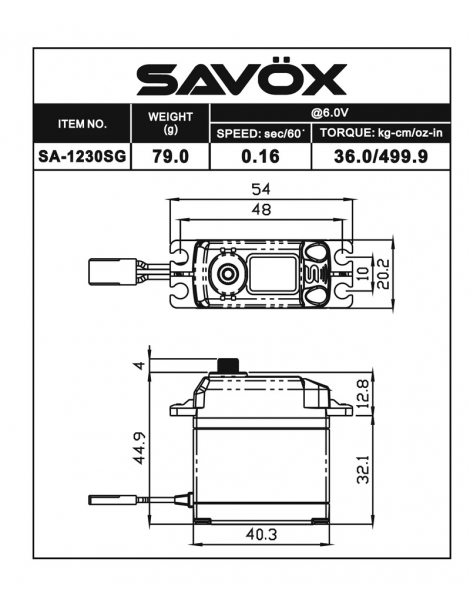

Dimensions L x W x H (mm): 40.3 x 20.2 x 45
Weight: 79g

Technical Details

Operating Temperature: (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 250mA @7.4V
Stall Current (at locked): 4200mA @6.0V, 5300mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 200 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1.500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
