    Servo TowerPro MG946R Metal Gear

    MG946R Metal Gear Digital High Torque Servo yra atnaujinta TowerPro MG945 versija. Jos nauja PCB ir IC valdymo sistema, kuri daro ją tikslesnę. Jos vidinė pavara ir variklis taip pat patobulinti, kad būtų pagerintas pralaidumas ir centravimas. MG946R skirta 1/8 bagiams ir daugeliui RC modelių.

    13,90 €
    Su PVM
    Turite maksimalų prekės kiekį krepšelyje arba prekė yra išparduota
    Atsiskaitymas discover visa googlewallet paypal mastercard americanexpress
    message Klauskite apie šią prekę

    Klauskite apie šią prekę

    Servo TowerPro MG946R Metal Gear

    Servo TowerPro MG946R Metal Gear

    * Privalomi laukai

      Atšaukti

    Gamintojo nurodoma informacija:

    Features

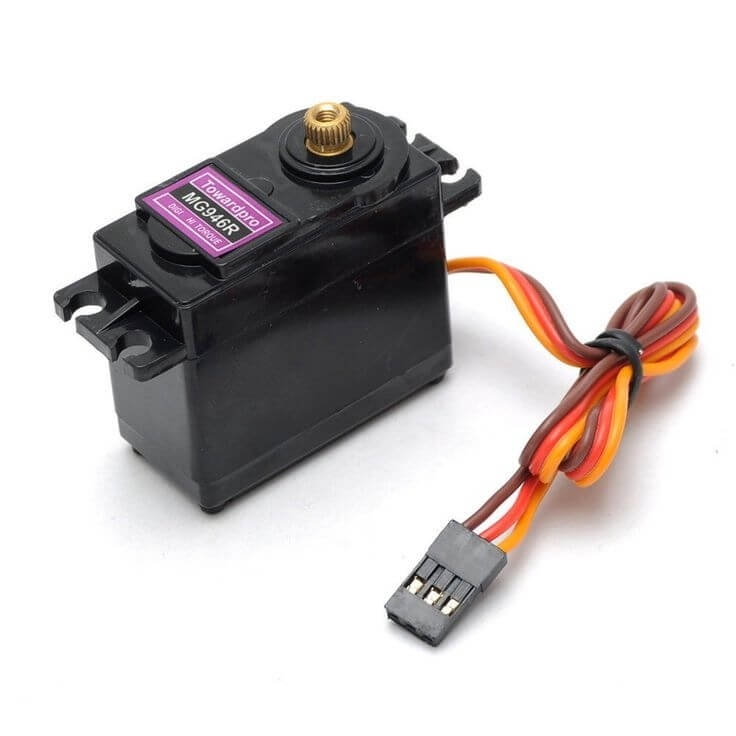

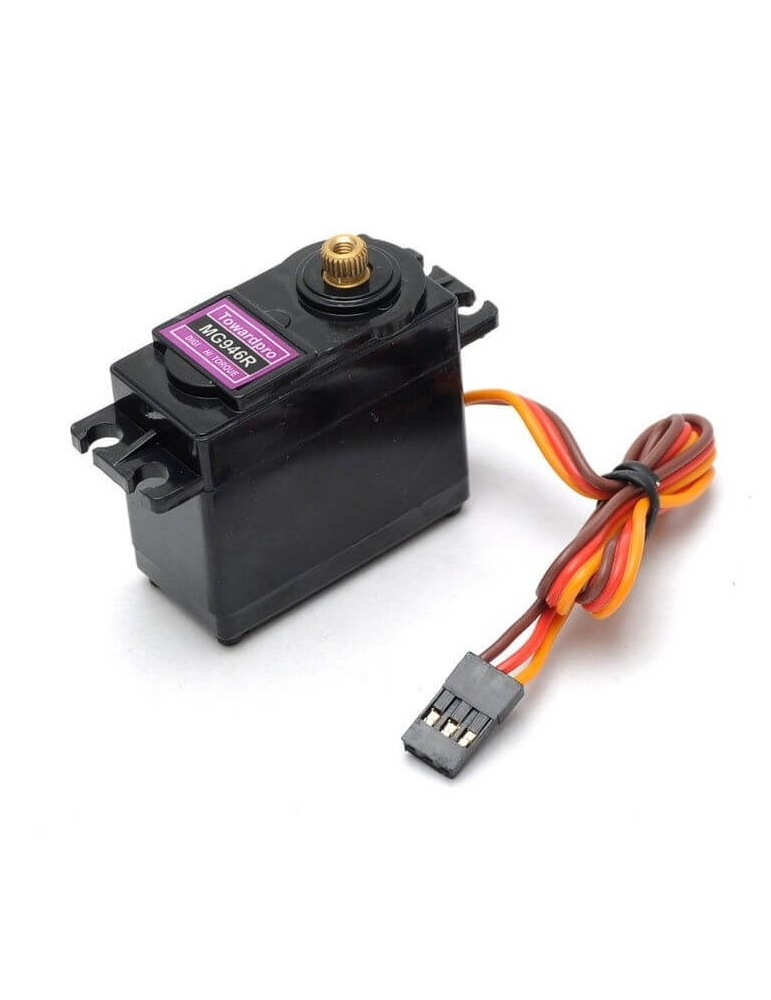

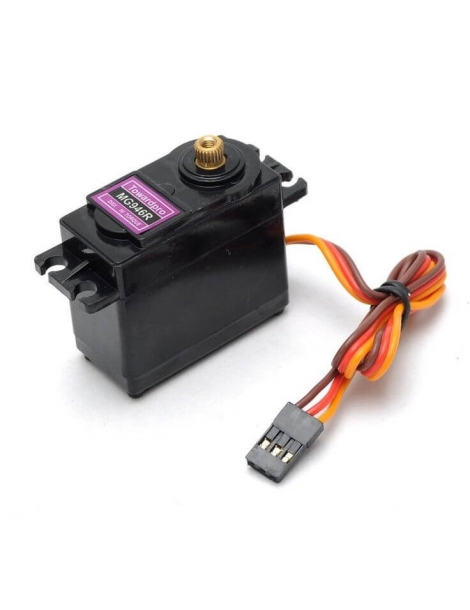

    This High-Torque MG946R Digital Servo features metal gearing resulting in extra high 13kg stalling torque in a tiny package. The MG946R is essentially an upgraded version of the famous MG996R servo, and features upgraded shock-proofing and a redesigned PCB and IC control system that make it much more accurate than its predecessor. The gearing and motor have also been upgraded to improve dead bandwith and centering. The unit comes complete with 30cm wire and 3 pin 'S' type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.

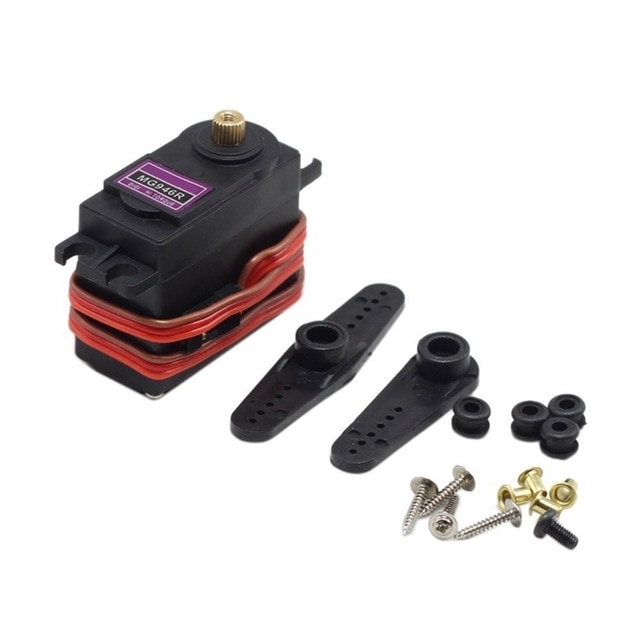

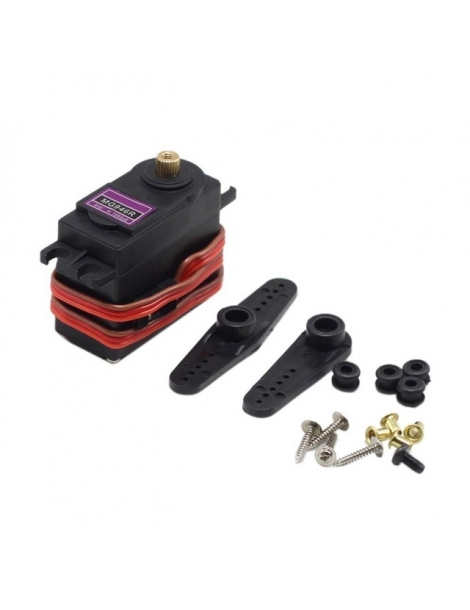

    This high-torque standard servo can rotate approximately 180 degrees (90 in each direction). You can use any servo code, hardware or library to control these servos, so it's great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. The MG946R Metal Gear Servo also comes with a selection of arms and hardware to get you set up nice and fast!

    Specifications

    Weight: 55 g
    Dimension: 40.7 x 19.7 x 42.9 mm approx.
    Stall torque: 10.5 kgf·cm (4.8 V ), 13 kgf·cm (6 V)
    Operating speed: 0.20 s/60º (4.8 V), 0.17 s/60º (6 V)
    Operating voltage: 4.8 V a 7.2 V
    Running Current 500 mA –
    Stall Current 2.5 A (6V)
    Dead band width: 10 µs
    Stable and shock proof double ball bearing design

    Temperature range: 0 ºC –  55 ºC

    Laidų žymėjimas:
    Raudona – teigiama
    Ruda – neigiama
    Oranžinė – signalas
