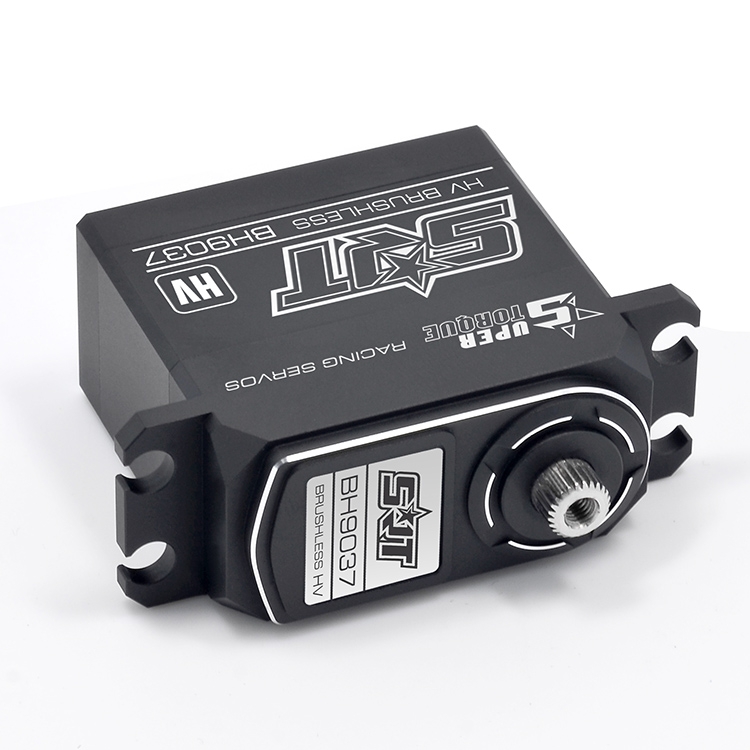

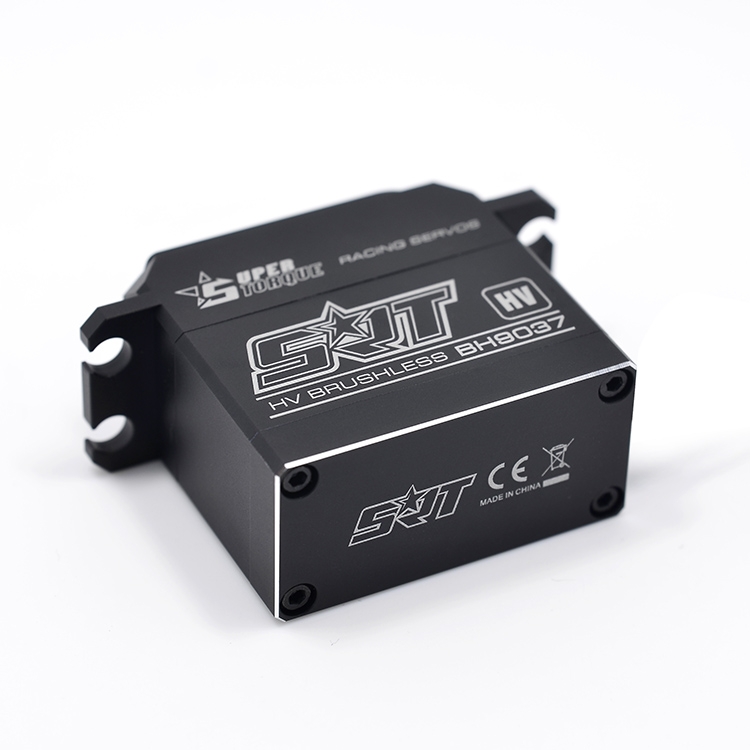

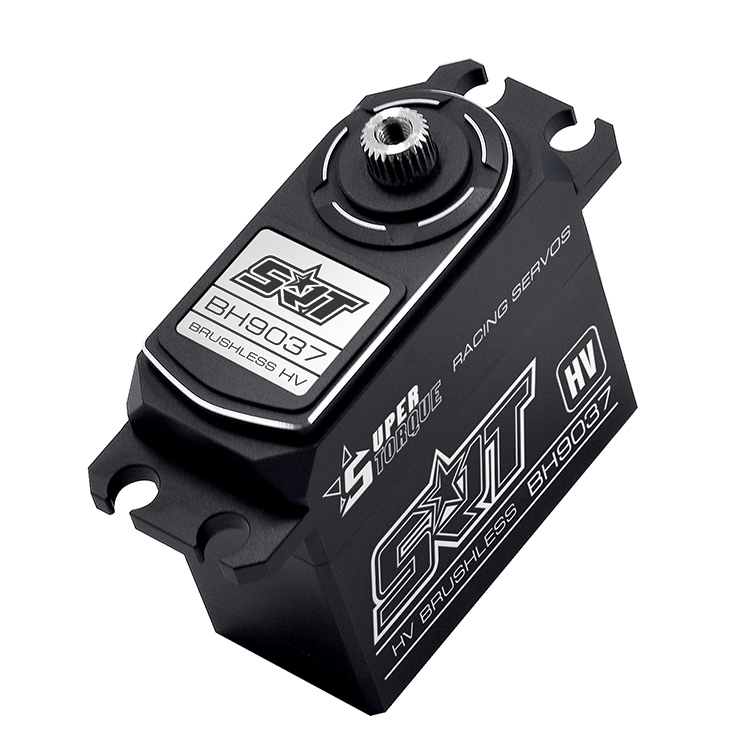

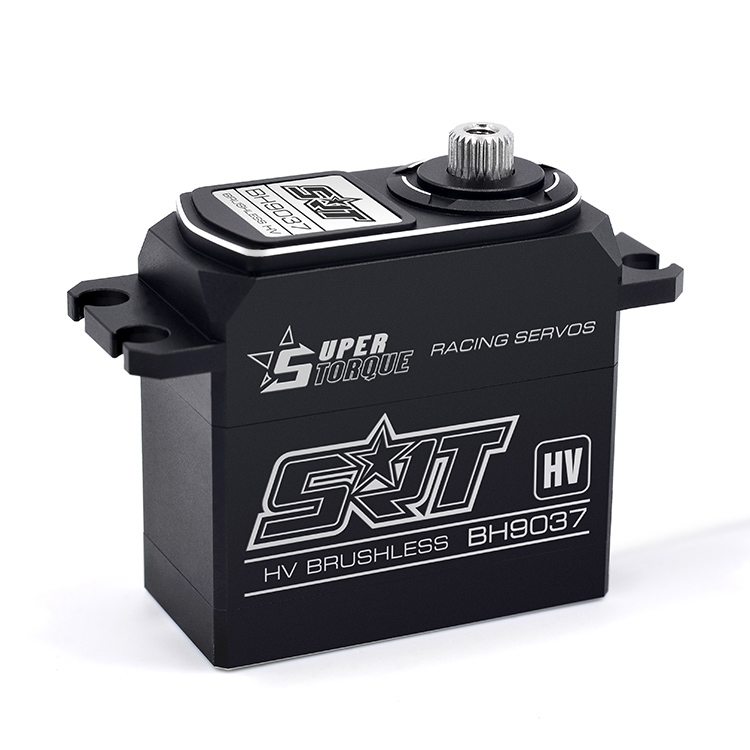

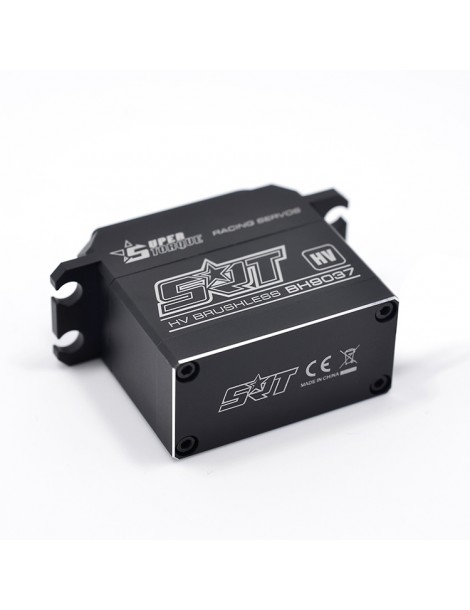

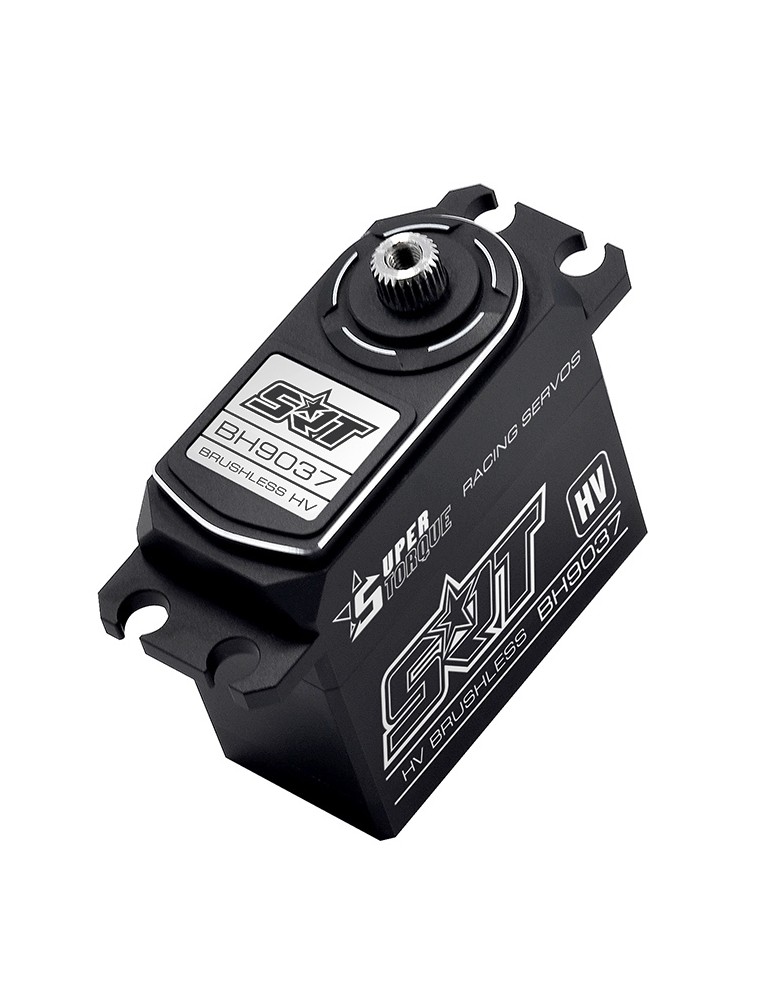

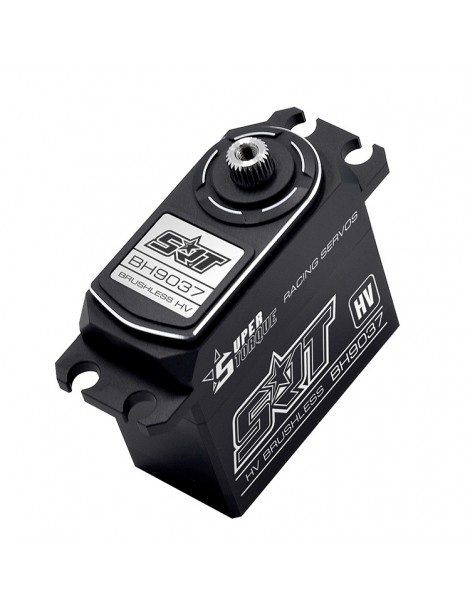

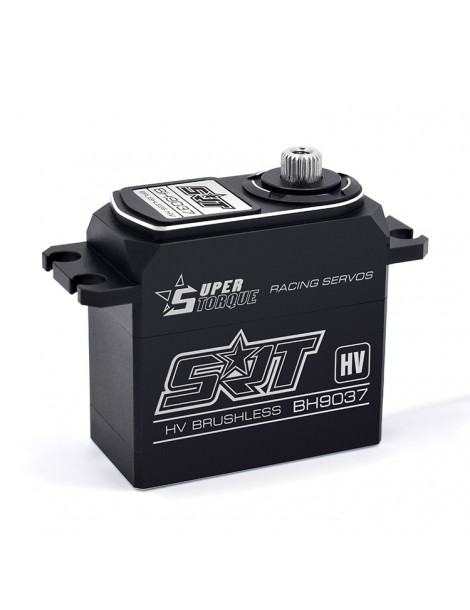

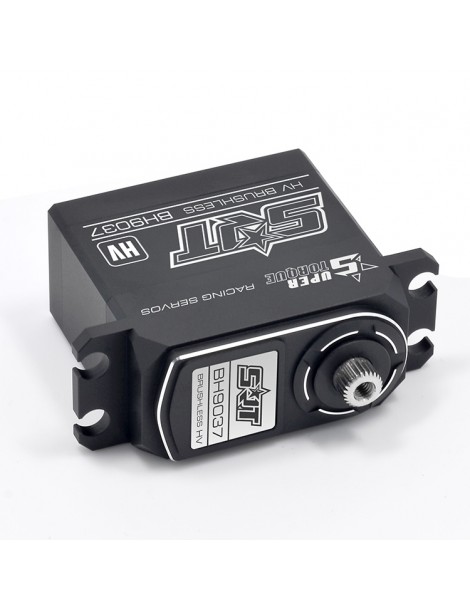

BH9037 HiVOLT BRUSHLESS Digital servo (37 kg-0,13s/60 )

KEY FEATURES

• Ideal for 1/5 On road applications,  as well as large scale airplanes and jets
• Superior Holding Torque
• incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo

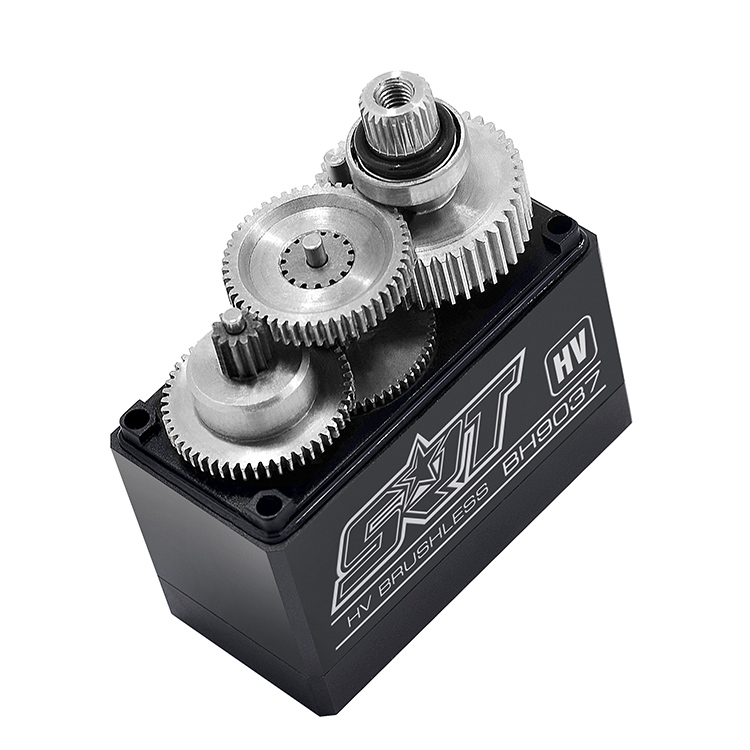

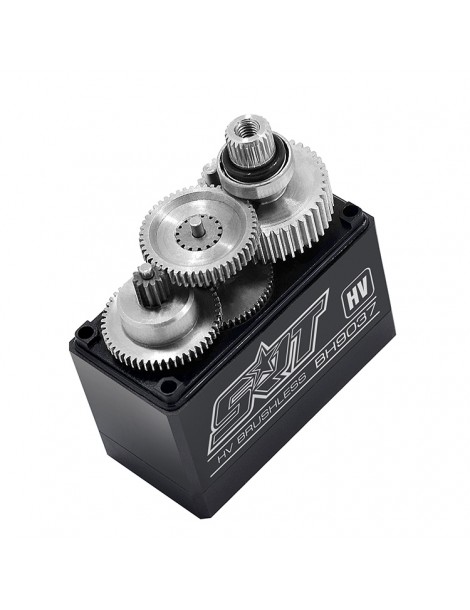

• Titanium & Steel gears for precision and durability
• CNC Machined aluminum case for exceptional cooling
• NMB dual main bearings
• 25T output shaft
• HD 4096 Resolution
• 2 μsec Dead Band

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Titanium & Steel
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.16 sec/60 degrees at no load
• operating speed (7.4v): 0.14 sec/60 degrees at no load
• operating speed (8.4v): 0.13 sec/60 degrees at no load
• stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
• stall torque (7.4v): 35.0kg.cm (486.0 oz/in)
• stall torque (8.4v): 37.0kg.cm (513.8 oz/in)
• potentiometer drive: direct drive
• dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
• weight: 80.0g (2.82 oz)
• connector wire length: jr 250 mm
