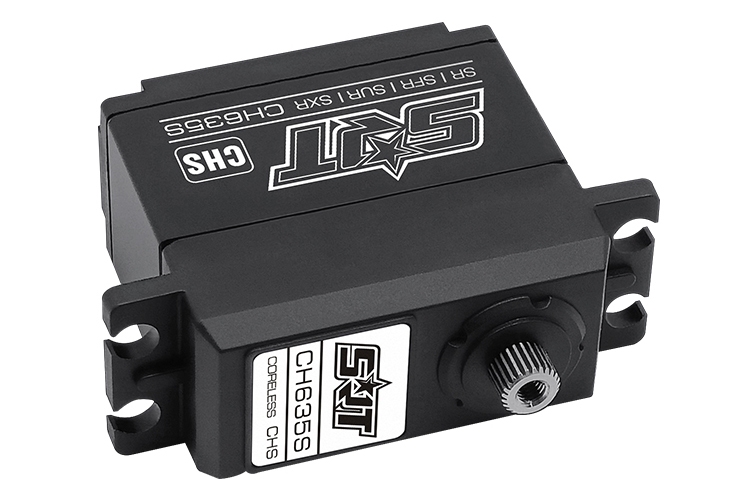

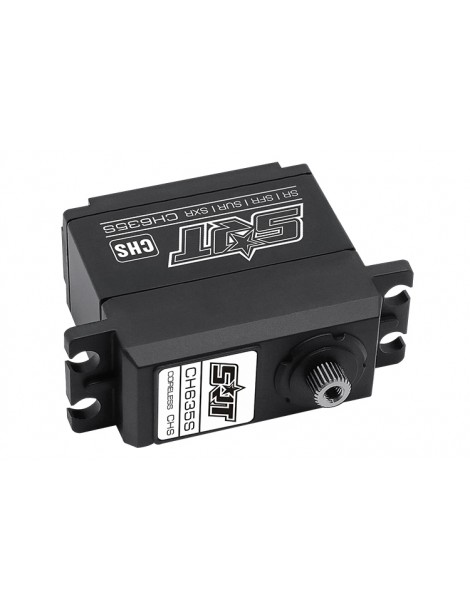

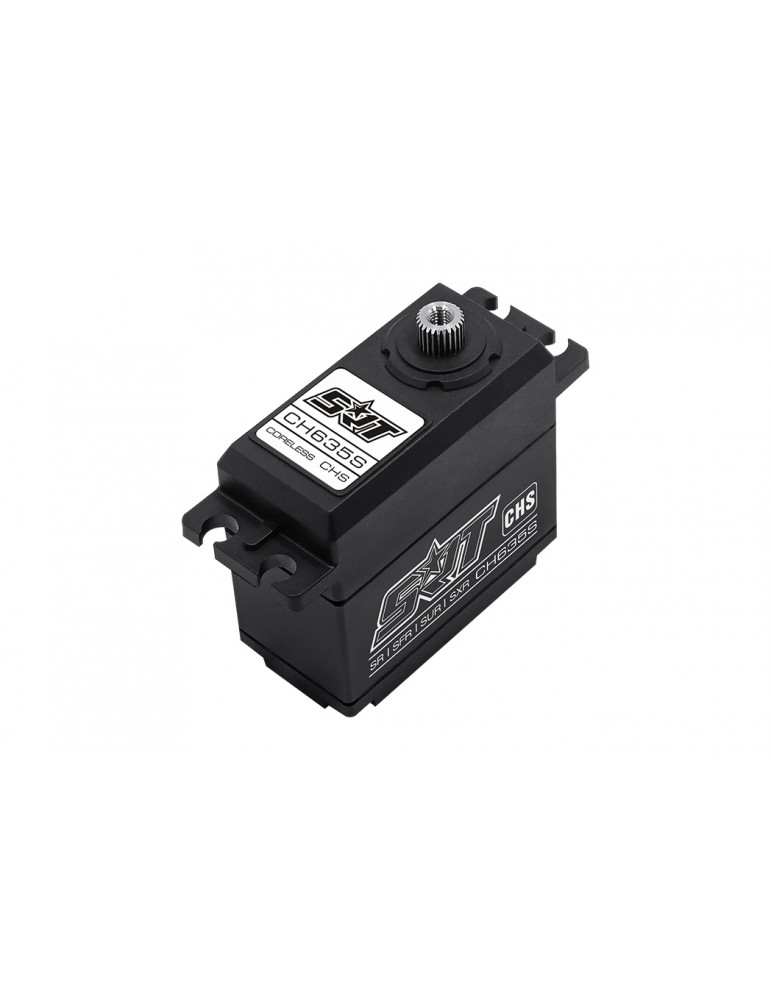

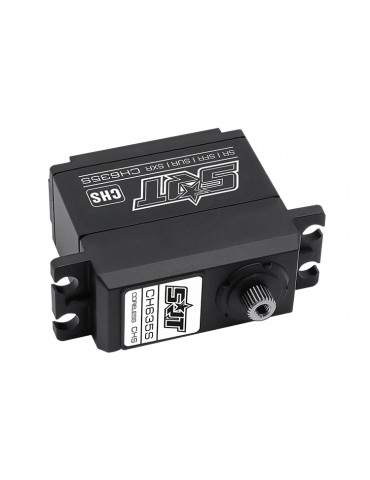

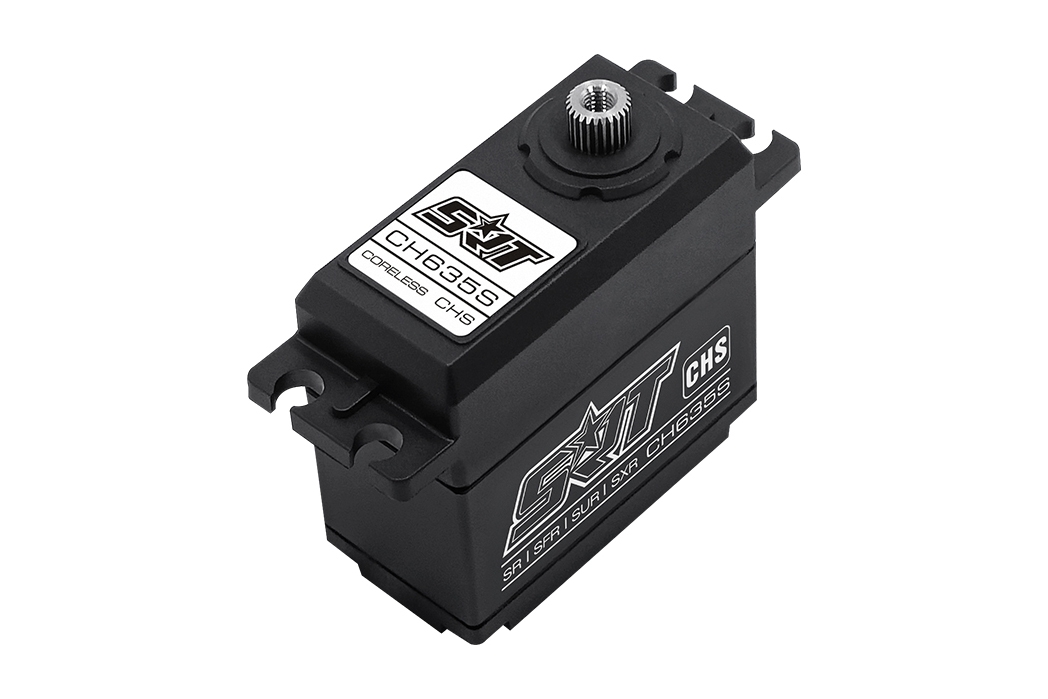

CH635S HiVOLT CORELESS Digital servo (35kg-0.14s/60 )

SRT CH635S

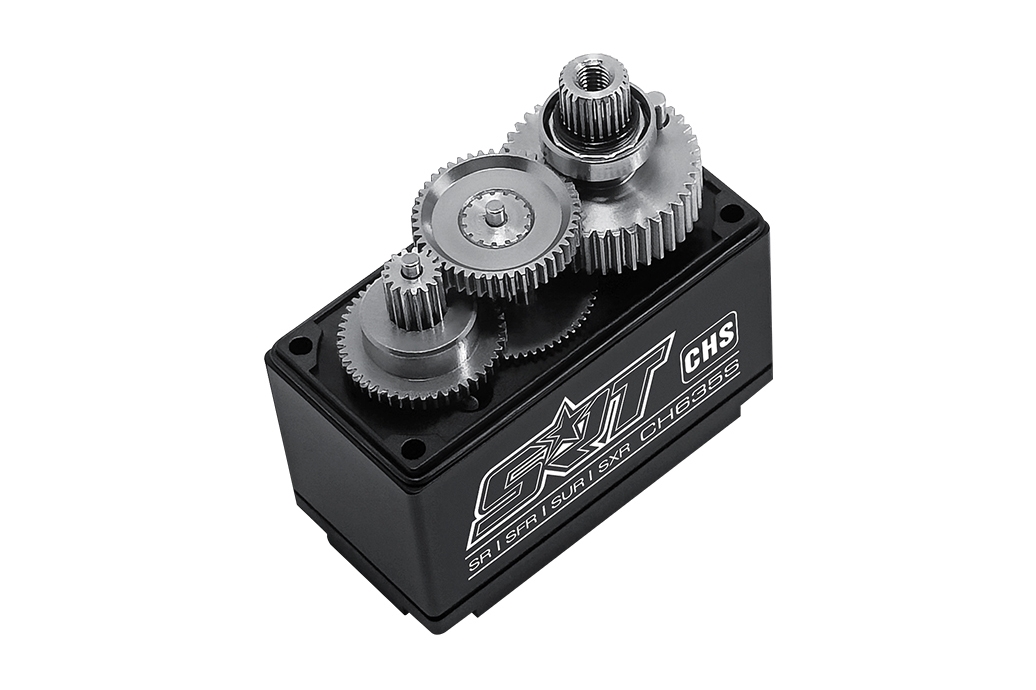

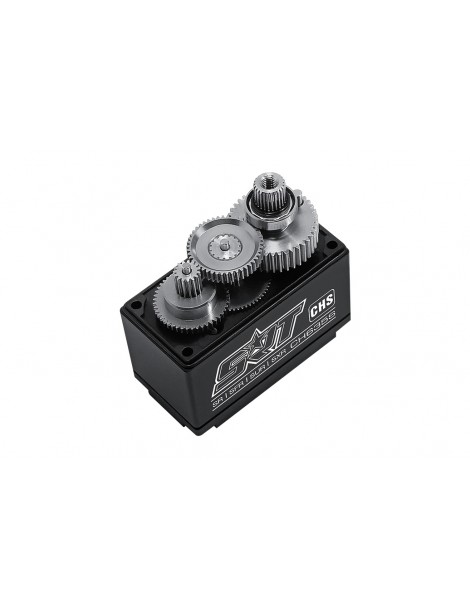

HiVOLT CORELESS servo CH6035 specially designed for 1/10 and 1/8 On and Off-Road models with reaction speeds up to 0.14s and 35kg/cm of torque. The servo uses a combined metal and composite housing to achieve a lower weight, while the CORELESS motor and titanium/steel gears provide high performance and durability. The low profile servo features a 250mm black cable with JR connector.

Now compatible with ULTRA fast SSR and SXR/SANWA, SR/FUTABA, SUR and SFR.

KEY FEATURES

• Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
• incredible efficiency and low power consumption
• 2 μsec Dead Band
• 25T output shaft

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Titanium & Steel
• Control system: pulse width control
• Working frequence: 1520μs / 330hz
• Operating voltage: DC 6.0-8.4v
• Operating temperature range: -10 to + 60 degree
• Operating speed (6.0v): 0.16 sec/60 degrees at no load
• Operating speed (7.4v): 0.15 sec/60 degrees at no load
• Operating speed (8.4v): 0.14 sec/60 degrees at no load
• Stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
• Stall torque (7.4v): 32.0kg.cm (444.4 oz/in)
• Stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
• Potentiometer drive: direct drive

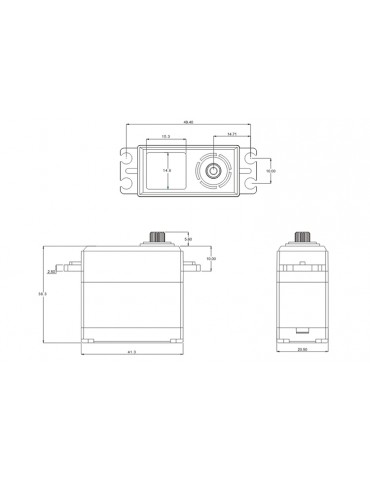

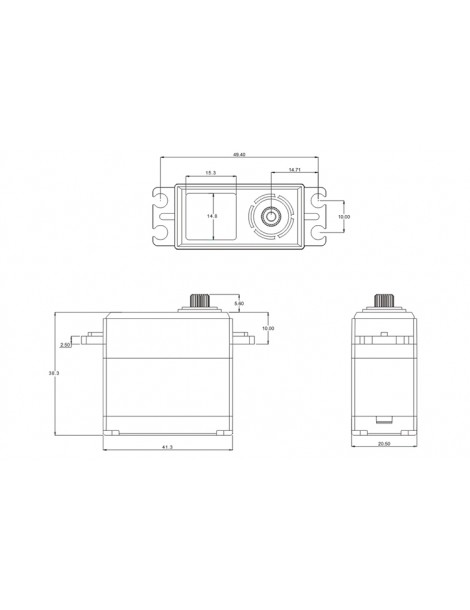

• Dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
• Weight: 75.0g (2.65 oz)
• Cable: JR 250 mm
