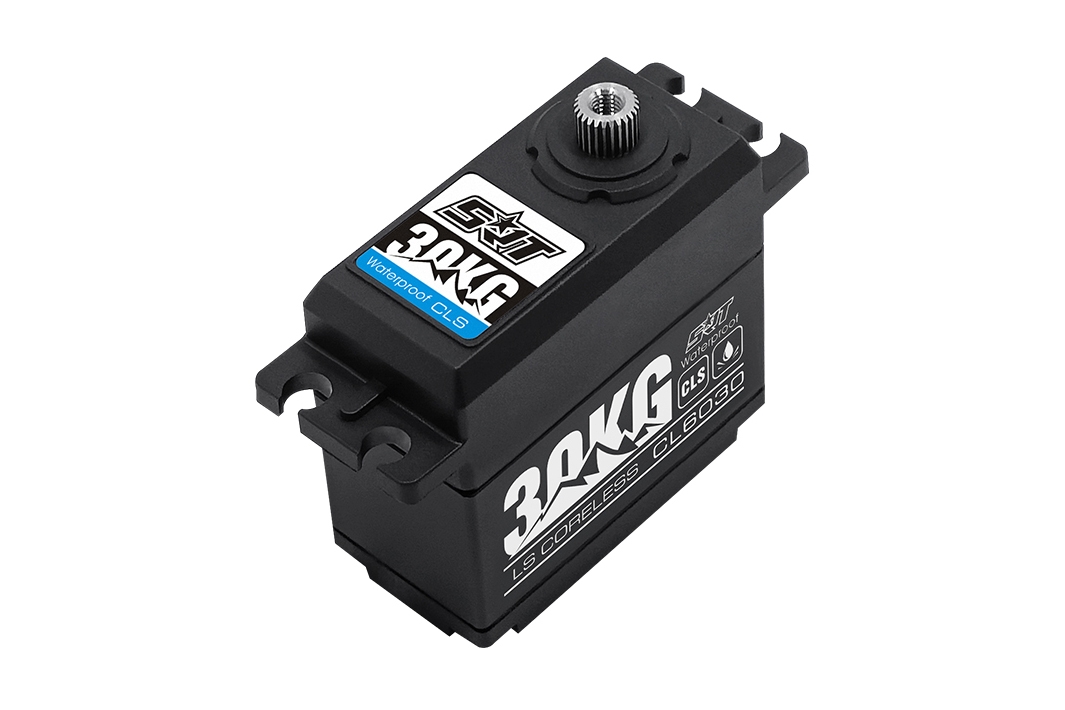

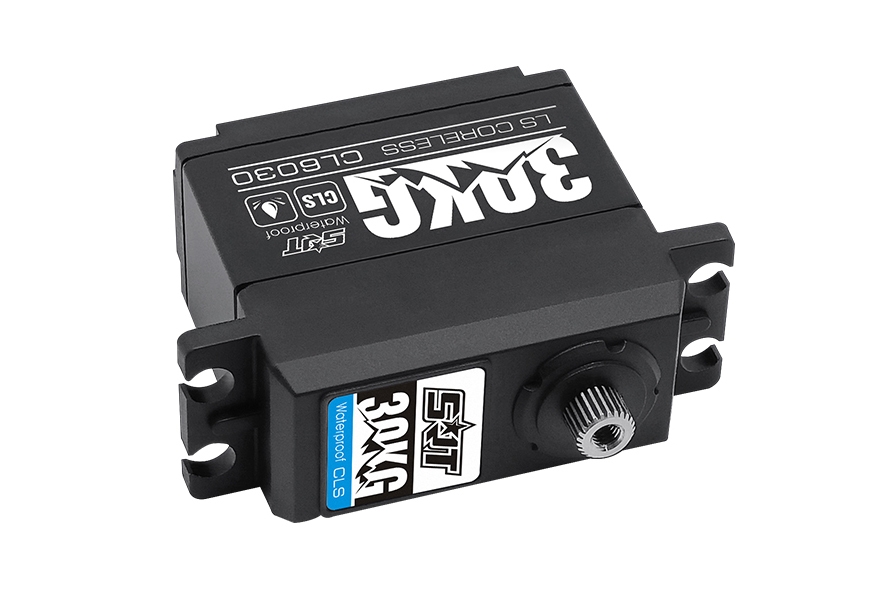

CL6030 HiVOLT CORELESS WATERPROOF Digital servo (30kg-0,11s/60 )

KEY FEATURES

• Ideal for 1/10 on road and 1/8 off road scale applications
• incredible efficiency and low power consumption
• 2 μsec Dead Band

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal

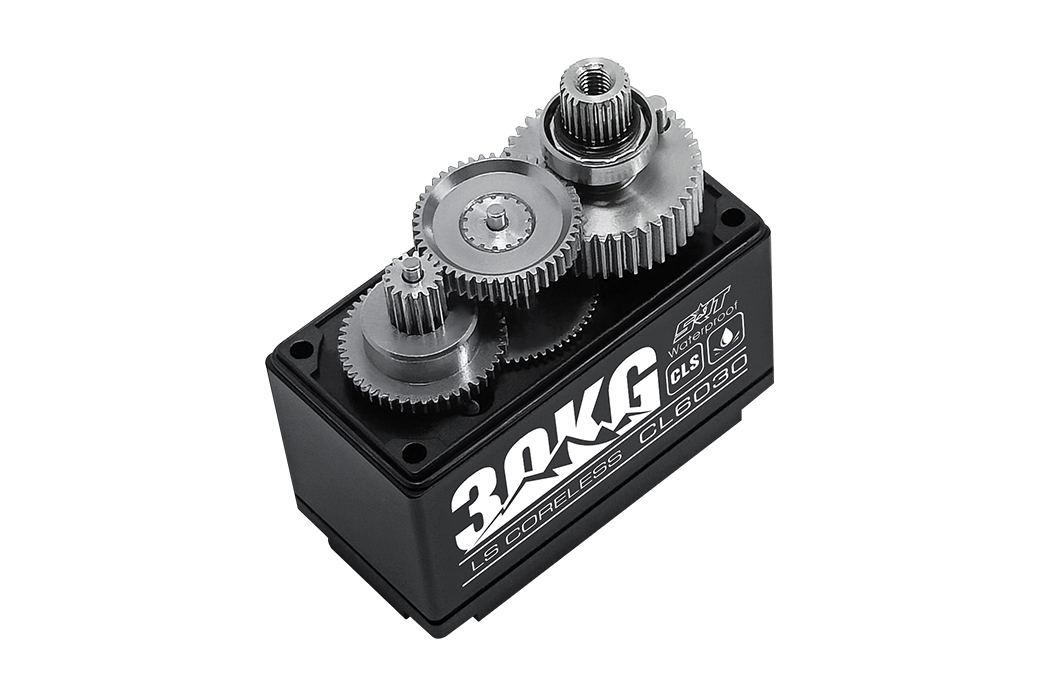

• Gear Material: Titanium & Steel
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc4.8-7.4v
• operating temperature range: -10 to + 60 degree
• operating speed (4.8v): 0.13 sec/60 degrees at no load
• operating speed (6.0v): 0.12 sec/60 degrees at no load
• operating speed (7.4v): 0.11 sec/60 degrees at no load
• stall torque (4.8v): 19.0kg.cm
• stall torque (6.0v): 25.0kg.cm
• stall torque (7.4v): 30.0kg.cm
• potentiometer drive: direct drive

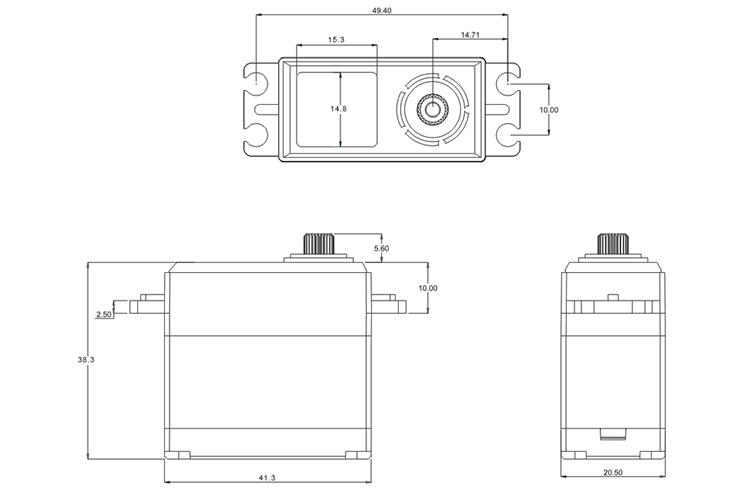

• dimensions: 41.3x20.5x38.3mm
• weight: 69.0g (2.43 oz)
• connector wire length: jr 300 mm
