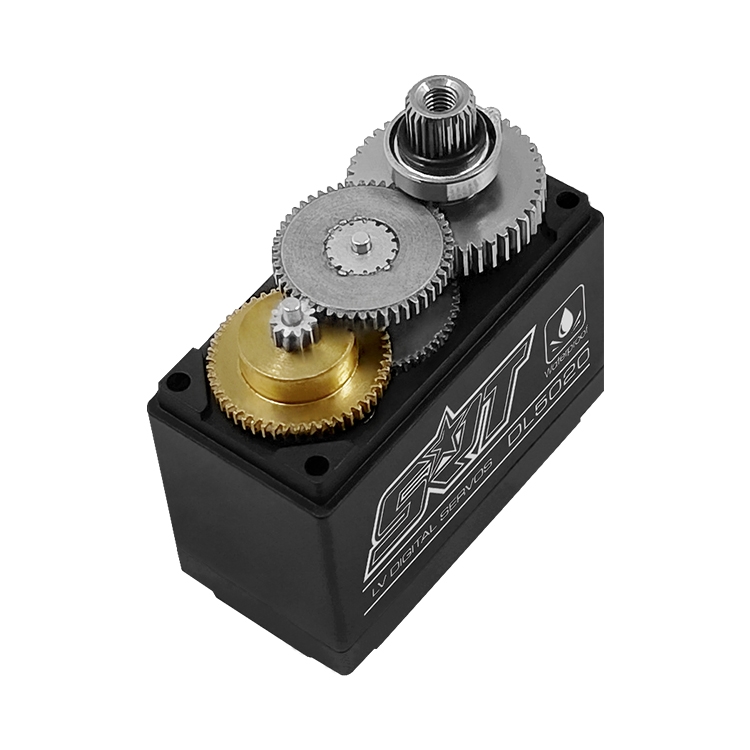

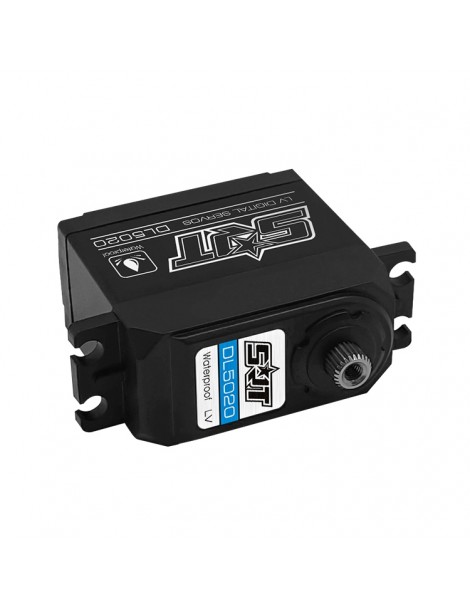

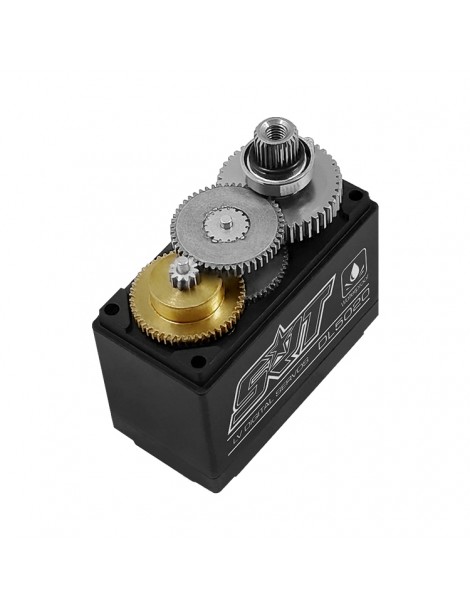

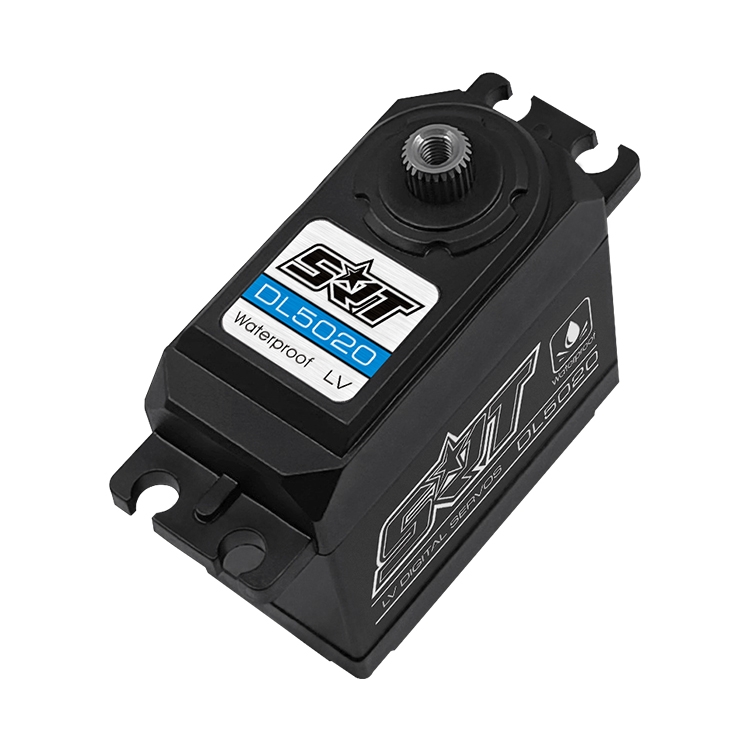

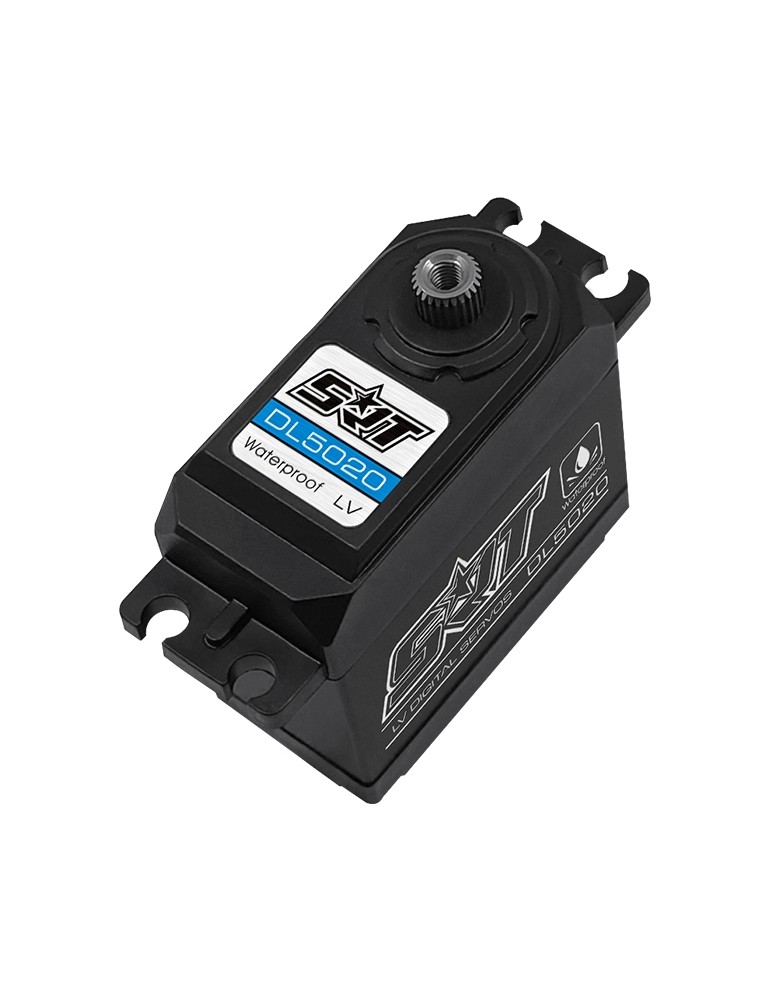

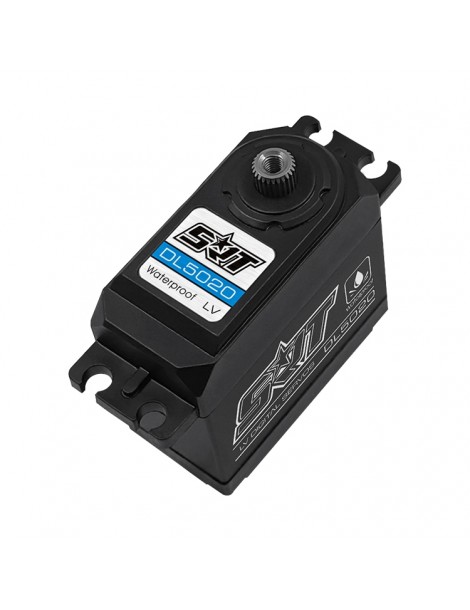

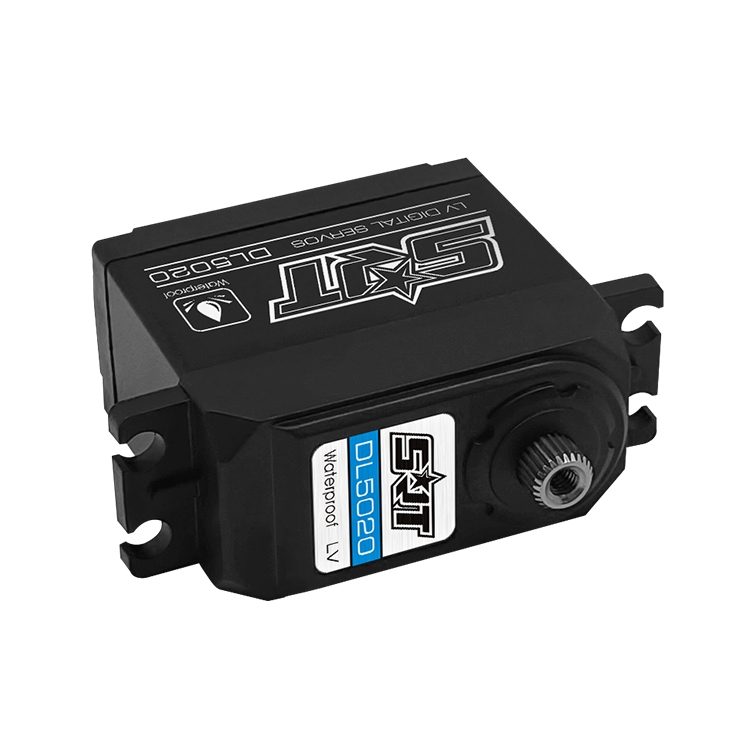

DL5020 DC WATERPROOF DC Digital servo (20kg-0,16s/60 )

KEY FEATURES

• Ideal for 1/10 on road and 1/8 off road scale applications
• Intermediate aluminum case
• NMB dual main bearings
• Superior waterproof
• 25T output shaft

• Type: Digital
• Bearing: Dual
• Motor Type: DC
• Gear Type: Metal
• Gear Material: Titanium & Alu
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc4.8-6.0v
• operating temperature range: -10 to + 60 degree
• operating speed (4.8v): 0.18 sec/60 degrees at no load
• operating speed (6.0v): 0.16 sec/60 degrees at no load
• stall torque (4.8v): 16.5kg.cm (229.1 oz/in)
• stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
• potentiometer drive: direct drive
• dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
• weight: 65.0g (2.29 oz)
• connector wire length: jr 250 mm
