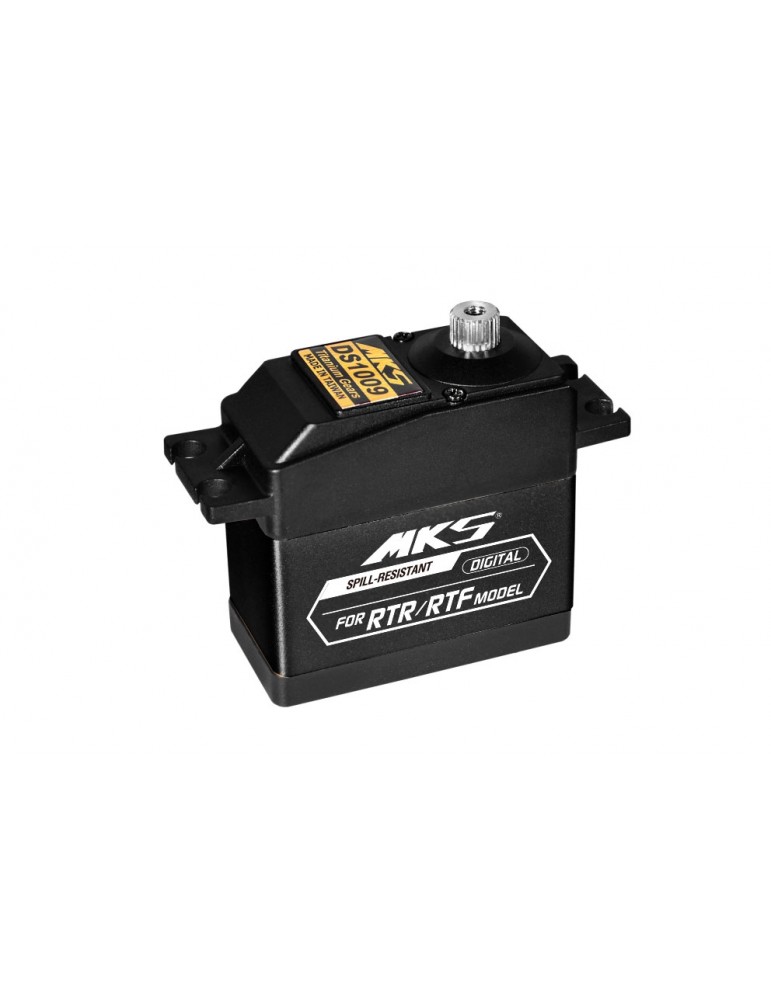

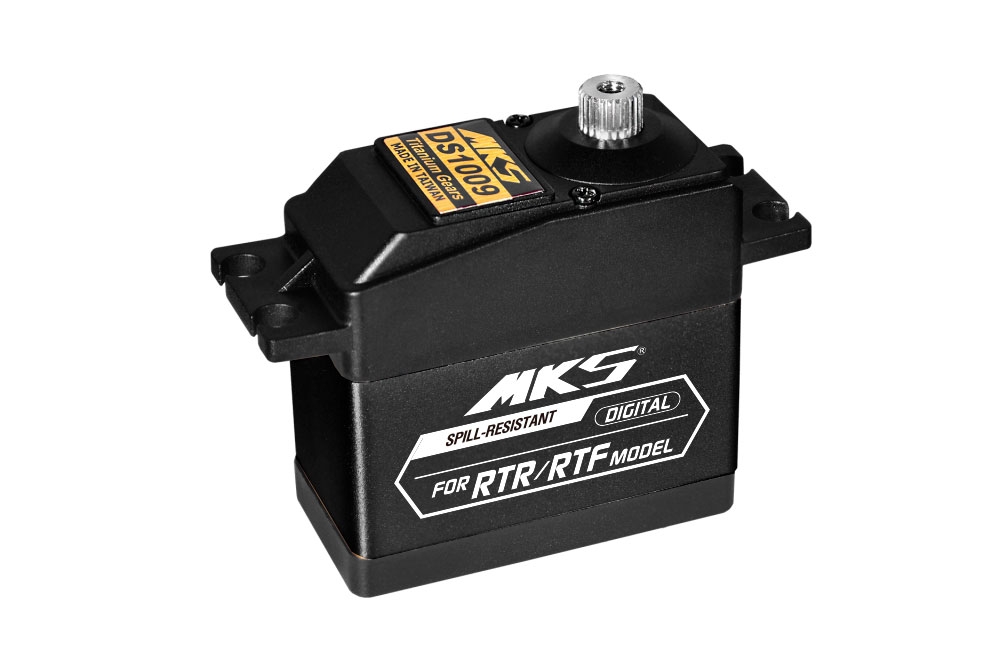

DS1009 (0.10s/60 , 8.8kg.cm)

Digital standard servo with metal gears and twin ballraced output shaft for general use, regular model aeroplanes as well as RC cars and boats. An aluminium mid case for perfect cooling even under high loads.

Input voltage range 4.8-6.0 V (nominal)

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
