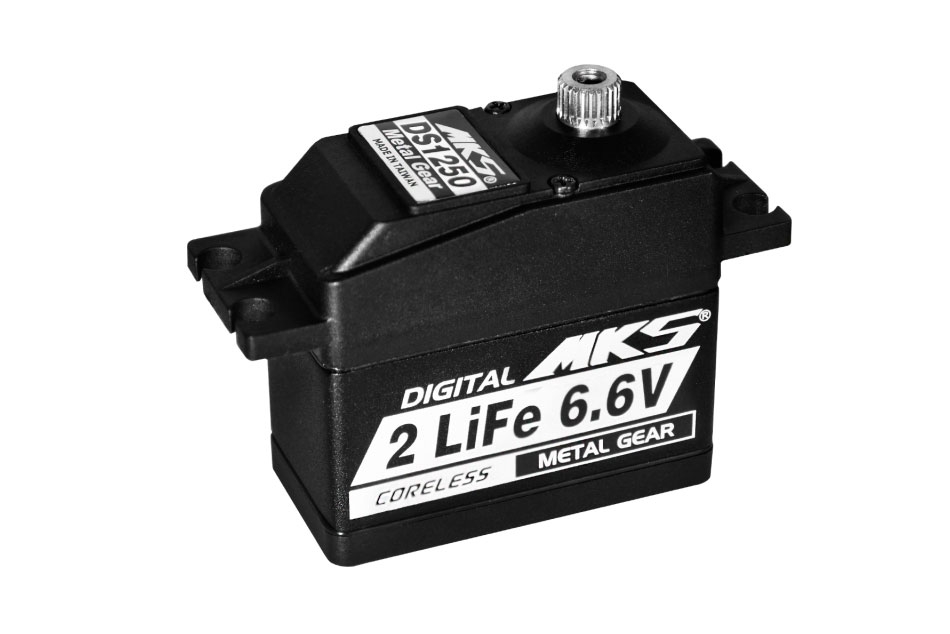

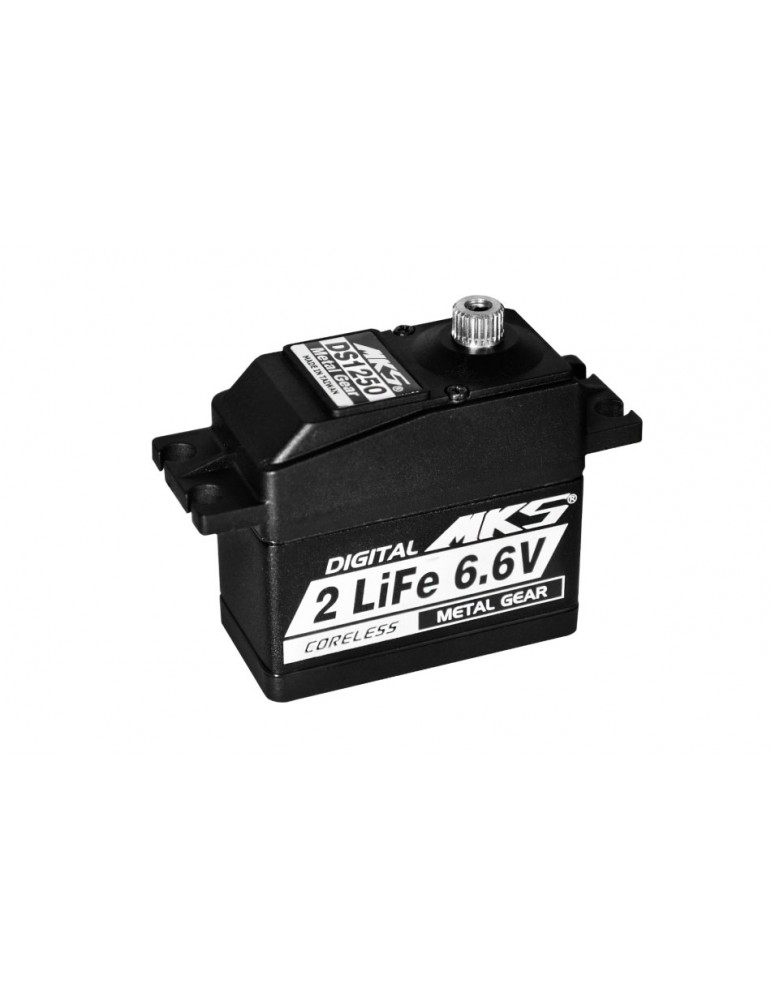

DS1250 (0.066s/60 , 14.3kg.cm)

High torque/super high speed dustproof/waterproof digital standard servo with metal gears and twin ballraced output shaft for RC buggies, trucks, rock crawlers 1/10 and 1/8, boats, 600-700 class helicopter cyclic, large model aeroplanes. An aluminium mid case for perfect cooling even under high loads.

Input voltage range 4.8-6.6 V (nominal), ideal for 2S LiFe receiver battery or 6.0 V SBEC use.

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
