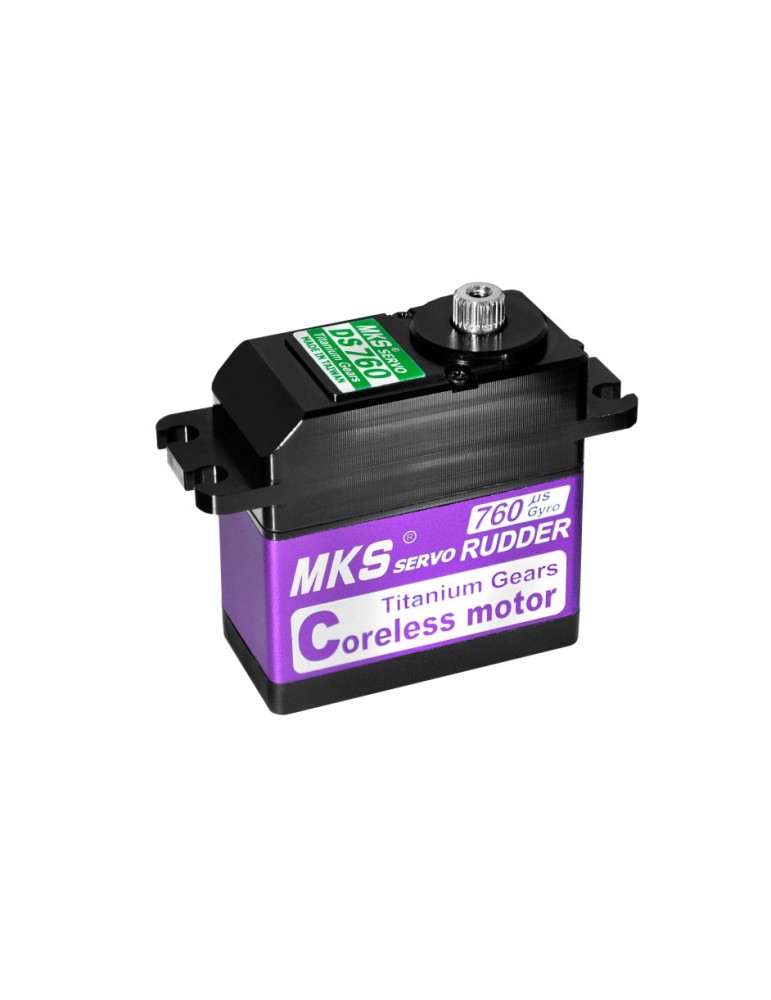

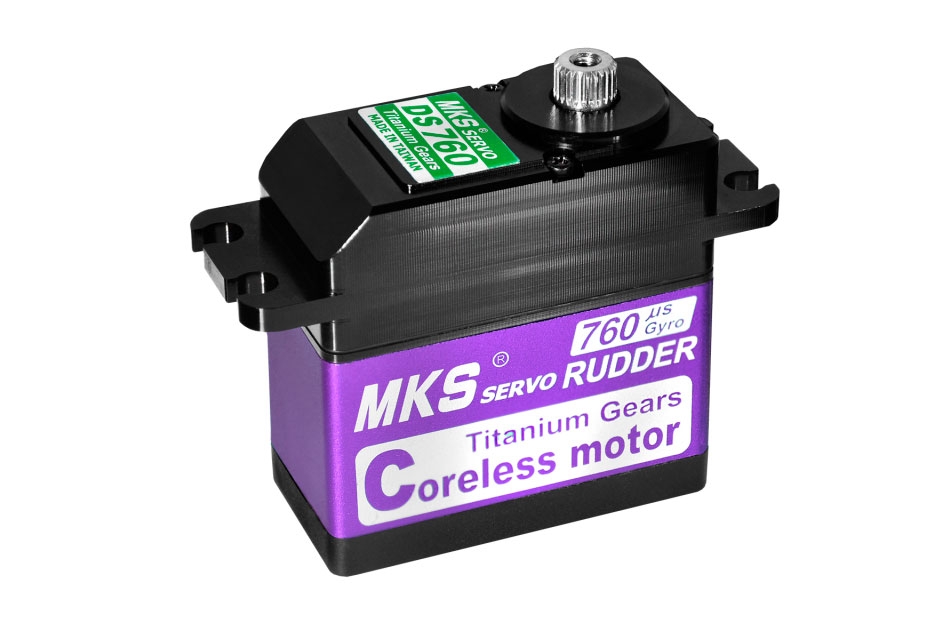

Ultra high speed narrowband (760µs) digital standard servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 600 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium mid case for perfect cooling even under high loads. This servo is not programmable.

Input voltage range 4.8-6.6 V (nominal), 4.8-7.0 V operational.

Servo dimensionsStandard
Servo typeDigital
ProgrammableNo
Thrust at 4.8V [kg∙cm]3.9
Thrust at 6.0V [kg∙cm]4.9
Speed at 4.8V [s/60st.]0.034
Speed at 6.0V [s/60st.]0.027
Control pulse width in neutral [µs]760
Frame Rate [Hz]560
Deadband [ms]0.0004
Servo gearsMetal
Ball bearings2×
High-voltageYes
Power supply [V]4.8 - 6

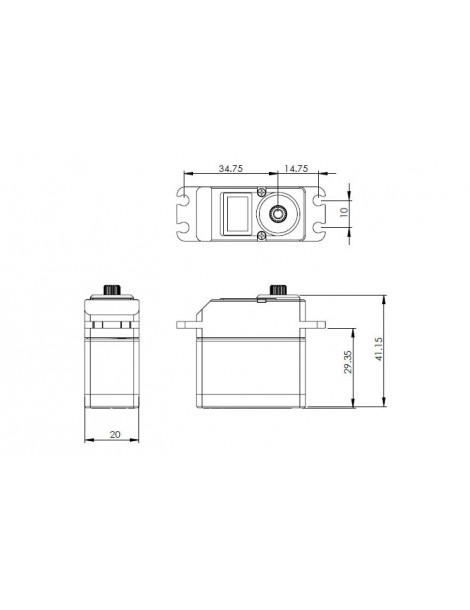

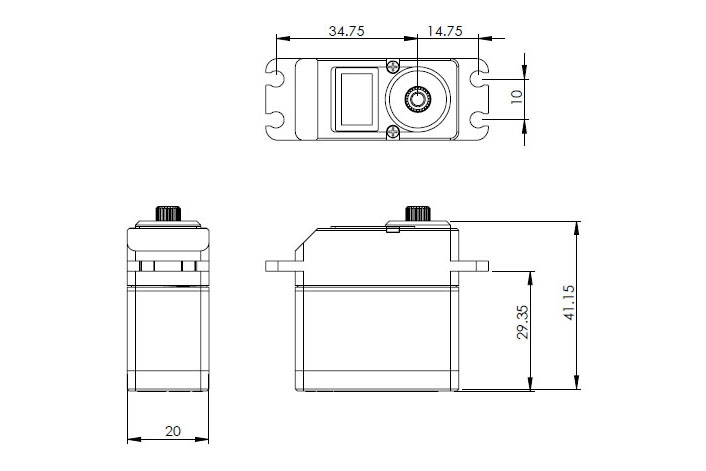

Length [mm]40
Width [mm]20
Height [mm]40
Weight [g]75
Intended forHelicopters
MKS
MKS12002
