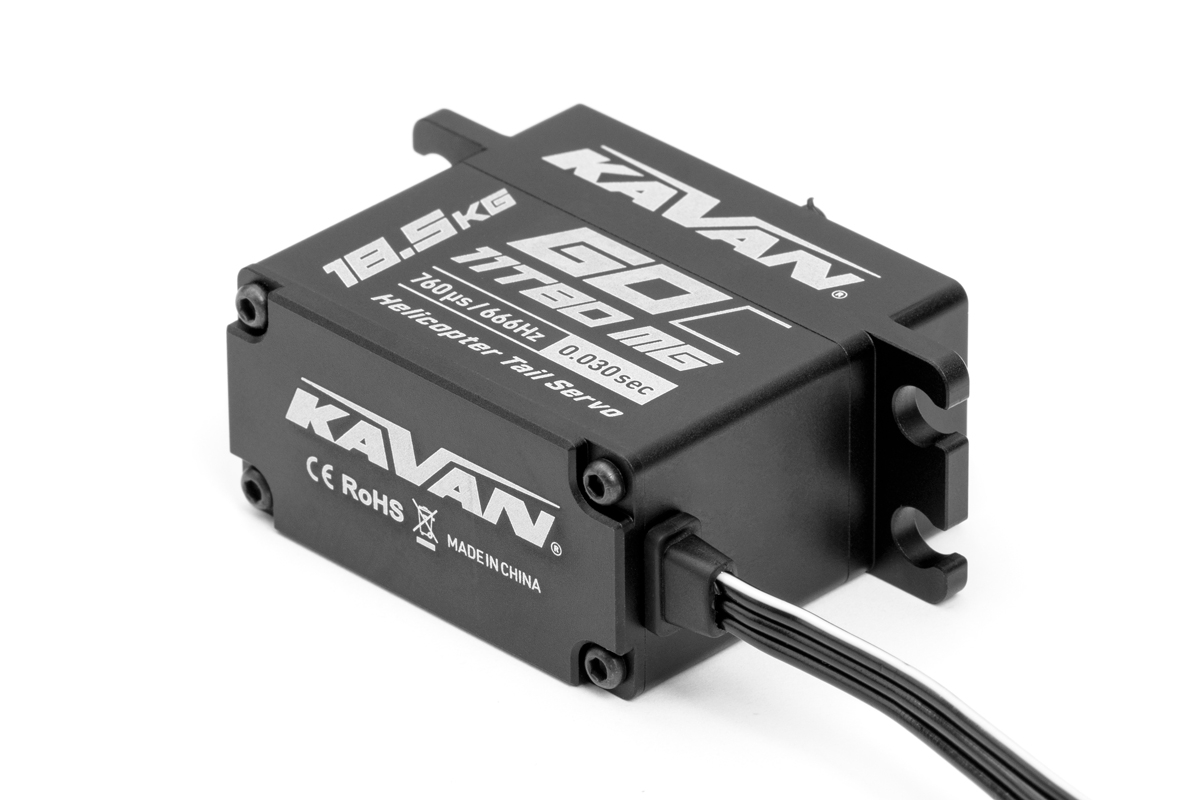

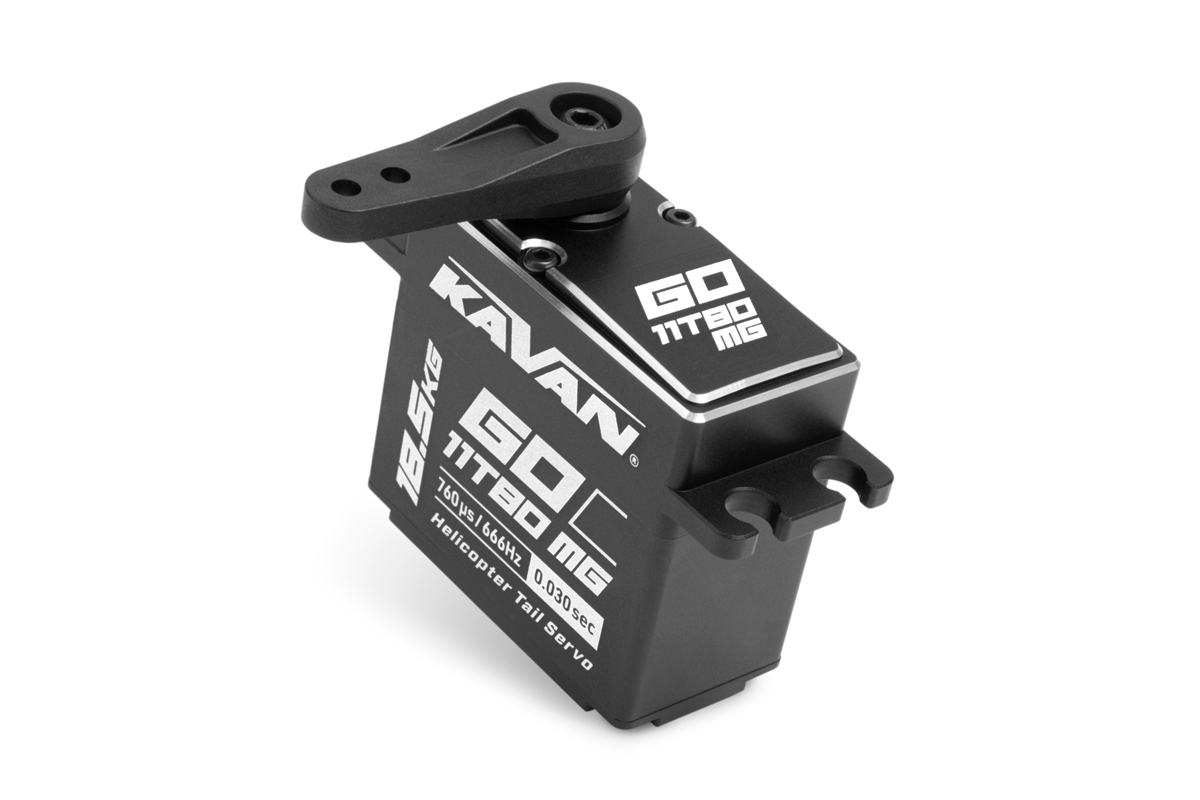

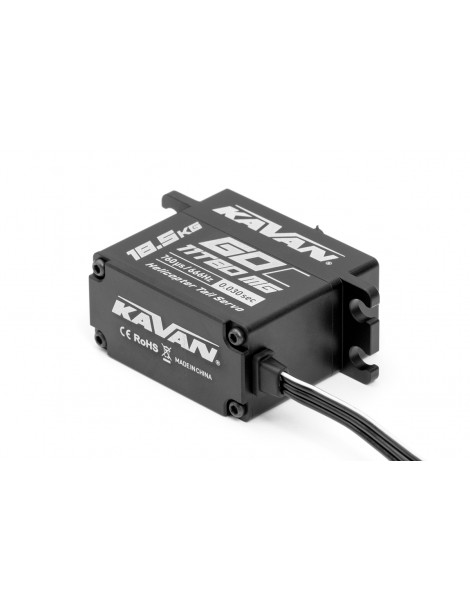

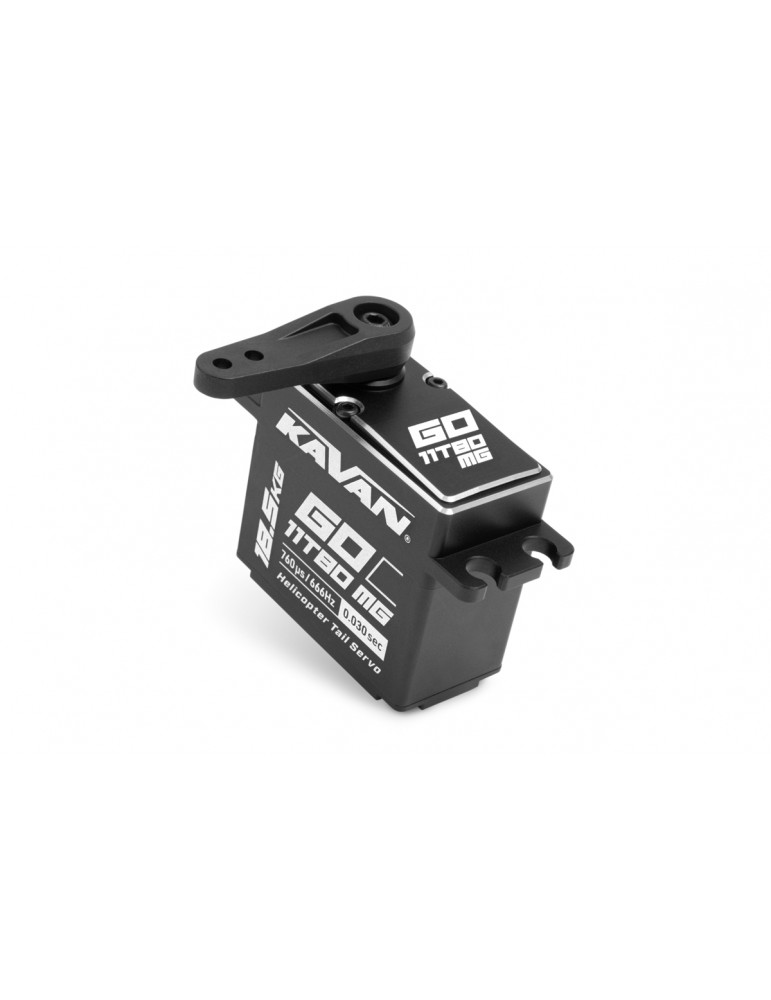

High torque/ultra high speed narrow band digital standard 79g brushless servo with titanium/hardened steel gear and triple BB-ed output shaft. Works great as a tail servo for 500-800 RC helicopters featuring advanced gyro/flybarless control systems. All-aluminium case for perfect cooling under high load.

Narrow band servo - 760 µs neutral, refreshing frequency up to 666 Hz - only to be used with compatible gyro/flybarless control systems as the tail (yaw) servo. It may not be connected to the regular receiver channel output (1520 µs neutral). Always be sure you have set the correct (narrow band) servo type on your gyro/control unit.

GO-11T80MG is not programmable.

Wide input voltage range 4.8-7.4 V (nominal).

25T/5.92 mm output shaft.

Servo dimensionsStandard
Servo typeDigital
ProgrammableNo
Thrust at 4.8V [kg/cm]12
Thrust at 6.0V [kg/cm]14
Thrust at 7.4V [kg/cm]15.5
Thrust at 8.4V [kg/cm]18.5
Speed at 4.8V [s/60st.]0.045
Speed at 6.0V [s/60st.]0.039
Speed at 7.4V [s/60st.]0.034
Speed at 8.4V [s/60st.]0.03
Servo gearsMetal,Titanium
Ball bearings3×
High-voltageYes
Power supply [V]4.8 - 8.4

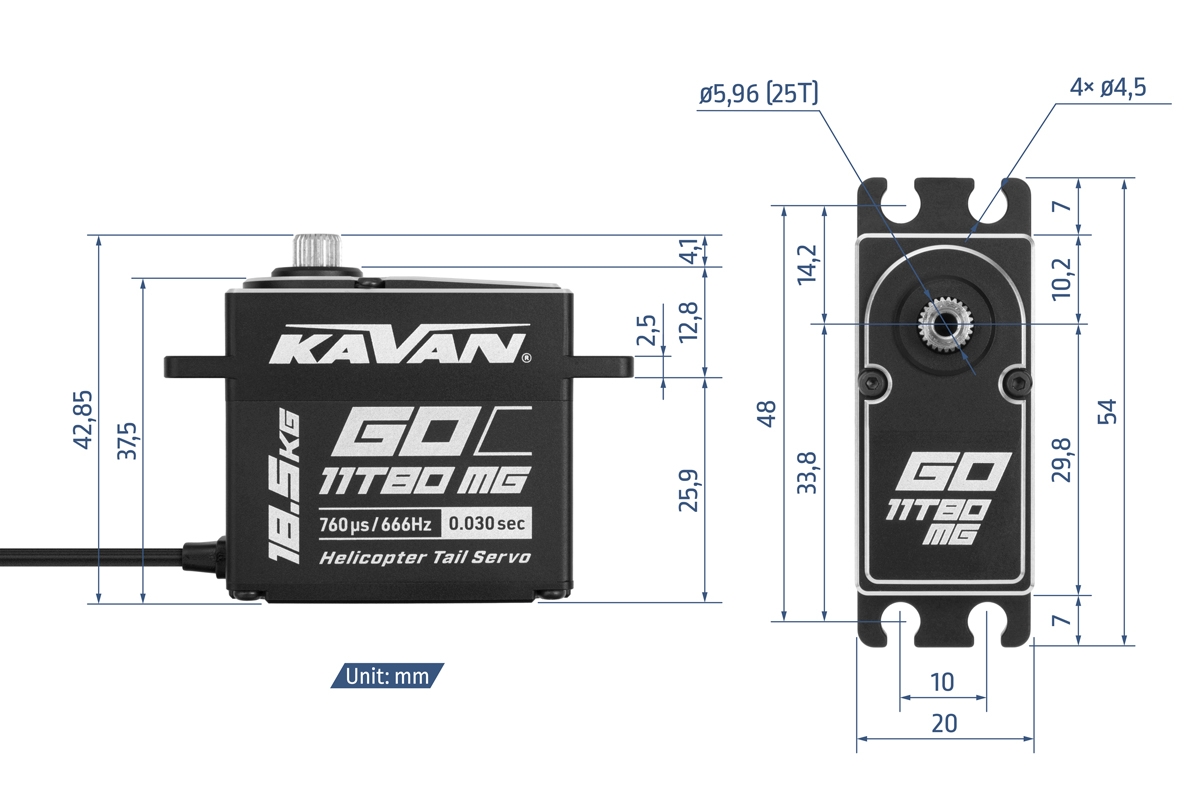

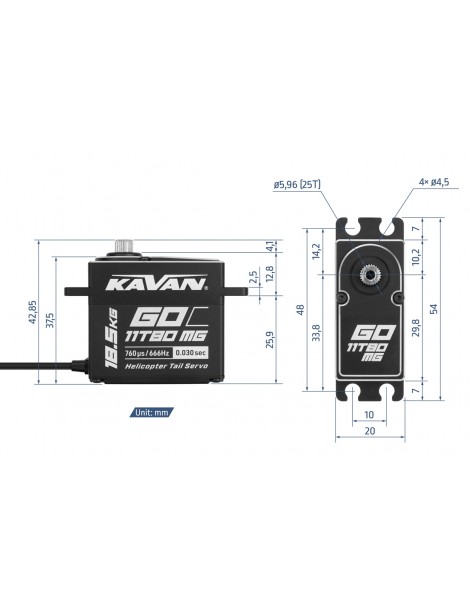

Length [mm]40
Width [mm]20
Height [mm]37.5
Weight [g]79
Intended forHelicopters
KAV20.11T80MG
