HBL880 (0.032s/60 , 11.2kg.cm)
Atsiliepimai
Pateikti atsiliepimą

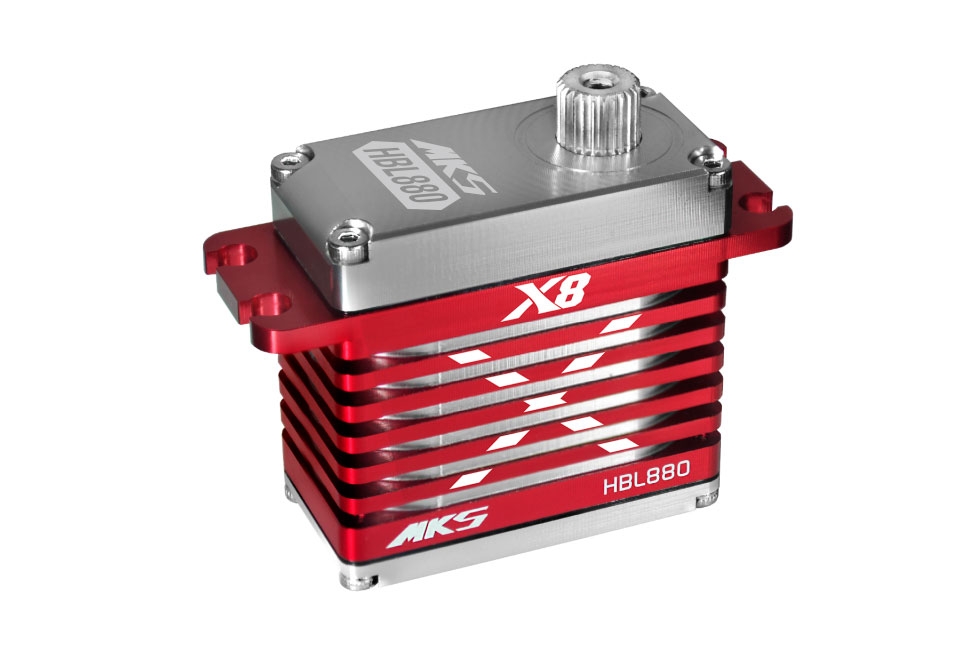

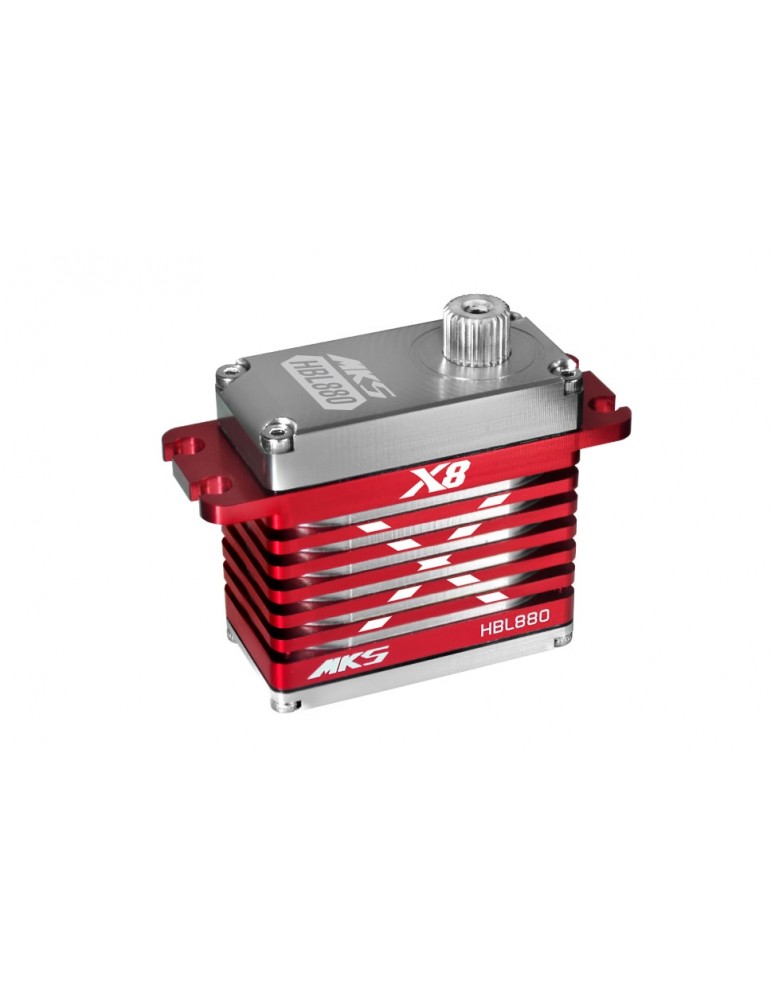

High torque/ultra high speed narrowband (760µs) digital standard brushless servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 700-800 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads. This servo is not programmable.
Input voltage range 6.0-7.4 V (nominal).
Servo dimensions | Standard |
Servo type | Digital |
Programmable | No |
Thrust at 6.0V [kg∙cm] | 8.2 |
Thrust at 7.4V [kg∙cm] | 10.1 |
Torque at 8.2 V [kg∙cm] | 11.19 |
Speed at 6.0V [s/60st.] | 0.044 |
Speed at 7.4V [s/60st.] | 0.036 |
Speed at 8.2 V [s/60st.] | 0.032 |
Control pulse width in neutral [µs] | 760 |
Frame Rate [Hz] | 560 |
Deadband [ms] | 0.0004 |
Servo gears | Metal |
Ball bearings | 2× |
High-voltage | Yes |
Power supply [V] | 6 - 8.4 |

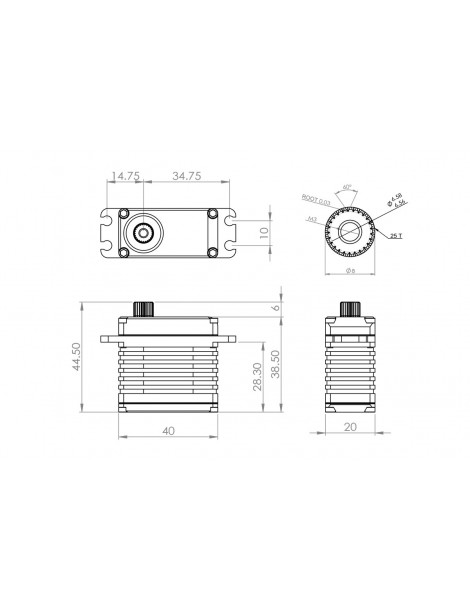

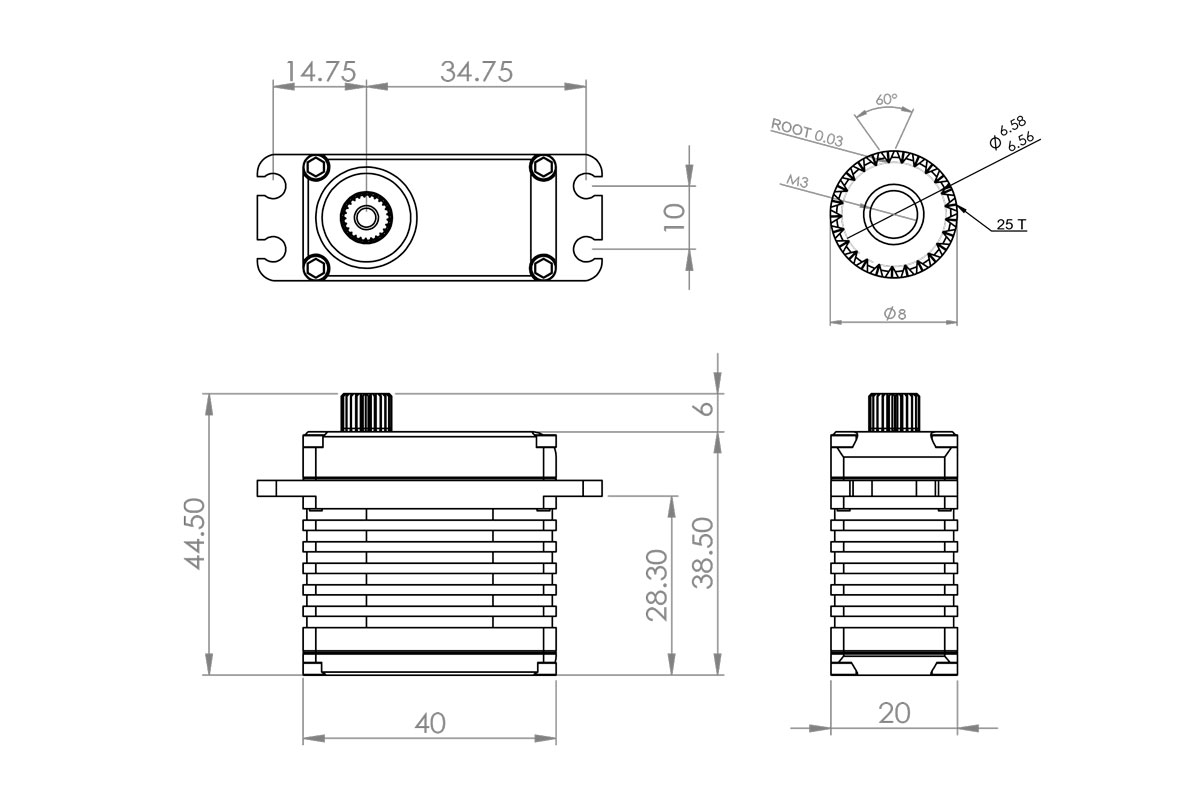

Length [mm] | 40 |
Width [mm] | 20 |
Height [mm] | 38.5 |
Weight [g] | 73.2 |
Intended for | Helicopters |
