HBL980 (0.03s/60 , 6.2kg.cm)

HBL980 (0.03s/60 , 6.2kg.cm)

* Privalomi laukai

  Atšaukti

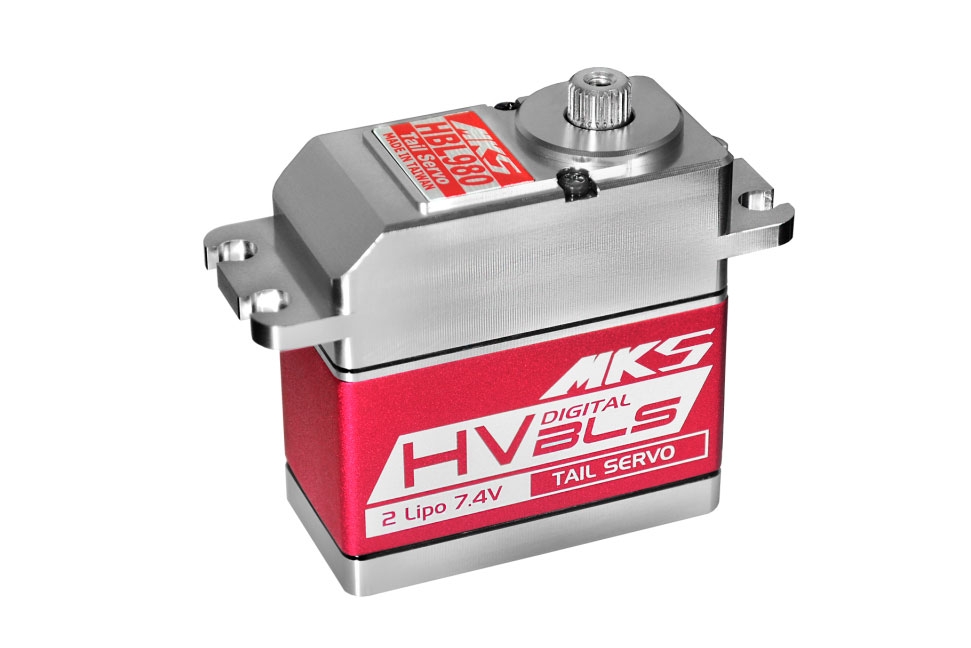

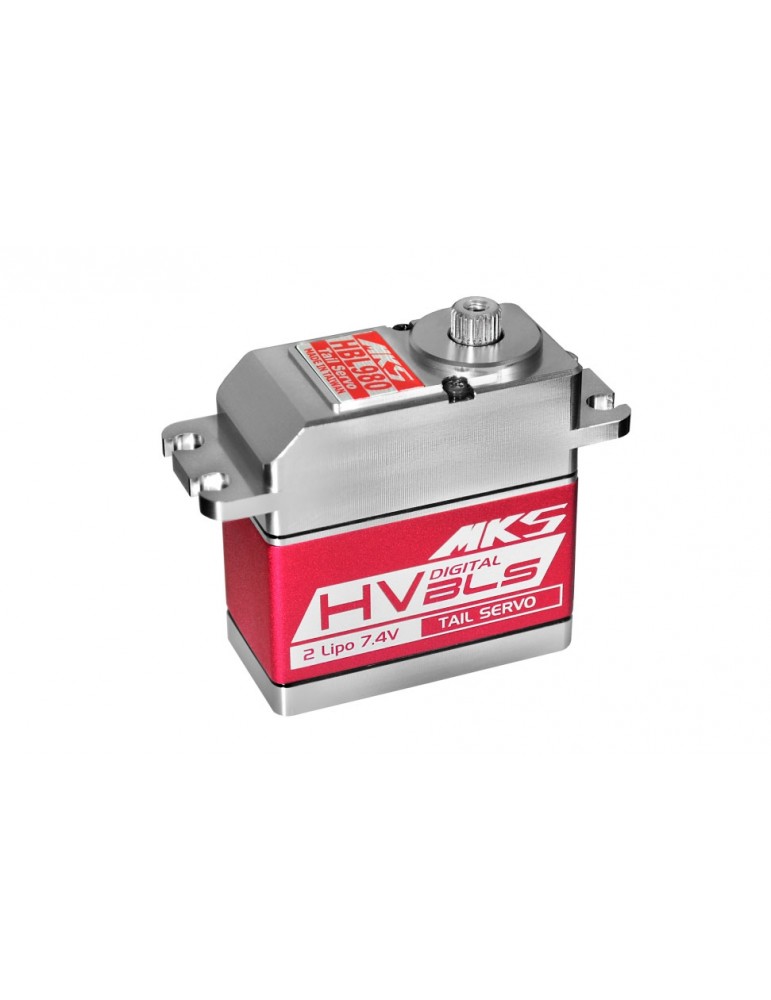

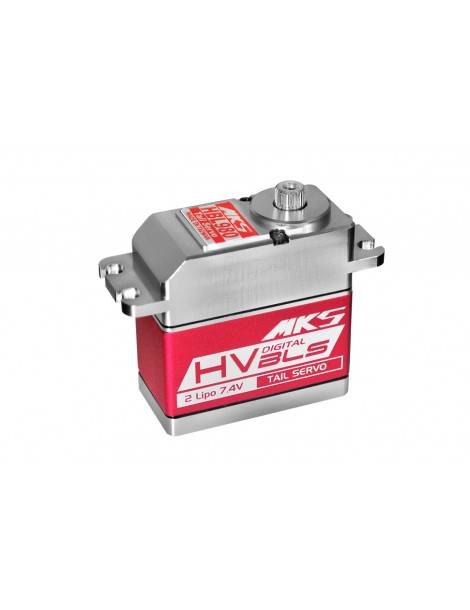

Ultra high speed narrowband (760µs) digital standard brushless servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 550-800 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case for perfect cooling even under high loads. This servo is not programmable.

Input voltage range 6.0-7.4 V (nominal).

Servo dimensionsStandard
Servo typeDigital
ProgrammableNo
Thrust at 6.0V [kg∙cm]4.5
Thrust at 7.4V [kg∙cm]5.6
Torque at 8.2 V [kg∙cm]6.2
Speed at 6.0V [s/60st.]0.04
Speed at 7.4V [s/60st.]0.036
Speed at 8.2 V [s/60st.]0.03
Control pulse width in neutral [µs]760
Frame Rate [Hz]560
Deadband [ms]0.0004
Servo gearsMetal
Ball bearings2×
High-voltageYes
Power supply [V]6 - 8.4

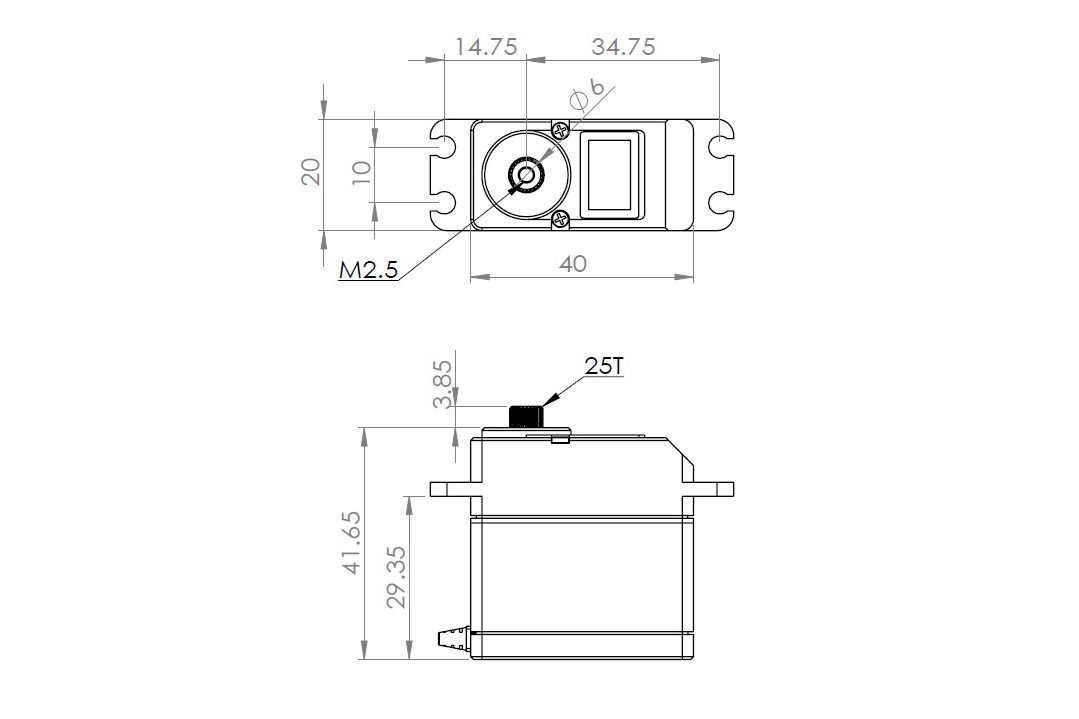

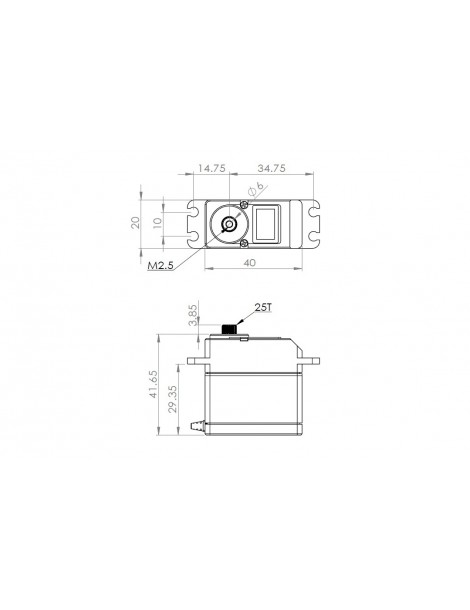

Length [mm]40
Width [mm]20
Height [mm]40
Weight [g]70.29
Intended forHelicopters
MKS
MKS10006
