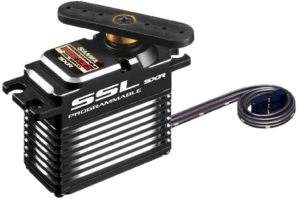

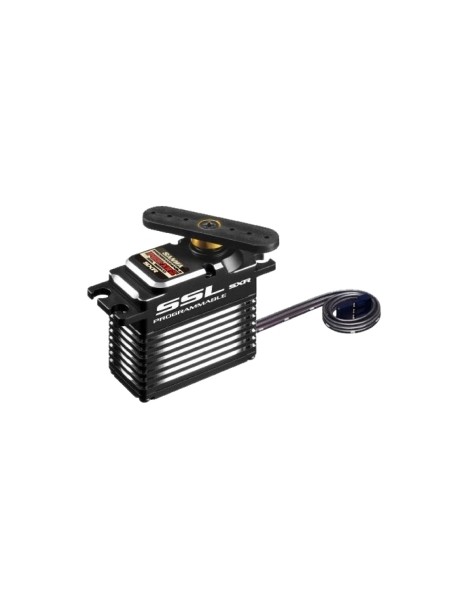

PGS-XR2 SXR High Power Brushless Torque Servo (High Voltage)

Features:

• SSL-Compatible Programmable Servo; *Compatible with CODE 10 (M12S, EXZES ZZ, MT-44) Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
• PGS Setting Gear-Compatible
• Super Response (SSR) Mode-Compatible
• High Response (SHR) Mode-Compatible
• LiPo 2S Compatible
• Low Profile
• High Speed
• Brushless Motor
• Full Aluminum Case
• Full Metal Gear (Strengthening Gears)
• Aluminum Heat Sink
• Programmable Servo to be compatible with SSL & Telemetry at Launch
• Setting Adjustment by wireless from Radio
• Setting Adjustment to connect Servo with Setting Gear
• Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.

• Speed (7.4V): 0.09 sec/60°
• Speed (6.0V): 0.11 sec/60°
• Torque (7.4V): 17.3 kg/cm
• Torque (6.0V): 14.0 kg/cm
• Dimensions: 40.5x20.5x38.7mm
• Weight: 72.0g

• SSL-CH (SSL Channel Setting)
• STRETC (Stretcher Adjustment)
• BOOST (BOOST Adjustment)
• D-Band (Dead Band Adjustment)
• MV-MID (Middle Torque Adjustment)
• MV-END (Later Torque Adjustment)
• BREAK (Break Adjustment)
• MV-HOLD (Power Adjustment at whole area)*
• MV-FRQ (Feeling Adjustment at whole area)*
• MAX-PW (MAX Duty Adjustment)*
