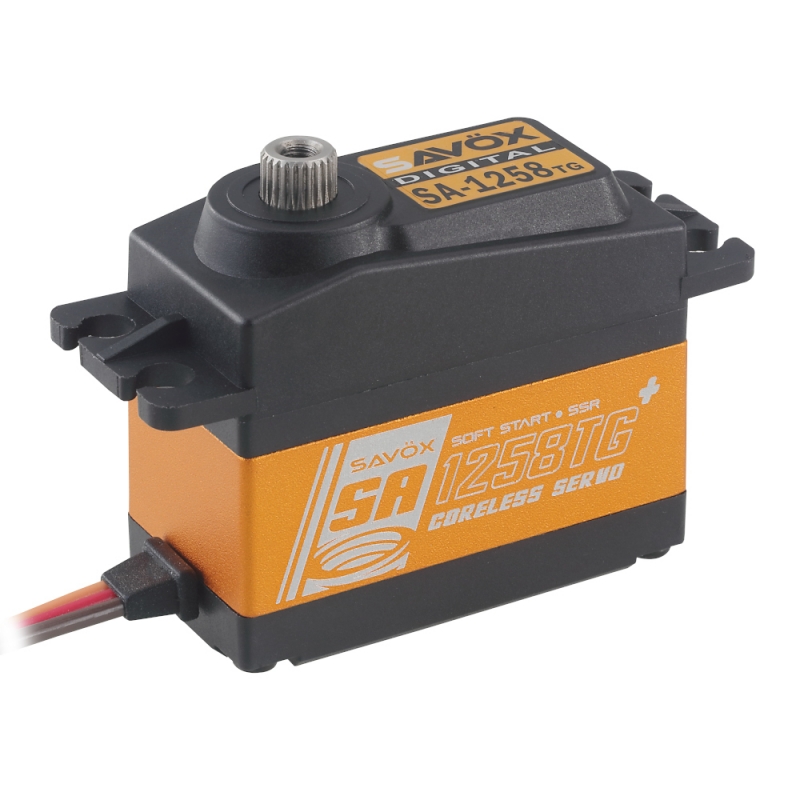

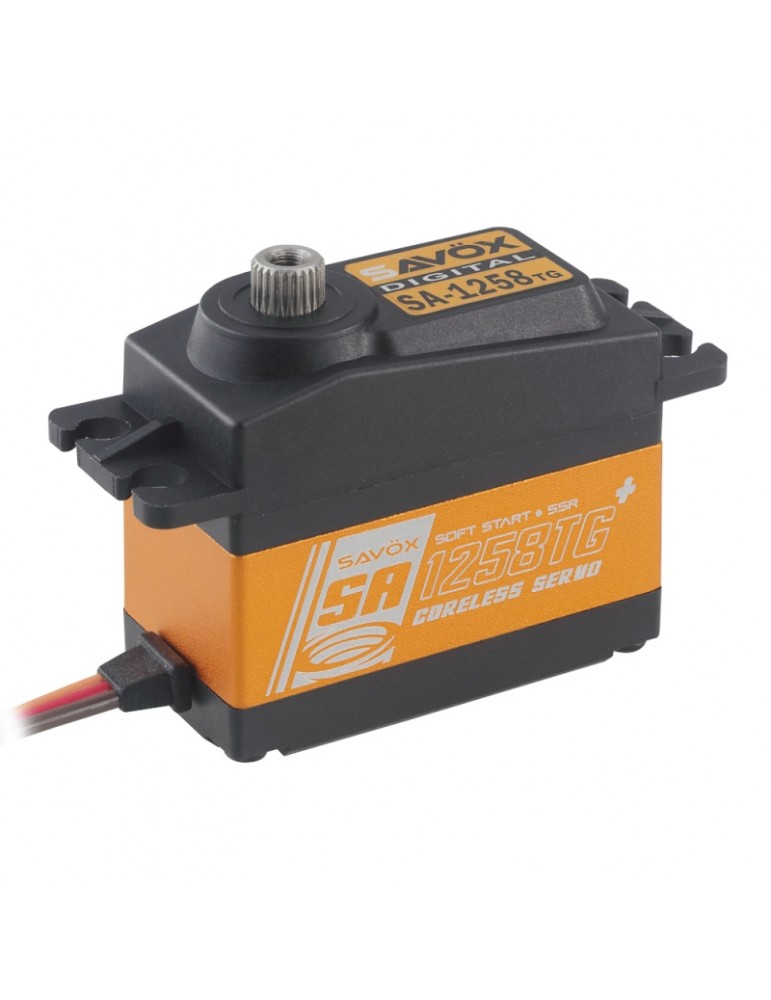

SA-1258TG+ Digital servo AIR VERZE (12kg-0,08s/60 )

The SA-1258TG+ servo is a high torque servo and is perfect for those who are looking for a minimized backlash to use on flying surfaces of RC planes.

Features:

• Titanium gears ensure long life,durability, and lighter weight.
• Minimized backlash for precision aerobatic airplane use.
• Aluminum middle case to help with cooler operating temperatures.
• NEW: SSR mode compatible
• NEW: SOFT START

• Torque @ 4.8v - 9.6kg
• Torque @ 6v - 12.0kg
• Speed @ 4.8v - 0.12 sec/60 deg
• Speed @ 6v - 0.10 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
• Weight: 52.4g

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 100mA @4.8V, 120mA @6.0V
• Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
