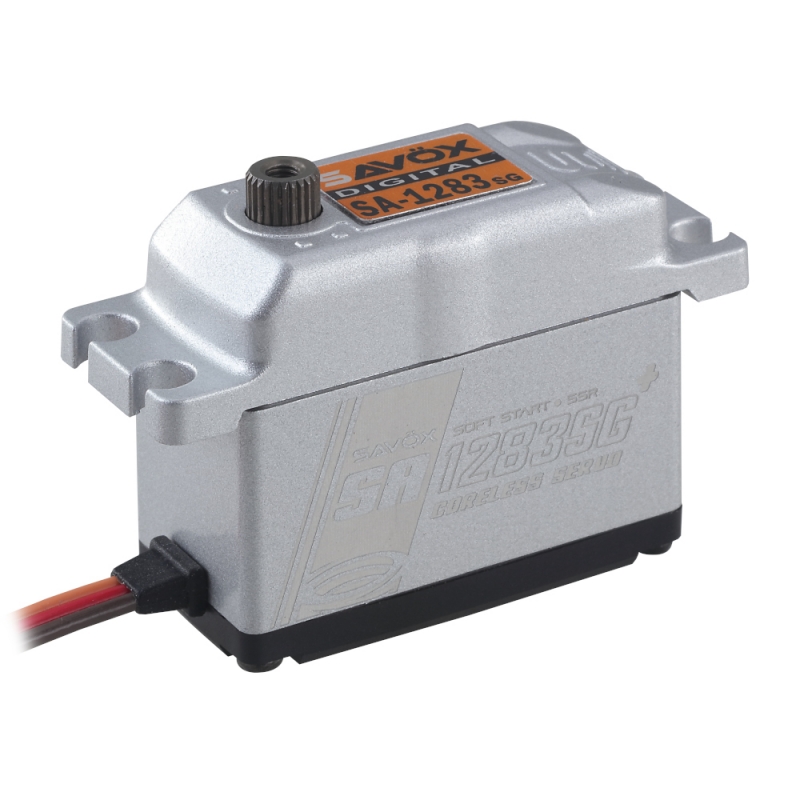

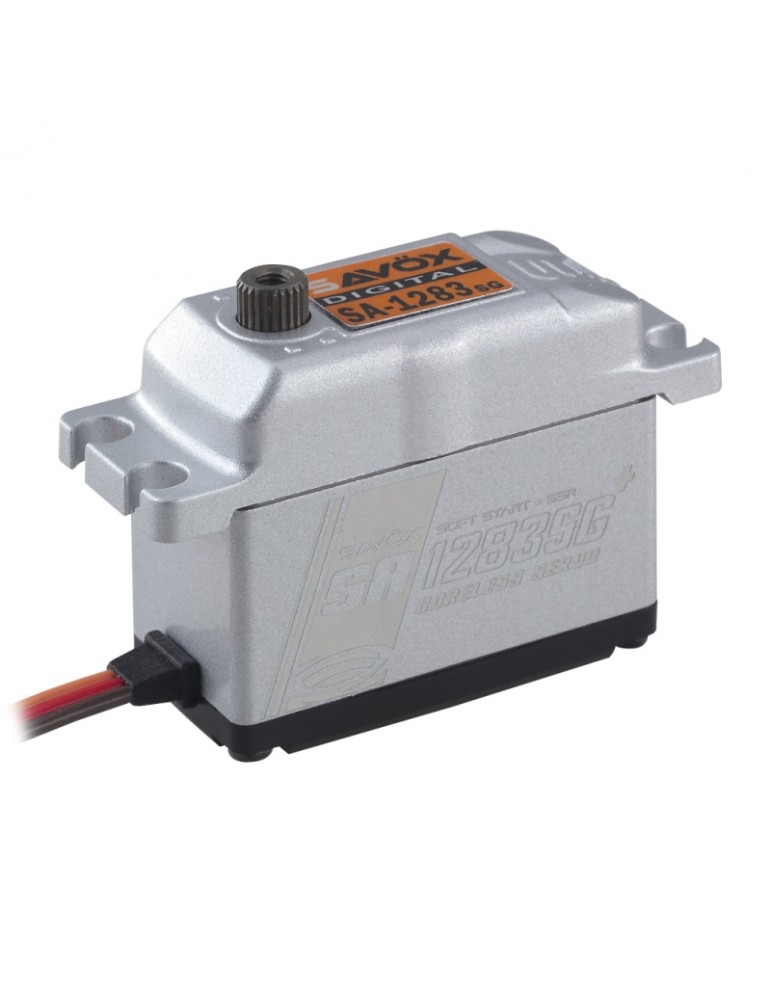

SA-1283SG+ Digital servo (30kg-0,13s/60 )

The SA-1283SG+ combines leading-edge technology with high 12-bit (4096) resolution for one amazing servo! The strong unique steel gears and all aluminum case ensure long-life and durability.

Features:

• NEW: SSR mode compatible
• NEW: SOFT START
• Combines leading edge technology with super high 12 bit (4096) resolution.
• Extremely strong unique steel gears ensure long-life and durability.
• Full aluminum case design provides for durability.
• Ideal for steering on rock crawlers, monster trucks, and 1/8th scale vehicles.

• Torque @ 4,8v - 25.0kg
• Torque @ 6.0v - 30.0kg
• Speed @ 4,8v - 0.16 sec/60 deg
• Speed @ 6.0v - 0.13 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 36.4
• Weight: 80g

• Operating Temperature: (-10° - 50°C)
• Running Current (no load): 100mA @4.8V, 120mA @6.0V
• Stall Current (at locked): 4800mA @4.8V, 6000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 950 → 2050 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
