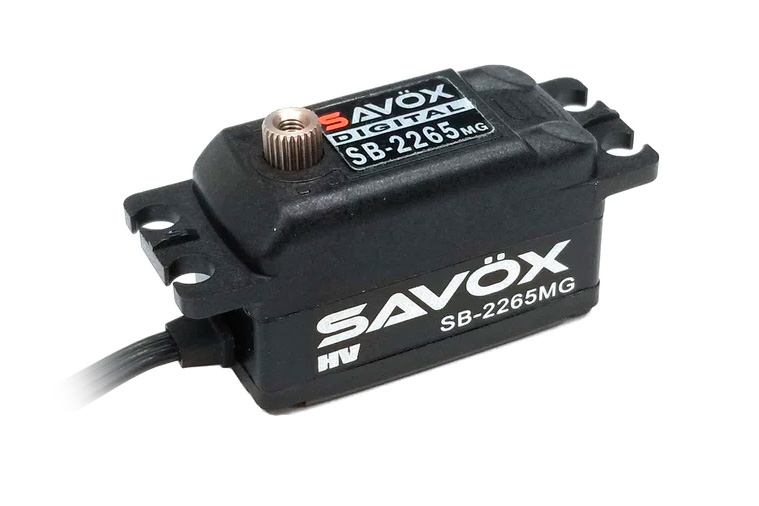

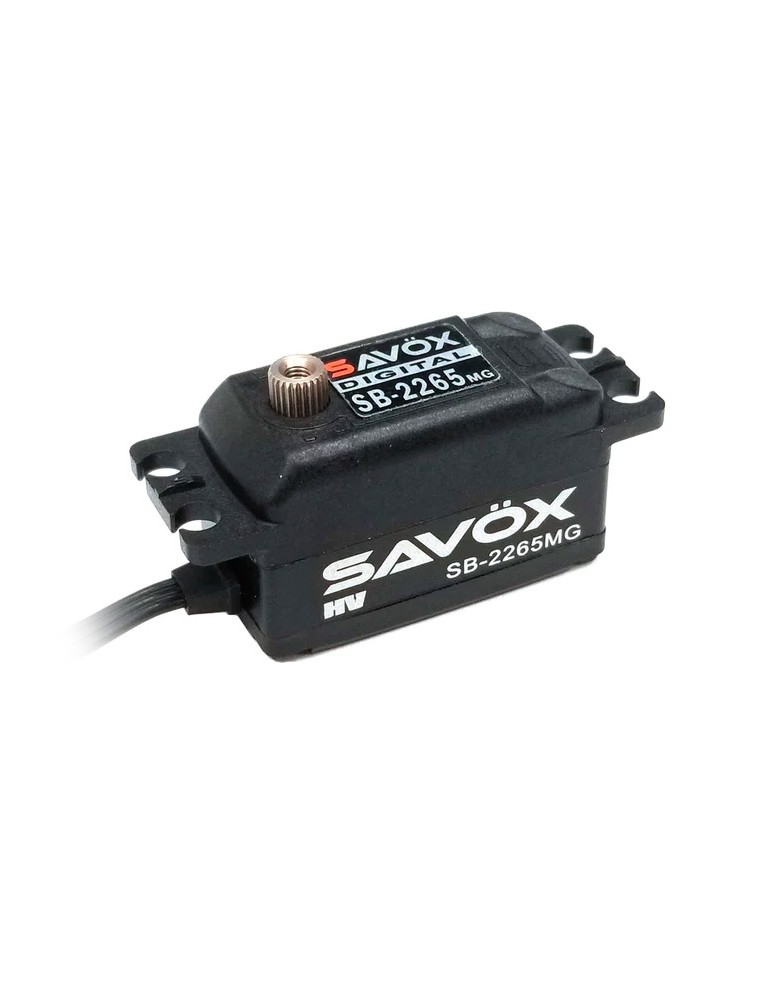

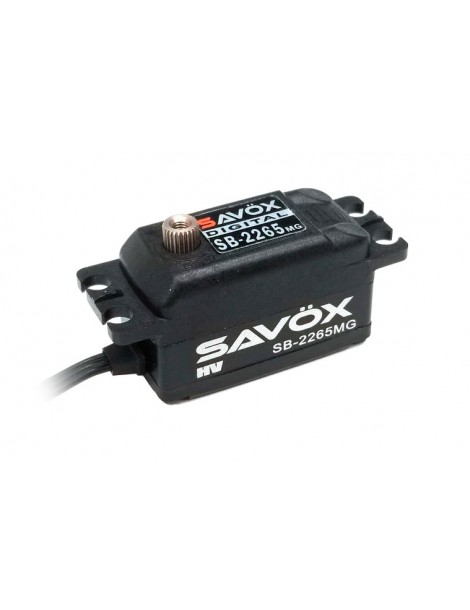

SB-2265MG BRUSHLESS HiVolt digital servo - LOW PROFILE (17kg-0,07s/60 )

Features:

• Metal gear train ensures durability under harsh situations.
• Ideal for 1/10 on road cars requiring a high speed servo
• Servo Type / Size: Low Profile
• Application: 1/10 Cars
• Motor Type: Brushless
• Gear Material: Steel

Specifications:

• Torque @ 6.0v - 10.0kg
• Torque @ 7.4v - 12.0kg
• Torque @ 8.4v - 17.0kg
• Speed @ 6.0V - 0.10 sec/60 deg
• Speed @ 7.4v - 0.08 sec/60 deg
• Speed @ 8.4v - 0.07 sec/60 deg

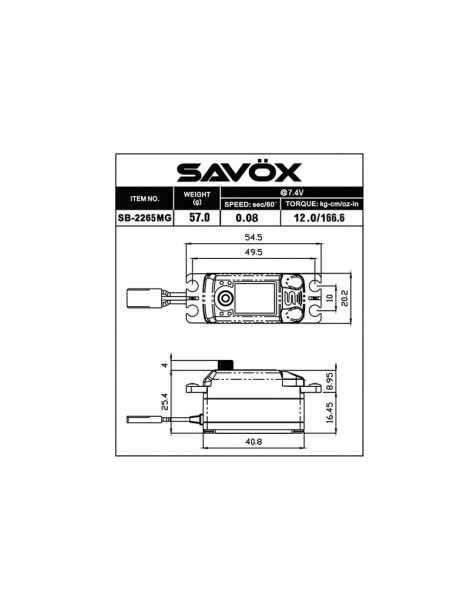

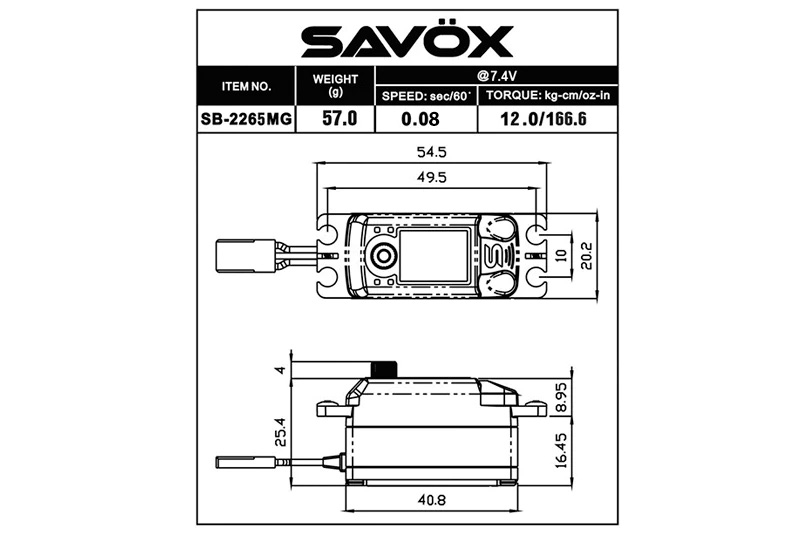

• Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
• Weight: 57.0g
• Spline size: 25T

Technical Details

• Operating Temperature: (-10° - 50°C)
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 3700mA @6.0 V, 4600mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
