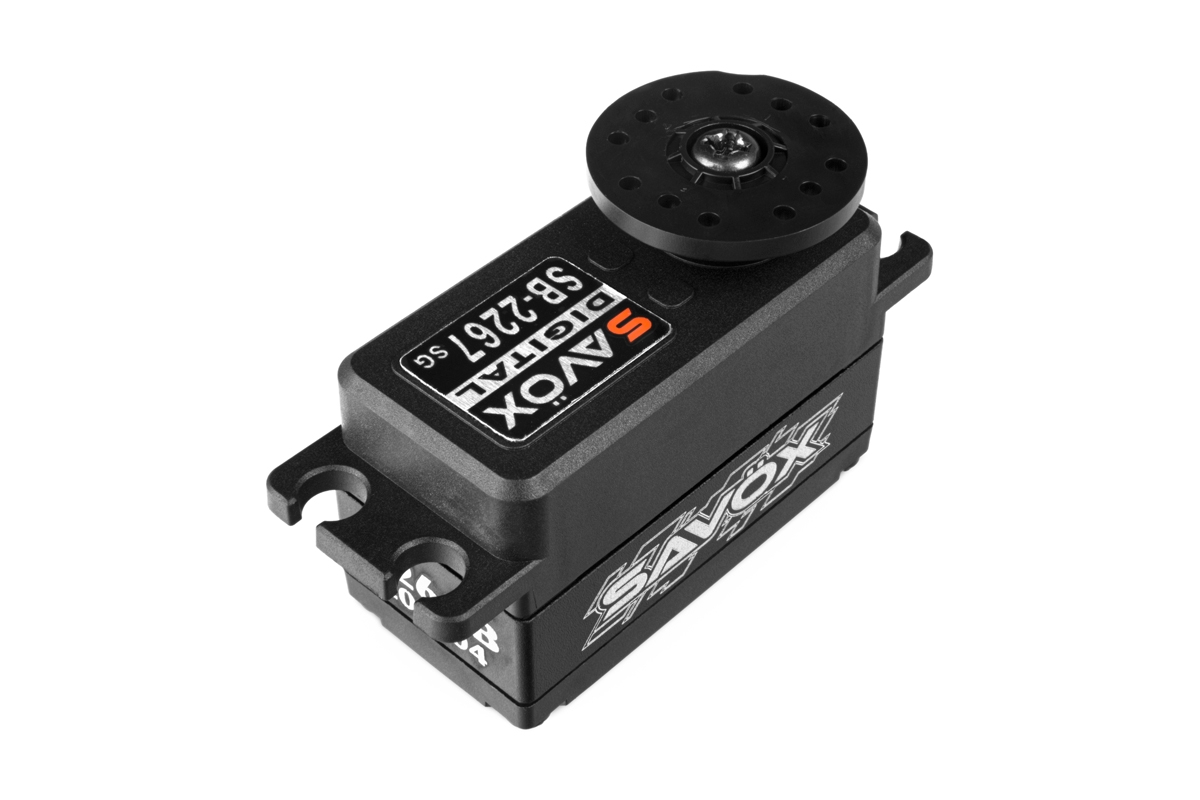

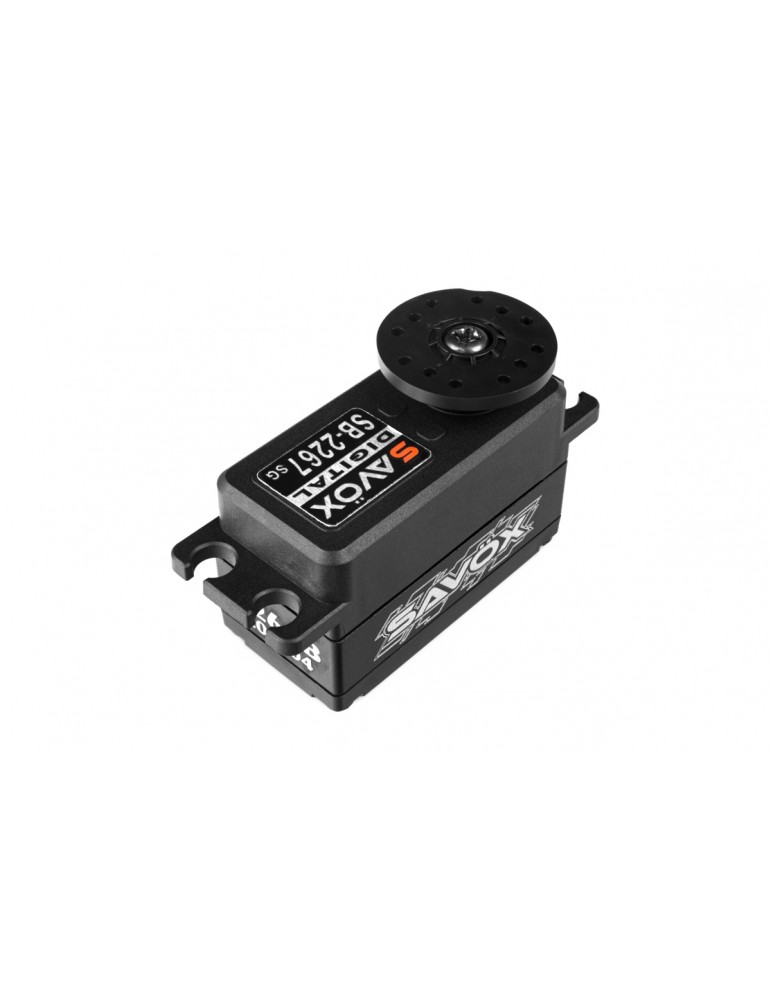

SB-2267SG BRUSHLESS HiVolt Digital servo - LOW PROFILE (32kg-0,065s/60 )

The powerful "Monster" performance series from Savox utilize, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:

• 2 Precision Ball Bearings.
• Unique steel gears
• NEW: SSR mode compatible
• NEW: SOFT START

• Torque @ 6v - 18.0kg
• Torque @ 7.4v - 25.0kg
• Torque @ 8.4v - 32.0kg
• Speed @ 6v - 0.10 sec/60 deg
• Speed @ 7.4v - 0.08 sec/60 deg
• Speed @ 8.4v - 0.065 sec/60 deg

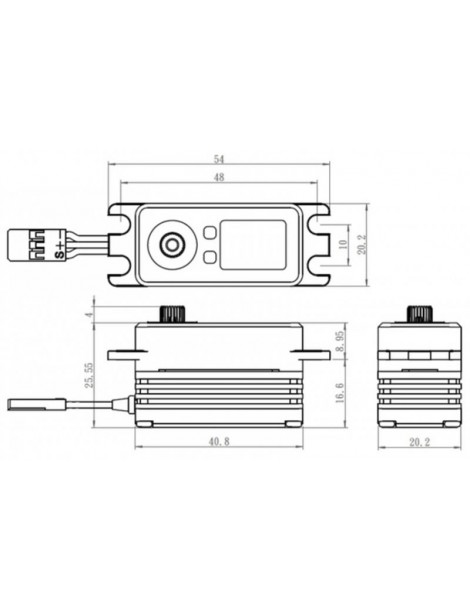

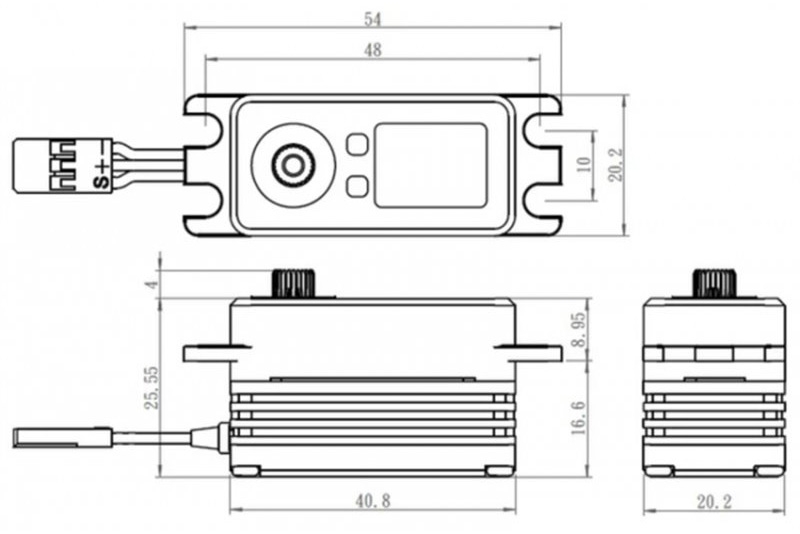

• Dimensions L x W x H (mm): 40.3 x 20.2 x 25.4
• Weight: 62g

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
• Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
