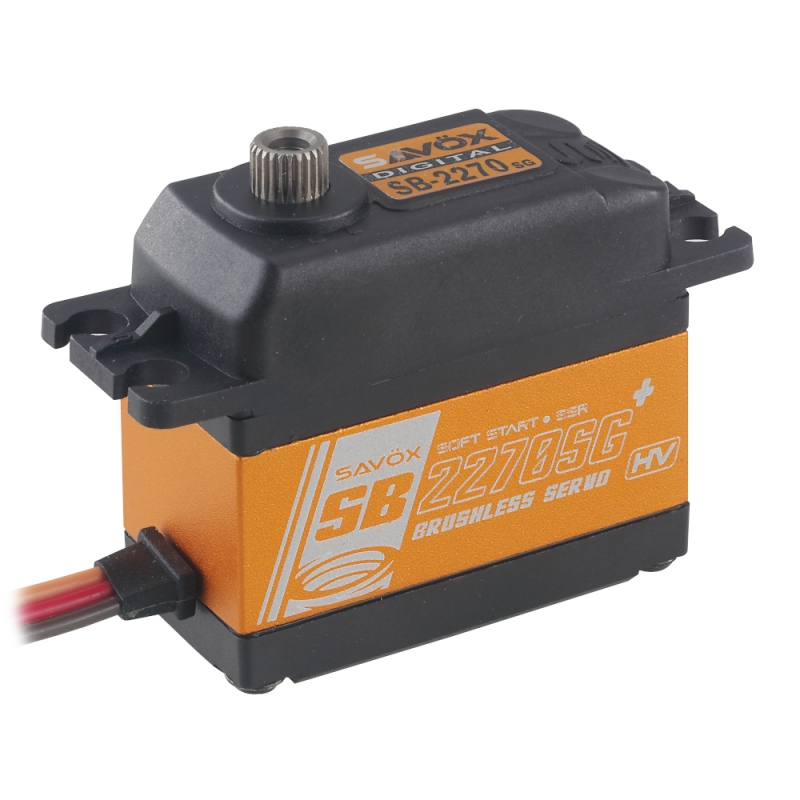

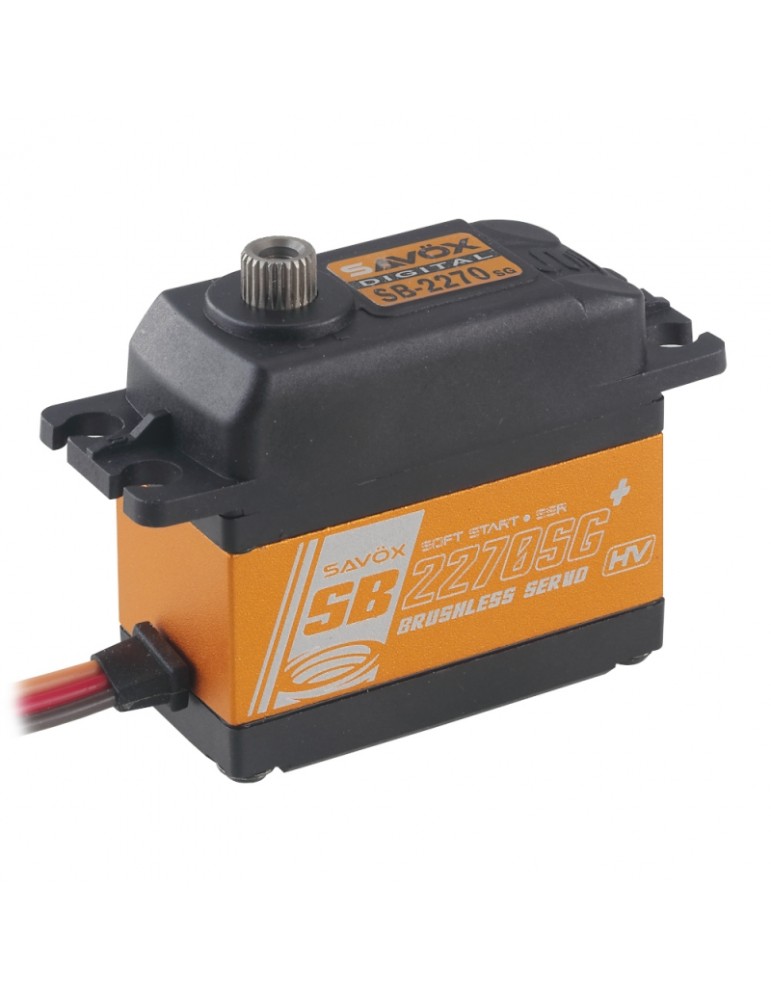

SB-2270SG+ BRUSHLESS HiVOLT Digital servo (45kg-0,11s/60 )

This is the Savox SB-2270SG+ Monster Torque Brushless Steel Gear Digital Servo which combines leading edge technology with super high 12 bit (4096) resolution.

Features:

• Extremely strong unique steel gears ensure long-life and durability.
• Capable of HV operation.
• Brushless motor for smooth operation and efficiency.
• Ideal for rock crawlers, monster trucks, and control surfaceS for giant scale aircraft.
• NEW: SSR mode compatible
• NEW: SOFT START

• Torque @ 6v - 25.0kg
• Torque @ 7.4v - 32.0kg
• Torque @ 7.4v - 45.0kg
• Speed @ 6v - 0.15 sec/60 deg
• Speed @ 7.4v - 0.12 sec/60 deg
• Speed @ 8.4v - 0.11 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 69.0g

• Operating Temperature: (-10° - 50°C)
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
