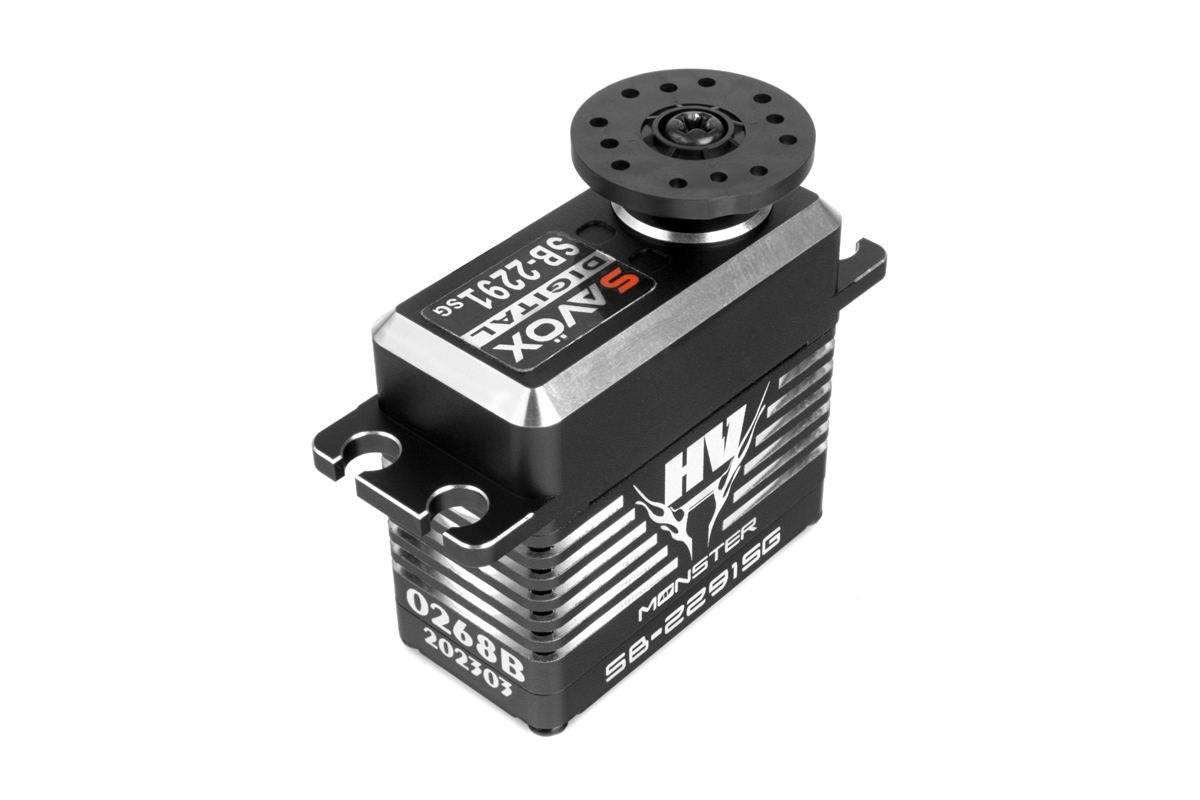

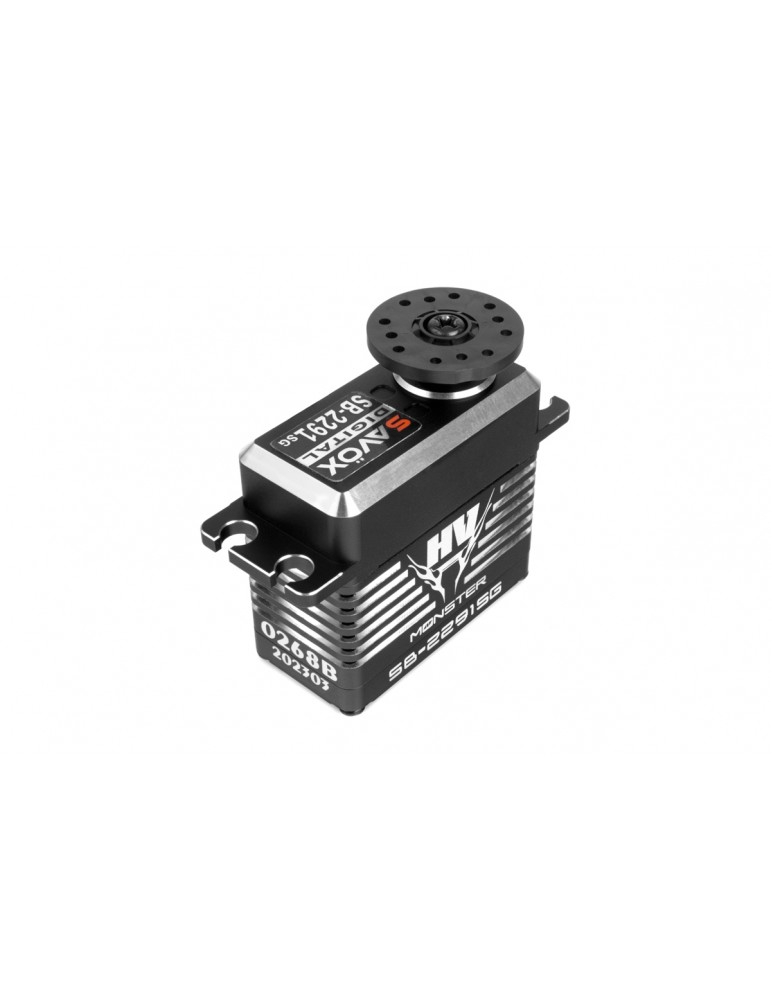

SB-2291SG BRUSHLESS HiVOLT Digital servo (30kg-0,042s/60 )

This member of the Savox Monster Series family delivers an impressively quick 0.042 second transit time while producing above-average torque for specific applications where response time is the primary concern. Models like 1/8 on-road cars, 1/10 nitro touring, and even 1/8 EP and GP buggies can improve performance with a more responsive servo, and the SB2291SG fills the need perfectly. Features Savox's patented brushless servo motor technology that provides up to 50% more power than motors in competing brands, while smoothness and reliability are optimized through the use of three precision ball bearings.

Features:

• NEW: SSR mode compatible
• NEW: SOFT START
• Full Aluminum Case
• 3 Precision Ball Bearings.
• Unique steel gears

• Torque @ 6.0v - 17.0kg
• Torque @ 7.4v - 23.0kg
• Torque @ 8.4v - 30.0kg
• Speed @ 6.0v - 0.06 sec/60 deg
• Speed @ 7.4v - 0.05 sec/60 deg
• Speed @ 8.4v - 0.042 sec/60 deg

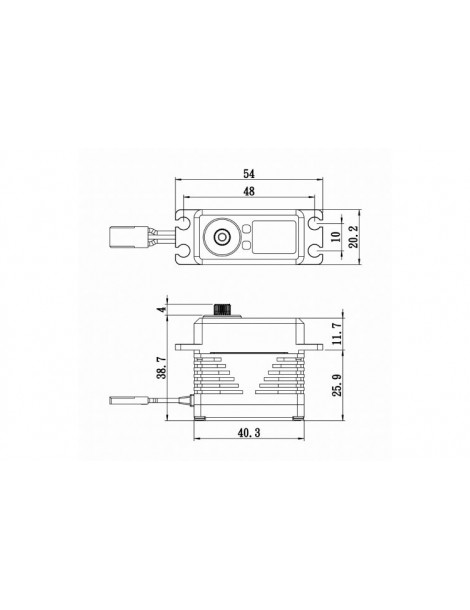

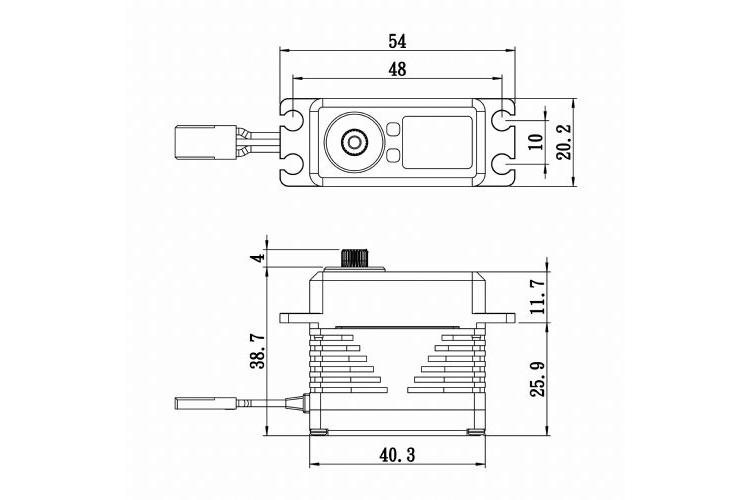

• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 79g

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
• Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
